◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11656 - FYH THAILAND EURO3 ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#151069) — 77 parça

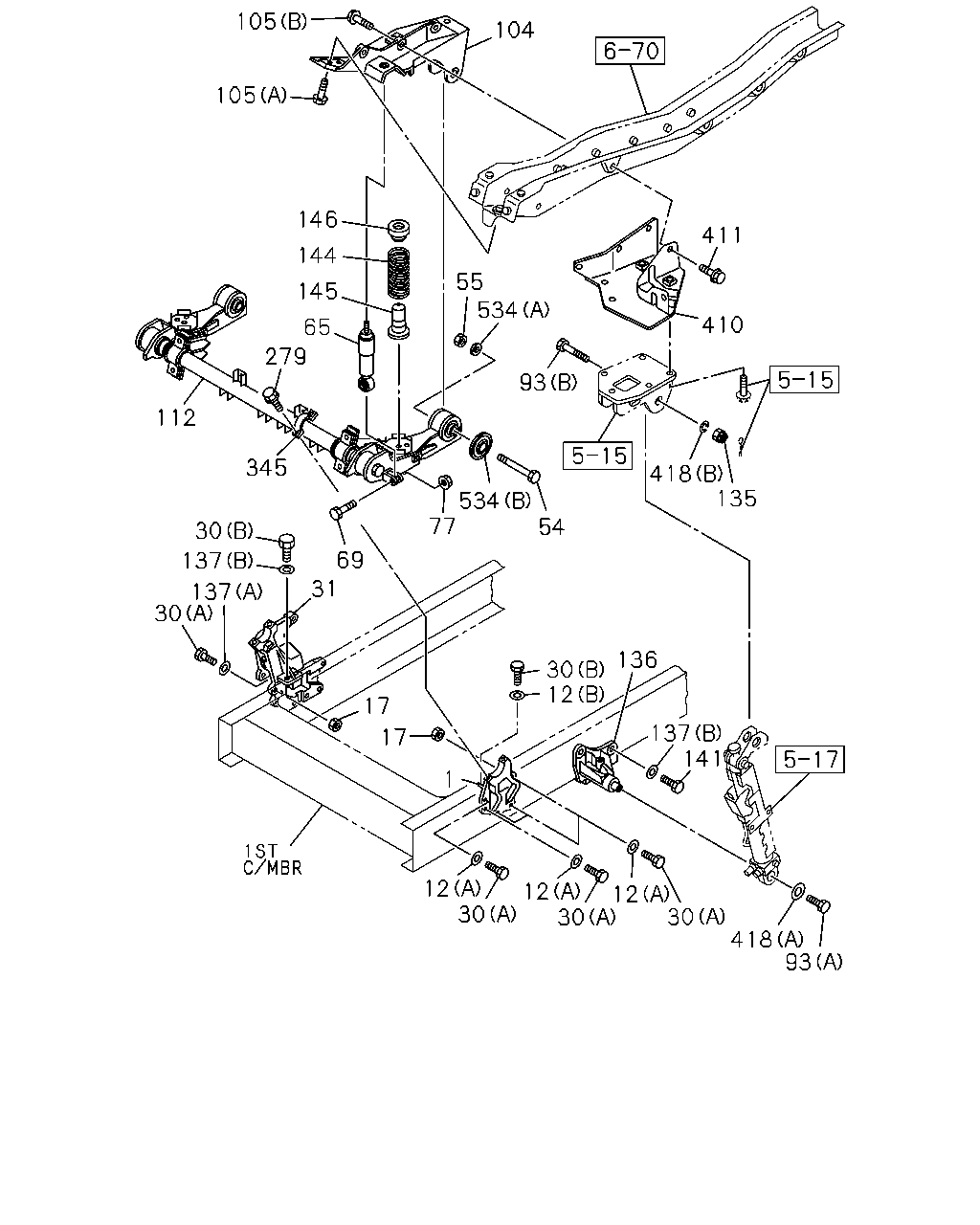

çizim 449157
105 104 105 146 144 145 65 279 112 345 55 534 93 411 410 534 77 54 418 135 30 137 137 30 69 31 17 17 30 12 136 137 141 12 30 12 30 12 30 418 93 1
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; CAB MTG
THA 		8-98054-826-0 01 1 1410-
12 WASHER; LK,BRKT
(A) ID=16.2 THA 		1-09503-316-0 12 1 1410-
12 WASHER; LK,BRKT
(B) ID=15 THA 		8-98010-627-1 02 1 1410-
17 NUT; BRKT,CAB TILT
M16 FLANGE THA 		0-91180-216-0 05 1 1410-
17 NUT; BRKT,CAB TILT
M16 THA 		0-91110-516-0 06 1 1410-
30 BOLT; CAB FRT FOOT
(B) M14X60 THA 		0-20951-460-0 04 1 1410-
30 BOLT; CAB FRT FOOT
(A) M16X60 THA 		0-20951-660-0 11 1 1410-
31 BRACKET; CAB
THA 		8-97948-891-0 01 1 1410-
54 BOLT; RUBBER
M18X90 THA 		0-10856-890-0 02 1 1410-
55 NUT; RUBBER
M18 THA 		0-91110-518-0 02 1 1410-
65 ABSORBER; SHOCK,CAB FRT SUSPENSION
THA 		8-97948-505-0 02 1 1410-
69 BOLT; S/ABS,CAB FRT SUSPENSION
M12X60 THA 		0-20801-260-0 02 1 1410-
77 NUT
M12 FLANGE THA 		0-91180-212-0 02 1 1410-
93 BOLT; PIN
(A) M10X30 THA 		1-09000-283-0 01 1 1410-
93 BOLT; PIN
(B) M14X70 THA 		1-53458-633-0 01 1 1410-
104 BRACKET; CAB FRAME,CAB FRT MTG
THA 		8-98054-821-2 01 1 1410-
104 BRACKET; CAB FRAME,CAB FRT MTG
THA 		8-98054-822-2 01 1 1410-
105 BOLT; BRKT TO CAB FRAME
(A) M12X35 FLANGE THA 		0-28651-235-0 06 1 1410-
105 BOLT; BRKT TO CAB FRAME
(B) M10X30 FLANGE THA 		0-28661-030-0 08 1 1410-
112 ARM ASM; LINK,CAB FRT SUSP
THA 		8-98100-381-0 01 1 1410-
135 NUT; PIN
M14 SLOTTED THA 		0-91116-514-0 01 1 1410-
136 BRACKET; OIL CYL
THA 		8-98054-835-0 01 1 1410-
137 WASHER; PL,BRKT
(A) ID=16.2 THA 		1-09503-316-0 05 1 1410-
137 WASHER; PL,BRKT
(B) ID=15 THA 		8-98010-627-1 02 1 1410-
141 BOLT; BRKT
M14X50 THA 		0-20951-450-0 04 1 1410-
144 SPRING; COIL,CAB FRT SUSPENSION
THA 		1-09580-537-0 02 1 1410-
145 RUBBER; CUSHION,CAB FRT SUSPENSION
THA 		8-97948-023-0 02 1 1410-
146 SEAT; SPRING,CAB FRT SUSPENSION
THA 		1-53366-138-0 02 1 1410-
279 BOLT
M12X40 FLANGE THA 		0-28061-240-0 04 1 1410-
345 CAP; CAB
THA 		1-53458-336-3 02 1 1410-
410 REINFORCEMENT; CAB TILT
THA 		8-98054-960-3 01 1 1410-
411 BOLT; REINFORCEMENT
M8X20 FLANGE THA 		0-28650-820-0 03 1 1410-
411 BOLT; REINFORCEMENT
M10X30 FLANGE THA 		0-28661-030-0 02 1 1410-
418 WASHER; PL,PIN
(B) ID=14.2 THA 		0-91510-814-0 01 1 1410-
418 WASHER; PL,PIN
(A) ID=10.5 OD=32 THA 		0-91614-810-0 01 1 1410-
534 WASHER; RUBBER
(A) ID=19 OD=30 THA 		1-09503-279-0 02 1 1410-
534 WASHER; RUBBER
(B) ID=34.5 THA 		1-53458-281-1 02 1 1410-
çizim 450831
65 202 203 205 203 202 204 204 27 48 51 535 191 191 535 51 48 27 536 51 191 535 535 535 191 535 535 535 51 536 112
BalonParca AdiParca NoAdetTipApplied Date
27 BOLT; BUSHING
M18X120 THA 		1-09000-442-1 02 1 1410-
48 WASHER; PL
ID=19 OD=30 THA 		1-09503-279-0 02 1 1410-
51 BUSHING; RUBBER
THA 		1-53458-714-0 04 1 1410-
65 ABSORBER; SHOCK,CAB FRT SUSPENSION
THA 		8-97948-505-0 02 1 1410-
112 ARM ASM; LINK,CAB FRT SUSP
THA 		8-98100-381-0 01 1 1410-
191 BOLT; BRKT FIX
M12X35 FLANGE THA 		0-28051-235-0 08 1 1410-
202 NUT; S/ABS
(A) M10 FLANGE THA 		0-91180-110-0 02 1 1410-
202 NUT; S/ABS
(B) M12 FLANGE THA 		0-91180-212-0 04 1 1410-
202 NUT; S/ABS
(C) M10 THA 		9-09111-410-0 02 1 1410-
203 WASHER; RUBBER,SHOCK
(A) THA 		1-51631-005-0 02 1 1410-
203 WASHER; RUBBER,SHOCK
(B) THA 		1-51631-104-0 02 1 1410-
204 RUBBER; CUSHION,SHOCK
THA 		1-51631-004-0 04 1 1410-
205 WASHER; RUBBER,SHOCK
THA 		1-51631-079-0 02 1 1410-
535 BRACKET; LINK ARM
(A) THA 		8-98094-831-0 02 1 1410-
535 BRACKET; LINK ARM
(B) THA 		8-98094-832-0 02 1 1410-
535 BRACKET; LINK ARM
(C) THA 		8-98099-704-0 04 1 1410-
536 WASHER; SIDE
ID=34.5 THA 		1-53458-281-1 02 1 1410-

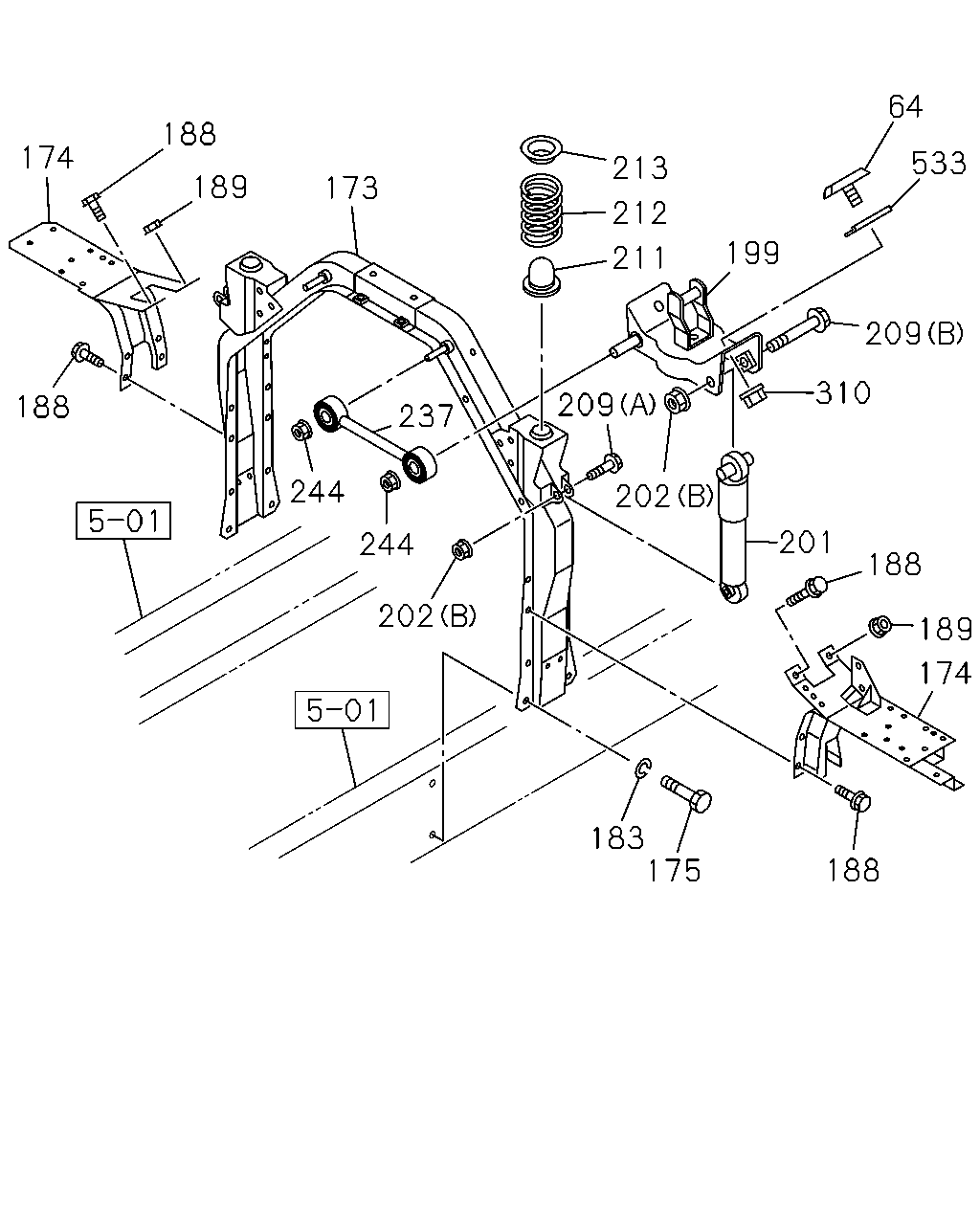

çizim 450954
174 188 189 173 188 213 212 211 244 237 244 202 209 202 199 64 533 209 310 201 188 189 174 183 175 188
BalonParca AdiParca NoAdetTipApplied Date
64 RUBBER; CUSHION
THA 		8-97113-340-0 04 1 1410-
173 MEMBER; CAB MTG RR
THA 		8-98054-836-3 01 1 1410-
174 OUTRIGGER
THA 		8-98054-838-1 01 1 1410-
174 OUTRIGGER
THA 		8-98054-839-2 01 1 1410-
175 BOLT; MEMBER TO FRAME
M14X40 THA 		0-20951-440-0 08 1 1410-
183 WASHER; PL,MEMBER
ID=15 THA 		8-98010-627-1 08 1 1410-
188 BOLT; OUTRIGGER
M12X30 FLANGE THA 		0-28661-230-0 10 1 1410-
189 NUT; OUTRIGGER
M12 FLANGE THA 		0-91180-212-0 02 1 1410-
199 BRACKET; CAB RR MTG
THA 		8-98025-488-4 01 1 1410-
199 BRACKET; CAB RR MTG
THA 		8-98025-489-4 01 1 1410-
201 ABSORBER ASM; SHOCK,RR MTG
THA 		8-98269-510-0 02 1 1410-
202 NUT; S/ABS
(A) M10 FLANGE THA 		0-91180-110-0 02 1 1410-
202 NUT; S/ABS
(B) M12 FLANGE THA 		0-91180-212-0 04 1 1410-
202 NUT; S/ABS
(C) M10 THA 		9-09111-410-0 02 1 1410-
209 BOLT; S/ABS
(B) M12X100 FLANGE THA 		0-28061-200-0 02 1 1410-
209 BOLT; S/ABS
(A) M12X60 FLANGE THA 		0-28051-260-0 02 1 1410-
211 RUBBER; CUSHION,S/ABS
THA 		8-97926-572-0 02 1 1410-
212 SPRING; COIL
THA 		1-09580-398-1 02 1 1410-
213 SEAT; SPR,S/ABS
THA 		1-53366-062-2 02 1 1410-
237 ROD ASM; LATERAL
THA 		1-53459-585-2 02 1 1410-
244 NUT; LATERAL ROD
M16 FLANGE THA 		0-91180-216-0 04 1 1410-
310 NUT; CUSHION
M8 FLANGE THA 		0-91180-108-0 04 1 1410-
533 SPACER; MTG RUBBER
THA 		8-98100-388-0 04 1 1410-
