5-01 — FRAME AND OTHER PARTS (#151068) — 63 parça

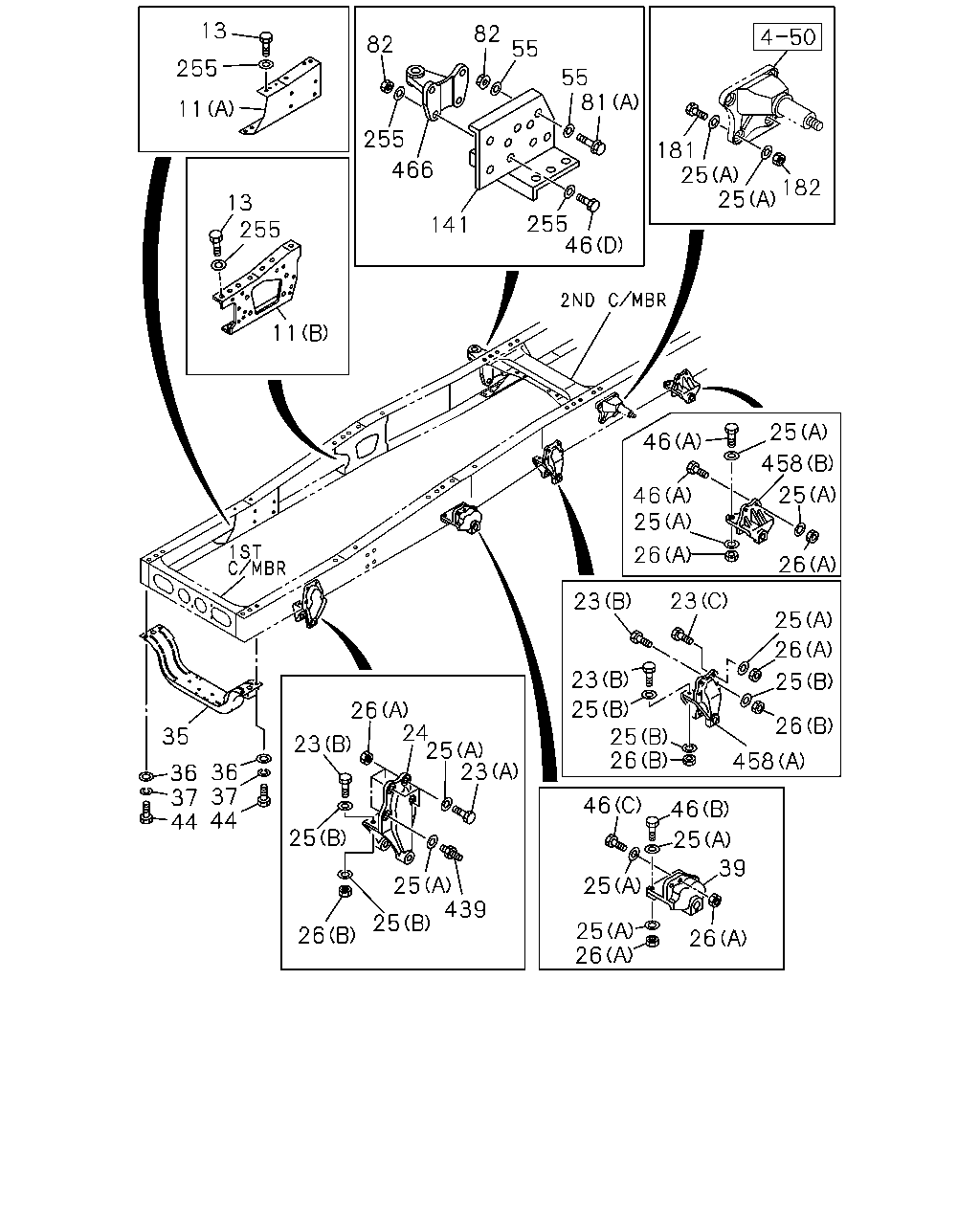

13 11 255 82 82 255 141 55 255 55 46 81 25 181 182 25 25 46 46 26 25 26 25 458 23 23 23 25 25 26 458 25 26 25 26 46 46 25 39 26 25 25 26 26 24 25 23 23 25 26 439 25 25 35 36 37 44 44 36 37 13 11 255 466

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BRACKET; ENG MTG (A) THA	8-97948-488-0	01	1	1410-
11	BRACKET; ENG MTG (A) THA	8-97948-491-0	01	1	1410-
11	BRACKET; ENG MTG (B) THA	8-98084-524-0	01	1	1410-
11	BRACKET; ENG MTG (B) THA	8-98084-525-0	01	1	1410-
13	BOLT; BRKT,ENG MTG M14X35 THA	0-20951-435-0	04	1	1410-
13	BOLT; BRKT,ENG MTG M14X40 THA	0-20951-440-0	12	1	1410-
23	BOLT; BRKT,SPR (B) M16X50 THA	0-20951-650-0	12	1	1410-
23	BOLT; BRKT,SPR (A) M14X43 THA	8-98097-159-0	03	1	1410-
23	BOLT; BRKT,SPR (A) M14X40 THA	0-20951-440-0	04	1	1409-
23	BOLT; BRKT,SPR (C) M14X50 THA	0-20951-450-0	04	1	1409-
24	BRACKET; FRT SPR,FRT THA	8-97948-496-0	02	1	1410-
25	WASHER; PL,BRKT (B) ID=16.2 THA	1-09503-316-0	20	1	1410-
25	WASHER; PL,BRKT (A) ID=15 THA	8-98010-627-1	52	1	1409-
26	NUT; BRKT,SPR (A) M14 THA	0-91110-514-0	28	1	1410-
26	NUT; BRKT,SPR (B) M16 THA	0-91110-516-0	12	1	1410-
35	MEMBER; UNDER THA	1-53174-263-2	01	1	1410-
36	WASHER; PL,UNDER MBR ID=17 THA	0-91614-516-0	04	1	1410-
37	WASHER; LK,UNDER MBR ID=16.2 THA	0-91510-816-0	04	1	1410-
39	BRACKET; FRT SPR,RR THA	1-53352-152-0	01	1	1410-
39	BRACKET; FRT SPR,RR THA	1-53352-153-0	01	1	1410-
44	BOLT; UNDER MBR M16X60 THA	0-20951-660-0	04	1	1410-
46	BOLT; BRKT FIX (C) M14X40 THA	0-20951-440-0	04	1	1410-
46	BOLT; BRKT FIX (A) M14X50 THA	0-20951-450-0	04	1	1410-
46	BOLT; BRKT FIX (D) M14X60 THA	0-20951-460-0	08	1	1409-
46	BOLT; BRKT FIX (B) M14X40 THA	8-98097-157-0	04	1	1410-
55	WASHER; PL ID=15 THA	8-98010-627-1	10	1	1410-
81	BOLT; BRKT (A) M14X50 THA	0-20951-450-0	07	1	1410-
81	BOLT; BRKT (B) M14X205 THA	1-09000-147-0	02	1	1410-
82	NUT; BRKT M14 THA	0-91110-514-0	13	1	1410-
141	STIFFENER THA	1-53151-833-1	01	1	1410-
181	BOLT; S/ABS BRKT TO FRAME M14X50 THA	0-20951-450-0	08	1	1410-
182	NUT; S/ABS BRKT TO FRAME M14 THA	0-91110-514-0	08	1	1410-
255	WASHER; PL,BRKT ID=15 THA	8-98010-627-1	24	1	1410-
439	STUD; BRKT,SPR M12X25,M14X45 L=81 THA	1-09029-103-0	01	1	1410-
458	BRACKET; LEAF SPRING (A) THA	1-53351-217-0	01	1	1410-
458	BRACKET; LEAF SPRING (A) THA	1-53351-218-0	01	1	1410-
458	BRACKET; LEAF SPRING (B) THA	1-53352-067-3	02	1	1410-
466	BRACKET; BOOSTER THA	8-97948-481-0	01	1	1410-

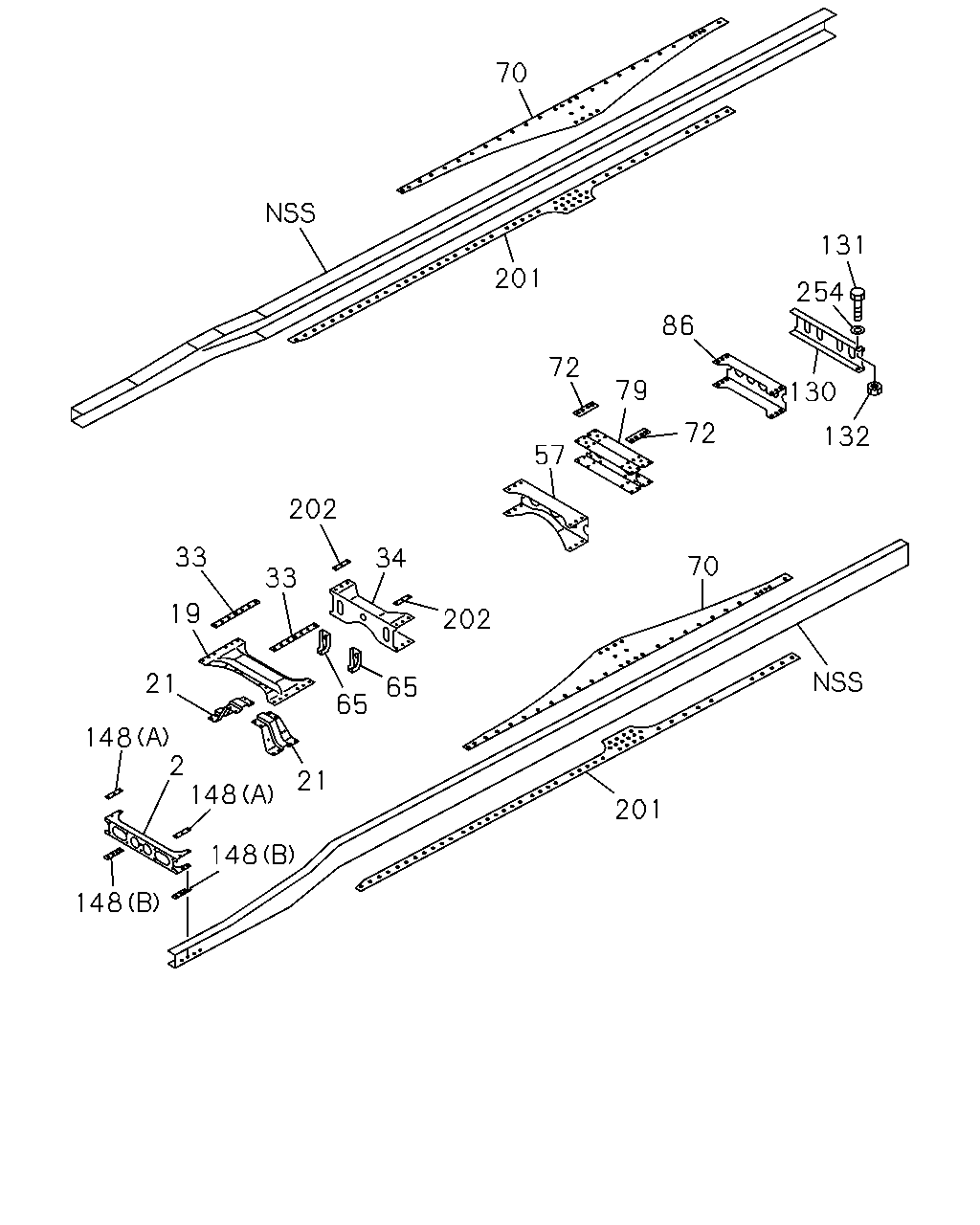

70 201 148 148 148 2 148 21 21 33 19 65 33 202 65 202 34 201 70 57 72 86 131 130 79 132 72 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST THA	8-97623-017-3	01	1	1410-
19	MEMBER; CROSS,2ND THA	1-53174-221-0	01	1	1410-
21	GUSSET; 2ND CROSS THA	1-53164-225-0	02	1	1410-
33	SPACER; 2ND C/MBR,UPR THA	1-53168-443-0	02	1	1410-
34	MEMBER; CROSS,3RD THA	1-53182-072-1	01	1	1410-
57	MEMBER; CROSS,RR SUSP FRT THA	1-53181-994-1	01	1	1410-
65	BRACKET; CENTER BRG THA	8-97614-125-0	02	1	1410-
70	GUSSET; TRUNNION,UPR THA	8-97926-895-1	02	1	1410-
72	SPACER; TRUNNION THA	8-97922-399-0	02	1	1410-
79	MEMBER; CROSS,TRUNNION ASM THA	8-97623-020-3	01	1	1410-
86	MEMBER; CROSS,RR SUSP RR THA	1-53181-757-3	01	1	1410-
130	MEMBER; CROSS,END THA	8-98103-326-1	01	1	1410-
131	BOLT; END C/MBR M14X40 THA	0-20951-440-0	04	1	1410-
132	NUT; END C/MBR M14 THA	0-91110-514-0	04	1	1410-
148	SPACER; C/MBR (A) THA	1-53168-400-1	02	1	1410-
148	SPACER; C/MBR (B) THA	1-53168-403-1	02	1	1410-
201	GUSSET; C/MBR THA	8-97926-900-1	02	1	1410-
202	SPACER; 3RD C/MBR THA	8-98192-275-0	02	1	1410-
254	WASHER; PL,C/MBR ID=15 THA	8-98010-627-1	04	1	1410-

82 84 82 84 80 84 81 81 84 80 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
79	MEMBER; CROSS,TRUNNION ASM THA	8-97623-020-3	01	1	1410-
80	BRACKET; C/MBR THA	1-53363-031-2	02	1	1410-
81	BOLT; BRKT (A) M14X50 THA	0-20951-450-0	07	1	1410-
81	BOLT; BRKT (B) M14X205 THA	1-09000-147-0	02	1	1410-
82	NUT; BRKT M14 THA	0-91110-514-0	13	1	1410-
84	WASHER; PL,BRKT ID=15 THA	8-98010-627-1	08	1	1410-
