Isuzu WW
▶
TRUCKS
▶
FYH
▶
11656 - FYH THAILAND EURO3
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

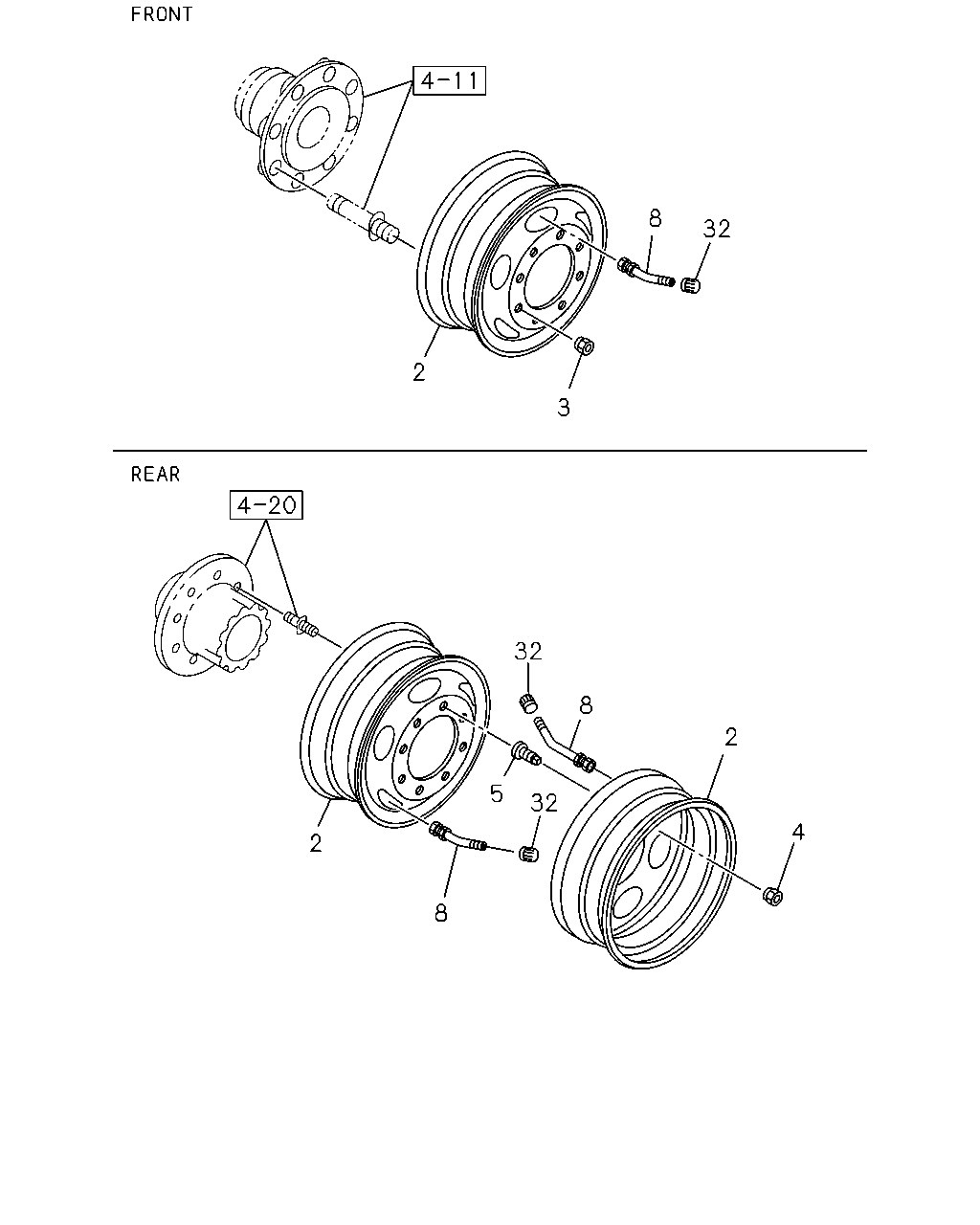

4-80 — ROAD WHEEL
(#151067) — 13 parça
8
32
3
2
32
8
2
4
32
5
8
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> SPARE THA
8-97520-624-0
01
1
1410-
2
WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> FRONT THA
8-97520-624-0
04
1
1410-
2
WHEEL; DISC
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> REAR THA
8-97520-624-0
08
1
1410-
3
NUT; WHEEL,FRT AXLE
M24 THA
1-42333-022-3
16
1
1410-
3
NUT; WHEEL,FRT AXLE
M24 LH THREAD THA
1-42334-022-3
16
1
1410-
4
NUT; WHEEL,RR AXLE
M30 RH THREAD THA
8-97359-809-0
16
1
1410-
4
NUT; WHEEL,RR AXLE
M30 LH THREAD THA
8-97359-810-0
16
1
1410-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD THA
8-97359-805-0
16
1
1410-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD THA
8-97359-806-0
16
1
1410-
8
VALVE; TIRE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE THA
1-42370-020-3
01
1
1410-
8
VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> FRONT THA
1-42370-020-3
04
1
1410-
8
VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> REAR THA
1-42370-020-3
08
1
1410-
32
CAP; VALVE
THA
1-42374-001-0
13
1
1410-
