4-50 — FRONT SUSPENSION (#151063) — 77 parça

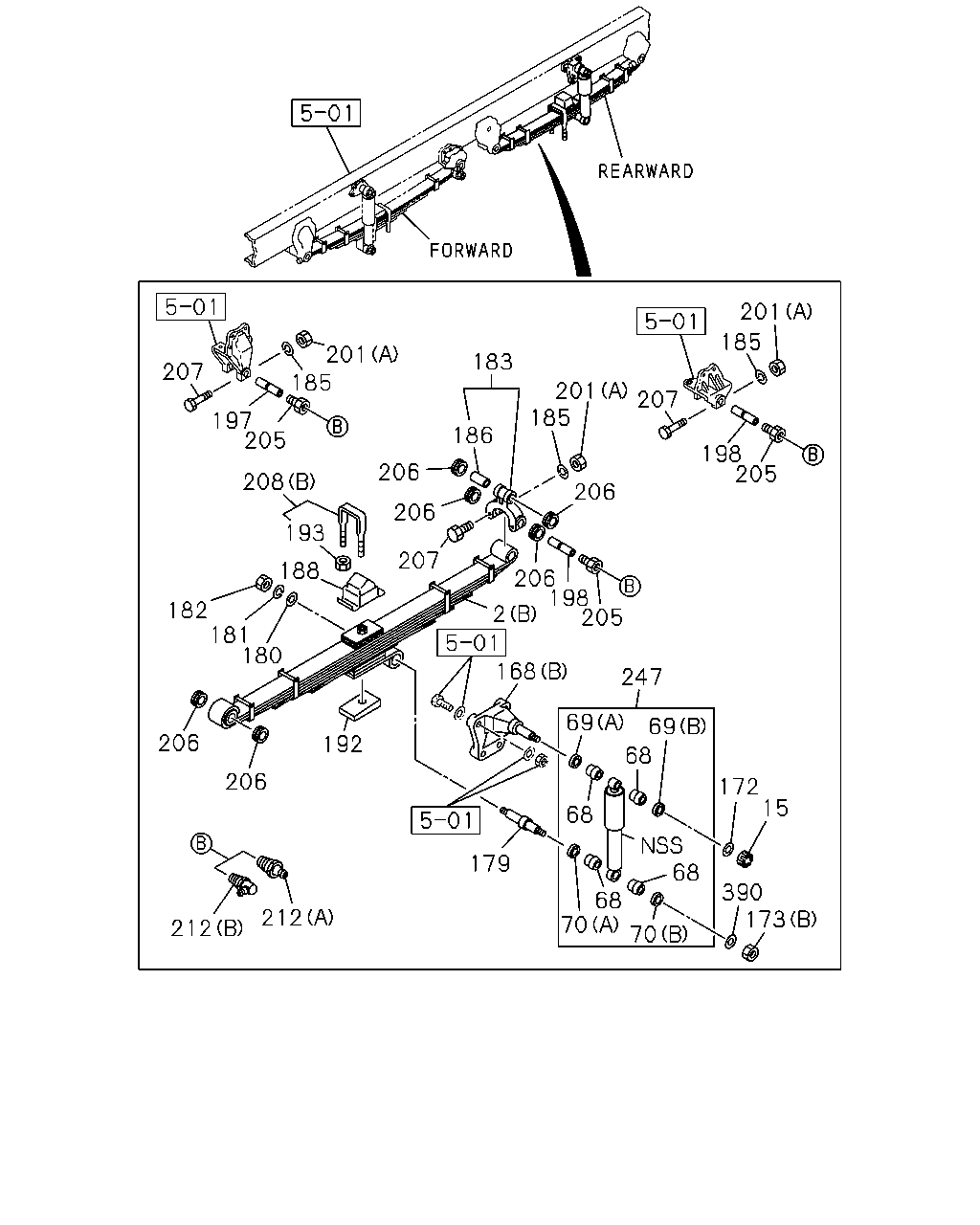

çizim 448818
201 185 207 197 205 208 206 193 206 188 207 182 181 180 183 186 206 206 201 185 207 201 185 198 205 198 205 168 247 69 69 68 172 15 173 390 68 70 68 70 68 179 192 206 206 212 212 2
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) THA 		8-98179-183-0 02 1 1410-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) THA 		8-98179-185-0 02 1 1410-
15 NUT; S/ABS,UPR
M20 THA 		0-91110-520-0 04 1 1410-
68 BUSHING; S/ABS
THA 		9-51631-026-0 16 1 1410-
69 WASHER; UPR,S/ABS
(A) ID=27 THA 		9-51631-027-0 02 1 1410-
69 WASHER; UPR,S/ABS
(B) ID=21 THA 		9-51631-028-0 02 1 1410-
70 WASHER; LWR,S/ABS
(A) ID=27 THA 		9-51631-027-0 02 1 1410-
70 WASHER; LWR,S/ABS
(B) ID=21 THA 		9-51631-028-0 02 1 1410-
168 BRACKET; S/ABS,FRT SUSP
(A) THA 		8-98182-383-0 02 1 1410-
168 BRACKET; S/ABS,FRT SUSP
(B) THA 		8-98182-384-0 02 1 1410-
172 WASHER; PL,S/ABS BRKT
ID=21 THA 		0-91610-520-0 04 1 1410-
173 NUT; S/ABS
(B) M20 THA 		0-91110-520-0 04 1 1410-
173 NUT; S/ABS
(A) M14 THA 		0-91110-514-0 08 1 1410-
179 PIN
THA 		1-51682-094-1 04 1 1410-
180 WASHER; PL,PIN
THA 		1-09503-169-0 04 1 1410-
181 WASHER; LK,PIN
THA 		8-98179-317-0 04 1 1410-
182 NUT; S/ABS LWR
M24 THA 		0-91110-524-0 02 1 1410-
183 SHACKLE; FRT SUSP
THA 		1-51162-029-5 04 1 1410-
185 WASHER; LK,PIN
ID=12.2 THA 		8-98179-315-0 24 1 1410-
186 BUSHING; SHACKLE
OD=38 THA 		8-98081-829-0 04 1 1410-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
THA 		1-51172-081-1 04 1 1410-
192 PIECE; DIST
THA 		8-98200-748-0 02 1 1410-
193 NUT; U BOLT
M22 THA 		8-98179-318-0 16 1 1410-
197 PIN; FRT SPR,FRT
THA 		8-97948-502-0 04 1 1410-
198 PIN; FRT SPR & SHACKLE,FWD FRT
THA 		8-97948-502-0 08 1 1410-
201 NUT; PIN LK
(A) M12 THA 		0-91110-512-0 24 1 1410-
201 NUT; PIN LK
(B) M24 THA 		0-91110-524-0 02 1 1410-
205 ATTACHMENT; GREASE NIPPLE
THA 		9-43165-001-0 12 1 1410-
206 WASHER; LK,SPRING PIN
ID=32.4 THA 		1-51169-018-0 24 1 1410-
207 BOLT; SPR TO SHACKLE
M12X80 THA 		0-10856-280-0 24 1 1410-
208 U-BOLT SET; FRT SPRING
(A) L=230 THA 		1-87870-493-0 04 1 1410-
208 U-BOLT SET; FRT SPRING
(B) L=250 THA 		1-87870-494-0 04 1 1410-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT THA 		0-90301-410-0 04 1 1410-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1410-
212 NIPPLE; GREASE,ELBOW
(B) 90 DEGRESS PT1/8 ELBOW THA 		0-90301-610-0 07 1 1410-
247 ABSORBER ASM; SHOCK,RWD FRT
THA 		8-98162-765-0 02 1 1410-
390 WASHER; PL,S/ABS,UPR
ID=21 THA 		0-91610-520-0 02 1 1410-

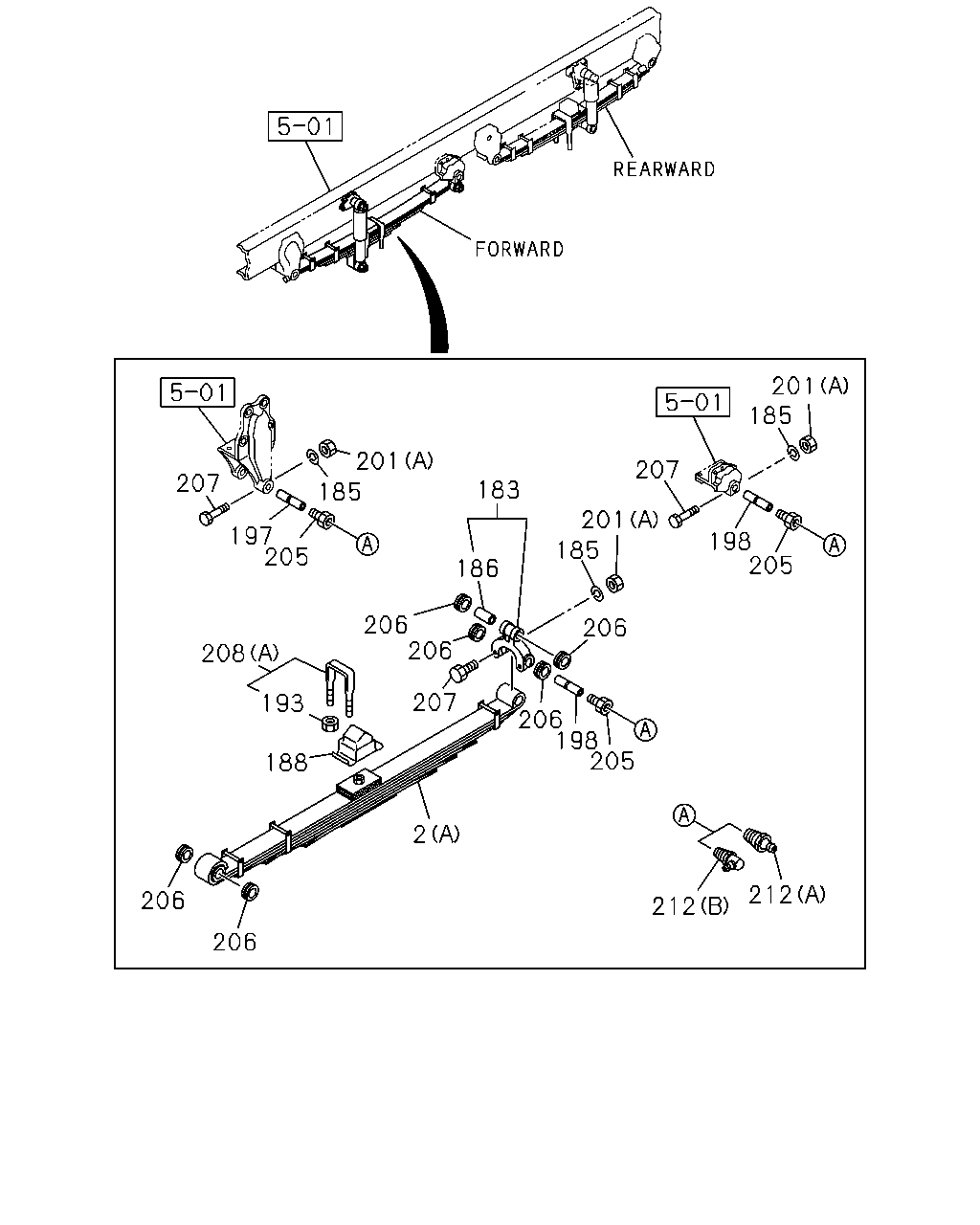

çizim 450592
212 212 205 198 206 2 206 206 188 193 208 207 206 206 186 206 185 201 198 207 205 185 201 183 205 185 201 197 207
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (A) THA 		8-98179-183-0 02 1 1410-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. (B) THA 		8-98179-185-0 02 1 1410-
183 SHACKLE; FRT SUSP
THA 		1-51162-029-5 04 1 1410-
185 WASHER; LK,PIN
ID=12.2 THA 		8-98179-315-0 24 1 1410-
186 BUSHING; SHACKLE
OD=38 THA 		8-98081-829-0 04 1 1410-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
THA 		1-51172-081-1 04 1 1410-
193 NUT; U BOLT
M22 THA 		8-98179-318-0 16 1 1410-
197 PIN; FRT SPR,FRT
THA 		8-97948-502-0 04 1 1410-
198 PIN; FRT SPR & SHACKLE,FWD FRT
THA 		8-97948-502-0 08 1 1410-
201 NUT; PIN LK
(A) M12 THA 		0-91110-512-0 24 1 1410-
201 NUT; PIN LK
(B) M24 THA 		0-91110-524-0 02 1 1410-
205 ATTACHMENT; GREASE NIPPLE
THA 		9-43165-001-0 12 1 1410-
206 WASHER; LK,SPRING PIN
ID=32.4 THA 		1-51169-018-0 24 1 1410-
207 BOLT; SPR TO SHACKLE
M12X80 THA 		0-10856-280-0 24 1 1410-
208 U-BOLT SET; FRT SPRING
(A) L=230 THA 		1-87870-493-0 04 1 1410-
208 U-BOLT SET; FRT SPRING
(B) L=250 THA 		1-87870-494-0 04 1 1410-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT THA 		0-90301-410-0 04 1 1410-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 01 1 1410-
212 NIPPLE; GREASE,ELBOW
(B) 90 DEGRESS PT1/8 ELBOW THA 		0-90301-610-0 07 1 1410-

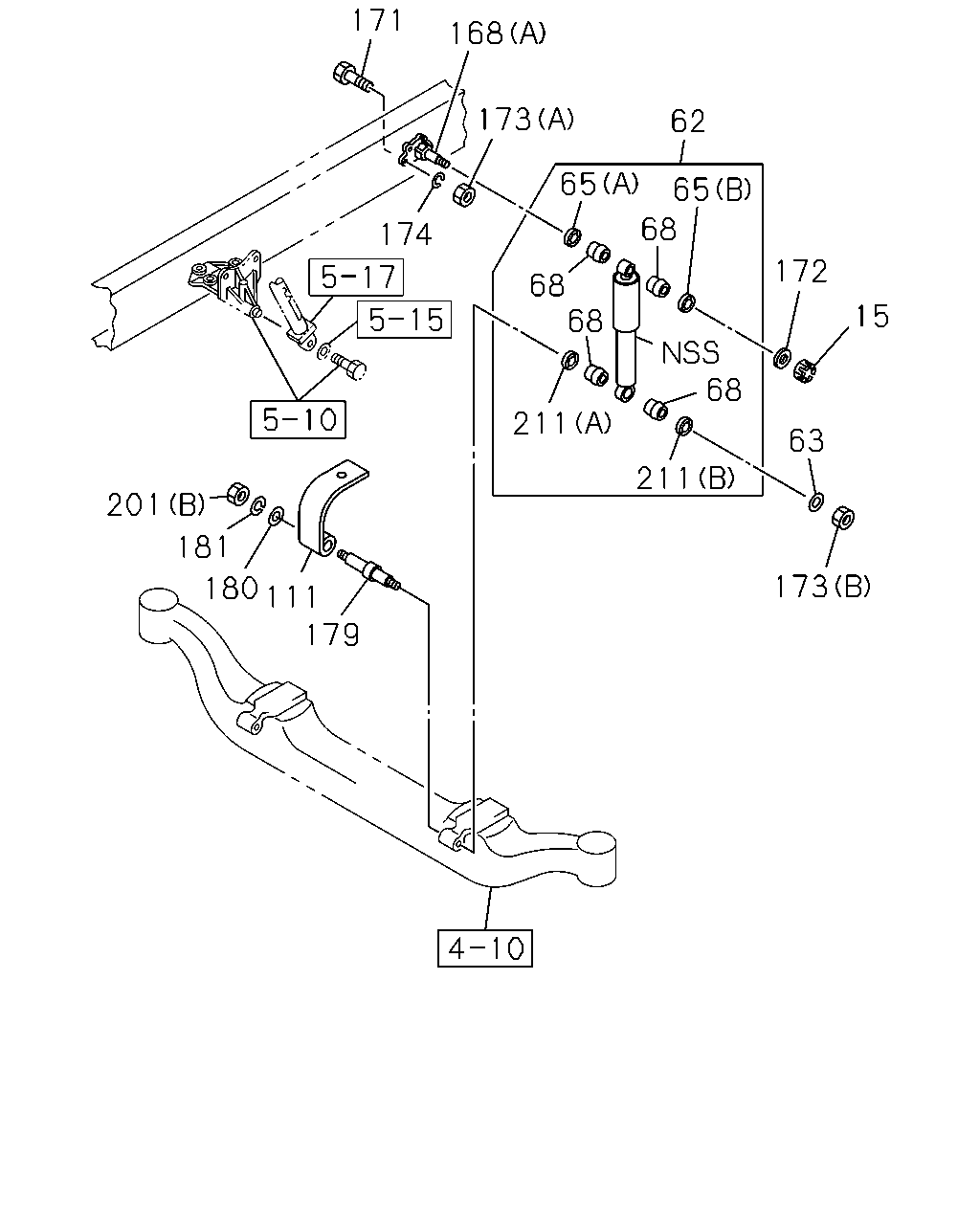

çizim 450698
179 111 180 181 201 173 211 211 68 15 63 68 68 172 68 65 65 62 173 174 168 171
BalonParca AdiParca NoAdetTipApplied Date
15 NUT; S/ABS,UPR
M20 THA 		0-91110-520-0 04 1 1410-
62 ABSORBER ASM; SHOCK,FRT
THA 		8-98162-769-0 02 1 1410-
63 WASHER; PL,S/ABS,LWR
ID=21 THA 		0-91610-520-0 02 1 1410-
65 WASHER; S/ABS
(A) ID=27 THA 		9-51631-027-0 02 1 1410-
65 WASHER; S/ABS
(B) ID=21 THA 		9-51631-028-0 02 1 1410-
68 BUSHING; S/ABS
THA 		9-51631-026-0 16 1 1410-
111 SUPPORTER; S/ABS,FRT SUSP
THA 		1-51681-627-0 02 1 1410-
168 BRACKET; S/ABS,FRT SUSP
(A) THA 		8-98182-383-0 02 1 1410-
168 BRACKET; S/ABS,FRT SUSP
(B) THA 		8-98182-384-0 02 1 1410-
171 BOLT; S/ABS BRKT
M14X45 THA 		9-92061-445-0 08 1 1410-
172 WASHER; PL,S/ABS BRKT
ID=21 THA 		0-91610-520-0 04 1 1410-
173 NUT; S/ABS
(B) M20 THA 		0-91110-520-0 04 1 1410-
173 NUT; S/ABS
(A) M14 THA 		0-91110-514-0 08 1 1410-
174 WASHER; LK,S/ABS
THA 		8-98179-316-0 08 1 1410-
179 PIN
THA 		1-51682-094-1 04 1 1410-
180 WASHER; PL,PIN
THA 		1-09503-169-0 04 1 1410-
181 WASHER; LK,PIN
THA 		8-98179-317-0 04 1 1410-
201 NUT; PIN LK
(A) M12 THA 		0-91110-512-0 24 1 1410-
201 NUT; PIN LK
(B) M24 THA 		0-91110-524-0 02 1 1410-
211 WASHER; BRKT,SHOCK
(A) ID=27 THA 		9-51631-027-0 02 1 1410-
211 WASHER; BRKT,SHOCK
(B) ID=21 THA 		9-51631-028-0 02 1 1410-
