4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#151058) — 113 parça

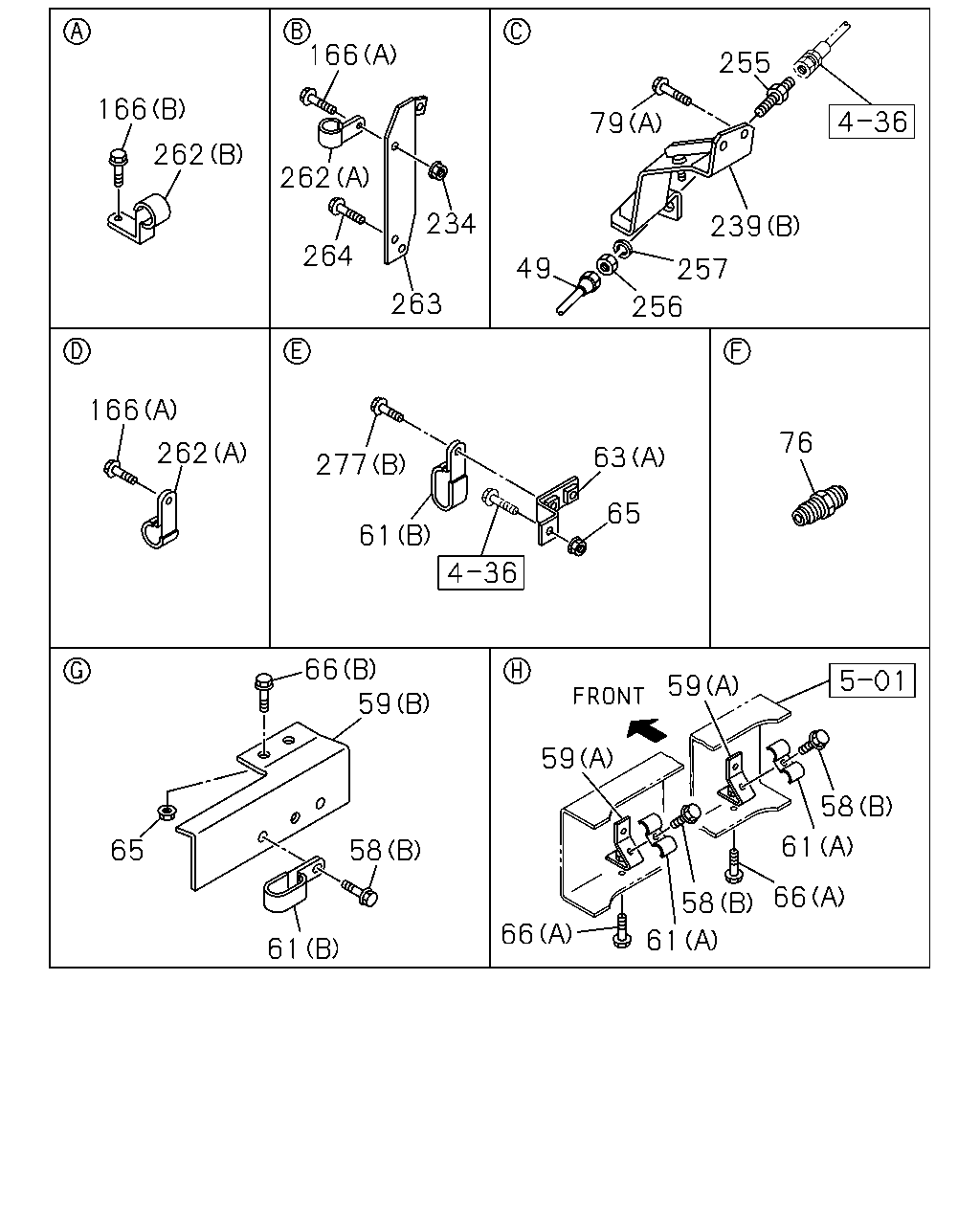

166 262 166 262 264 234 263 79 255 239 257 256 49 166 262 277 61 63 65 76 59 59 58 61 58 66 61 66 66 59 58 65 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION THA	8-98123-063-0	01	1	1410-
58	BOLT; CLIP (C) M8X16 FLANGE THA	0-28050-816-0	02	1	1410-
58	BOLT; CLIP (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1410-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
58	BOLT; CLIP (B) M8X25 FLANGE THA	0-28650-825-0	04	1	1410-
59	BRACKET; CLIP,OIL PIPE (A) THA	1-47479-521-0	02	1	1410-
59	BRACKET; CLIP,OIL PIPE (B) THA	8-97618-675-0	01	1	1410-
61	CLIP; OIL PIPE (B) ID=16X2 L=20 THA	0-95325-535-0	02	1	1410-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5 THA	1-09700-674-0	02	1	1410-
63	BRACKET; CLIP,P/S (B) THA	1-47478-371-0	02	1	1410-
63	BRACKET; CLIP,P/S (A) THA	1-47479-482-0	01	1	1410-
65	NUT; BRKT M8 FLANGE THA	0-91180-108-0	03	1	1410-
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
66	BOLT; BRKT,OIL PIPE (B) M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
76	UNION; OIL PIPE M22 THA	0-92123-015-0	02	1	1410-
79	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
79	BOLT; BRKT (B) M8X30 FLANGE THA	0-28650-830-0	02	1	1410-
166	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1410-
166	BOLT; CLIP (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1410-
234	NUT; PIPE CLIP,P/S M8 FLANGE THA	0-91180-108-0	01	1	1410-
239	BRACKET; FLEX HOSE (C) THA	1-47479-146-0	01	1	1410-
239	BRACKET; FLEX HOSE (B) THA	8-97608-869-1	01	1	1410-
239	BRACKET; FLEX HOSE (A) THA	8-97621-113-0	01	1	1410-
255	UNION; FLEX HOSE M22 & M22 STRAIGHT THA	1-09654-204-2	01	1	1410-
256	NUT; UNION M22 THA	0-91111-522-0	01	1	1410-
256	NUT; UNION M22 THA	0-91111-522-0	01	1	1410-
257	WASHER; LK,UNION ID=22.5 THA	0-91510-522-0	01	1	1410-
257	WASHER; LK,UNION ID=22.5 THA	0-91510-522-0	01	1	1410-
262	CLIP; P/S PIPE (A) ID=16 L=20 THA	0-95235-535-0	02	1	1410-
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20 THA	1-09700-606-0	01	1	1410-
263	BRACKET; P/S PIPE THA	8-98090-366-0	01	1	1410-
264	BOLT; PIPE BRKT M8X35 FLANGE THA	0-28650-835-0	02	1	1410-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1410-

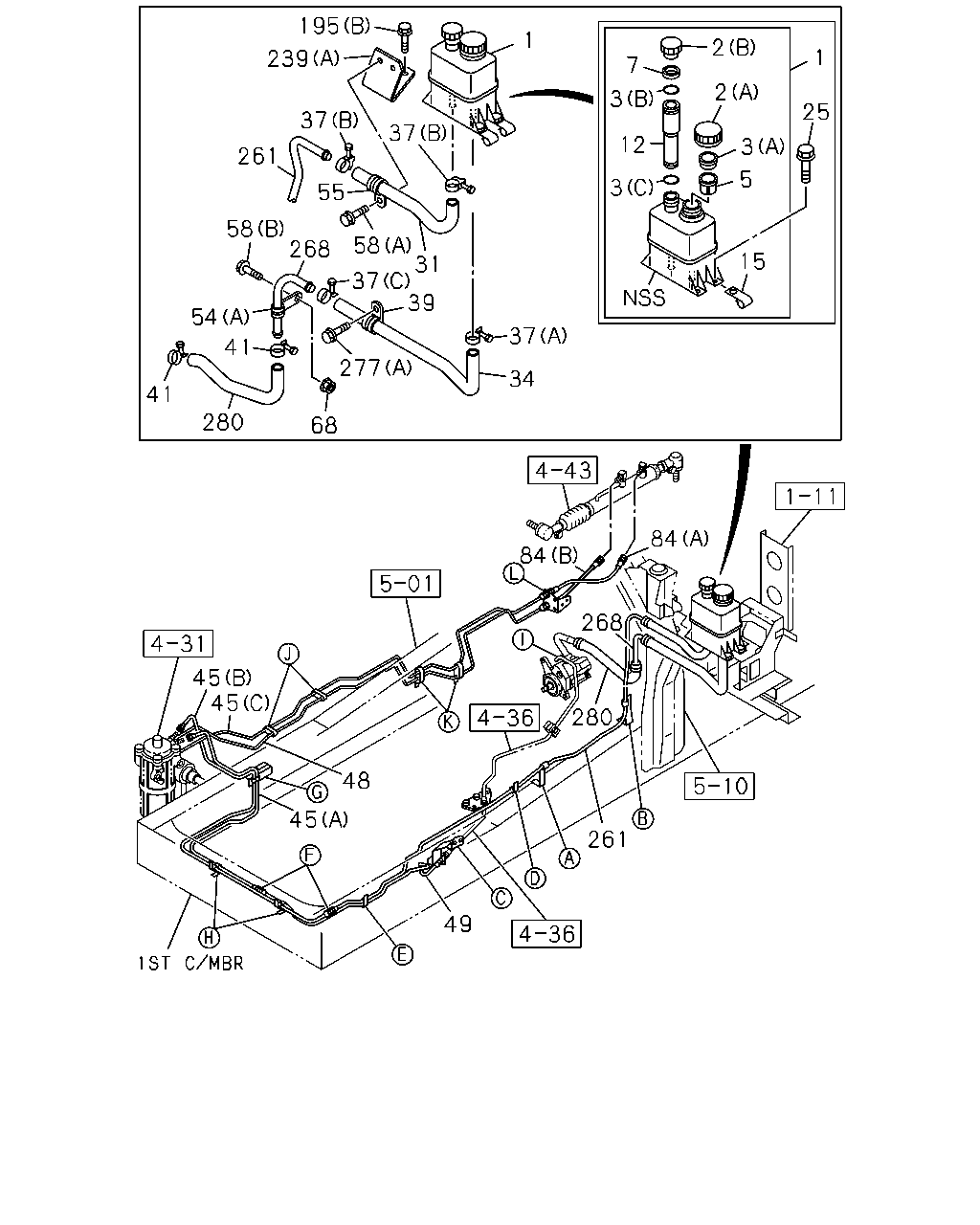

195 239 37 261 37 55 58 58 268 1 31 37 54 277 39 41 41 280 68 37 34 7 2 2 1 25 3 3 3 12 5 15 84 84 268 280 45 45 48 261 49 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S THA	8-97948-304-1	01	1	1410-
2	CAP; OIL TANK,P/S (A) THA	8-97948-293-0	01	1	1410-
2	CAP; OIL TANK,P/S (B) THA	8-97948-294-0	01	1	1410-
3	GASKET; OIL TANK,P/S (A) THA	8-97948-296-0	01	1	1410-
3	GASKET; OIL TANK,P/S (B) THA	8-97948-298-0	01	1	1410-
3	GASKET; OIL TANK,P/S (C) THA	8-97948-307-0	01	1	1410-
5	STRAINER; OIL TANK,P/S THA	8-97948-306-0	01	1	1410-
7	RING; GASKET,OIL TANK,P/S THA	8-97948-437-0	01	1	1410-
12	FILTER; MICROBON,OIL TANK,P/S THA	8-97948-301-0	01	1	1410-
15	PLATE; FILTER,OIL TANK THA	8-97948-297-0	04	1	1410-
25	BOLT; OIL TANK BRKT M8X25 FLANGE THA	0-28650-825-0	04	1	1410-
31	HOSE; P/S OIL TANK,INL THA	8-98166-662-0	01	1	1410-
34	HOSE; P/S OIL TANK,OUTLET THA	8-98166-663-0	01	1	1410-
37	CLIP; HOSE,P/S (C) ID=32 THA	1-09704-085-0	01	1	1410-
37	CLIP; HOSE,P/S (A) ID=38 THA	9-09915-041-1	01	1	1410-
37	CLIP; HOSE,P/S (B) ID=28 THA	9-09915-672-1	02	1	1410-
39	CLIP; FLEX HOSE ID=31 L=35 THA	1-09700-329-1	01	1	1410-
41	CLIP; HOSE,P/S ID=32 THA	1-09704-085-0	02	1	1410-
45	PIPE; OIL,P/S UNIT TO UNION (A) THA	8-98166-065-0	01	1	1410-
45	PIPE; OIL,P/S UNIT TO UNION (B) THA	8-98166-066-0	01	1	1410-
45	PIPE; OIL,P/S UNIT TO UNION (C) THA	8-98182-413-0	01	1	1410-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT THA	8-98182-414-0	01	1	1410-
49	PIPE; OIL,FLEX HOSE TO UNION THA	8-98123-063-0	01	1	1410-
54	CLIP; OIL PIPE (A) ID=19 L=60 THA	0-95235-896-0	01	1	1410-
54	CLIP; OIL PIPE (B) ID=13X2 L=20 THA	0-95325-236-0	04	1	1410-
55	CLIP; P/S RUBBER HOSE ID=28 L=32 THA	1-09701-107-1	01	1	1410-
58	BOLT; CLIP (C) M8X16 FLANGE THA	0-28050-816-0	02	1	1410-
58	BOLT; CLIP (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1410-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
58	BOLT; CLIP (B) M8X25 FLANGE THA	0-28650-825-0	04	1	1410-
68	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	1410-
84	HOSE; FLEX,P/S (A) L=430 THA	0-89538-430-0	01	1	1410-
84	HOSE; FLEX,P/S (B) THA	8-97948-584-0	01	1	1410-
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER THA	0-50640-835-0	03	1	1410-
195	BOLT; BRKT (B) M10X20 FLANGE THA	0-28651-020-0	02	1	1410-
239	BRACKET; FLEX HOSE (C) THA	1-47479-146-0	01	1	1410-
239	BRACKET; FLEX HOSE (B) THA	8-97608-869-1	01	1	1410-
239	BRACKET; FLEX HOSE (A) THA	8-97621-113-0	01	1	1410-
261	PIPE; OIL,UNION TO HOSE THA	8-98124-680-0	01	1	1410-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE THA	8-97618-672-0	01	1	1410-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE THA	0-28650-825-0	01	1	1410-
280	HOSE; P/S OIL PUMP,INL THA	8-98191-607-0	01	1	1410-

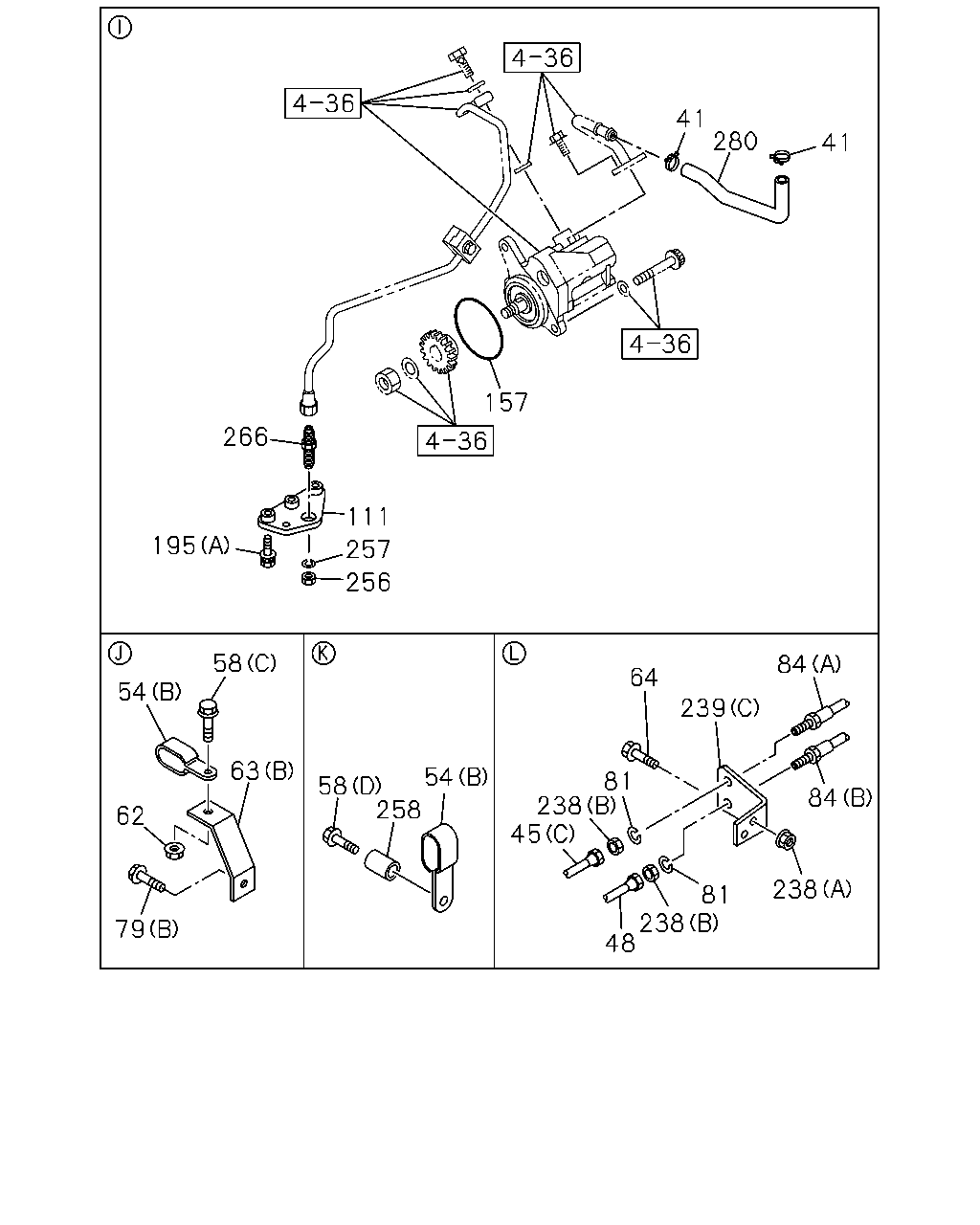

41 280 41 157 266 195 111 257 256 54 58 63 62 79 58 258 54 238 45 64 239 84 84 48 238 238 81 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=32 THA	1-09704-085-0	02	1	1410-
45	PIPE; OIL,P/S UNIT TO UNION (A) THA	8-98166-065-0	01	1	1410-
45	PIPE; OIL,P/S UNIT TO UNION (B) THA	8-98166-066-0	01	1	1410-
45	PIPE; OIL,P/S UNIT TO UNION (C) THA	8-98182-413-0	01	1	1410-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT THA	8-98182-414-0	01	1	1410-
54	CLIP; OIL PIPE (A) ID=19 L=60 THA	0-95235-896-0	01	1	1410-
54	CLIP; OIL PIPE (B) ID=13X2 L=20 THA	0-95325-236-0	04	1	1410-
58	BOLT; CLIP (C) M8X16 FLANGE THA	0-28050-816-0	02	1	1410-
58	BOLT; CLIP (D) M8X50 FLANGE THA	0-28050-850-0	02	1	1410-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1410-
58	BOLT; CLIP (B) M8X25 FLANGE THA	0-28650-825-0	04	1	1410-
62	NUT; CLIP FIX M8 FLANGE THA	0-91180-108-0	02	1	1410-
63	BRACKET; CLIP,P/S (B) THA	1-47478-371-0	02	1	1410-
63	BRACKET; CLIP,P/S (A) THA	1-47479-482-0	01	1	1410-
64	BOLT; CLIP BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	1410-
79	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1410-
79	BOLT; BRKT (B) M8X30 FLANGE THA	0-28650-830-0	02	1	1410-
81	WASHER; LK,FLEX HOSE ID=20.2 THA	0-91510-620-0	02	1	1410-
84	HOSE; FLEX,P/S (A) L=430 THA	0-89538-430-0	01	1	1410-
84	HOSE; FLEX,P/S (B) THA	8-97948-584-0	01	1	1410-
111	BRACKET; OIL PIPE THA	8-98086-991-0	01	1	1410-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77 THA	1-09623-143-0	01	1	1410-
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER THA	0-50640-835-0	03	1	1410-
195	BOLT; BRKT (B) M10X20 FLANGE THA	0-28651-020-0	02	1	1410-
238	NUT; FLEX HOSE (B) M20 THA	0-91111-520-0	02	1	1410-
238	NUT; FLEX HOSE (A) M8 FLANGE THA	0-91180-108-0	02	1	1410-
239	BRACKET; FLEX HOSE (C) THA	1-47479-146-0	01	1	1410-
239	BRACKET; FLEX HOSE (B) THA	8-97608-869-1	01	1	1410-
239	BRACKET; FLEX HOSE (A) THA	8-97621-113-0	01	1	1410-
256	NUT; UNION M22 THA	0-91111-522-0	01	1	1410-
256	NUT; UNION M22 THA	0-91111-522-0	01	1	1410-
257	WASHER; LK,UNION ID=22.5 THA	0-91510-522-0	01	1	1410-
257	WASHER; LK,UNION ID=22.5 THA	0-91510-522-0	01	1	1410-
258	TUBE; DISTANCE,BRKT L=22 THA	9-22159-024-0	02	1	1410-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT THA	1-09654-167-1	01	1	1410-
280	HOSE; P/S OIL PUMP,INL THA	8-98191-607-0	01	1	1410-
