Isuzu WW
▶
TRUCKS
▶
FYH
▶
11656 - FYH THAILAND EURO3
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-31 - STEERING COLUMN AND SHAFT
▶

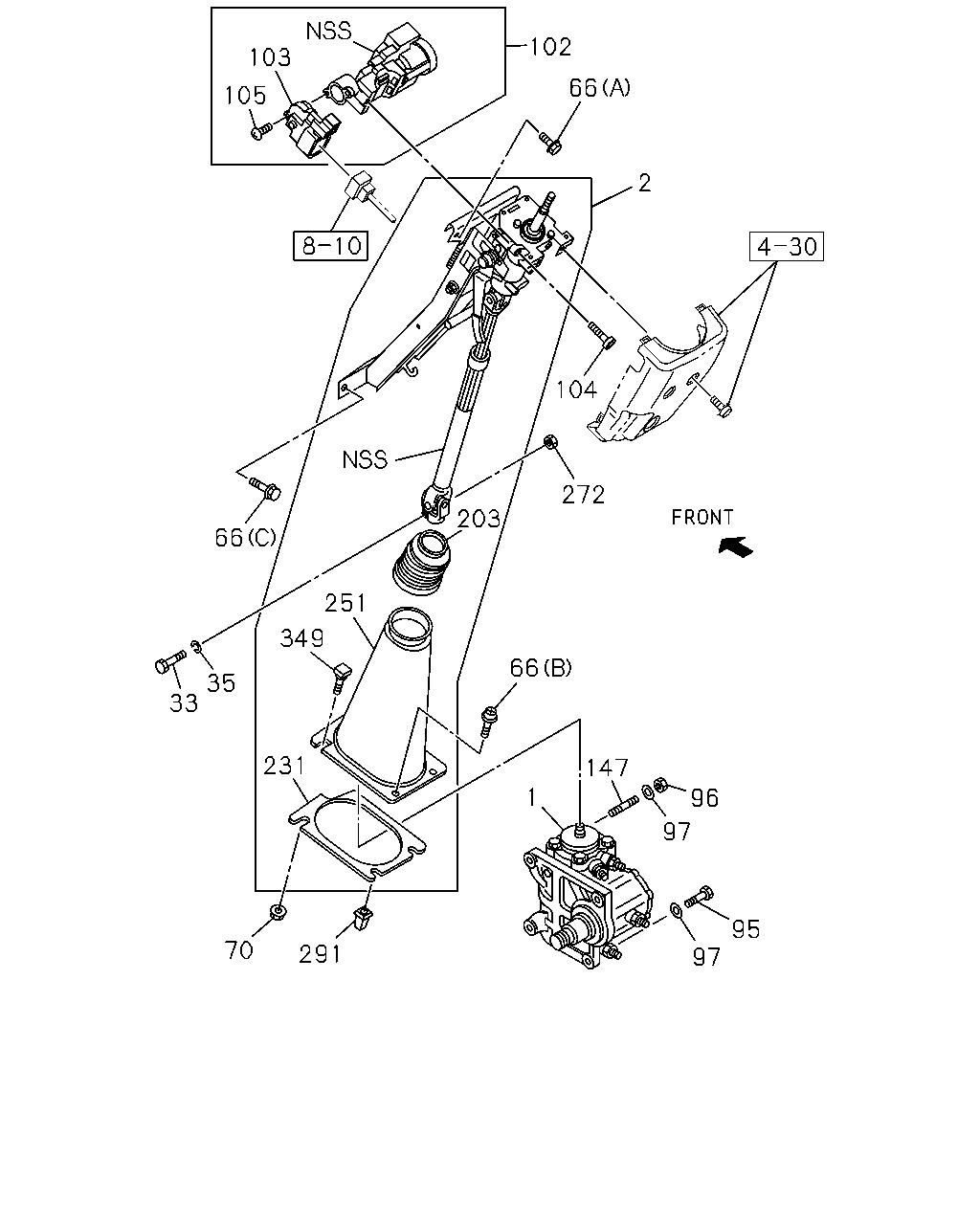

4-31 — STEERING COLUMN AND SHAFT
(#151056) — 22 parça
103
105
66
33
35
70
291
231
349
251
203
272
66
104
66
102
2
1
147
96
97
95
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. THA
1-44000-922-2
01
1
1410-
2
SHAFT ASM; STRG
THA
8-97948-357-1
01
1
1410-
33
BOLT; STRG SHAFT TO UNIT
M10X50 THA
1-09000-786-0
01
1
1410-
35
WASHER; LK,STRG SHAFT
ID=10.2 THA
0-91510-810-0
01
1
1410-
66
BOLT; STRG COLUMN
(B) M5X18 TAPPING THA
0-72180-518-0
02
1
1410-
66
BOLT; STRG COLUMN
(C) M8X25 W/LK&PL WASHER THA
8-98018-439-0
02
1
1410-
66
BOLT; STRG COLUMN
(A) M8X20 FLANGE THA
0-28650-820-0
02
1
1410-
70
NUT; STRG COLUMN
M6 FLANGE W/RUBBER THA
1-09984-180-0
02
1
1410-
95
BOLT; STRG UNIT
M18X60 THA
8-98036-497-0
03
1
1410-
96
NUT; STRG UNIT
M18 THA
0-91110-518-0
01
1
1410-
97
WASHER; PL,STRG UNIT
ID=18 THA
9-09851-862-0
04
1
1410-
102
LOCK ASM; STRG
THA
8-97948-271-0
01
1
1410-
103
SWITCH; IGNITION
THA
8-98045-349-0
01
1
1410-
104
BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT THA
8-97321-385-0
02
1
1410-
105
SCREW; IGN SW
THA
8-98045-346-0
02
1
1410-
147
STUD; STRG UNIT
M18X49 L=76 THA
1-09300-107-0
01
1
1410-
203
BOOT; STRG COLUMN LWR
THA
8-97948-998-0
01
1
1410-
231
SEAL; RUBBER,STRG COLUMN
THA
8-97949-003-0
01
1
1410-
251
COVER; LWR
THA
8-97949-001-0
01
1
1410-
272
NUT; SHAFT TO YOKE
M10 THA
0-91110-510-0
01
1
1410-
291
GROMMET; STRG SHAFT COVER
D=7.8X7.8 L=18 NATURAL THA
8-94279-043-0
02
1
1410-
349
BOLT; COVER
THA
8-97949-004-0
02
1
1410-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
