◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11656 - FYH THAILAND EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#151054) — 354 parça

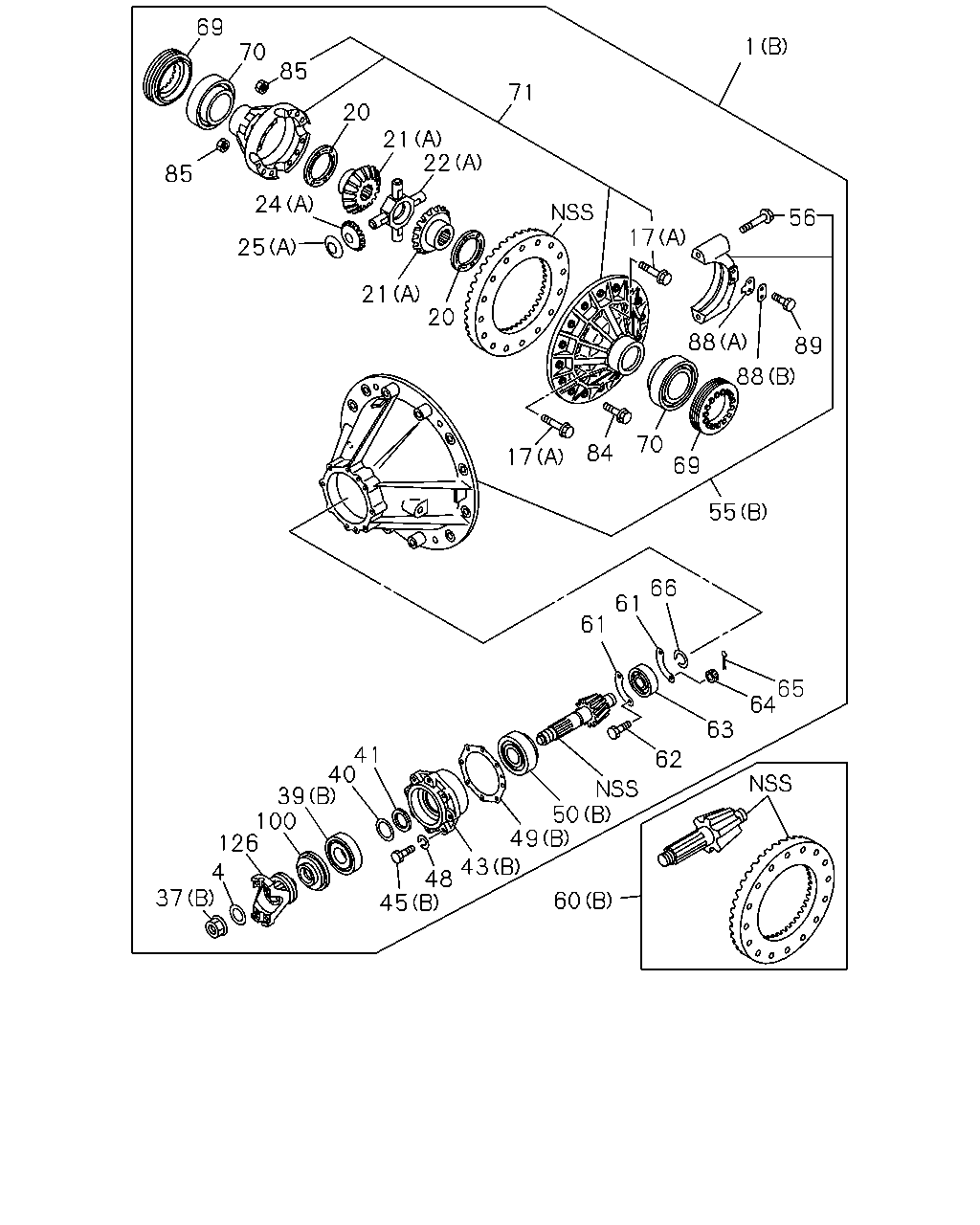

çizim 449073
69 70 85 20 21 22 71 1 17 56 88 88 89 55 69 70 84 17 20 21 25 24 85 66 61 61 41 40 39 100 126 4 37 45 48 43 49 50 62 63 64 65 60
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
(B) 39/7 THA 		1-41001-393-0 01 1 1410- ●
1 DRIVE ASM; FINAL,RR
(A) 39/7 THA 		1-41002-443-0 01 1 1410- ●
1 DRIVE ASM; FINAL,RR
(B) 39/8 THA 		1-41001-395-0 01 1 1410- ●
1 DRIVE ASM; FINAL,RR
(A) 39/8 THA 		1-41002-110-0 01 1 1410- ●
4 GASKET; FLANGE,FINAL PINION
ID=57 THA 		1-09623-386-0 01 1 1410- ● ●
17 BOLT; DIFF CAGE SETTING
(B) M10X55 THA 		1-09070-108-0 08 1 1410- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X125 THA 		1-09070-007-0 04 1 1410- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X125 THA 		1-09070-007-0 04 1 1410- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 THA 		1-09070-018-0 08 1 1410- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 THA 		1-09070-018-0 08 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 THA 		1-41562-112-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 THA 		1-41562-112-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 THA 		1-41562-113-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 THA 		1-41562-113-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 THA 		1-41562-114-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 THA 		1-41562-114-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 THA 		1-41562-115-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 THA 		1-41562-115-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 THA 		1-41562-116-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 THA 		1-41562-116-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 THA 		1-41562-117-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 THA 		1-41562-117-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 THA 		1-41562-118-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 THA 		1-41562-118-0 AR 1 1410- ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 THA 		1-41561-169-0 01 1 1410- ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 THA 		1-41561-151-0 02 1 1410- ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 THA 		1-41561-151-0 02 1 1410- ● ●
22 SPIDER; DIFF PINION
(B) THA 		1-41521-049-2 01 1 1410- ● ●
22 SPIDER; DIFF PINION
(A) OD=35 THA 		1-41521-037-2 01 1 1410- ● ●
22 SPIDER; DIFF PINION
(A) OD=35 THA 		1-41521-037-2 01 1 1410- ● ●
24 GEAR; PINION,DIFF
(B) Z=10 THA 		1-41551-055-0 04 1 1410- ● ●
24 GEAR; PINION,DIFF
(A) Z=10 THA 		1-41551-053-0 04 1 1410- ● ●
24 GEAR; PINION,DIFF
(A) Z=10 THA 		1-41551-053-0 04 1 1410- ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 THA 		1-41552-023-0 04 1 1410- ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 THA 		1-41552-017-0 04 1 1410- ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 THA 		1-41552-017-0 04 1 1410- ● ●
37 NUT; DRIVING PINION
(A) M42 THA 		1-09449-061-0 01 1 1410- ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE THA 		1-09449-071-0 01 1 1410- ● ●
39 BEARING; FINAL PINION
(A) NSK THA 		1-09812-073-1 01 1 1410- ● ●
39 BEARING; FINAL PINION
(A) JTEKT THA 		1-09812-074-3 01 1 1410- ● ●
39 BEARING; FINAL PINION
(B) NSK THA 		1-09812-075-0 01 1 1410- ● ●
39 BEARING; FINAL PINION
(B) JTEKT THA 		1-09812-076-1 01 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.25 THA 		1-41229-245-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.25 THA 		1-41229-245-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.26 THA 		1-41229-246-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.26 THA 		1-41229-246-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.27 THA 		1-41229-247-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.27 THA 		1-41229-247-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.28 THA 		1-41229-248-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.28 THA 		1-41229-248-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.29 THA 		1-41229-249-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.29 THA 		1-41229-249-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.30 THA 		1-41229-250-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.30 THA 		1-41229-250-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.31 THA 		1-41229-251-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.31 THA 		1-41229-251-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.32 THA 		1-41229-252-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.32 THA 		1-41229-252-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.33 THA 		1-41229-253-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.33 THA 		1-41229-253-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.34 THA 		1-41229-254-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.34 THA 		1-41229-254-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.35 THA 		1-41229-255-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.35 THA 		1-41229-255-0 AR 1 1410- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.60 THA 		1-41229-237-0 AR 1 1410- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=7.80 THA 		1-41229-238-0 AR 1 1410- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.00 THA 		1-41229-239-0 AR 1 1410- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.20 THA 		1-41229-240-0 AR 1 1410- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.40 THA 		1-41229-241-0 AR 1 1410- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.60 THA 		1-41229-242-0 AR 1 1410- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=8.80 THA 		1-41229-243-0 AR 1 1410- ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=9.00 THA 		1-41229-244-0 AR 1 1410- ● ●
43 CAGE; FINAL PINION
(B) T=81 THA 		1-41151-030-0 01 1 1410- ● ●
43 CAGE; FINAL PINION
(A) T=53 THA 		1-41151-053-0 01 1 1410- ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 THA 		0-16806-655-0 08 1 1410- ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 THA 		1-09070-107-0 08 1 1410- ● ●
48 WASHER; LK,FINAL PINION
ID=16.2 THA 		0-91510-516-0 08 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 THA 		1-41154-024-0 AR 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 THA 		1-41154-025-0 AR 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 THA 		1-41154-057-0 AR 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 THA 		1-41154-058-0 AR 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 THA 		1-41154-071-0 AR 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 THA 		1-41154-072-0 AR 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 THA 		1-41154-073-0 AR 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 THA 		1-41154-074-0 AR 1 1410- ● ●
50 BEARING; FINAL PINION
(B) NSK THA 		1-09812-073-1 01 1 1410- ● ●
50 BEARING; FINAL PINION
(B) JTEKT THA 		1-09812-074-3 01 1 1410- ● ●
50 BEARING; FINAL PINION
(A) NSK THA 		1-09812-075-0 01 1 1410- ● ●
50 BEARING; FINAL PINION
(A) JTEKT THA 		1-09812-076-1 01 1 1410- ● ●
55 CARRIER; DIFF
(B) THA 		1-41110-109-0 01 1 1410- ● ●
55 CARRIER; DIFF
(A) THA 		1-41310-050-0 01 1 1410- ● ●
56 BOLT; BRG CAP
M20X112 THA 		1-09070-042-0 04 1 1410- ● ●
56 BOLT; BRG CAP
M20X112 THA 		1-09070-042-0 04 1 1410- ● ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/7 THA 		1-41210-476-0 01 1 1410- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/7 THA 		1-41210-604-0 01 1 1410- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/8 THA 		1-41210-478-0 01 1 1410- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/8 THA 		1-41210-607-0 01 1 1410- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 THA 		1-41227-012-0 02 1 1410- ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 THA 		1-41227-012-0 02 1 1410- ● ●
62 BOLT; RET
M8X40 W/PIN HOLE THA 		1-09042-038-1 02 1 1410- ● ●
62 BOLT; RET
M8X40 W/PIN HOLE THA 		1-09042-038-1 02 1 1410- ● ●
63 BEARING; PINION PILOT
JTEKT THA 		1-09810-182-0 01 1 1410- ● ●
63 BEARING; PINION PILOT
JTEKT THA 		1-09810-182-0 01 1 1410- ● ●
63 BEARING; PINION PILOT
NSK THA 		1-09810-183-0 01 1 1410- ● ●
63 BEARING; PINION PILOT
NSK THA 		1-09810-183-0 01 1 1410- ● ●
64 NUT; RET
M8 SLOTTED THA 		0-91117-508-0 02 1 1410- ● ●
64 NUT; RET
M8 SLOTTED THA 		0-91117-508-0 02 1 1410- ● ●
65 PIN; SPLIT,RET
THA 		0-81122-012-0 02 1 1410- ● ●
65 PIN; SPLIT,RET
THA 		0-81122-012-0 02 1 1410- ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 THA 		1-09588-086-2 01 1 1410- ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 THA 		1-09588-086-2 01 1 1410- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 THA 		1-41121-001-0 01 1 1410- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 THA 		1-41121-001-0 01 1 1410- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 THA 		1-41121-002-0 01 1 1410- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 THA 		1-41121-002-0 01 1 1410- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 THA 		1-09812-225-0 02 1 1410- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 THA 		1-09812-225-0 02 1 1410- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
THA 		1-41510-141-0 01 1 1410- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
THA 		1-41510-141-0 01 1 1410- ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE THA 		1-09009-049-1 16 1 1410- ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE THA 		1-09009-049-1 16 1 1410- ● ●
85 NUT; DIFF CAGE SETTING
M16 THA 		0-91110-516-0 12 1 1410- ● ●
85 NUT; DIFF CAGE SETTING
M16 THA 		0-91110-516-0 12 1 1410- ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 THA 		1-41124-006-0 02 1 1410- ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 THA 		1-41124-006-0 02 1 1410- ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 THA 		9-41124-005-0 02 1 1410- ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 THA 		9-41124-005-0 02 1 1410- ● ●
89 BOLT; LK PLATE
M8X16 THA 		0-20850-816-0 04 1 1410- ● ●
89 BOLT; LK PLATE
M8X16 THA 		0-20850-816-0 04 1 1410- ● ●
100 SEAL; OIL,FINAL PINION
NOK THA 		1-09625-322-0 01 1 1410- ● ●
126 COUPLING; DRIVING PINION
THA 		1-37245-336-0 01 1 1410- ● ●

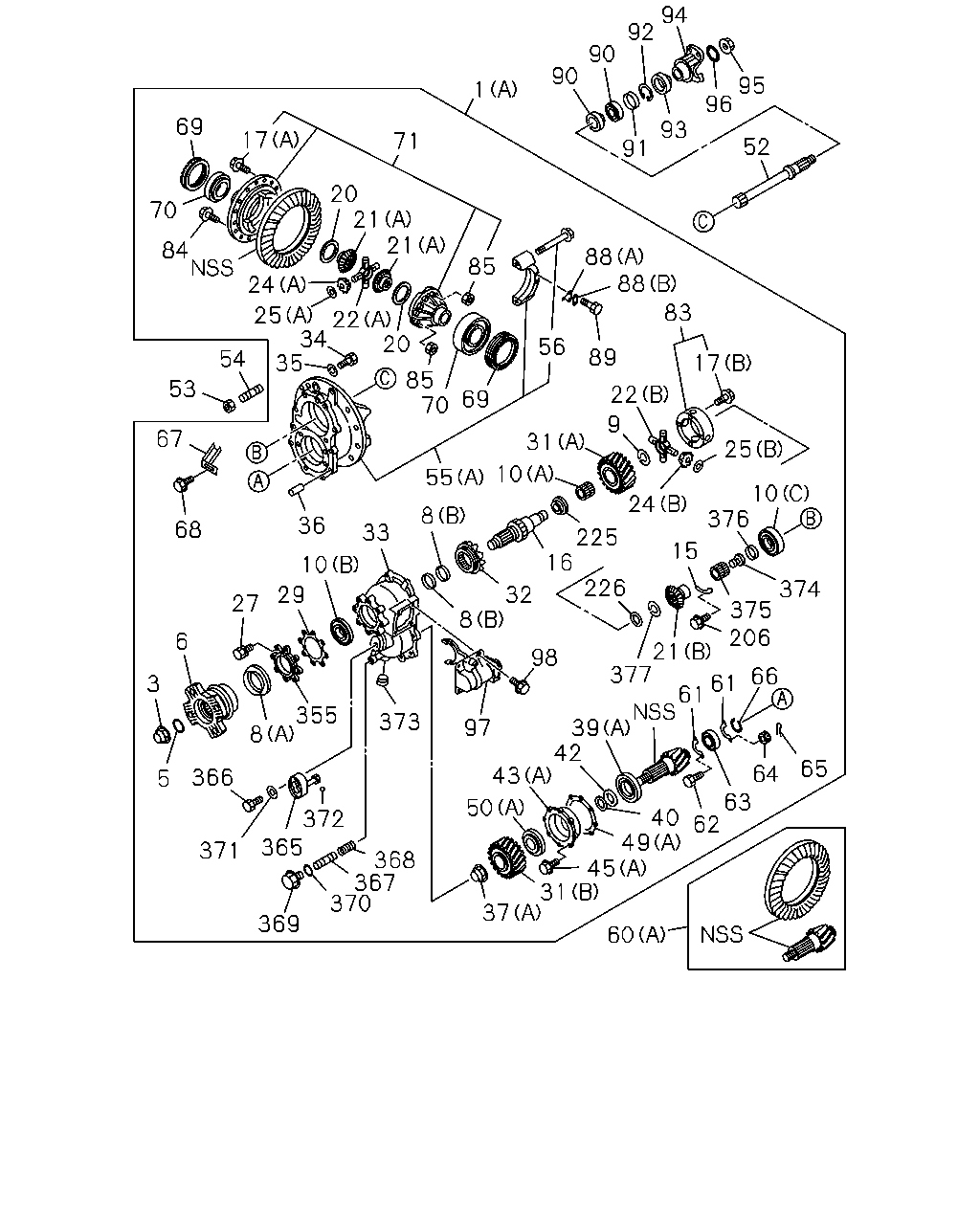

çizim 450620
94 92 90 90 91 93 96 95 52 1 69 70 84 24 25 17 20 21 21 71 85 22 34 35 20 85 70 69 56 88 88 83 89 17 22 9 31 10 55 8 33 36 54 53 67 68 10 29 27 6 3 5 366 8 355 373 8 32 16 225 24 25 371 365 372 97 98 226 15 376 10 369 370 367 368 50 43 42 39 377 21 206 375 374 66 61 61 65 64 63 62 40 49 45 31 37 60
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
(B) 39/7 THA 		1-41001-393-0 01 1 1410- ●
1 DRIVE ASM; FINAL,RR
(A) 39/7 THA 		1-41002-443-0 01 1 1410- ●
1 DRIVE ASM; FINAL,RR
(B) 39/8 THA 		1-41001-395-0 01 1 1410- ●
1 DRIVE ASM; FINAL,RR
(A) 39/8 THA 		1-41002-110-0 01 1 1410- ●
3 NUT; INPUT SHAFT
M46 FLANGE THA 		1-09449-071-0 01 1 1410- ● ●
5 GASKET; INPUT SHAFT
ID=57 THA 		1-09623-386-0 01 1 1410- ● ●
6 FLANGE ASM; INPUT SHAFT
THA 		1-37245-343-0 01 1 1410- ● ●
8 SEAL; OIL,INPUT SHAFT
(A) THA 		1-09625-323-0 01 1 1410- ● ●
8 SEAL; OIL,INPUT SHAFT
(B) THA 		1-41349-145-0 02 1 1410- ● ●
9 RING; SNAP,BRG,INPUT
THA 		1-09588-192-0 01 1 1410- ● ●
10 BEARING; INPUT SHAFT
(A) JTEKT THA 		1-09811-346-0 01 1 1410- ● ●
10 BEARING; INPUT SHAFT
(A) NSK THA 		1-09811-347-0 01 1 1410- ● ●
10 BEARING; INPUT SHAFT
(B) NSK THA 		1-09812-094-0 01 1 1410- ● ●
10 BEARING; INPUT SHAFT
(C) JTEKT THA 		1-09812-182-0 01 1 1410- ● ●
10 BEARING; INPUT SHAFT
(C) NSK THA 		1-09812-183-0 01 1 1410- ● ●
10 BEARING; INPUT SHAFT
(B) JTEKT THA 		1-09812-198-0 01 1 1410- ● ●
15 CATCHER; OIL
THA 		1-41129-007-0 01 1 1410- ● ●
16 SHAFT ASM; INPUT
THA 		1-41341-025-0 01 1 1410- ● ●
17 BOLT; DIFF CAGE SETTING
(B) M10X55 THA 		1-09070-108-0 08 1 1410- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X125 THA 		1-09070-007-0 04 1 1410- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X125 THA 		1-09070-007-0 04 1 1410- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 THA 		1-09070-018-0 08 1 1410- ● ●
17 BOLT; DIFF CAGE SETTING
(A) M16X113 THA 		1-09070-018-0 08 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 THA 		1-41562-112-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.8 THA 		1-41562-112-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 THA 		1-41562-113-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.9 THA 		1-41562-113-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 THA 		1-41562-114-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.0 THA 		1-41562-114-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 THA 		1-41562-115-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.1 THA 		1-41562-115-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 THA 		1-41562-116-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.2 THA 		1-41562-116-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 THA 		1-41562-117-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.3 THA 		1-41562-117-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 THA 		1-41562-118-0 AR 1 1410- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.4 THA 		1-41562-118-0 AR 1 1410- ● ●
21 GEAR; SIDE,DIFF
(B) Z=16 THA 		1-41561-169-0 01 1 1410- ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 THA 		1-41561-151-0 02 1 1410- ● ●
21 GEAR; SIDE,DIFF
(A) Z=16 THA 		1-41561-151-0 02 1 1410- ● ●
22 SPIDER; DIFF PINION
(B) THA 		1-41521-049-2 01 1 1410- ● ●
22 SPIDER; DIFF PINION
(A) OD=35 THA 		1-41521-037-2 01 1 1410- ● ●
22 SPIDER; DIFF PINION
(A) OD=35 THA 		1-41521-037-2 01 1 1410- ● ●
24 GEAR; PINION,DIFF
(B) Z=10 THA 		1-41551-055-0 04 1 1410- ● ●
24 GEAR; PINION,DIFF
(A) Z=10 THA 		1-41551-053-0 04 1 1410- ● ●
24 GEAR; PINION,DIFF
(A) Z=10 THA 		1-41551-053-0 04 1 1410- ● ●
25 WASHER; THRUST,PINION
(B) T=1.6 THA 		1-41552-023-0 04 1 1410- ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 THA 		1-41552-017-0 04 1 1410- ● ●
25 WASHER; THRUST,PINION
(A) T=1.6 THA 		1-41552-017-0 04 1 1410- ● ●
27 BOLT; BRG RET
M12X35 W/LK WASHER THA 		0-50551-235-0 08 1 1410- ● ●
29 SHIM; BRG RET
T=0.30 THA 		1-41349-146-0 AR 1 1410- ● ●
29 SHIM; BRG RET
T=0.40 THA 		1-41349-147-0 AR 1 1410- ● ●
29 SHIM; BRG RET
T=0.50 THA 		1-41349-148-0 AR 1 1410- ● ●
29 SHIM; BRG RET
T=1.000 THA 		1-41349-149-0 AR 1 1410- ● ●
31 GEAR; DRIVEN,HELICAL
(A) Z=16 THA 		1-41351-044-0 01 1 1410- ● ●
31 GEAR; DRIVEN,HELICAL
(B) Z=31 THA 		1-41352-029-0 01 1 1410- ● ●
32 SLEEVE; CLU,DIFF LK
THA 		1-41355-038-0 01 1 1410- ● ●
33 CASE; POWER DIVIDER
THA 		1-41321-024-1 01 1 1410- ● ●
34 BOLT; CASE TO CARRIER
M14X40 THA 		0-23851-440-0 10 1 1410- ● ●
35 WASHER; CASE TO CARRIER
ID=14.2 THA 		0-91510-814-0 10 1 1410- ● ●
36 PIN; STRAIGHT
OD=14 L=28 THA 		9-08161-428-0 02 1 1410- ● ●
37 NUT; DRIVING PINION
(A) M42 THA 		1-09449-061-0 01 1 1410- ● ●
37 NUT; DRIVING PINION
(B) M46 FLANGE THA 		1-09449-071-0 01 1 1410- ● ●
39 BEARING; FINAL PINION
(A) NSK THA 		1-09812-073-1 01 1 1410- ● ●
39 BEARING; FINAL PINION
(A) JTEKT THA 		1-09812-074-3 01 1 1410- ● ●
39 BEARING; FINAL PINION
(B) NSK THA 		1-09812-075-0 01 1 1410- ● ●
39 BEARING; FINAL PINION
(B) JTEKT THA 		1-09812-076-1 01 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.25 THA 		1-41229-245-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.25 THA 		1-41229-245-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.26 THA 		1-41229-246-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.26 THA 		1-41229-246-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.27 THA 		1-41229-247-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.27 THA 		1-41229-247-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.28 THA 		1-41229-248-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.28 THA 		1-41229-248-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.29 THA 		1-41229-249-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.29 THA 		1-41229-249-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.30 THA 		1-41229-250-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.30 THA 		1-41229-250-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.31 THA 		1-41229-251-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.31 THA 		1-41229-251-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.32 THA 		1-41229-252-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.32 THA 		1-41229-252-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.33 THA 		1-41229-253-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.33 THA 		1-41229-253-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.34 THA 		1-41229-254-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.34 THA 		1-41229-254-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.35 THA 		1-41229-255-0 AR 1 1410- ● ●
40 SHIM; FINAL PINION
T=3.35 THA 		1-41229-255-0 AR 1 1410- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 THA 		1-41229-237-0 AR 1 1410- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 THA 		1-41229-238-0 AR 1 1410- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 THA 		1-41229-239-0 AR 1 1410- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 THA 		1-41229-240-0 AR 1 1410- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.40 THA 		1-41229-241-0 AR 1 1410- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.60 THA 		1-41229-242-0 AR 1 1410- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.80 THA 		1-41229-243-0 AR 1 1410- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=9.00 THA 		1-41229-244-0 AR 1 1410- ● ●
43 CAGE; FINAL PINION
(B) T=81 THA 		1-41151-030-0 01 1 1410- ● ●
43 CAGE; FINAL PINION
(A) T=53 THA 		1-41151-053-0 01 1 1410- ● ●
45 BOLT; FINAL PINION CAGE
(B) M16X55 THA 		0-16806-655-0 08 1 1410- ● ●
45 BOLT; FINAL PINION CAGE
(A) M16X40 THA 		1-09070-107-0 08 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.50 THA 		1-41154-024-0 AR 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=1.00 THA 		1-41154-025-0 AR 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.30 THA 		1-41154-057-0 AR 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
(B) T=0.40 THA 		1-41154-058-0 AR 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.50 THA 		1-41154-071-0 AR 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=1.000 THA 		1-41154-072-0 AR 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.30 THA 		1-41154-073-0 AR 1 1410- ● ●
49 SHIM; FINAL PINION CAGE
(A) T=0.40 THA 		1-41154-074-0 AR 1 1410- ● ●
50 BEARING; FINAL PINION
(B) NSK THA 		1-09812-073-1 01 1 1410- ● ●
50 BEARING; FINAL PINION
(B) JTEKT THA 		1-09812-074-3 01 1 1410- ● ●
50 BEARING; FINAL PINION
(A) NSK THA 		1-09812-075-0 01 1 1410- ● ●
50 BEARING; FINAL PINION
(A) JTEKT THA 		1-09812-076-1 01 1 1410- ● ●
52 SHAFT; OUTPUT
THA 		1-41343-020-0 01 1 1410- ● ●
53 NUT; FINAL DRIVE SET
M16 THA 		0-91110-516-0 01 1 1410- ● ●
54 STUD; FINAL DRIVE SET
M16X32 L=56 THA 		9-09830-243-0 01 1 1410- ● ●
55 CARRIER; DIFF
(B) THA 		1-41110-109-0 01 1 1410- ● ●
55 CARRIER; DIFF
(A) THA 		1-41310-050-0 01 1 1410- ● ●
56 BOLT; BRG CAP
M20X112 THA 		1-09070-042-0 04 1 1410- ● ●
56 BOLT; BRG CAP
M20X112 THA 		1-09070-042-0 04 1 1410- ● ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/7 THA 		1-41210-476-0 01 1 1410- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/7 THA 		1-41210-604-0 01 1 1410- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 39/8 THA 		1-41210-478-0 01 1 1410- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 39/8 THA 		1-41210-607-0 01 1 1410- ●
61 RETAINER; PILOT BRG,PINION
T=3.2 THA 		1-41227-012-0 02 1 1410- ● ●
61 RETAINER; PILOT BRG,PINION
T=3.2 THA 		1-41227-012-0 02 1 1410- ● ●
62 BOLT; RET
M8X40 W/PIN HOLE THA 		1-09042-038-1 02 1 1410- ● ●
62 BOLT; RET
M8X40 W/PIN HOLE THA 		1-09042-038-1 02 1 1410- ● ●
63 BEARING; PINION PILOT
JTEKT THA 		1-09810-182-0 01 1 1410- ● ●
63 BEARING; PINION PILOT
JTEKT THA 		1-09810-182-0 01 1 1410- ● ●
63 BEARING; PINION PILOT
NSK THA 		1-09810-183-0 01 1 1410- ● ●
63 BEARING; PINION PILOT
NSK THA 		1-09810-183-0 01 1 1410- ● ●
64 NUT; RET
M8 SLOTTED THA 		0-91117-508-0 02 1 1410- ● ●
64 NUT; RET
M8 SLOTTED THA 		0-91117-508-0 02 1 1410- ● ●
65 PIN; SPLIT,RET
THA 		0-81122-012-0 02 1 1410- ● ●
65 PIN; SPLIT,RET
THA 		0-81122-012-0 02 1 1410- ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 THA 		1-09588-086-2 01 1 1410- ● ●
66 RING; SNAP,PILOT BRG
OD=37.2 THA 		1-09588-086-2 01 1 1410- ● ●
67 PICKUP; OIL,CARRIER
THA 		1-41129-008-0 01 1 1410- ● ●
68 BOLT; OIL PICKUP FIX
M8X12 FLANGE THA 		8-94479-696-1 02 1 1410- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 THA 		1-41121-001-0 01 1 1410- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=26 THA 		1-41121-001-0 01 1 1410- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 THA 		1-41121-002-0 01 1 1410- ● ●
69 NUT; ADJ,DIFF CAGE
M155 H=30 THA 		1-41121-002-0 01 1 1410- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 THA 		1-09812-225-0 02 1 1410- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=92 OD=152 T=40 THA 		1-09812-225-0 02 1 1410- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
THA 		1-41510-141-0 01 1 1410- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE
THA 		1-41510-141-0 01 1 1410- ● ●
83 CAGE ASM; DIFF
THA 		1-41510-224-0 01 1 1410- ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE THA 		1-09009-049-1 16 1 1410- ● ●
84 BOLT; FINAL DRIVE GEAR
M18X38 FLANGE THA 		1-09009-049-1 16 1 1410- ● ●
85 NUT; DIFF CAGE SETTING
M16 THA 		0-91110-516-0 12 1 1410- ● ●
85 NUT; DIFF CAGE SETTING
M16 THA 		0-91110-516-0 12 1 1410- ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 THA 		1-41124-006-0 02 1 1410- ● ●
88 PLATE; LK,ADJ NUT
(A) T=3.2 THA 		1-41124-006-0 02 1 1410- ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 THA 		9-41124-005-0 02 1 1410- ● ●
88 PLATE; LK,ADJ NUT
(B) T=1.0 THA 		9-41124-005-0 02 1 1410- ● ●
89 BOLT; LK PLATE
M8X16 THA 		0-20850-816-0 04 1 1410- ● ●
89 BOLT; LK PLATE
M8X16 THA 		0-20850-816-0 04 1 1410- ● ●
90 BEARING; OUTPUT SHAFT
NSK THA 		1-09812-068-0 02 1 1410- ● ●
90 BEARING; OUTPUT SHAFT
JTEKT THA 		1-09812-069-0 02 1 1410- ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.60 THA 		1-41349-020-0 AR 1 1410- ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.70 THA 		1-41349-021-0 AR 1 1410- ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.80 THA 		1-41349-022-0 AR 1 1410- ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.90 THA 		1-41349-023-0 AR 1 1410- ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.00 THA 		1-41349-024-0 AR 1 1410- ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.10 THA 		1-41349-025-0 AR 1 1410- ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.20 THA 		1-41349-026-0 AR 1 1410- ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.30 THA 		1-41349-027-0 AR 1 1410- ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=4.50 THA 		1-41349-091-0 AR 1 1410- ● ●
91 SHIM; BRG,OUTPUT SHAFT
T=5.40 THA 		1-41349-092-0 AR 1 1410- ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT
OD=90.5 THA 		9-09180-185-0 01 1 1410- ● ●
93 SEAL; OIL,OUTPUT SHAFT
THA 		1-09625-217-0 01 1 1410- ● ●
94 FLANGE ASM; OUTPUT SHAFT
THA 		1-37245-130-1 01 1 1410- ● ●
95 NUT; OUTPUT SHAFT
M36 FLANGE THA 		1-09449-067-0 01 1 1410- ● ●
96 GASKET; SHAFT,OUTPUT
ID=42 THA 		1-09623-387-0 01 1 1410- ● ●

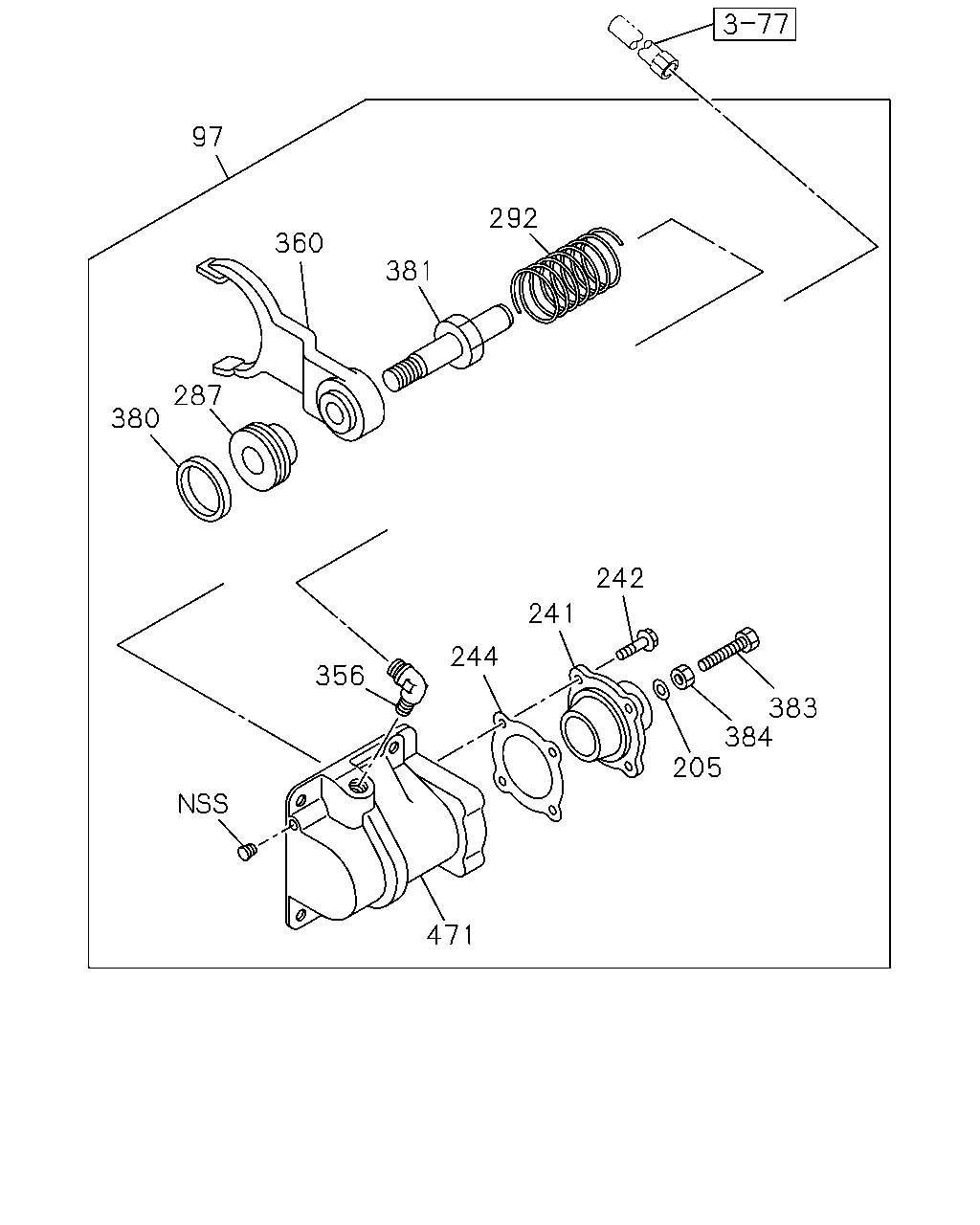

97 SHIFT UNIT; DIFF LOCK
THA 		1-48260-060-1 01 1 1410- ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X50 FLANGE THA 		0-28151-050-0 01 1 1410- ● ●
98 BOLT; SHIFT UNIT TO CARRIER
M10X25 FLANGE THA 		0-28751-025-0 03 1 1410- ● ●
206 BOLT; OIL CATCHER
M8X12 FLANGE THA 		8-94479-696-1 02 1 1410- ● ●
225 WASHER; THRUST
T=5.9 THA 		1-41552-024-2 AR 1 1410- ● ●
225 WASHER; THRUST
T=6.0 THA 		1-41552-025-2 AR 1 1410- ● ●
225 WASHER; THRUST
T=6.1 THA 		1-41552-026-2 AR 1 1410- ● ●
225 WASHER; THRUST
T=6.2 THA 		1-41552-027-2 AR 1 1410- ● ●
225 WASHER; THRUST
T=6.3 THA 		1-41552-028-2 AR 1 1410- ● ●
225 WASHER; THRUST
T=6.4 THA 		1-41552-029-2 AR 1 1410- ● ●
225 WASHER; THRUST
T=6.5 THA 		1-41552-030-2 AR 1 1410- ● ●
225 WASHER; THRUST
T=6.6 THA 		1-41552-031-2 AR 1 1410- ● ●
225 WASHER; THRUST
T=6.7 THA 		1-41552-032-2 AR 1 1410- ● ●
225 WASHER; THRUST
T=6.8 THA 		1-41552-033-2 AR 1 1410- ● ●
225 WASHER; THRUST
T=6.9 THA 		1-41552-034-2 AR 1 1410- ● ●
225 WASHER; THRUST
T=7.0 THA 		1-41552-035-2 AR 1 1410- ● ●
225 WASHER; THRUST
T=7.1 THA 		1-41552-036-2 AR 1 1410- ● ●
226 WASHER; THRUST
THA 		1-41562-267-0 01 1 1410- ● ●
355 RETAINER; BRG
THA 		1-41227-016-0 01 1 1410- ● ●
365 PUMP ASM; OIL
THA 		1-41381-008-1 01 1 1410- ● ●
366 BOLT; PUMP
M8X40 THA 		0-10805-840-0 04 1 1410- ● ●
367 STRAINER; OIL PUMP
THA 		1-41383-003-0 01 1 1410- ● ●
368 SPRING; STRAINER
THA 		1-09580-504-0 01 1 1410- ● ●
369 PLUG; STRAINER
M24X17 FLANGE THA 		1-09604-023-0 01 1 1410- ● ●
370 GASKET; STRAINER
ID=26.8 THA 		1-09623-058-0 01 1 1410- ● ●
371 WASHER; LK,PUMP
ID=8.2 THA 		0-91510-808-0 04 1 1410- ● ●
372 BALL; CASE
THA 		9-00097-517-0 01 1 1410- ● ●
373 PLUG; CASE
PT1/4 THA 		1-09605-019-0 01 1 1410- ● ●
374 PLUG; INPUT SHAFT
THA 		1-09609-020-1 01 1 1410- ● ●
375 BEARING; SIDE GEAR
JTEKT THA 		1-09811-348-0 01 1 1410- ● ●
375 BEARING; SIDE GEAR
NSK THA 		1-09811-362-0 01 1 1410- ● ●
376 SPACER; BRG,SIDE GEAR
THA 		1-41349-150-0 01 1 1410- ● ●
377 RING; SNAP,BRG,SIDE GEAR
THA 		1-09587-091-0 01 1 1410- ● ●
çizim 450755
97 292 381 360 287 380 242 241 244 356 383 384 205 471
BalonParca AdiParca NoAdetTipApplied Date A B
97 SHIFT UNIT; DIFF LOCK
THA 		1-48260-060-1 01 1 1410- ● ●
205 WASHER; PL
ID=10.5 OD=18 THA 		9-09160-510-0 01 1 1410- ● ●
241 COVER; SHIFT HSG
THA 		1-48266-012-1 01 1 1410- ● ●
242 BOLT; COVER
M8X20 THA 		0-20800-820-0 04 1 1410- ● ●
244 GASKET; COVER
THA 		1-48269-062-0 01 1 1410- ● ●
287 PISTON; SHIFT UNIT
THA 		1-48262-012-0 01 1 1410- ● ●
292 SPRING; PISTON
THA 		1-48265-007-0 01 1 1410- ● ●
356 NIPPLE; SHIFT UNIT
M12 & PT1/4 ELBOW THA 		1-09650-430-0 01 1 1410- ● ●
360 FORK; SHIFT
THA 		1-48269-066-0 01 1 1410- ● ●
380 GASKET; PISTON
THA 		1-48269-064-0 01 1 1410- ● ●
381 ROD; SHIFT
THA 		1-48263-005-0 01 1 1410- ● ●
383 BOLT; SET,SHIFT UNIT
M10X45 THA 		0-20801-045-0 01 1 1410- ● ●
384 NUT; LK,SHIFT UNIT
M10 THA 		9-09111-410-0 01 1 1410- ● ●
471 CYLINDER ASM; SHIFT UNIT
THA 		1-48269-261-0 01 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
