◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11656 - FYH THAILAND EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#151051) — 105 parça

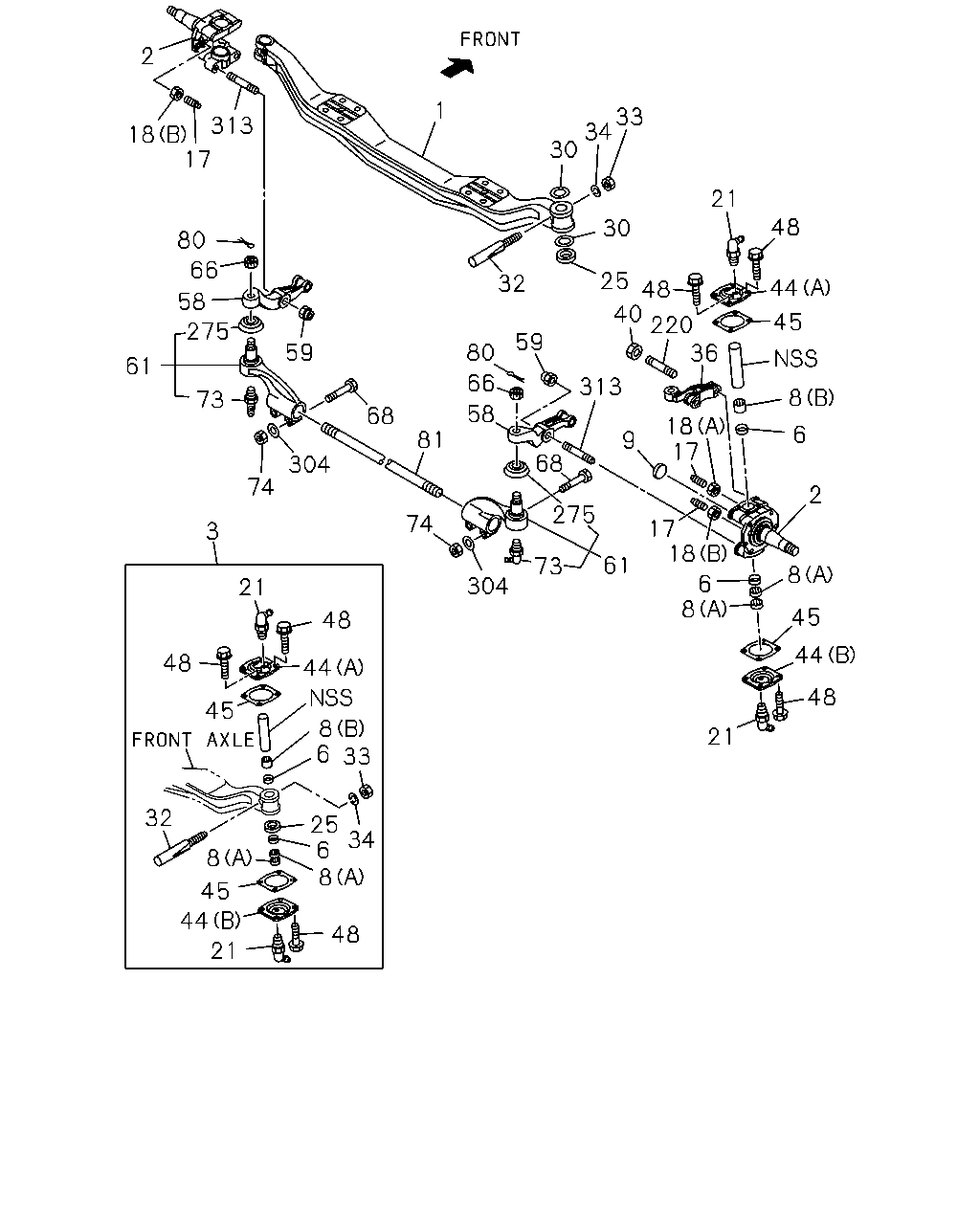

çizim 449158
3 21 48 48 44 45 8 6 33 32 8 45 44 21 25 34 6 8 48 2 18 313 17 80 66 58 61 275 59 73 74 304 68 81 74 304 1 30 34 33 30 21 48 32 80 59 66 58 313 68 9 275 73 61 17 8 21 48 44 45 8 6 18 2 6 8 45 44 25 48 40 220 36 18 17
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT
THA 		1-43111-177-4 01 1 1410-
1 AXLE; FRT
THA 		1-43111-177-4 01 1 1410-
2 KNUCKLE; FRT AXLE
THA 		1-43131-118-1 01 1 1410-
2 KNUCKLE; FRT AXLE
THA 		1-43131-118-1 01 1 1410-
2 KNUCKLE; FRT AXLE
THA 		1-43132-101-1 01 1 1410-
2 KNUCKLE; FRT AXLE
THA 		1-43132-101-1 01 1 1410-
3 KING PIN SET
THA 		1-87831-353-2 02 1 1410-
3 KING PIN SET
THA 		1-87831-353-2 02 1 1410-
6 SEAL; KING PIN
THA 		9-09926-024-0 04 1 1410-
6 SEAL; KING PIN
THA 		9-09926-024-0 04 1 1410-
8 BEARING; NEEDLE,KING PIN
(A) NTN THA 		9-00096-242-0 04 1 1410-
8 BEARING; NEEDLE,KING PIN
(A) NTN THA 		9-00096-242-0 04 1 1410-
8 BEARING; NEEDLE,KING PIN
(B) NTN THA 		9-00096-243-0 02 1 1410-
8 BEARING; NEEDLE,KING PIN
(B) NTN THA 		9-00096-243-0 02 1 1410-
9 PLUG; KNUCKLE
OD=22 THA 		1-09600-011-2 02 1 1410-
9 PLUG; KNUCKLE
OD=22 THA 		1-09600-011-2 02 1 1410-
17 BOLT; STOPPER KNUCKLE
FORWARD M18X53 THA 		1-09009-066-0 01 1 1410-
17 BOLT; STOPPER KNUCKLE
REARWARD M18X56 THA 		1-09009-108-0 03 1 1410-
17 BOLT; STOPPER KNUCKLE
FORWARD M18X43 THA 		1-09009-190-0 02 1 1410-
18 NUT; STOPPER BOLT,KNUCKLE
(A) M18 THA 		1-09469-011-1 01 1 1410-
18 NUT; STOPPER BOLT,KNUCKLE
(A) M18 THA 		1-09469-011-1 01 1 1410-
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 THA 		0-91110-518-0 02 1 1410-
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 THA 		0-91110-518-0 02 1 1410-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 04 1 1410-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 04 1 1410-
25 BEARING; THRUST,KING PIN
NSK THA 		1-09829-043-2 02 1 1410-
25 BEARING; THRUST,KING PIN
NSK THA 		1-09829-043-2 02 1 1410-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 THA 		1-43171-189-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 THA 		1-43171-189-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 THA 		1-43171-190-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 THA 		1-43171-190-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 THA 		1-43171-191-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 THA 		1-43171-191-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 THA 		1-43171-192-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 THA 		1-43171-192-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 THA 		1-43171-185-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 THA 		1-43171-185-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 THA 		1-43171-186-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 THA 		1-43171-186-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 THA 		1-43171-187-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 THA 		1-43171-187-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 THA 		1-43171-188-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 THA 		1-43171-188-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 THA 		1-43171-193-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 THA 		1-43171-193-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 THA 		1-43171-194-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 THA 		1-43171-194-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 THA 		1-43171-195-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 THA 		1-43171-195-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 THA 		1-43171-196-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 THA 		1-43171-196-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 THA 		1-43171-197-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 THA 		1-43171-197-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 THA 		1-43171-198-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 THA 		1-43171-198-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 THA 		1-43171-199-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 THA 		1-43171-199-0 AR 1 1410-
32 BOLT; KEY,KING PIN
THA 		1-43116-002-1 02 1 1410-
32 BOLT; KEY,KING PIN
THA 		1-43116-002-1 02 1 1410-
33 NUT; KEY BOLT
M10 THA 		0-91110-510-0 02 1 1410-
33 NUT; KEY BOLT
M10 THA 		0-91110-510-0 02 1 1410-
34 WASHER; LK,KEY BOLT
ID=10.2 THA 		0-91510-510-0 02 1 1410-
34 WASHER; LK,KEY BOLT
ID=10.2 THA 		0-91510-510-0 02 1 1410-
36 ARM; KNUCKLE
THA 		8-98061-893-0 01 1 1410-
36 ARM; KNUCKLE
THA 		8-98061-893-0 01 1 1410-
40 NUT; KNUCKLE ARM
M22 THA 		1-09449-084-0 02 1 1410-
40 NUT; KNUCKLE ARM
M22 THA 		1-09449-084-0 02 1 1410-
44 COVER; KING PIN
(A) THA 		8-98100-654-0 02 1 1410-
44 COVER; KING PIN
(A) THA 		8-98100-654-0 02 1 1410-
44 COVER; KING PIN
(B) THA 		8-98100-655-0 02 1 1410-
44 COVER; KING PIN
(B) THA 		8-98100-655-0 02 1 1410-
45 GASKET; KING PIN COVER
THA 		8-98100-656-1 04 1 1410-
45 GASKET; KING PIN COVER
THA 		8-98100-656-1 04 1 1410-
48 BOLT; COVER
M10X25 FLANGE THA 		0-28751-025-0 16 1 1410-
48 BOLT; COVER
M10X25 FLANGE THA 		0-28751-025-0 16 1 1410-
58 ARM; TIE ROD
FORWARD THA 		1-43134-049-4 01 1 1410-
58 ARM; TIE ROD
FORWARD THA 		1-43135-049-4 01 1 1410-
58 ARM; TIE ROD
REARWARD THA 		1-43134-060-2 01 1 1410-
58 ARM; TIE ROD
REARWARD THA 		1-43135-060-2 01 1 1410-
59 NUT; TIE ROD ARM
M22 THA 		1-09449-084-0 04 1 1410-
59 NUT; TIE ROD ARM
M22 THA 		1-09449-084-0 04 1 1410-
61 ROD END; TIE ROD
THA 		8-98228-106-0 01 1 1410-
61 ROD END; TIE ROD
THA 		8-98228-106-0 01 1 1410-
61 ROD END; TIE ROD
THA 		8-98228-107-0 01 1 1410-
61 ROD END; TIE ROD
THA 		8-98228-107-0 01 1 1410-
66 NUT; TIE ROD END
M24 THA 		1-09442-032-0 02 1 1410-
66 NUT; TIE ROD END
M24 THA 		1-09442-032-0 02 1 1410-
68 BOLT; TIE ROD END
M12X65 THA 		8-98053-922-0 04 1 1410-
68 BOLT; TIE ROD END
M12X65 THA 		8-98053-922-0 04 1 1410-
73 NIPPLE; GREASE,TIE ROD END
THA 		1-43159-133-0 02 1 1410-
73 NIPPLE; GREASE,TIE ROD END
THA 		1-43159-133-0 02 1 1410-
74 NUT; TIE ROD END
M12 THA 		0-91110-512-0 04 1 1410-
74 NUT; TIE ROD END
M12 THA 		0-91110-512-0 04 1 1410-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 THA 		0-81125-035-0 02 1 1410-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 THA 		0-81125-035-0 02 1 1410-
81 ROD; TIE
THA 		8-98105-064-0 01 1 1410-
81 ROD; TIE
THA 		8-98105-064-0 01 1 1410-
220 STUD; KNUCKLE ARM
THA 		1-09300-127-1 02 1 1410-
220 STUD; KNUCKLE ARM
THA 		1-09300-127-1 02 1 1410-
275 BOOT; ROD END,TIE
THA 		8-98229-116-0 02 1 1410-
275 BOOT; ROD END,TIE
THA 		8-98229-116-0 02 1 1410-
304 WASHER; PL
ID=12.5 THA 		0-91614-512-0 04 1 1410-
304 WASHER; PL
ID=12.5 THA 		0-91614-512-0 04 1 1410-
313 STUD; TIE ROD ARM
THA 		1-09300-127-1 04 1 1410-
313 STUD; TIE ROD ARM
THA 		1-09300-127-1 04 1 1410-
