4-01 — PROPELLER SHAFT (#151049) — 69 parça

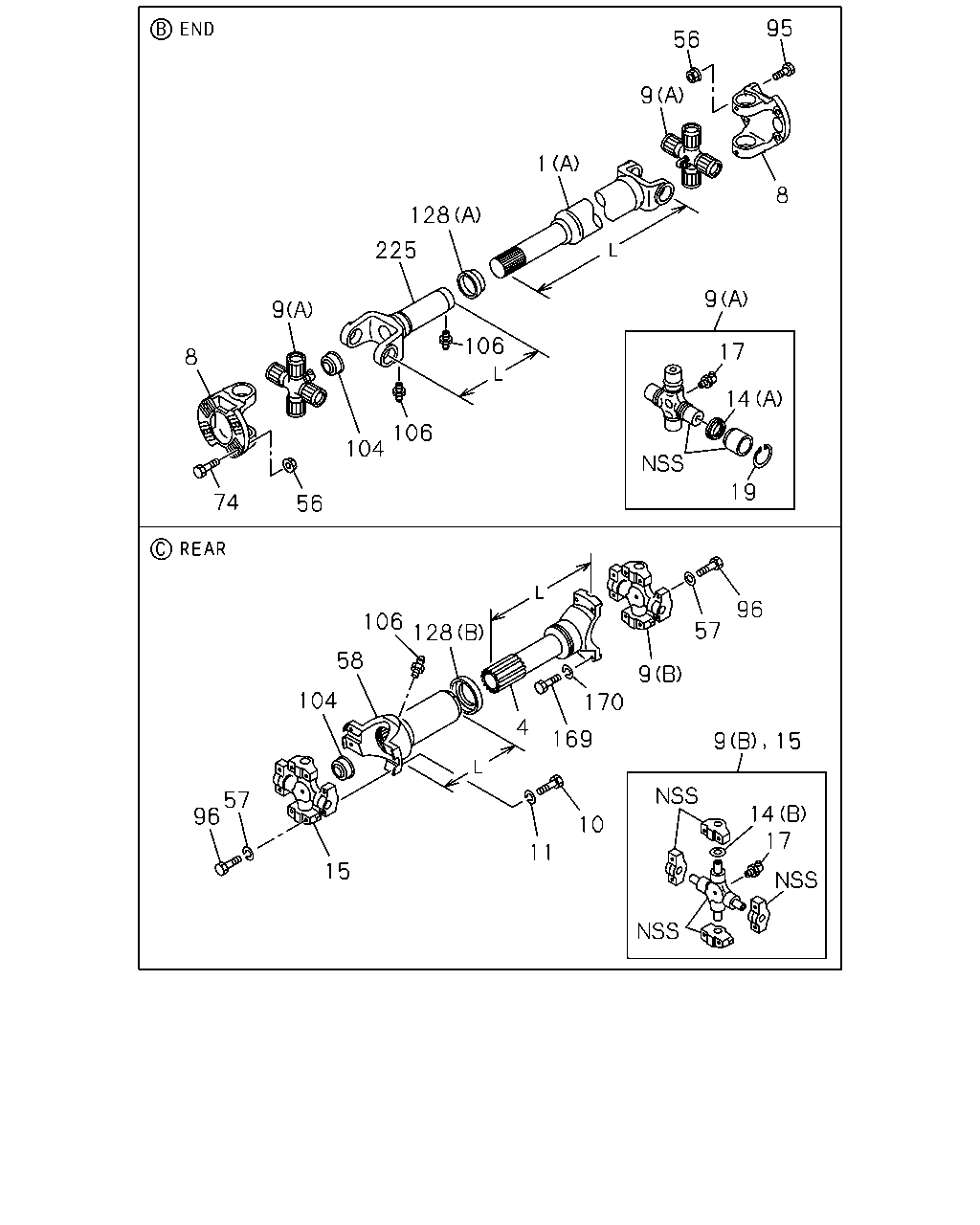

8 9 225 128 1 9 56 95 74 104 106 106 8 56 9 14 19 96 57 106 58 104 57 96 128 9 170 169 11 15 10 9 15 14 17 17 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP (A) L=1280 THA	1-37125-341-0	01	1	1410-
1	SHAFT; PROP (B) L=1287 THA	8-98098-105-0	01	1	1410-
4	SHAFT; PROP L=348 THA	1-37171-127-2	01	1	1410-
8	YOKE; FLANGE,PROP SHAFT THA	1-37211-084-0	01	1	1410-
8	YOKE; FLANGE,PROP SHAFT THA	1-37211-084-0	02	1	1410-
9	JOURNAL ASM; PROP SHAFT (B) THA	1-37300-100-1	01	1	1410-
9	JOURNAL ASM; PROP SHAFT (A) THA	1-37300-112-0	01	1	1410-
9	JOURNAL ASM; PROP SHAFT (A) THA	1-37300-112-0	02	1	1410-
10	BOLT; UJT M12X45 THA	8-98036-382-0	04	1	1410-
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2 THA	0-91510-612-0	04	1	1410-
14	COVER; DUST,SPIDER (A) THA	1-37249-133-0	04	1	1410-
14	COVER; DUST,SPIDER (A) THA	1-37249-133-0	08	1	1410-
14	COVER; DUST,SPIDER (B) THA	1-37319-004-0	08	1	1410-
15	UNIVERSAL CENTER THA	1-37300-100-1	01	1	1410-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES THA	0-90301-510-0	01	1	1410-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES THA	0-90301-510-0	02	1	1410-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES THA	0-90301-510-0	02	1	1410-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2 THA	1-09587-103-1	04	1	1410-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2 THA	1-09587-103-1	08	1	1410-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17 THA	1-09587-107-0	04	1	1410-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17 THA	1-09587-107-0	08	1	1410-
56	NUT; YOKE M14 FLANGE THA	8-97365-444-0	04	1	1410-
56	NUT; YOKE M14 FLANGE THA	8-97365-444-0	04	1	1410-
57	WASHER; LK,YOKE ID=12.2 THA	0-91510-612-0	08	1	1410-
58	FLANGE; SPLINED L=265 THA	1-37245-317-0	01	1	1410-
74	BOLT; YOKE,TRANS M14X50 THA	1-09000-645-0	04	1	1410-
95	BOLT; YOKE,FINAL M14X50 THA	1-09000-645-0	04	1	1410-
96	BOLT; PROP SHAFT M12X45 THA	8-98036-382-0	08	1	1410-
104	PLUG; SLEEVE YOKE THA	1-09600-049-0	01	1	1410-
104	PLUG; SLEEVE YOKE THA	1-09600-049-0	01	1	1410-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT THA	0-90301-410-0	01	1	1410-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT THA	0-90301-410-0	02	1	1410-
128	SEAL; SLEEVE (A) THA	1-37247-020-0	01	1	1410-
128	SEAL; SLEEVE (B) THA	8-97603-618-0	01	1	1410-
169	BOLT; YOKE,SLEEVE M12X45 THA	8-98036-382-0	04	1	1410-
170	WASHER; LK,YOKE,SLEEVE ID=12.2 THA	0-91510-612-0	04	1	1410-
225	YOKE; SLEEVE,PROP SHAFT L=339 THA	1-37241-140-0	01	1	1410-

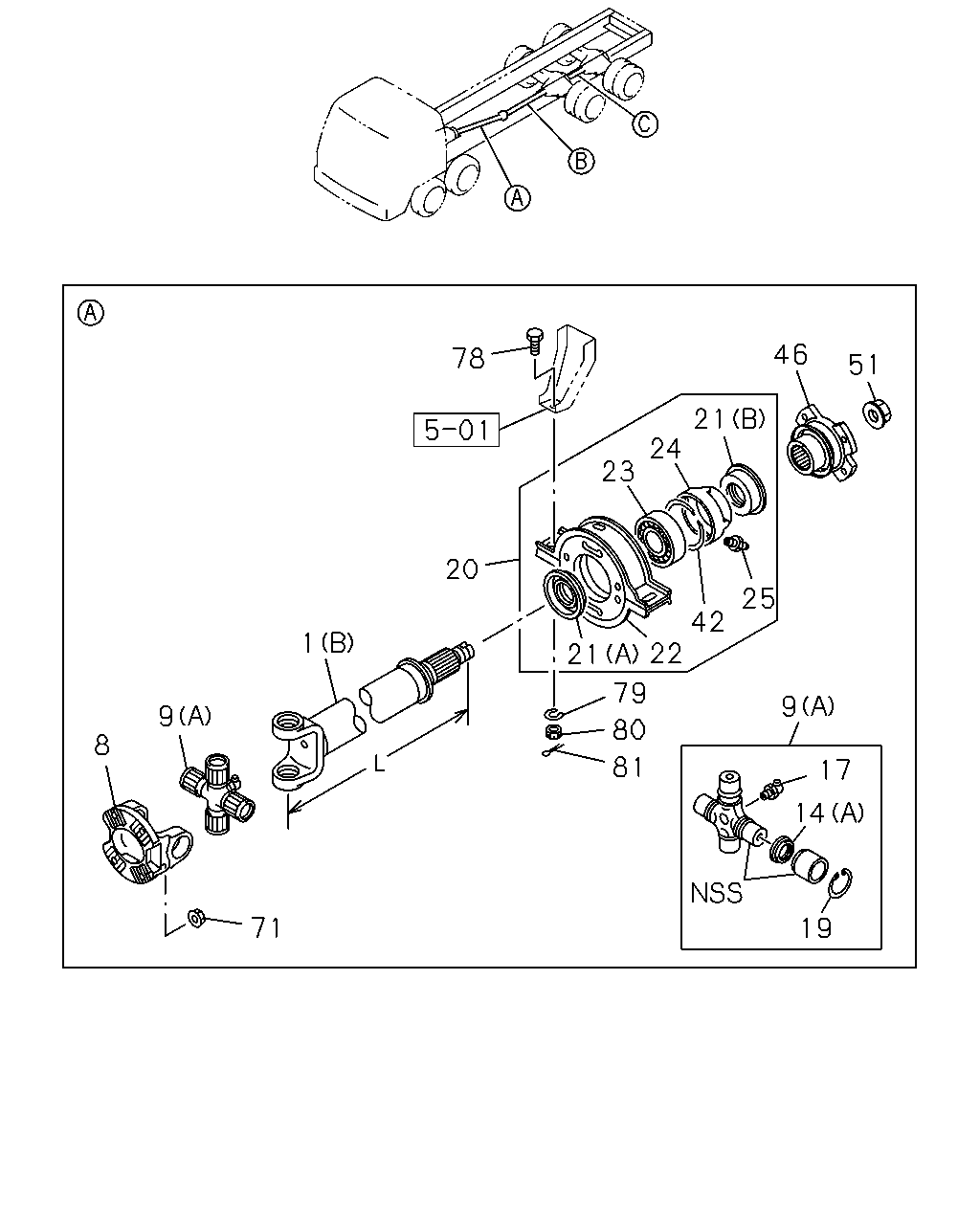

78 8 9 1 20 23 24 21 46 51 71 81 80 79 21 22 42 25 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP (A) L=1280 THA	1-37125-341-0	01	1	1410-
1	SHAFT; PROP (B) L=1287 THA	8-98098-105-0	01	1	1410-
8	YOKE; FLANGE,PROP SHAFT THA	1-37211-084-0	01	1	1410-
8	YOKE; FLANGE,PROP SHAFT THA	1-37211-084-0	02	1	1410-
9	JOURNAL ASM; PROP SHAFT (B) THA	1-37300-100-1	01	1	1410-
9	JOURNAL ASM; PROP SHAFT (A) THA	1-37300-112-0	01	1	1410-
9	JOURNAL ASM; PROP SHAFT (A) THA	1-37300-112-0	02	1	1410-
14	COVER; DUST,SPIDER (A) THA	1-37249-133-0	04	1	1410-
14	COVER; DUST,SPIDER (A) THA	1-37249-133-0	08	1	1410-
14	COVER; DUST,SPIDER (B) THA	1-37319-004-0	08	1	1410-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES THA	0-90301-510-0	01	1	1410-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES THA	0-90301-510-0	02	1	1410-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES THA	0-90301-510-0	02	1	1410-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2 THA	1-09587-103-1	04	1	1410-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2 THA	1-09587-103-1	08	1	1410-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17 THA	1-09587-107-0	04	1	1410-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17 THA	1-09587-107-0	08	1	1410-
20	BEARING ASM; CTR,PROP SHAFT ID=65 THA	1-37510-116-0	01	1	1410-
21	SEAL; OIL,CENTER BRG (A) OD=114 THA	1-09625-222-1	01	1	1410-
21	SEAL; OIL,CENTER BRG (B) OD=106 THA	1-09625-622-0	01	1	1410-
22	RUBBER; CUSHION,CENTER BRG,1ST THA	1-37516-056-0	01	1	1410-
23	BEARING; CENTER,PROP SHAFT THA	1-09800-210-0	01	1	1410-
24	RETAINER; CENTER BRG,1ST THA	1-37529-110-0	01	1	1410-
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT THA	1-09380-006-0	01	1	1410-
42	RING; SNAP,CTR BRG THA	1-09587-085-0	01	1	1410-
46	FLANGE; SPLINED,PROP SHAFT,1ST THA	1-37245-349-0	01	1	1410-
51	NUT; FLANGE,SPLINED M45 FLAMGE THA	1-09449-040-0	01	1	1410-
71	NUT; YOKE M14 FLANGE THA	8-97365-444-0	04	1	1410-
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45 THA	1-09042-030-0	02	1	1410-
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17 THA	1-09503-241-1	02	1	1410-
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED THA	8-98049-689-0	02	1	1410-
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25 THA	0-81124-025-0	02	1	1410-
