◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11656 - FYH THAILAND EURO3 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#151036) — 115 parça

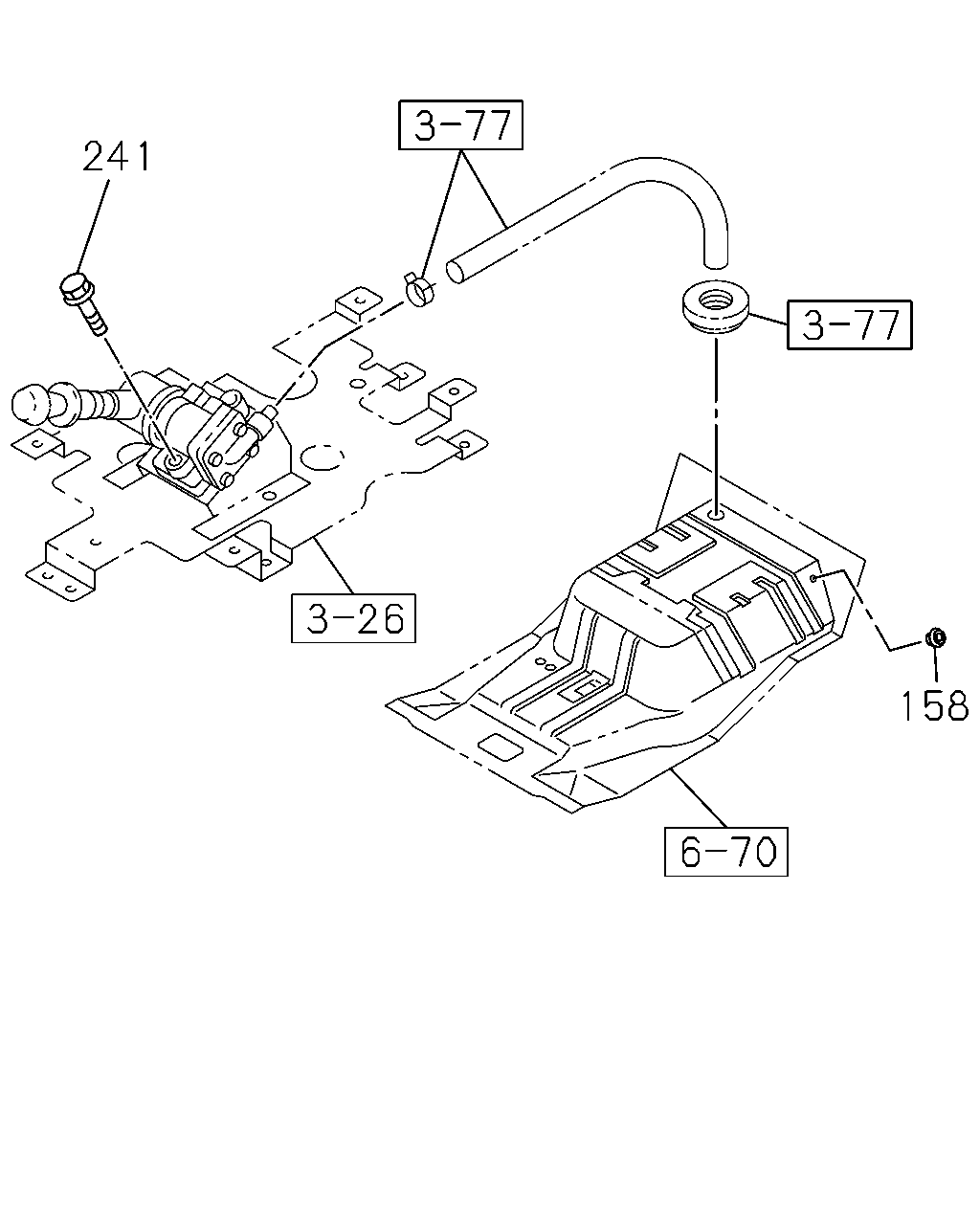

çizim 448514
158 241
BalonParca AdiParca NoAdetTipApplied Date
158 GROMMET; PIPE
OD=35 THA 		8-94122-971-0 01 1 1410-
241 BOLT; SET,CONT VLV
M8X70 FLANGE THA 		0-28050-870-0 02 1 1410-

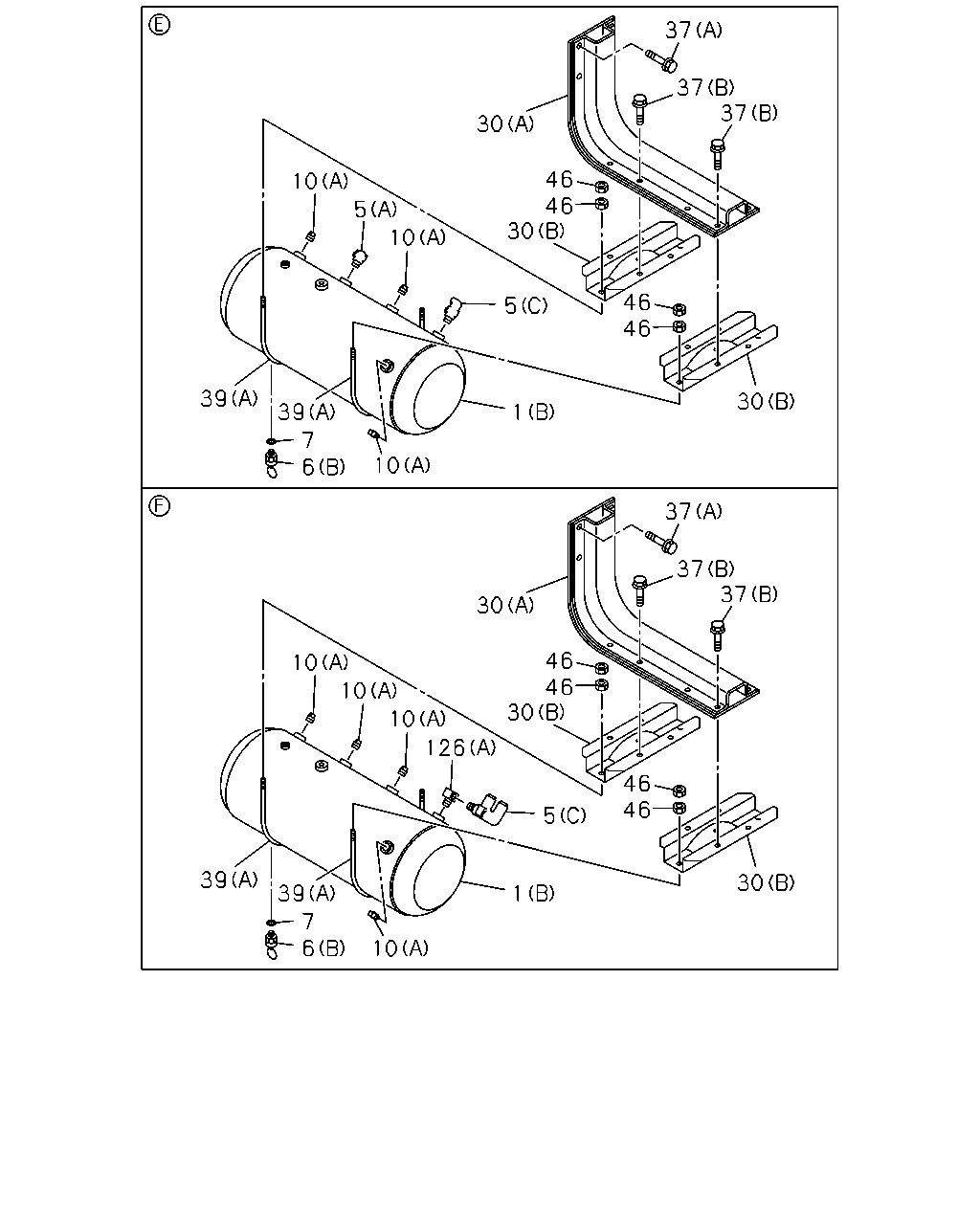

çizim 449016
39 39 7 6 10 1 10 10 10 126 5 30 46 46 30 37 37 37 46 46 30 39 39 7 6 10 1 10 5 10 5 30 46 46 30 37 37 37 46 46 30
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(C) THA 		8-97948-587-0 01 1 1410-
1 TANK ASM; AIR
(B) THA 		8-97948-589-0 01 1 1410-
1 TANK ASM; AIR
(B) THA 		8-97948-589-0 02 1 1410-
1 TANK ASM; AIR
(A) THA 		8-97948-588-0 01 1 1410-
5 UNION; AIR TANK
(C) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 02 1 1410-
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1410-
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1410-
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 03 1 1410-
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 03 1 1410-
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 01 1 1410-
5 UNION; AIR TANK
(D) DIN6 & R1/4 ELBOW THA 		1-09661-067-0 01 1 1410-
6 COCK; DRAIN,AIR TANK
(B) THA 		1-48312-017-0 04 1 1410-
6 COCK; DRAIN,AIR TANK
(A) THA 		1-48312-015-0 01 1 1410-
6 COCK; DRAIN,AIR TANK
(A) THA 		1-48312-015-0 02 1 1410-
7 GASKET; DRAIN COCK
ID=14 THA 		1-09630-145-0 07 1 1410-
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 01 1 1410-
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 10 1 1410-
10 PLUG; AIR TANK
(B) PT1/4 THA 		9-99204-513-0 01 1 1410-
30 BRACKET; AIR TANK,SUB
(B) THA 		8-98179-239-0 04 1 1410-
30 BRACKET; AIR TANK,SUB
(A) THA 		8-98179-238-0 02 1 1410-
37 BOLT; AIR TANK
(B) M10X25 FLANGE THA 		0-28651-025-0 16 1 1410-
37 BOLT; AIR TANK
(A) M10X40 FLANGE THA 		0-28651-040-0 08 1 1410-
39 U-BOLT; AIR TANK
(B) L=210 THA 		1-48317-458-1 02 1 1410-
39 U-BOLT; AIR TANK
(A) L=253 THA 		8-97948-475-0 02 1 1410-
39 U-BOLT; AIR TANK
(A) L=253 THA 		8-97948-475-0 08 1 1410-
46 NUT; U-BOLT
M8 THA 		0-91110-508-0 08 1 1410-
46 NUT; U-BOLT
M8 THA 		0-91110-508-0 40 1 1410-
126 CONNECTOR; ELBOW
(A) THA 		1-09660-778-1 01 1 1410-
126 CONNECTOR; ELBOW
(B) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 1410-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1410-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1410-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1410-

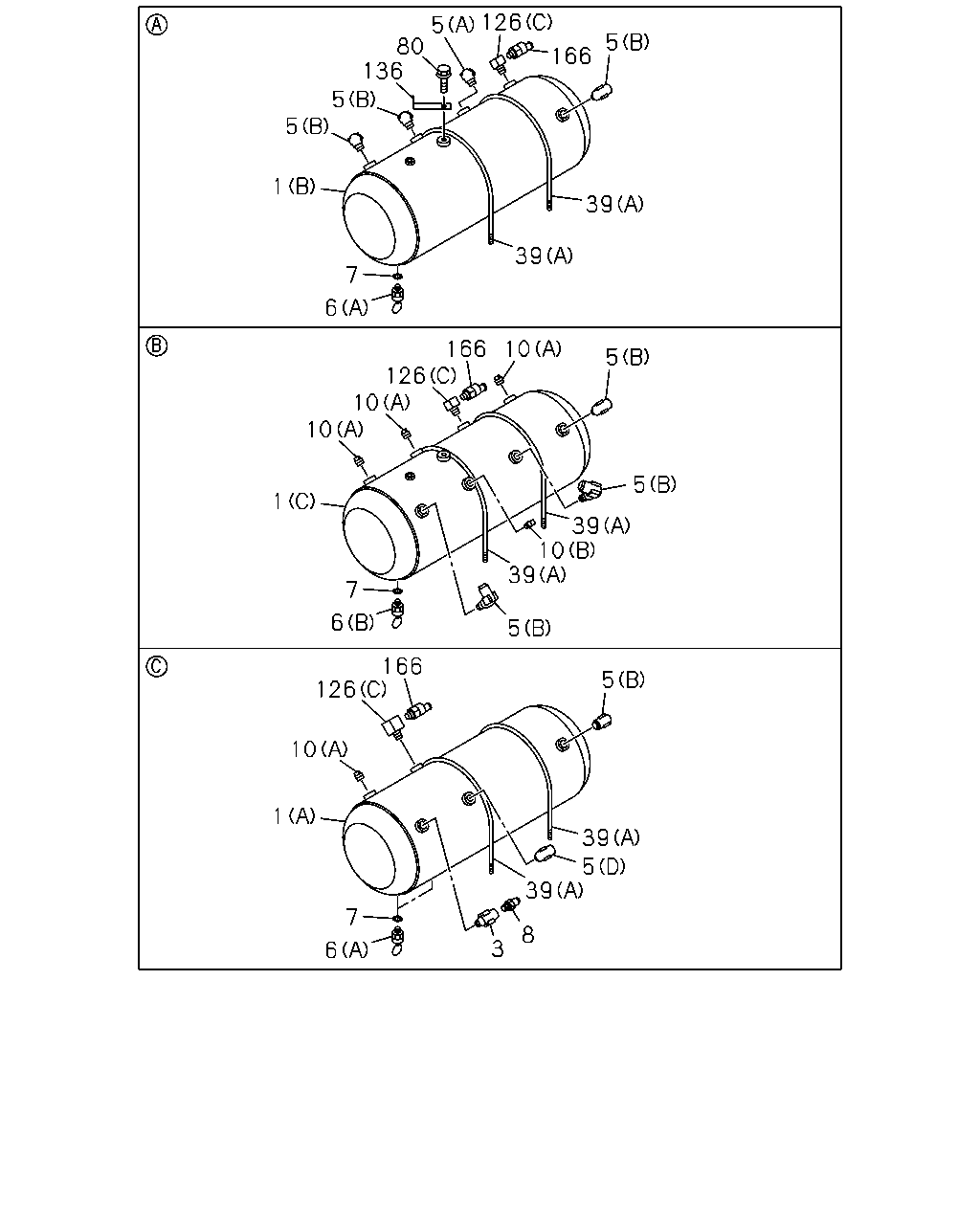

çizim 449096
1 5 5 136 80 5 126 5 166 39 39 7 6 1 10 10 126 166 10 5 7 6 5 39 10 39 5 166 126 10 1 7 6 3 8 39 5 39 5
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(C) THA 		8-97948-587-0 01 1 1410-
1 TANK ASM; AIR
(B) THA 		8-97948-589-0 01 1 1410-
1 TANK ASM; AIR
(B) THA 		8-97948-589-0 02 1 1410-
1 TANK ASM; AIR
(A) THA 		8-97948-588-0 01 1 1410-
3 VALVE; CHECK,AIR TANK
THA 		1-48320-031-1 01 1 1410-
5 UNION; AIR TANK
(C) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 02 1 1410-
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1410-
5 UNION; AIR TANK
(A) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1410-
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 03 1 1410-
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 03 1 1410-
5 UNION; AIR TANK
(B) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 01 1 1410-
5 UNION; AIR TANK
(D) DIN6 & R1/4 ELBOW THA 		1-09661-067-0 01 1 1410-
6 COCK; DRAIN,AIR TANK
(B) THA 		1-48312-017-0 04 1 1410-
6 COCK; DRAIN,AIR TANK
(A) THA 		1-48312-015-0 01 1 1410-
6 COCK; DRAIN,AIR TANK
(A) THA 		1-48312-015-0 02 1 1410-
7 GASKET; DRAIN COCK
ID=14 THA 		1-09630-145-0 07 1 1410-
8 CONNECTOR; AIR TANK
DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1410-
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 01 1 1410-
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 10 1 1410-
10 PLUG; AIR TANK
(B) PT1/4 THA 		9-99204-513-0 01 1 1410-
39 U-BOLT; AIR TANK
(B) L=210 THA 		1-48317-458-1 02 1 1410-
39 U-BOLT; AIR TANK
(A) L=253 THA 		8-97948-475-0 02 1 1410-
39 U-BOLT; AIR TANK
(A) L=253 THA 		8-97948-475-0 08 1 1410-
80 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 01 1 1410-
126 CONNECTOR; ELBOW
(A) THA 		1-09660-778-1 01 1 1410-
126 CONNECTOR; ELBOW
(B) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 1410-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1410-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1410-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1410-
136 BRACKET; CLIP
L=60 H=30 THA 		1-47477-716-1 01 1 1410-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 THA 		8-97609-249-0 01 1 1410-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 THA 		8-97609-249-0 01 1 1410-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 THA 		8-97609-249-0 01 1 1410-

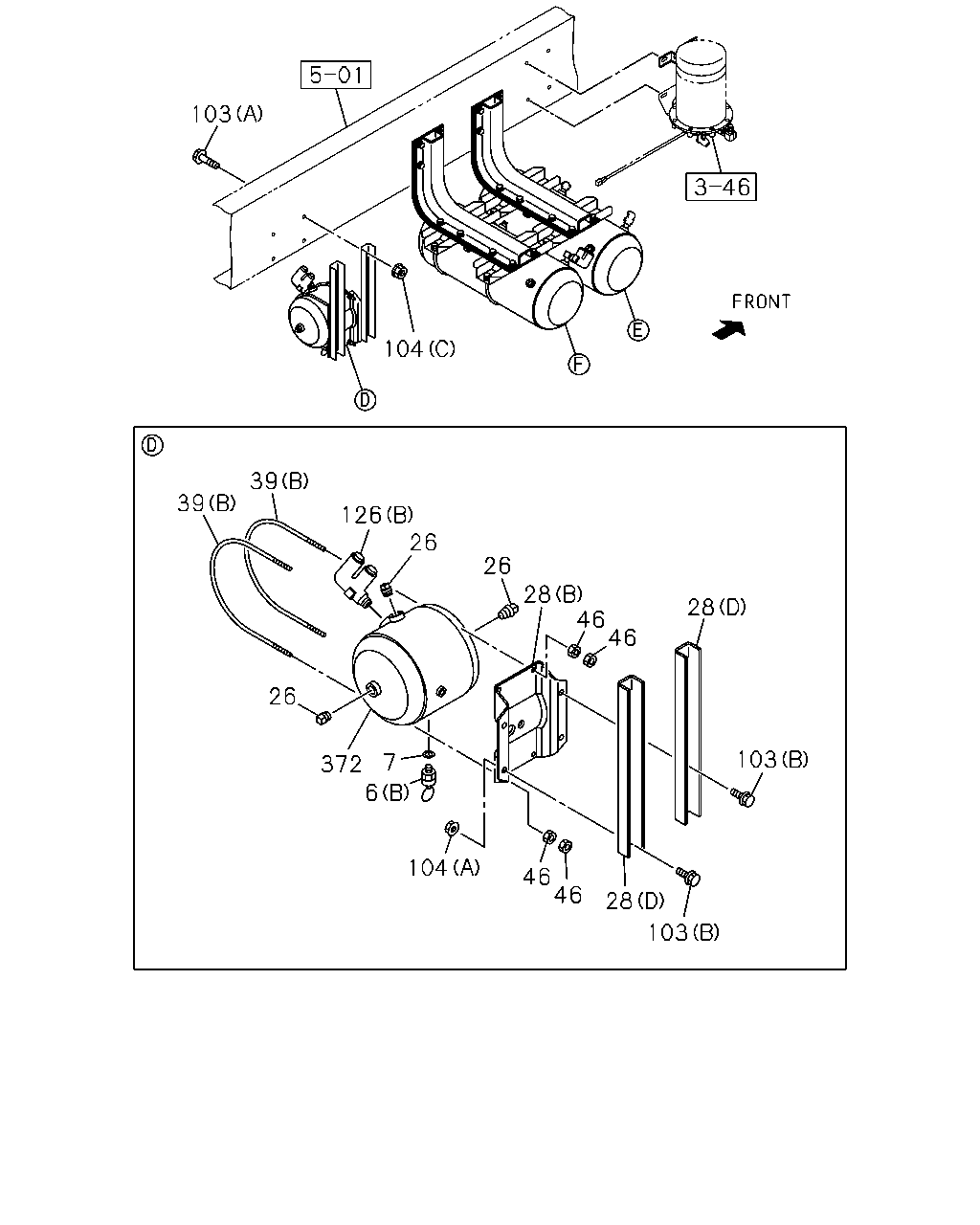

çizim 450339
103 104 39 39 126 26 26 28 46 46 28 103 26 372 7 6 104 46 46 28 103
BalonParca AdiParca NoAdetTipApplied Date
6 COCK; DRAIN,AIR TANK
(B) THA 		1-48312-017-0 04 1 1410-
6 COCK; DRAIN,AIR TANK
(A) THA 		1-48312-015-0 01 1 1410-
6 COCK; DRAIN,AIR TANK
(A) THA 		1-48312-015-0 02 1 1410-
7 GASKET; DRAIN COCK
ID=14 THA 		1-09630-145-0 07 1 1410-
26 PLUG; SUB AIR TANK
PT3/8 THA 		9-09204-517-0 03 1 1410-
28 BRACKET; AIR TANK
(A) THA 		8-97618-088-1 01 1 1410-
28 BRACKET; AIR TANK
(B) THA 		8-98092-756-1 01 1 1410-
28 BRACKET; AIR TANK
(C) THA 		8-98093-562-1 01 1 1410-
28 BRACKET; AIR TANK
(D) THA 		8-98100-973-1 02 1 1410-
28 BRACKET; AIR TANK
(E) THA 		8-98112-257-0 01 1 1410-
39 U-BOLT; AIR TANK
(B) L=210 THA 		1-48317-458-1 02 1 1410-
39 U-BOLT; AIR TANK
(A) L=253 THA 		8-97948-475-0 02 1 1410-
39 U-BOLT; AIR TANK
(A) L=253 THA 		8-97948-475-0 08 1 1410-
46 NUT; U-BOLT
M8 THA 		0-91110-508-0 08 1 1410-
46 NUT; U-BOLT
M8 THA 		0-91110-508-0 40 1 1410-
103 BOLT; BRKT
(B) M10X25 FLANGE THA 		0-28651-025-0 04 1 1410-
103 BOLT; BRKT
(A) M12X40 FLANGE THA 		0-28651-240-0 04 1 1410-
104 NUT; BRKT
(A) M10 THA 		0-91110-510-0 04 1 1410-
104 NUT; BRKT
(C) M12 FLANGE THA 		0-91180-112-0 03 1 1410-
104 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 01 1 1410-
104 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 01 1 1410-
126 CONNECTOR; ELBOW
(A) THA 		1-09660-778-1 01 1 1410-
126 CONNECTOR; ELBOW
(B) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 1410-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1410-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1410-
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1410-
372 TANK; AIR,ACCESORY
THA 		8-97948-593-0 01 1 1410-

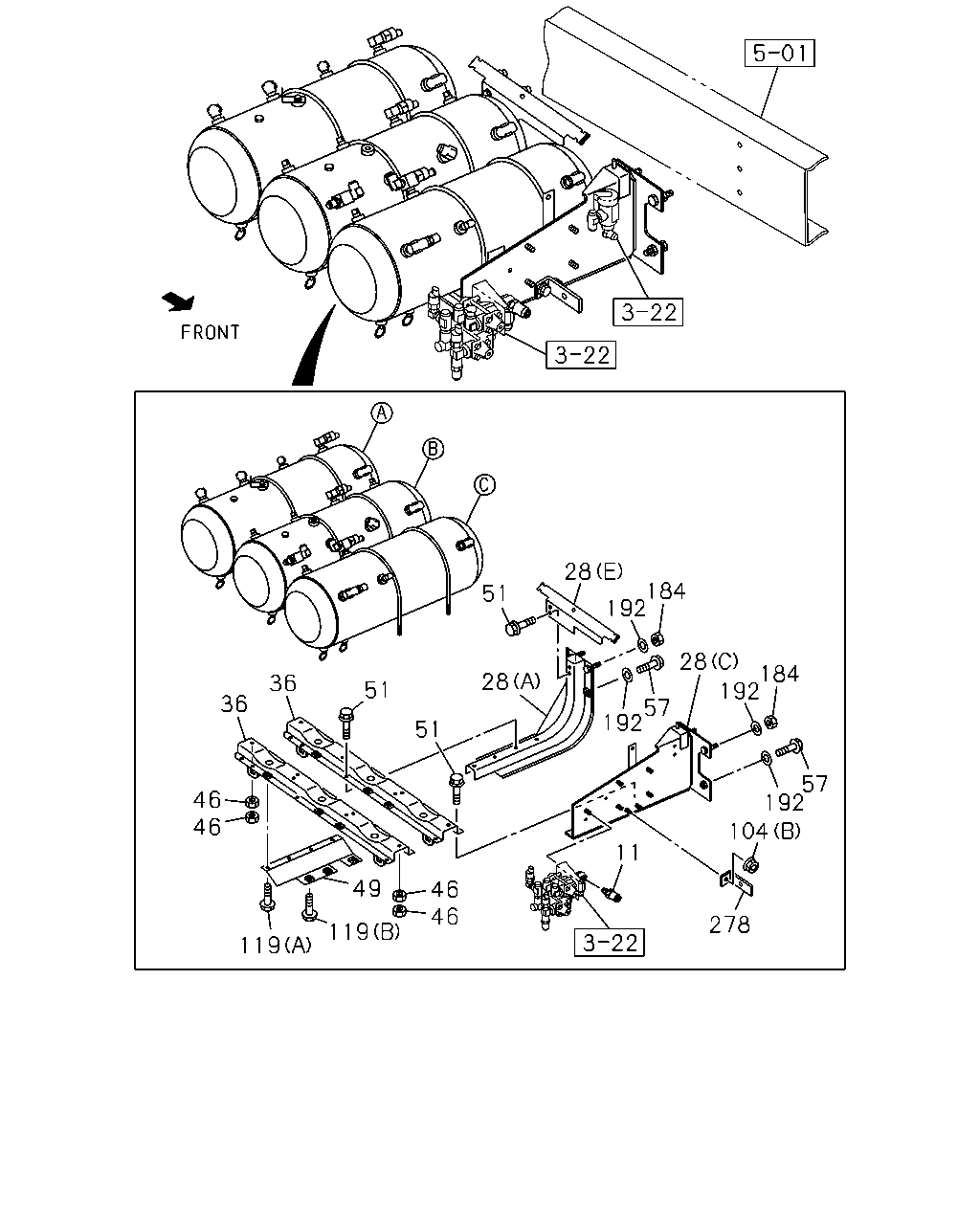

çizim 450735
36 36 46 46 119 119 49 46 46 51 51 51 28 28 184 192 28 57 192 11 192 184 57 192 104 278
BalonParca AdiParca NoAdetTipApplied Date
11 VALVE; SAFETY,AIR TANK
THA 		1-48320-012-2 01 1 1410-
28 BRACKET; AIR TANK
(A) THA 		8-97618-088-1 01 1 1410-
28 BRACKET; AIR TANK
(B) THA 		8-98092-756-1 01 1 1410-
28 BRACKET; AIR TANK
(C) THA 		8-98093-562-1 01 1 1410-
28 BRACKET; AIR TANK
(D) THA 		8-98100-973-1 02 1 1410-
28 BRACKET; AIR TANK
(E) THA 		8-98112-257-0 01 1 1410-
36 STAY; MAIN TANK
THA 		8-97618-091-1 02 1 1410-
46 NUT; U-BOLT
M8 THA 		0-91110-508-0 08 1 1410-
46 NUT; U-BOLT
M8 THA 		0-91110-508-0 40 1 1410-
49 BRACKET; AIR TANK
THA 		8-98110-683-0 01 1 1410-
51 BOLT; STAY TO BRKT
M8X20 FLANGE THA 		0-28650-820-0 10 1 1410-
57 BOLT; BRKT,AIR TANK TO FRAME
M14X45 THA 		1-09000-764-0 04 1 1410-
104 NUT; BRKT
(A) M10 THA 		0-91110-510-0 04 1 1410-
104 NUT; BRKT
(C) M12 FLANGE THA 		0-91180-112-0 03 1 1410-
104 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 01 1 1410-
104 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-108-0 01 1 1410-
119 BOLT; STAY
(A) M8X20 FLANGE THA 		0-28650-820-0 04 1 1410-
119 BOLT; STAY
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1410-
184 NUT; BRKT
M14 THA 		1-09440-072-0 04 1 1410-
192 WASHER; LK,BRKT
ID=14.2 THA 		0-91510-514-0 08 1 1410-
278 BRACKET; CONNECTOR
L=75 THA 		1-47478-323-0 01 1 1410-
