2-85 — POWER TAKE OFF CONTROL (#151032) — 11 parça

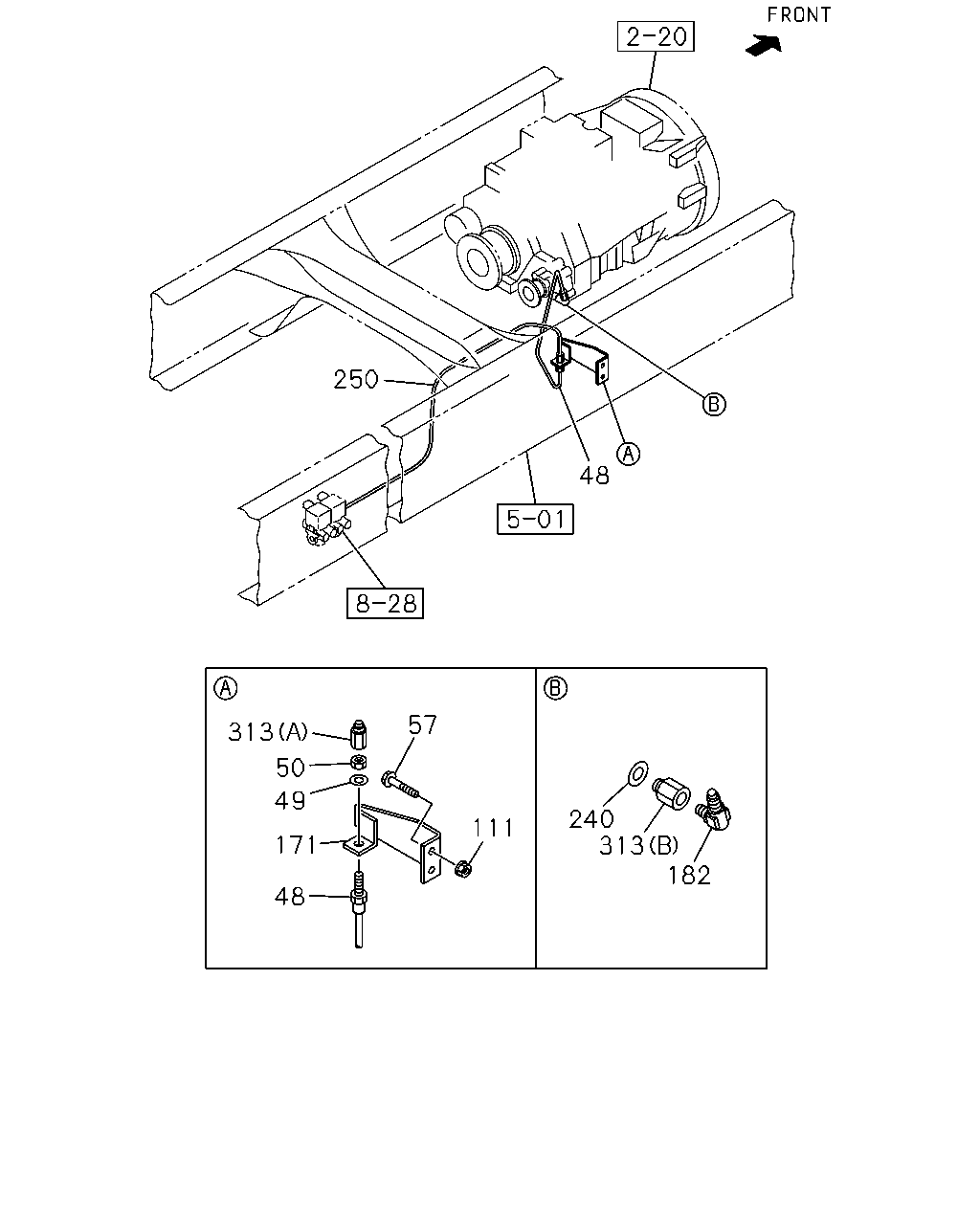

çizim 449852
48 250 182 313 240 111 57 48 171 49 50 313
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
PTO ZF TRANS RR<BDM> L=400 THA 		1-09363-606-0 01 1 1410-
49 WASHER; LK,FLEX HOSE
PTO ZF TRANS RR<BDM> ID=12.2 THA 		0-91510-512-0 01 1 1410-
50 NUT; FLEX HOSE
PTO ZF TRANS RR<BDM> M12 THA 		9-09840-280-0 01 1 1410-
57 BOLT; BRKT
PTO ZF TRANS RR<BDM> M8X35 FLANGE THA 		0-28650-835-0 02 1 1410-
111 NUT; BRKT
PTO ZF TRANS RR<BDM> M8 FLANGE THA 		0-91180-108-0 02 1 1410-
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR<BDM> THA 		8-98086-261-0 01 1 1410-
182 CONNECTOR; FLARE
M12 & PT1/4 ELBOW THA 		1-09650-430-0 01 1 1410-
240 GASKET; CONNECTOR,PTO
ID=12.2 THA 		8-98251-344-0 01 1 1410-
250 TUBE; NYLON
PTO ZF TRANS RR<BDM> SERVICED BY L=4000 OD=8 THA 		1-87411-007-0 01 1 1410-
313 ADAPTER
PTO ZF TRANS RR<BDM> (A) DIN8 & M12 STRAIGHT THA 		1-09660-873-0 01 1 1410-
313 ADAPTER
(B) THA 		1-09654-396-0 01 1 1410-
