2-82 — POWER TAKE OFF; TRANSMISSION REAR (#151031) — 49 parça

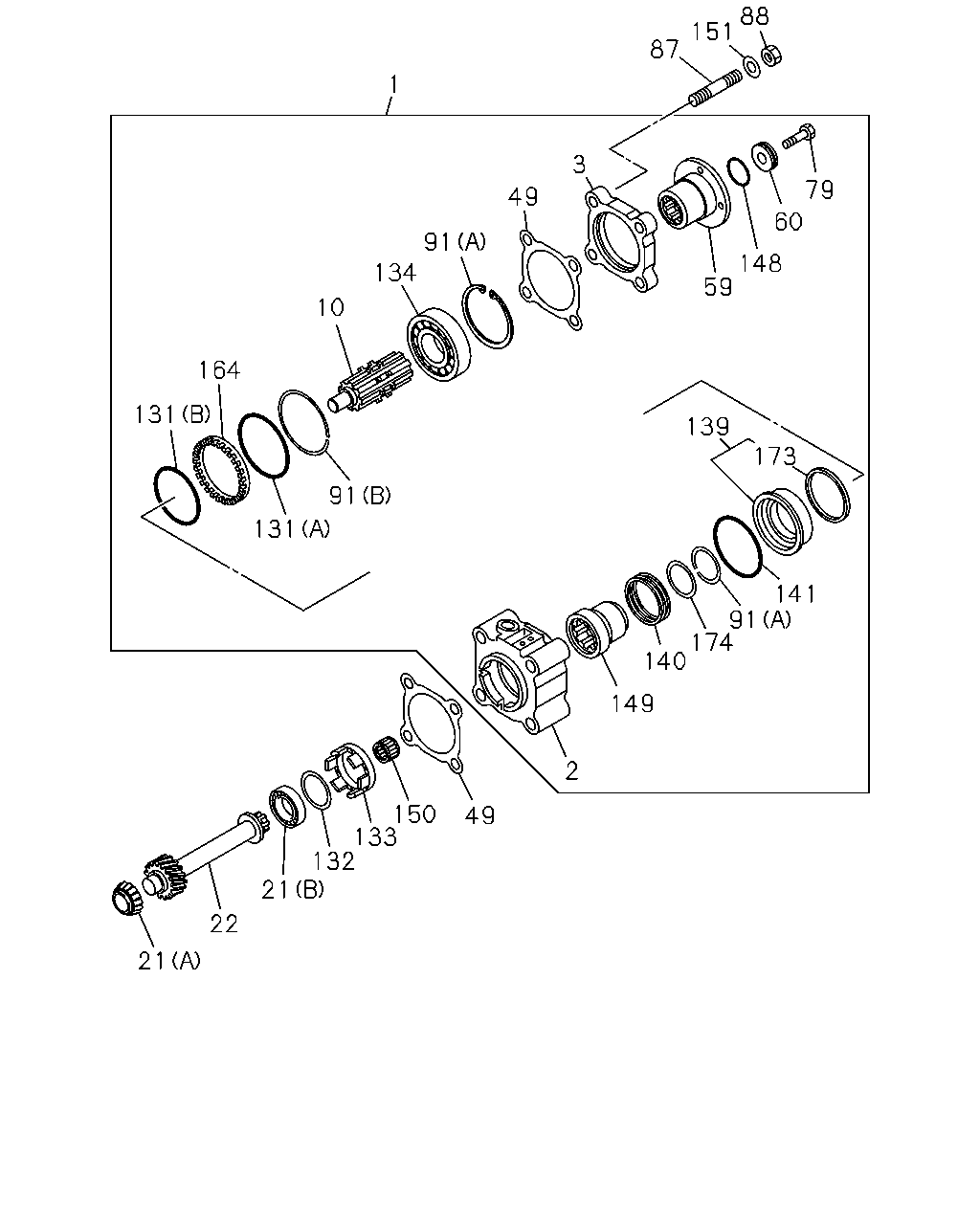

çizim 449820
131 164 131 91 10 1 134 91 49 3 87 151 88 79 60 148 59 139 173 141 91 174 140 149 2 49 150 133 132 21 22 21
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; TRANS RR
THA 		1-38000-398-0 01 1 1410-
2 CASE; GEAR,TRANS RR PTO
THA 		1-38111-120-0 01 1 1410-
3 COVER; GEAR CASE,TRANS RR PTO
THA 		1-38159-009-0 01 1 1410-
10 SHAFT; PTO OUTPUT GEAR,TRANS RR PTO
THA 		1-38221-064-0 01 1 1410-
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
(B) THA 		1-33389-068-0 01 1 1410-
21 BEARING; MAIN DRIVE SHAFT,TRANS RR PTO
(A) THA 		1-33389-090-0 01 1 1410-
22 SHAFT; MAIN DRIVE,TRANS RR PTO
THA 		1-33381-015-0 01 1 1410-
49 GASKET; PTO GEAR CASE TO TRANS
THA 		1-33132-084-0 02 1 1410-
59 YOKE; SPINDLE,PTO OUTPUT SHAFT,RR PTO
THA 		1-38229-020-0 01 1 1410-
60 WASHER; YOKE,OUTPUT SHAFT,RR PTO
THA 		1-38519-021-0 01 1 1410-
79 BOLT
THA 		1-37249-216-0 01 1 1410-
87 STUD; GEAR CASE
M12X80 THA 		1-38119-103-0 04 1 1410-
88 NUT; COVER
THA 		1-38119-104-0 04 1 1410-
91 RING; SNAP
(A) THA 		1-38219-037-0 01 1 1410-
91 RING; SNAP
(B) THA 		1-38219-038-0 01 1 1410-
131 GASKET; OUTPUT SHAFT
(A) THA 		1-38129-035-0 01 1 1410-
131 GASKET; OUTPUT SHAFT
(B) THA 		1-38129-036-0 01 1 1410-
132 SHIM; BRG
T=1.60 THA 		1-33389-047-0 01 1 1410-
132 SHIM; BRG
T=1.55 THA 		1-33389-048-0 01 1 1410-
132 SHIM; BRG
T=1.45 THA 		1-33389-050-0 01 1 1410-
132 SHIM; BRG
T=1.35 THA 		1-33389-052-0 01 1 1410-
132 SHIM; BRG
T=1.30 THA 		1-33389-053-0 01 1 1410-
132 SHIM; BRG
T=1.25 THA 		1-33389-055-0 01 1 1410-
132 SHIM; BRG
T=1.20 THA 		1-33389-056-0 01 1 1410-
132 SHIM; BRG
T=1.15 THA 		1-33389-057-0 01 1 1410-
132 SHIM; BRG
T=1.10 THA 		1-33389-058-0 01 1 1410-
132 SHIM; BRG
T=1.05 THA 		1-33389-059-0 01 1 1410-
132 SHIM; BRG
T=1.00 THA 		1-33389-060-0 01 1 1410-
132 SHIM; BRG
T=0.90 THA 		1-33389-062-0 01 1 1410-
132 SHIM; BRG
T=0.85 THA 		1-33389-063-0 01 1 1410-
132 SHIM; BRG
T=0.75 THA 		1-33389-065-0 01 1 1410-
132 SHIM; BRG
T=0.70 THA 		1-33389-066-0 01 1 1410-
132 SHIM; BRG
T=0.65 THA 		1-33389-067-0 01 1 1410-
132 SHIM; BRG
T=0.80 THA 		8-98080-566-0 01 1 1410-
132 SHIM; BRG
T=0.95 THA 		8-98080-567-0 01 1 1410-
132 SHIM; BRG
T=1.40 THA 		8-98080-570-0 01 1 1410-
132 SHIM; BRG
T=1.50 THA 		8-98080-571-0 01 1 1410-
133 BUSHING; SHAFT
THA 		1-33389-046-0 01 1 1410-
134 BEARING; OUTPUT SHAFT
THA 		1-38219-015-0 01 1 1410-
139 PISTON; RR PTO
THA 		1-38129-039-0 01 1 1410-
140 SPRING; PISTON,RR PTO
THA 		1-38129-042-0 01 1 1410-
141 GASKET; PISTON,RR PTO
THA 		1-38129-035-0 01 1 1410-
148 GASKET; YOKE
THA 		1-38519-014-0 01 1 1410-
149 SLEEVE; SLIDING
THA 		1-38229-060-0 01 1 1410-
150 BEARING; OUTPUT SHAFT
THA 		8-98080-565-0 01 1 1410-
151 WASHER; PL,COVER
THA 		8-98080-563-0 04 1 1410-
164 RING; CENTERING,PTO
THA 		1-38129-038-0 01 1 1410-
173 RING; MAGNET
THA 		1-38129-034-0 01 1 1410-
174 DISK; PRESSURE
THA 		1-38129-040-0 01 1 1410-
