2-05 — CLUTCH PIPING (#151020) — 66 parça
çizim 449049
235 101 210 16 42 30 42 207 210 27 106 51 107
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=16 L=28 THA 		1-09700-872-0 03 1 1410-
27 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1410-
27 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 03 1 1410-
30 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1410-
30 BOLT; BRKT
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 1410-
30 BOLT; BRKT
(B) M10X25 FLANGE THA 		0-28651-025-0 02 1 1410-
42 BRACKET; FLEX HOSE,CLU CONT
(A) THA 		1-47476-912-1 01 1 1410-
42 BRACKET; FLEX HOSE,CLU CONT
(C) THA 		8-98184-114-0 01 1 1410-
42 BRACKET; FLEX HOSE,CLU CONT
(B) THA 		8-97948-682-0 01 1 1410-
51 WASHER; LK
ID=14.2 THA 		0-91510-514-0 01 1 1410-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
THA 		8-97948-688-0 01 1 1410-
106 UNION; OIL PIPE
(B) THA 		1-09654-191-1 01 1 1410-
106 UNION; OIL PIPE
(A) M14 STRAIGHT THA 		0-92113-008-0 01 1 1410-
106 UNION; OIL PIPE
(A) M14 STRAIGHT THA 		0-92113-008-0 01 1 1410-
107 NUT; UNION,OIL PIPE
M14 THA 		0-91111-514-0 01 1 1410-
207 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 1410-
210 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1410-
235 GASKET; FLEX HOSE
ID=10.2 OD=16.0 THA 		9-09571-410-0 01 1 1410-

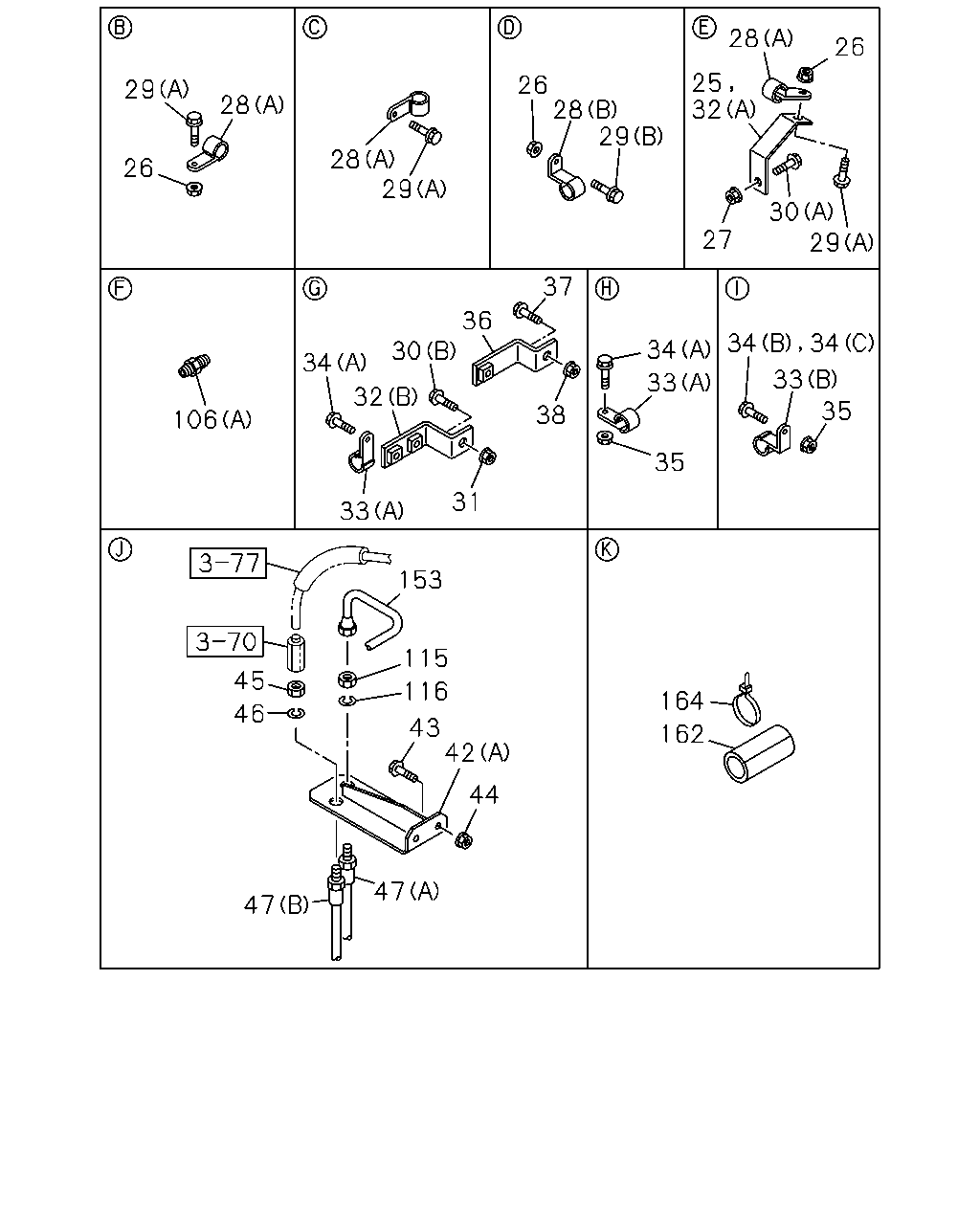

çizim 449291
29 28 26 28 29 26 28 29 28 26 25 32 27 30 29 106 34 30 36 37 32 33 31 38 34 33 35 34 34 33 35 45 46 47 153 115 116 43 42 44 47 164 162
BalonParca AdiParca NoAdetTipApplied Date
25 BRACKET; OIL PIPE
THA 		8-98123-059-0 01 1 1410-
26 NUT; CLIP,OIL PIPE
M8 FLANGE THA 		0-91180-108-0 03 1 1410-
27 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1410-
27 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 03 1 1410-
28 CLIP; OIL PIPE
(A) ID=9 L=20 THA 		0-95234-835-0 02 1 1410-
28 CLIP; OIL PIPE
(A) ID=9 L=40 THA 		0-95234-875-0 01 1 1410-
28 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 THA 		1-09700-604-0 01 1 1410-
29 BOLT; CLIP,OIL PIPE
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1410-
29 BOLT; CLIP,OIL PIPE
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1410-
30 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1410-
30 BOLT; BRKT
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 1410-
30 BOLT; BRKT
(B) M10X25 FLANGE THA 		0-28651-025-0 02 1 1410-
31 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1410-
31 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1410-
32 BRACKET; CLIP OIL PIPE
(B) THA 		1-47479-482-0 01 1 1410-
32 BRACKET; CLIP OIL PIPE
(A) THA 		8-98123-059-0 01 1 1410-
33 CLIP; OIL PIPE
(A) ID=9 L=20 THA 		0-95234-835-0 04 1 1410-
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 THA 		1-09700-604-0 02 1 1410-
34 BOLT; PIPE CLIP
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 1410-
34 BOLT; PIPE CLIP
(A) M8X25 FLANGE THA 		0-28650-825-0 04 1 1410-
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1410-
35 NUT; PIPE CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1410-
35 NUT; PIPE CLIP
M8 FLANGE THA 		0-91180-108-0 02 1 1410-
36 BRACKET; CLIP
THA 		1-82699-304-0 01 1 1410-
37 BOLT; CLIP BRKT
M8X30 FLANGE THA 		0-28650-830-0 01 1 1410-
38 NUT; CLIP BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1410-
42 BRACKET; FLEX HOSE,CLU CONT
(A) THA 		1-47476-912-1 01 1 1410-
42 BRACKET; FLEX HOSE,CLU CONT
(C) THA 		8-98184-114-0 01 1 1410-
42 BRACKET; FLEX HOSE,CLU CONT
(B) THA 		8-97948-682-0 01 1 1410-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE THA 		0-28650-835-0 02 1 1410-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE THA 		0-91180-108-0 02 1 1410-
45 NUT; FLEX HOSE,CLU CONT
M12 THA 		9-09840-280-0 01 1 1410-
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 THA 		0-91510-512-0 01 1 1410-
47 HOSE; FLEX,CLU CONT
(A) L=350 THA 		1-09363-624-0 01 1 1410-
47 HOSE; FLEX,CLU CONT
(B) L=370 THA 		8-98072-331-0 01 1 1410-
106 UNION; OIL PIPE
(B) THA 		1-09654-191-1 01 1 1410-
106 UNION; OIL PIPE
(A) M14 STRAIGHT THA 		0-92113-008-0 01 1 1410-
106 UNION; OIL PIPE
(A) M14 STRAIGHT THA 		0-92113-008-0 01 1 1410-
115 NUT; FLEX HOSE,CLU CONT
M14 THA 		0-91111-514-0 01 1 1410-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 THA 		0-91510-514-0 01 1 1410-
153 PIPE ASM; CLU,UNION TO FLEX
L=1156 SERVICED BY L=1250 THA 		1-47428-764-0 01 1 1410-
162 COVER; RUBBER,FLEX HOSE
L=175 THA 		1-09707-178-0 01 1 1410-
164 CLIP; BAND,FLEX HOSE
L=350 THA 		1-09707-183-0 01 1 1410-

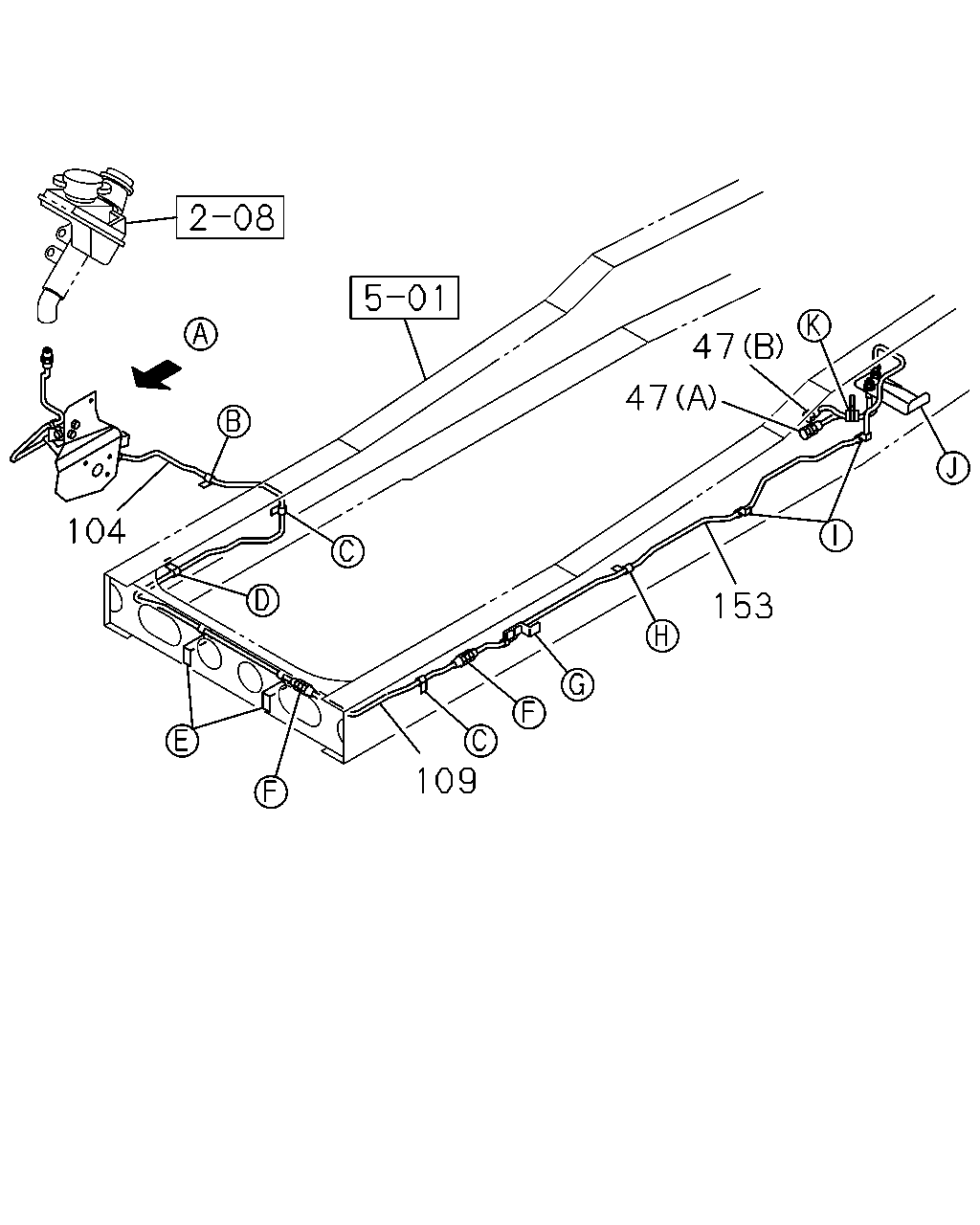

çizim 450197
47 47 153 109 104
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
(A) L=350 THA 		1-09363-624-0 01 1 1410-
47 HOSE; FLEX,CLU CONT
(B) L=370 THA 		8-98072-331-0 01 1 1410-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1796 SERVICED BY L=1800 THA 		1-47428-768-0 01 1 1410-
109 PIPE; AIR,UNION TO UNION
L=1676 SERVICED BY L=1700 THA 		1-47428-767-0 01 1 1410-
153 PIPE ASM; CLU,UNION TO FLEX
L=1156 SERVICED BY L=1250 THA 		1-47428-764-0 01 1 1410-
