Isuzu WW
▶
TRUCKS
▶
FTR
▶
11042 - FTR(LHD) EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶

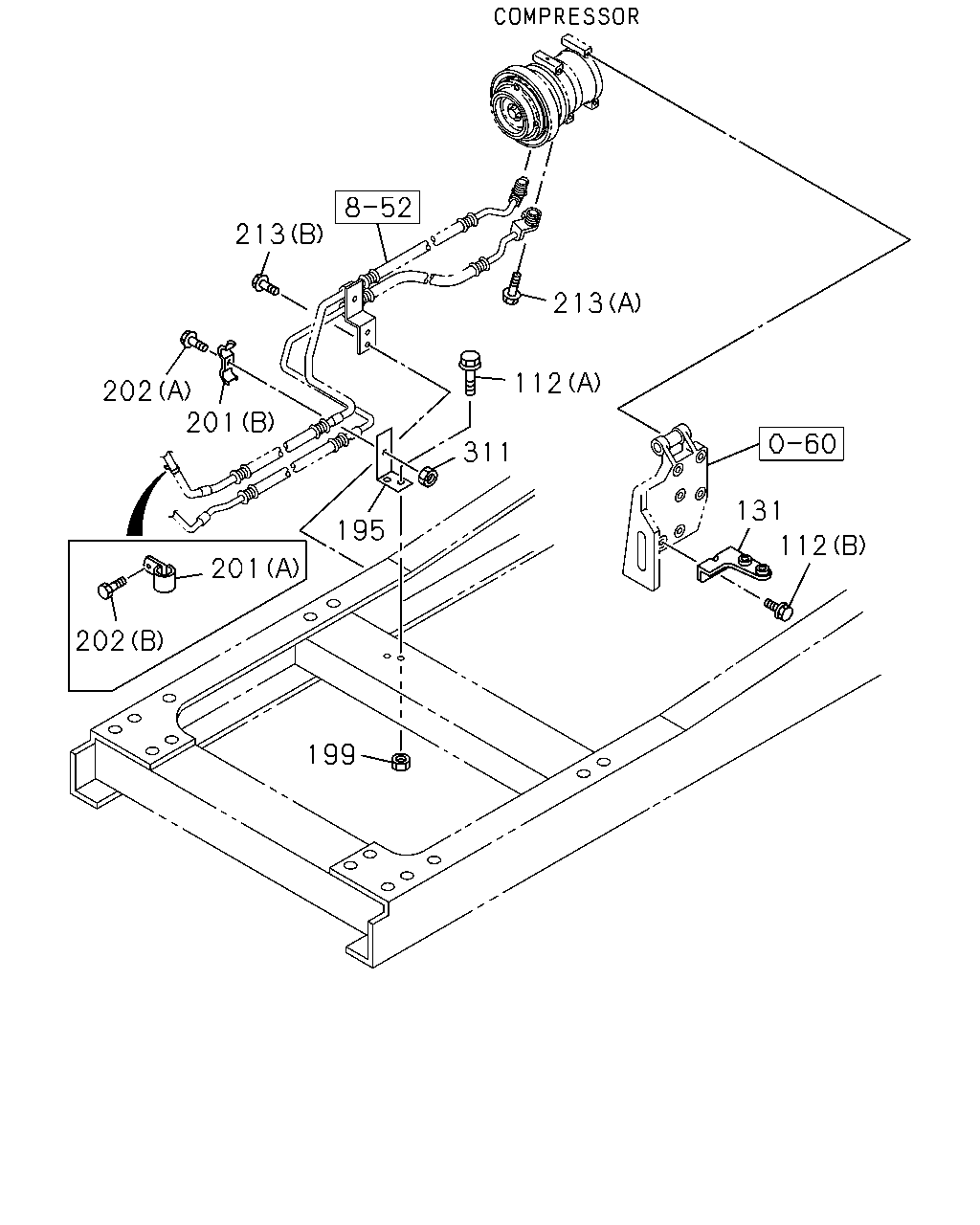

8-50 — AIR CONDITIONING SYSTEM; FRONT
(#15102) — 13 parça
213
213
112
202
201
311
131
195
112
201
202
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
112
BOLT; STAY
(B) M8X16 FLANGE
0-28050-816-0
02
1
0612-
112
BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE
0-28650-825-0
02
1
0612-
131
STAY; CMPR BRKT
8-94393-451-0
01
1
0612-
195
STAY; CLIP
AIR CONDITIONER MANUAL CONTROL(C60)
1-83571-896-0
01
1
0612-1004
195
STAY; CLIP
AIR CONDITIONER MANUAL CONTROL(C60)
8-98151-192-0
01
1
1005-
199
NUT
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
02
1
0612-
201
CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=19 L=20
0-95235-836-0
01
1
0612-
201
CLIP; HOSE,CMPR TO EVAP
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12.2 & 16.2
1-83574-190-0
01
1
0612-
202
BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE
0-28650-820-0
01
1
0612-
202
BOLT; CLIP,FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE
0-28650-825-0
01
1
0612-
213
BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X25 FLANGE
0-28050-625-0
02
1
0612-
213
BOLT; FLEX HOSE TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE
0-28650-825-0
02
1
0612-
311
NUT; HOSE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
0612-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
