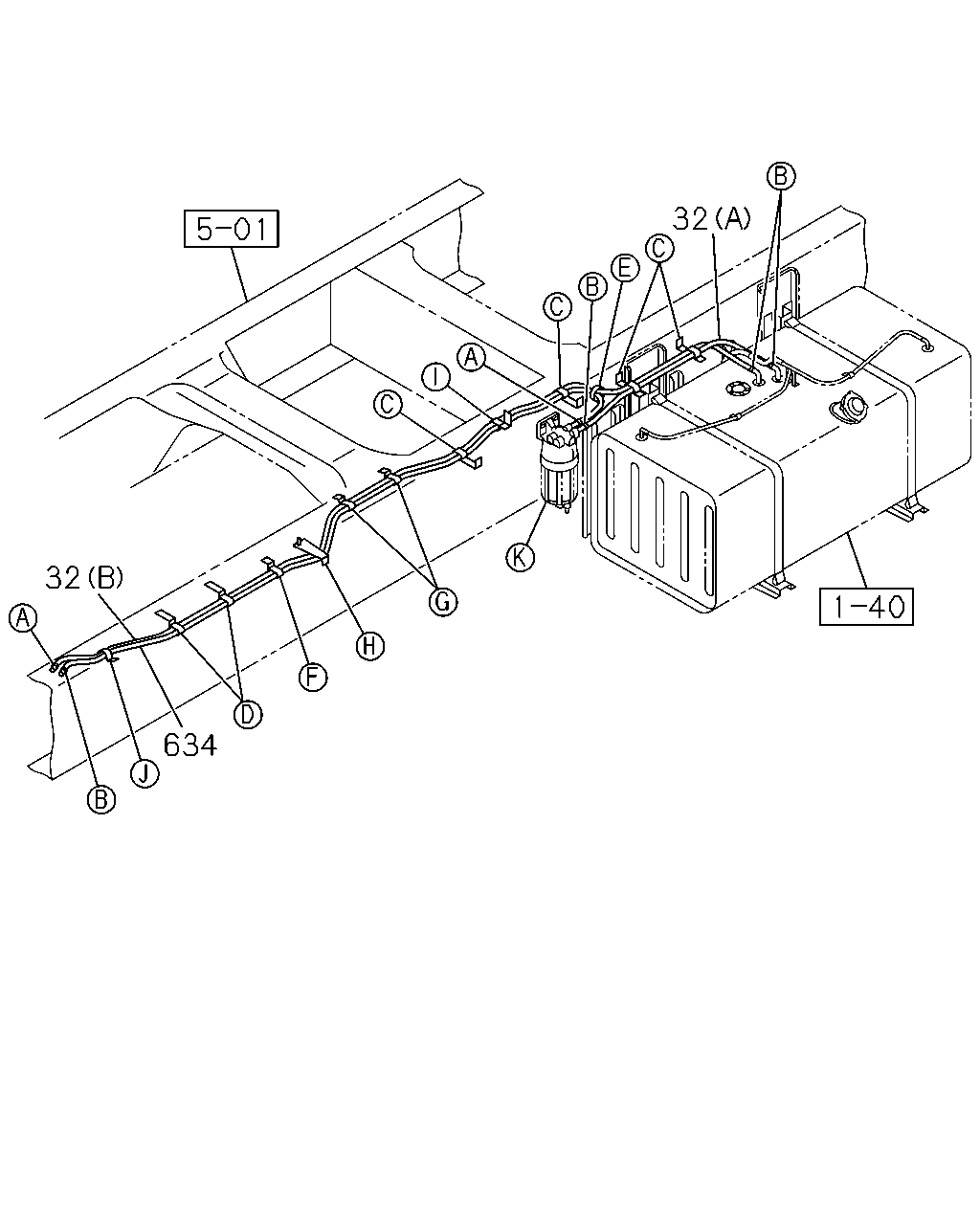

1-41 — FUEL PIPING; CHASSIS
(#151013) — 20 parça
◀

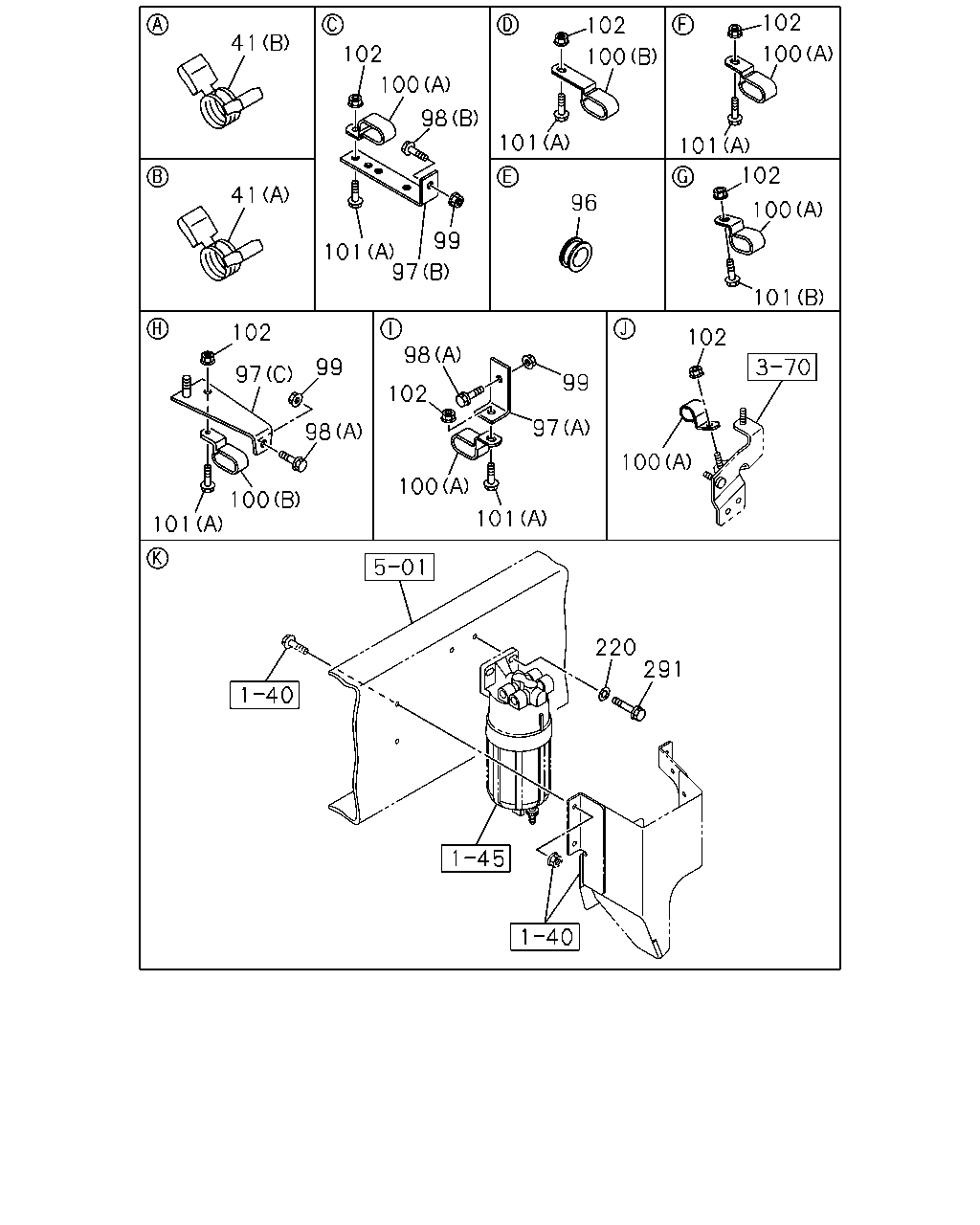

[141A] FUEL SEDIMENTER FIXING AND OTHER PARTS (17 parça)
[141A] PIPING (3 parça)
▶
41
102
100
98
41
101
99
97
102
100
102
100
101
102
100
101
96
101
102
100
101
97
99
98
102
100
102
97
99
98
100
101
220
291
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 THA
1-09704-102-0
04
1
1410-
41
CLIP; FUEL PIPE,FUEL TANK
(B) ID=19 THA
8-94238-569-0
02
1
1410-
96
GROMMET; PIPE,FUEL TANK
ID=32 OD=40 T=18 THA
1-09891-003-0
01
1
1410-
97
BRACKET; CLIP
(A) L=55 THA
1-47475-304-0
01
1
1410-
97
BRACKET; CLIP
(B) THA
1-82698-358-0
04
1
1410-
97
BRACKET; CLIP
(C) THA
8-97609-096-0
01
1
1410-
98
BOLT; BRKT,FUEL PIPE
(A) M8X25 FLANGE THA
0-28650-825-0
02
1
1410-
98
BOLT; BRKT,FUEL PIPE
(B) M8X30 FLANGE THA
0-28650-830-0
04
1
1410-
99
NUT; BRKT,CLIP,FUEL TANK
M8 FLANGE THA
0-91180-108-0
06
1
1410-
100
CLIP; FUEL PIPE
(A) ID=14X29 H=15 L=20 THA
1-09700-744-0
02
1
1410-
100
CLIP; FUEL PIPE
(A) ID=19X32 H=17.5 L=22.5 THA
1-09701-315-0
07
1
1410-
100
CLIP; FUEL PIPE
(B) ID=19X32 H=17.5 L=50.5 THA
1-09701-320-0
03
1
1410-
101
BOLT; CLIP,FUEL PIPE
(A) M8X20 FLANGE THA
0-28650-820-0
09
1
1410-
101
BOLT; CLIP,FUEL PIPE
(B) M8X25 FLANGE THA
0-28650-825-0
02
1
1410-
102
NUT; CLIP,FUEL PIPE
M8 FLANGE THA
0-91180-108-0
12
1
1410-
220
WASHER; PL
ID=10.5 OD=26 THA
0-91614-710-0
02
1
1410-
291
BOLT; FILER TO BRKT
M10X60 FLANGE THA
0-28051-060-0
02
1
1410-
32
634
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(A) L=900 SERVICED BY L=3000 THA
0-01260-300-0
01
1
1410-
32
PIPE; DELIVERY,FUEL TANK
(B) L=2950 SERVICED BY L=3000 THA
0-01262-300-0
01
1
1410-
634
HOSE; RUBBER RETURN
L=3400 SERVICED BY L=8000 THA
0-01260-800-0
01
1
1410-
