Isuzu WW
▶
TRUCKS
▶
FYH
▶
11656 - FYH THAILAND EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

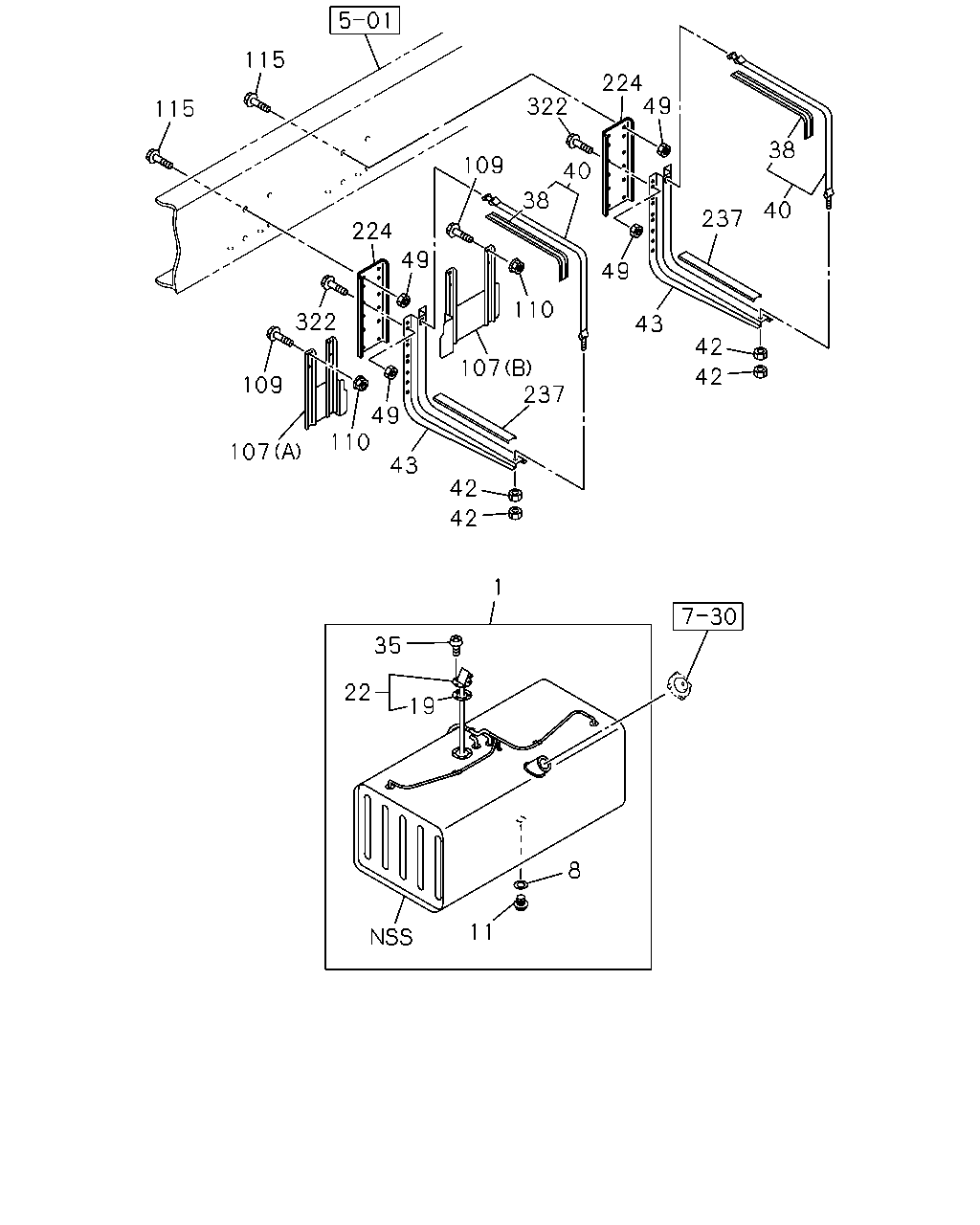

1-40 — FUEL TANK
(#151012) — 25 parça
◀
[140A] FUEL TANK FIXING (21 parça)
[140A] SEDIMENTER PROTECTOR (4 parça)
▶
224
38
49
237
40
109
40
322
38
49
43
42
42
110
107
237
224
115
115
322
109
107
110
49
42
43
42
49
1
35
19
22
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1275X603X503 370L THA
8-98240-497-0
01
1
1410-
8
GASKET; DRAIN PLUG,FUEL TANK
THA
8-97913-627-0
01
1
1410-
11
PLUG; DRAIN,FUEL TANK
THA
8-97913-628-0
01
1
1410-
19
GASKET; FUEL TANK UNIT
THA
1-83149-003-0
01
1
1410-
22
UNIT; FUEL TANK
THA
8-98232-363-0
01
1
1410-
35
SCREW; FUEL TANK UNIT
THA
1-22419-012-0
05
1
1410-
38
INSULATION; SUPPORT BELT
THA
8-97922-175-0
02
1
1410-
40
BELT; SUPPORT,FUEL TANK
THA
8-97922-751-0
02
1
1410-
42
NUT; SUPPORT BELT
M10 THA
0-91110-510-0
04
1
1410-
43
BRACKET; FUEL TANK
THA
8-97925-553-1
02
1
1410-
49
NUT; BRKT
M12 THA
0-91110-512-0
24
1
1410-
107
PROTECTOR; HEAT,FUEL TANK
(A) THA
8-98194-017-0
01
1
1410-
107
PROTECTOR; HEAT,FUEL TANK
(B) THA
8-98194-018-0
01
1
1410-
109
BOLT; HEAT PROTECTOR
M8X30 FLANGE THA
0-28050-830-0
08
1
1410-
110
NUT; PROTECTOR
M8 FLANGE THA
0-91180-108-0
03
1
1410-
110
NUT; PROTECTOR
M8 FLANGE THA
0-91180-108-0
08
1
1410-
115
BOLT; BRKT
M12X40 FLANGE THA
0-28051-240-0
08
1
1410-
224
BRACKET; FUEL TANK BRKT TO FRAME
THA
8-98179-439-0
02
1
1410-
237
GASKET; BRKT TO FUEL TANK
L=580 THA
8-97916-877-0
02
1
1410-
322
BOLT; BRKT FIX
M12X40 FLANGE THA
0-28051-240-0
08
1
1410-
322
BOLT; BRKT FIX
M12X50 FLANGE THA
0-28051-250-0
08
1
1410-
261
110
324
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
110
NUT; PROTECTOR
M8 FLANGE THA
0-91180-108-0
03
1
1410-
110
NUT; PROTECTOR
M8 FLANGE THA
0-91180-108-0
08
1
1410-
261
BOLT; PROTECTOR
M8X35 FLANGE THA
0-28650-835-0
03
1
1410-
324
PROTECTOR; FUEL SEDIMENTER
THA
8-98180-520-0
01
1
1410-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
