Isuzu WW
▶
TRUCKS
▶
FTR
▶
11042 - FTR(LHD) EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

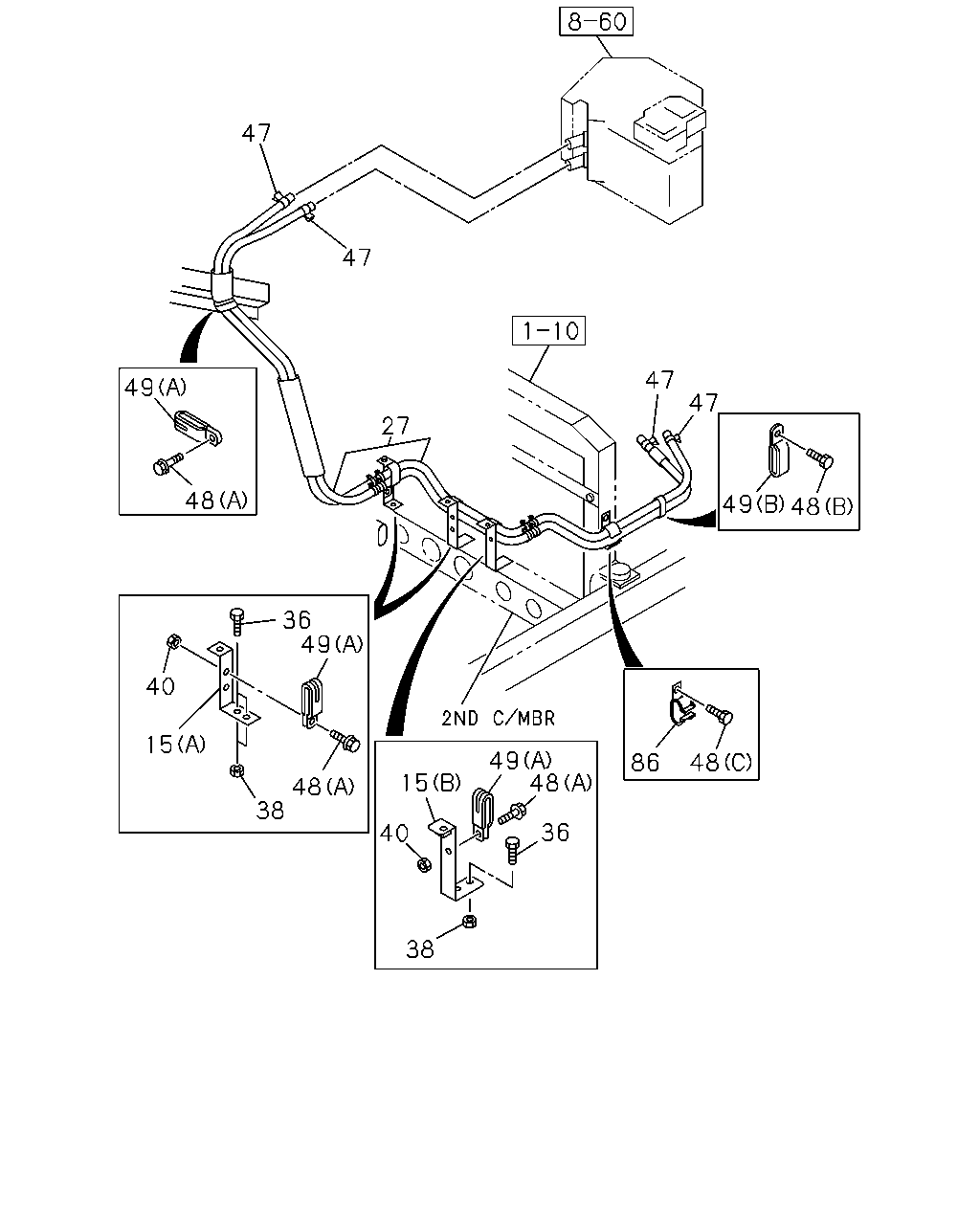

8-45 - HEATER PIPING
▶
8-45 — HEATER PIPING
(#15101) — 16 parça
47
47
47
49
47
27
48
49
48
36
49
40
15
49
48
48
86
15
48
38
36
40
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
BRACKET; WATER HOSE
(A)
1-83571-927-1
02
1
0612-
15
BRACKET; WATER HOSE
(B)
1-83573-145-0
01
1
0612-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
1-83565-850-1
01
1
0612-
36
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
06
1
0612-
38
NUT; BRKT
M8 FLANGE
0-91180-108-0
06
1
0612-
40
NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
03
1
0612-
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-94382-401-0
04
1
0612-0612
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-97359-141-0
04
1
0612-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE
0-28050-816-0
01
1
0612-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE
0-28650-820-0
03
1
0612-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE
0-28650-820-0
03
1
0612-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
0612-
49
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25
1-09700-710-0
03
1
0612-
49
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25
1-09700-710-0
03
1
0612-
49
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=24 L=32
1-09700-766-1
01
1
0612-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
1-83571-049-1
01
1
0612-
