◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 10633 - FVZ-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#1510) — 148 parça

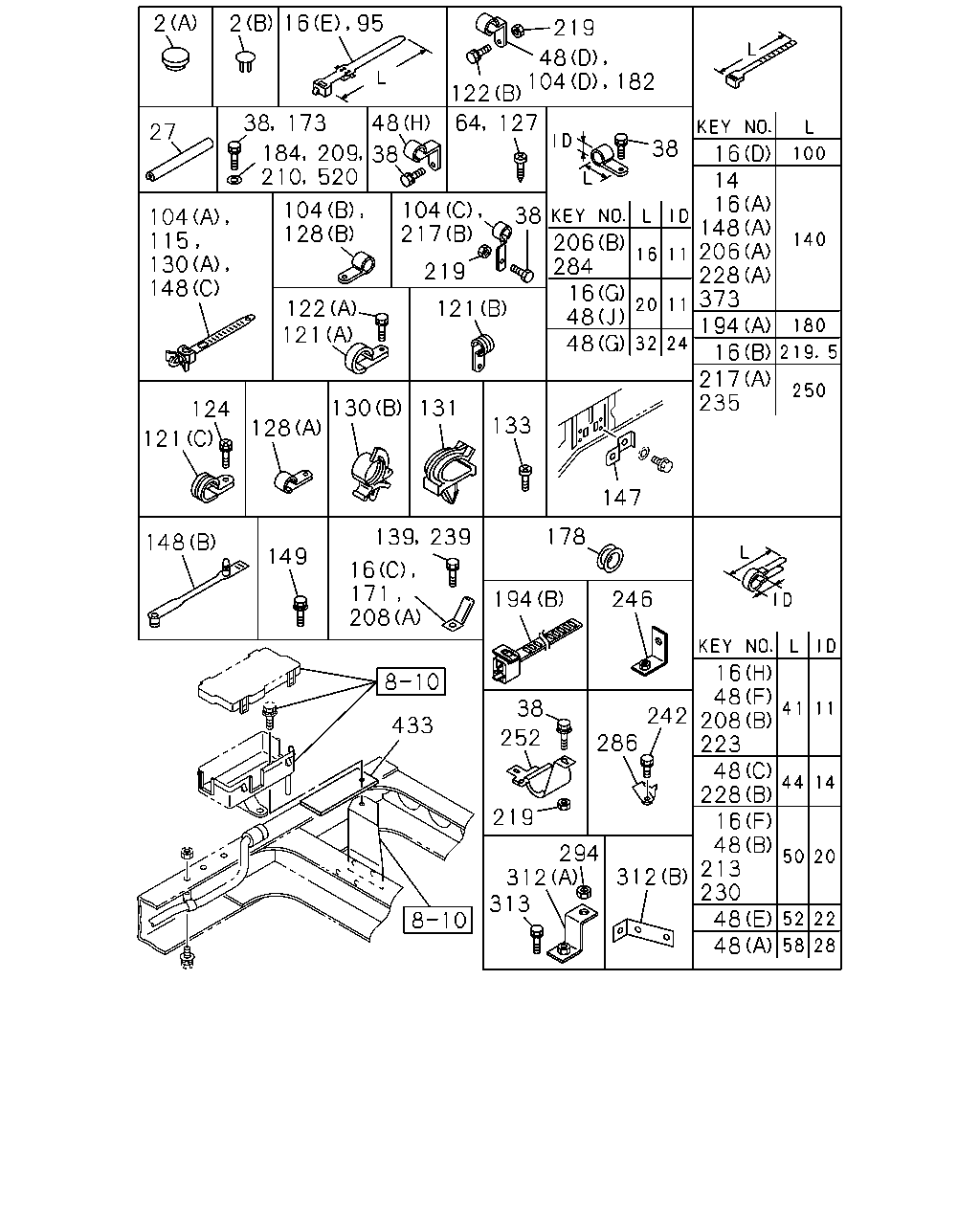

çizim 28560
2 2 219 48 104 122 182 38 173 48 64 127 27 38 184 210 520 16 14 16 148 206 228 373 194 217 235 104 128 104 217 38 104 115 130 148 206 284 16 48 48 219 122 121 121 131 130 124 133 128 121 147 178 139 239 148 149 16 171 208 194 246 16 48 208 223 48 228 16 48 213 230 48 48 38 242 286 433 252 219 294 312 313 312 16 95 209
BalonParca AdiParca NoAdetTipApplied Date
2 GROMMET; CLIP HOLE,HARNESS
(A) OD=47 		1-09983-039-1 02 1 9203-9311
2 GROMMET; CLIP HOLE,HARNESS
EXC. AUSTRALIA PACKAGE<D2Y> (A) OD=47 		1-09983-039-1 02 1 9312-
2 GROMMET; CLIP HOLE,HARNESS
(B) OD=12.8 		1-09983-065-0 04 1 9203-9311
2 GROMMET; CLIP HOLE,HARNESS
AUSTRALIA PACKAGE<D2Y> (B) OD=12.8 		1-09983-065-0 02 1 9312-
2 GROMMET; CLIP HOLE,HARNESS
AUSTRALIA PACKAGE<D2Y> (A) OD=47 		1-09983-038-1 02 1 9312-
2 GROMMET; CLIP HOLE,HARNESS
EXC. AUSTRALIA PACKAGE<D2Y> (B) OD=12.8 		1-09983-065-0 04 1 9312-
14 CLIP; BAND,HARNESS
L=140 		5-09707-031-0 02 1 9203-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 9203-9306
16 CLIP; HARNESS
(C) L=63 		1-09700-418-1 01 1 9203-
16 CLIP; HARNESS
(E) L=135 		1-09987-143-1 03 1 9203-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-0 02 1 9203-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-0 01 1 9203-
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. RADIO CLARION<SK2>,RADIO AM & TAPE PLAYER<UM1> ,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) L=140 		5-09707-031-0 01 1 9203-
16 CLIP; HARNESS
(G) ID=11 L=20 		9-09525-035-0 03 1 9203-
16 CLIP; HARNESS
(F) ID=20 L=50 		9-09917-430-0 03 1 9203-
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) L=219.5 		1-09987-136-0 05 1 9203-
16 CLIP; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) L=100 		5-09707-036-0 02 1 9203-
16 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) L=219.5 		1-09987-136-0 04 1 9203-
16 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) L=140 		5-09707-031-0 03 1 9203-
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) (H) ID=11 L=41 		1-09700-403-0 03 1 9203-9306
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 9307-
16 CLIP; HARNESS
WHEEL BASE 5000MM(50W) (H) ID=11 L=41 		1-09700-403-0 01 1 9203-
27 PROTECTOR; EDGE
L=2040 		1-71997-513-1 02 1 9203-
38 BOLT; CLIP,HARNESS
M8X16 FLANGE 		0-28010-816-0 01 1 9203-9204
38 BOLT; CLIP,HARNESS
M8X16 FLANGE 		0-28080-816-0 01 1 9205-
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28010-820-0 01 1 9203-9204
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 01 1 9205-
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28010-825-0 01 1 9203-9204
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 01 1 9205-9404
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 02 1 9405-
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28010-825-0 02 1 9203-9204
38 BOLT; CLIP,HARNESS
M8X16 W/LK WASHER 		0-50040-816-0 01 1 9205-
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28010-830-0 01 1 9203-9204
38 BOLT; CLIP,HARNESS
M8X30 FLANGE 		0-28080-830-0 01 1 9205-
38 BOLT; CLIP,HARNESS
M8X20 FLANGE 		0-28080-820-0 03 1 9203-
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9203-9204
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 03 1 9205-9211
38 BOLT; CLIP,HARNESS
M8X14 FLANGE 		0-28080-814-0 01 1 9212-
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 02 1 9203-9204
38 BOLT; CLIP,HARNESS
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205-
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-
38 BOLT; CLIP,HARNESS
M8X30 W/LK&PL WASHER 		0-50140-830-0 01 1 9205-
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 03 1 9205-9404
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 01 1 9405-
38 BOLT; CLIP,HARNESS
M8X25 FLANGE 		0-28080-825-0 01 1 9405-
38 BOLT; CLIP,HARNESS
M8X14 FLANGE 		0-28080-814-0 02 1 9212-
38 BOLT; CLIP,HARNESS
LIGHTING SYSTEM ECE<SLC> M8X20 FLANGE 		0-28010-820-0 06 1 9203-9204
38 BOLT; CLIP,HARNESS
LIGHTING SYSTEM ECE<SLC> M8X20 FLANGE 		0-28080-820-0 06 1 9205-
48 CLIP; FRAME HARNESS
(A) ID=28 L=58 		1-09700-400-0 01 1 9203-
48 CLIP; FRAME HARNESS
(F) ID=11 L=41 		1-09700-403-0 07 1 9203-
48 CLIP; FRAME HARNESS
(H) ID=15 H=24 L=20 		1-09700-606-0 01 1 9203-
48 CLIP; FRAME HARNESS
(J) ID=11 L=20 		9-09525-035-0 01 1 9203-
48 CLIP; FRAME HARNESS
(D) D=24 L=21 		1-09700-380-0 01 1 9203-
48 CLIP; FRAME HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 9203-
48 CLIP; FRAME HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 9203-
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 04 1 9203-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (B) ID=20 L=50 		9-09917-430-0 16 1 9203-
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (B) ID=20 L=50 		9-09917-430-0 25 1 9203-
48 CLIP; FRAME HARNESS
6SA1 STD ENG(06L) (B) ID=20 L=50 		9-09917-430-0 06 1 9203-
48 CLIP; FRAME HARNESS
6SA1 STD ENG(06L) (E) ID=22 L=52 		9-09917-431-0 03 1 9203-
48 CLIP; FRAME HARNESS
6SA1TC ENG(28L) (B) ID=20 L=50 		9-09917-430-0 07 1 9203-
48 CLIP; FRAME HARNESS
6SA1TC ENG(28L) (E) ID=22 L=52 		9-09917-431-0 02 1 9203-
64 SCREW; CLIP
M5X10 W/LK+PL WASHER 		9-03920-510-0 01 1 9203-
95 CLIP; CABLE
L=135 		1-09987-143-1 02 1 9203-
104 CLIP; HEADLAMP HARNESS
(A) L=142 		8-94232-619-0 02 1 9203-
104 CLIP; HEADLAMP HARNESS
(B) ID=19 L=20 		9-09525-832-0 01 1 9203-
104 CLIP; HEADLAMP HARNESS
LIGHTING SYSTEM ECE<SLC> (D) ID=12 H=24 L=20 		1-09700-605-0 02 1 9203-
104 CLIP; HEADLAMP HARNESS
LIGHTING SYSTEM ECE<SLC> (D) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 9203-
104 CLIP; HEADLAMP HARNESS
LIGHTING SYSTEM ECE<SLC> (C) ID=15 L=42 		9-09716-203-1 02 1 9203-
115 CLIP; DOOR HARNESS
AUSTRALIA PACKAGE<D2Y> L=142 		8-94232-619-0 02 1 9312-
121 CLIP; FACIA HARNESS
(A) ID=41 L=40 		1-09700-596-0 01 1 9203-
121 CLIP; FACIA HARNESS
(C) ID=27 L=32 		1-09700-712-1 03 1 9203-
121 CLIP; FACIA HARNESS
(B) ID=31 L=50 		1-09700-870-1 01 1 9203-9208
122 BOLT; FACIA HARNESS CLIP
(B) M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9203-
122 BOLT; FACIA HARNESS CLIP
(A) M6X20 W/LK&PL WASHER 		9-01960-620-0 01 1 9203-9204
122 BOLT; FACIA HARNESS CLIP
(A) M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9205-
124 BOLT; GRAND,FACIA
M6X22 W/LK&PL WASHER 		1-09980-584-0 01 1 9203-9303
124 BOLT; GRAND,FACIA
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9304-
127 SCREW; FACIA HARNESS CLIP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING W/PL WASHER 		0-74100-516-0 01 1 9203-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) 		1-09987-193-0 01 1 9203-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=20 		9-09525-832-0 01 1 9203-
130 CLIP; WASHER HARNESS
(A) L=147 		1-09987-219-0 01 1 9203-9203
130 CLIP; WASHER HARNESS
(B) '92/03/30- ID=7-10 		8-94472-578-0 01 1 9203-
131 CLIP; HARNESS,A/C SW
ID=6.5 		8-94206-730-0 01 1 9203-9301
131 CLIP; HARNESS,A/C SW
ID=7-10 		8-94472-578-0 01 1 9302-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/LK&PL WASHER 		9-03920-612-0 02 1 9203-
139 BOLT; BRKT
M6X20 FLANGE 		0-28080-620-0 01 1 9203-
147 BRACKET; HARNESS,HEADLAMP 1-71998-471-0 02 1 9203-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=140 		5-09707-031-0 01 1 9203-
148 CLIP; BAND,HEADLAMP HARNESS
(B) L=85 		8-94232-611-0 02 1 9203-
148 CLIP; BAND,HEADLAMP HARNESS
(C) L=142 		8-94232-619-0 08 1 9203-
149 BOLT; HEADLAMP HARNESS EARTH
GREEN M6X22 W/LK&PL WASHER 		1-09980-430-0 01 1 9203-9303
149 BOLT; HEADLAMP HARNESS EARTH
M6X20 W/LK&PL WASHER 		8-97086-824-0 02 1 9304-
149 BOLT; HEADLAMP HARNESS EARTH
BLACK M6X22 W/LK&PL WASHER 		1-09980-537-0 01 1 9203-9303
171 CLIP; STARTER HARNESS
L=63 		1-09700-418-1 01 1 9203-
173 BOLT; STARTER EARTH
M10X16 FLANGE 		0-28081-016-0 01 1 9203-9212
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9301-
178 GROMMET; HARNESS
ID=28 OD=35 T=25 		1-09332-011-1 01 1 9203-
178 GROMMET; HARNESS
ID=15 OD=20 T=22 		9-09956-181-0 01 1 9203-
178 GROMMET; HARNESS
6SA1 STD ENG(06L) EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> ID=15 OD=20 T=17.5 		9-09956-178-0 02 1 9203-
178 GROMMET; HARNESS
6SA1TC ENG(28L) EXC. BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> ID=15 OD=20 T=22 		9-09956-181-0 02 1 9203-
182 CLIP; HARNESS,OIL FILTER
D=11 L=45 		1-09700-866-0 01 1 9203-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 		9-09160-610-0 01 1 9203-9212
184 WASHER; PL,STARTER EARTH
ID=10.5 		1-09503-265-0 01 1 9301-
194 CLIP; BAND
(A) L=180 		1-09707-162-0 03 1 9203-9306
194 CLIP; BAND
(A) L=180 		1-09707-162-0 02 1 9307-
194 CLIP; BAND
(B) L=140 		5-09707-031-0 01 1 9203-9204
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-0 02 1 9203-
206 CLIP; FUEL TANK HARNESS
(B) ID=11 L=16 		9-09525-022-0 01 1 9203-
208 CLIP; HARNESS,MAG VLV
(B) ID=11 L=41 		1-09700-403-0 01 1 9203-
208 CLIP; HARNESS,MAG VLV
(A) L=63 		1-09700-418-1 01 1 9203-
208 CLIP; HARNESS,MAG VLV
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) L=63 		1-09700-418-1 01 1 9203-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9405-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9301-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 9203-
217 CLIP; RR BODY HARNESS
(B) ID=15 L=70 		1-09700-980-0 02 1 9203-
217 CLIP; RR BODY HARNESS
(A) L=250 		5-09707-030-0 02 1 9203-
219 NUT
M8 		9-09110-408-0 06 1 9203-9404
219 NUT
M8 		9-09110-408-0 04 1 9405-
219 NUT
M8 		9-09110-408-0 02 1 9405-
219 NUT
BUMPER W/HEADLAMPS<SLB>,LIGHTING SYSTEM ECE<SLC> M8 		9-09110-408-0 02 1 9405-
219 NUT
LIGHTING SYSTEM ECE<SLC> M8 		9-09110-408-0 02 1 9203-9404
223 CLIP; AIR TANK HARNESS
ID=11 L=41 		1-09700-403-0 04 1 9203-9205
223 CLIP; AIR TANK HARNESS
ID=11 L=41 		1-09700-403-0 06 1 9206-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> ID=11 L=41 		1-09700-403-0 01 1 9206-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140 		5-09707-031-0 03 1 9203-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14 L=44 		9-09917-427-0 01 1 9203-
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 9203-
235 CLIP; HARNESS,SPD SENSOR,SSPS
L=250 		5-09707-030-0 01 1 9203-
239 BOLT; GRAND
M8X20 		0-28410-820-0 01 1 9203-9204
239 BOLT; GRAND
M8X20 FLANGE 		0-28480-820-0 01 1 9205-9212
239 BOLT; GRAND
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9301-
239 BOLT; GRAND
M5X10 W/LK WASHER 		9-03910-510-0 01 1 9203-9404
239 BOLT; GRAND
M5X8 		0-20800-508-0 01 1 9405-
242 BOLT; BRKT,HARNESS
M10X20 W/LK WASHER 		9-01921-020-0 01 1 9203-9204
242 BOLT; BRKT,HARNESS
M10X20 W/LK WASHER 		0-50051-020-0 01 1 9205-
246 BRACKET; CLIP,SPD SENSOR 1-14119-175-0 01 1 9203-
252 CLIP; CONNECTOR FIX
W/SPONGE RUBBER 		1-09709-150-0 01 1 9203-
284 CLIP; HARNESS,GLOW PLUG
ID=11 L=16 		9-09525-025-0 01 1 9203-
286 BRACKET; HARNESS,SELECTOR 1-82699-167-0 01 1 9203-
294 NUT
M6 		9-09110-406-0 01 1 9203-
294 NUT
M10 		9-09110-410-0 01 1 9203-
312 BRACKET; CLIP HARNESS
(A) 		1-47475-868-0 01 1 9203-
312 BRACKET; CLIP HARNESS
(B) 		1-82699-109-0 01 1 9203-
313 BOLT; BRKT
M6X20 FLANGE 		0-28080-620-0 01 1 9203-
373 CLIP; BAND,GEN HARNESS
L=140 		5-09707-031-0 01 1 9203-
433 SPACER; BOX HARNESS 1-82699-574-0 01 1 9203-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9301-
