Isuzu WW
▶
TRUCKS
▶
FYH
▶
11656 - FYH THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶

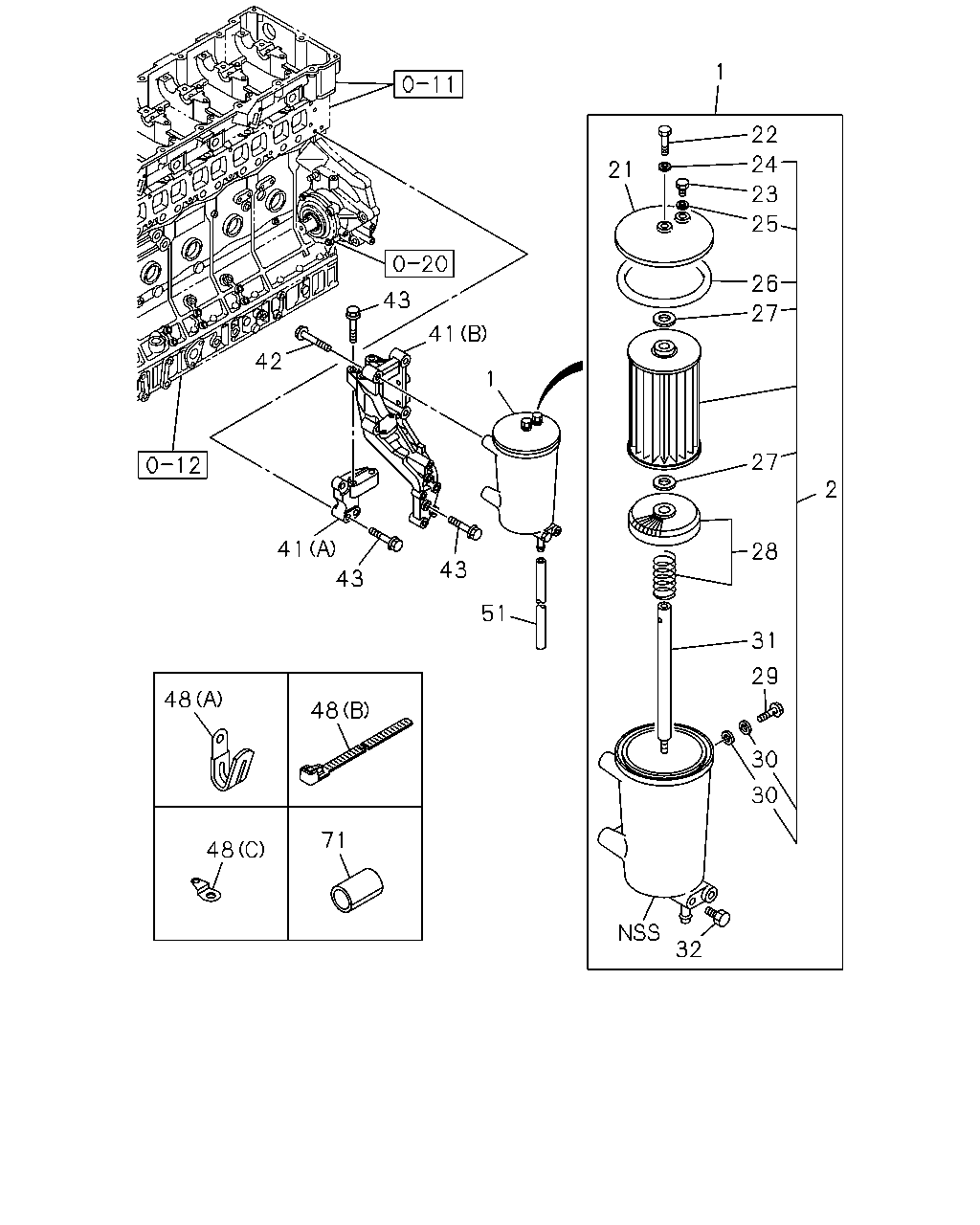

0-41 — FUEL FILTER AND BRACKET
(#150996) — 23 parça
1
22
24
23
25
26
27
27
2
28
31
29
30
30
32
71
48
48
48
43
43
51
41
42
43
41
1
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FILTER ASM; FUEL
THA
8-98175-164-0
01
1
1410-
2
ELEMENT KIT; FUEL FILTER
THA
8-98174-903-0
01
1
1410-
21
COVER; UPR,FUEL FILTER
THA
1-13212-049-1
01
1
1410-
22
BOLT; CENTER TUBE,COVER
THA
1-13219-045-0
01
1
1410-
23
PLUG; COVER
THA
1-13219-074-0
01
1
1410-
24
GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2 THA
1-09630-083-0
01
1
1410-
25
GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2 THA
1-09630-083-0
01
1
1410-
26
GASKET; COVER TO BODY
THA
9-09720-797-0
01
1
1410-
27
GASKET; ELEMENT
THA
1-09630-007-0
02
1
1410-
28
STRAINER; WATER,FUEL FILTER
THA
1-13251-001-0
01
1
1410-
29
VALVE; OVERFLOW
THA
1-13260-116-0
01
1
1410-
30
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 THA
1-09630-085-0
02
1
1410-
31
TUBE; CENTER BOLT
THA
1-13231-026-0
01
1
1410-
32
BOLT; DRAIN,FUEL FILTER
THA
1-13219-030-0
01
1
1410-
41
BRACKET; FUEL FILTER
(A) THA
8-97603-935-1
01
1
1410-
41
BRACKET; FUEL FILTER
(B) THA
8-97606-620-1
01
1
1410-
42
BOLT; FUEL FILTER
M10X45 FLANGE THA
0-28051-045-0
04
1
1410-
43
BOLT; BRKT
M10X45 FLANGE THA
0-28151-045-0
07
1
1410-
48
CLIP; VINYL PIPE
(A) ID=21 L=47.5 THA
8-94178-108-0
01
1
1410-
48
CLIP; VINYL PIPE
(B) L=250 THA
8-98216-430-0
02
1
1410-
48
CLIP; VINYL PIPE
(C) THA
9-11229-070-0
01
1
1410-
51
PIPE; VINYL
L=600 SERVICED BY L=10000 THA
9-09914-909-0
01
1
1410-
71
SLEEVE; RUBBER,PIPE
ID=10 OD=14 L=30 THA
9-09956-682-0
02
1
1410-
