Isuzu WW
▶
TRUCKS
▶
FYH
▶
11656 - FYH THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-38 - AIR COMPRESSOR PIPING; ENGINE SIDE
▶
0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE
(#150993) — 61 parça
◀

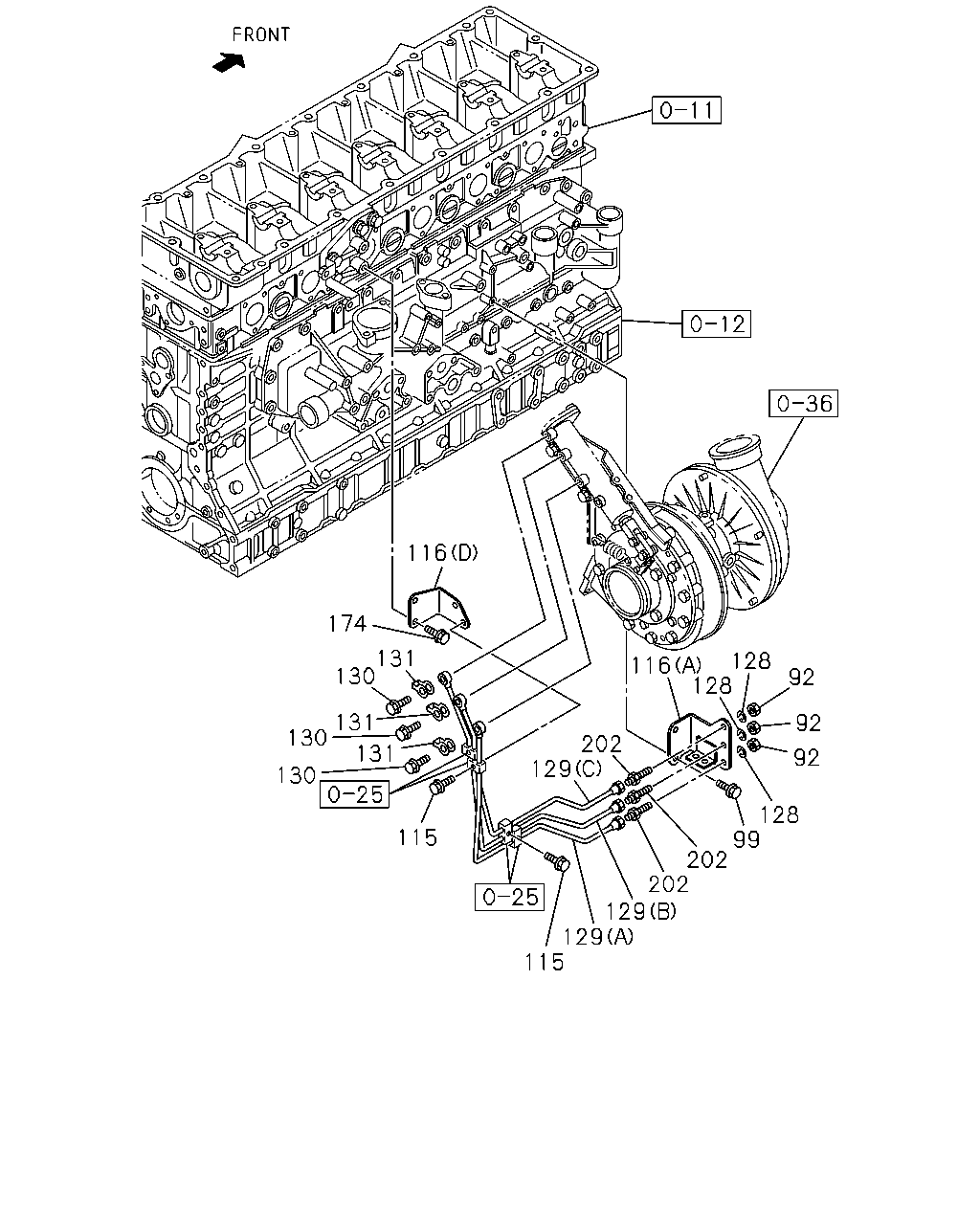

[038A] NO.2 (15 parça)

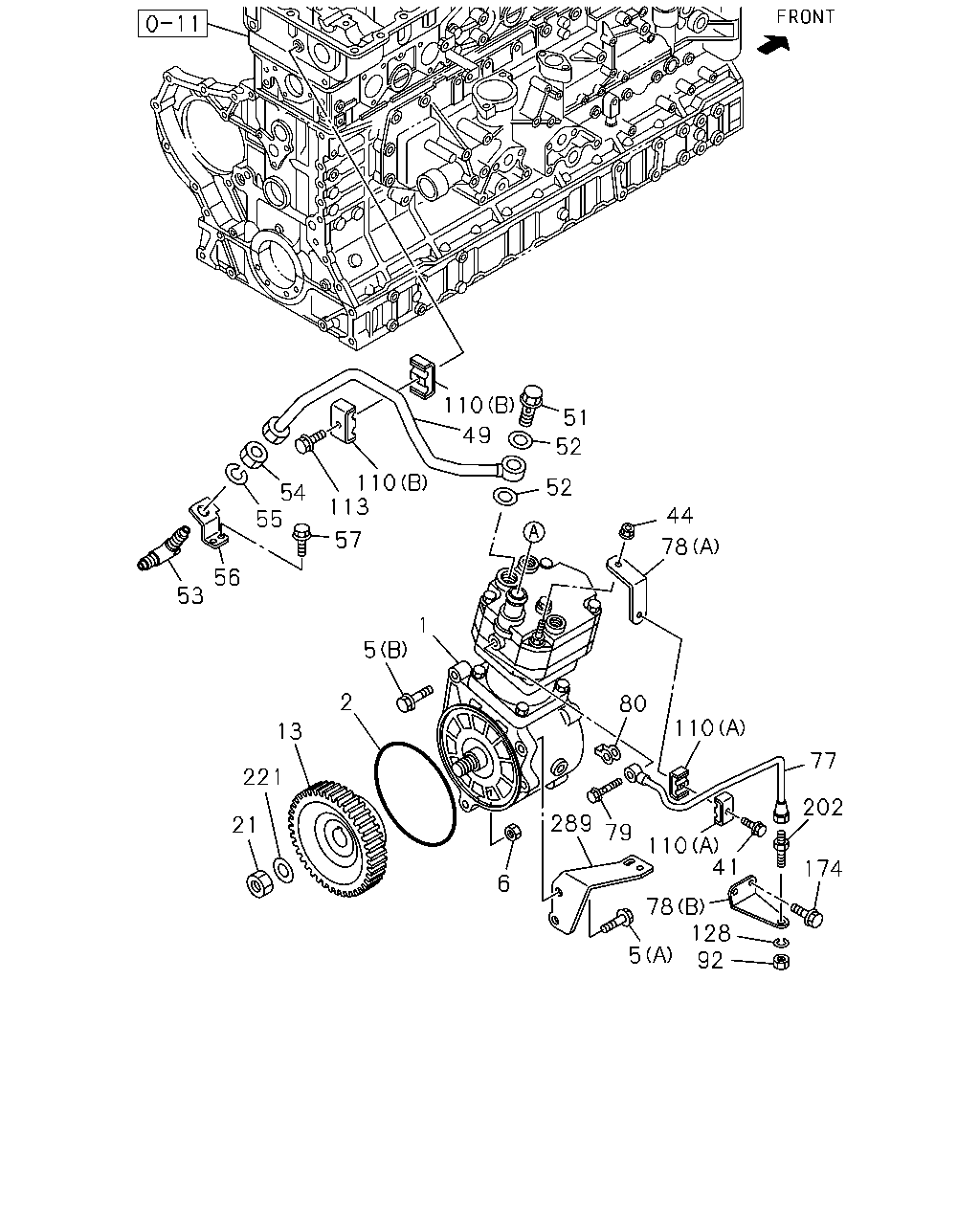

[038A] NO.1 (31 parça)

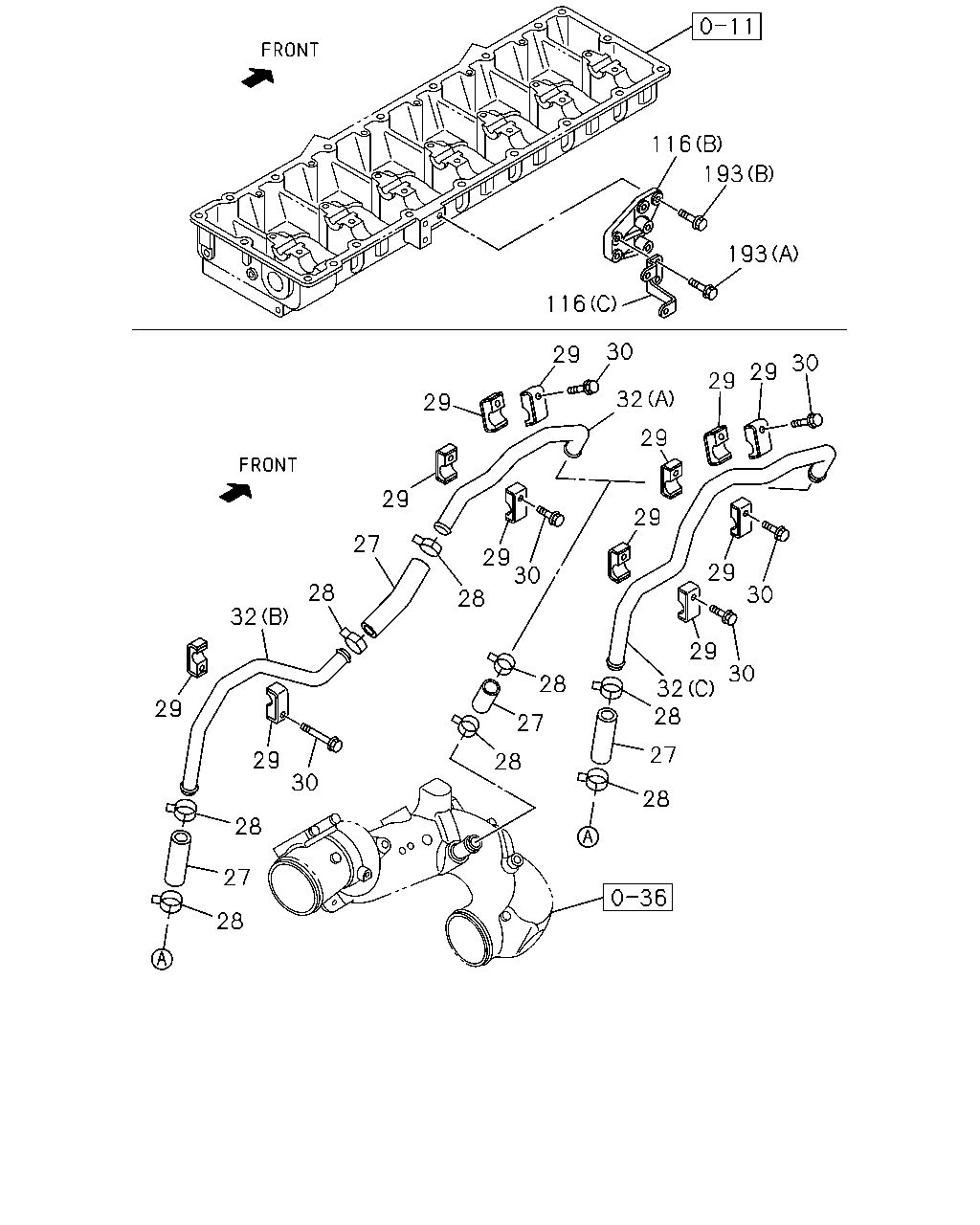

[038A] NO.3 (15 parça)
▶
116
174
131
130
131
130
130
131
115
115
129
129
129
202
202
202
99
128
92
92
92
128
128
116
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
92
NUT; UNION
M12 THA
9-09840-280-0
04
1
1410-
99
BOLT; BRKT AIR PIPE
M10X20 FLANGE THA
0-28151-020-0
02
1
1410-
115
BOLT; AIR PIPE
M6X30 FLANGE THA
0-28050-630-0
04
1
1410-
116
BRACKET; AIR PIPE
(A) THA
8-97603-755-2
01
1
1410-
116
BRACKET; AIR PIPE
(B) THA
8-97605-948-0
01
1
1410-
116
BRACKET; AIR PIPE
(D) THA
8-97605-950-0
01
1
1410-
116
BRACKET; AIR PIPE
(C) THA
8-98052-306-0
01
1
1410-
128
WASHER; LK,UNION
ID=12.2 THA
0-91510-512-0
04
1
1410-
129
PIPE; AIR,VGS
(A) THA
8-97604-865-0
01
1
1410-
129
PIPE; AIR,VGS
(B) THA
8-97604-866-0
01
1
1410-
129
PIPE; AIR,VGS
(C) THA
8-97604-867-0
01
1
1410-
130
BOLT; EYE,AIR PIPE
M10X21 FLANGE THA
8-94396-711-0
03
1
1410-
131
GASKET; AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 THA
8-97365-390-0
03
1
1410-
174
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
04
1
1410-
202
UNION; AIR PIPE
M12 L=62.5 THA
0-92113-206-0
04
1
1410-
53
56
55
54
57
113
110
110
49
51
52
52
44
78
21
221
13
2
5
1
6
289
80
110
79
5
78
110
128
92
77
202
174
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. THA
8-98271-053-0
01
1
1410-
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). THA
1-09623-449-0
01
1
1410-
5
BOLT; AIR CMPR FIX
(A) M12X50 FLANGE THA
0-28151-250-0
02
1
1410-
5
BOLT; AIR CMPR FIX
(B) M12X140 FLANGE THA
0-28156-214-0
01
1
1410-
6
NUT; AIR CMPR
M12 FLANGE THA
0-91180-112-0
01
1
1410-
13
GEAR; AIR CMPR DRIVE
THA
8-97603-053-2
01
1
1410-
21
NUT; PUMP GEAR
M24 THA
0-91110-524-0
01
1
1410-
41
BOLT; CLIP
M6X30 FLANGE THA
0-28050-630-0
01
1
1410-
44
NUT
M10 FLANGE THA
0-91180-110-0
01
1
1410-
49
PIPE; AIR,CHARGE
THA
8-98216-696-0
01
1
1410-
51
BOLT; EYE,AIR PIPE TO CMPR
M24X39 THA
1-09675-175-2
01
1
1410-
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 THA
9-09571-424-0
02
1
1410-
53
UNION; CHARGE PIPE
THA
8-98008-887-2
01
1
1410-
54
NUT; PIPE UNION
THA
8-98049-390-0
01
1
1410-
55
WASHER; LK,PIPE UNION
ID=27.5 THA
0-91510-527-0
01
1
1410-
56
BRACKET; AIR PIPE FIX
THA
8-97603-937-2
01
1
1410-
57
BOLT; BRKT,AIR PIPE
M10X20 FLANGE THA
0-28151-020-0
01
1
1410-
77
PIPE; AIR,GOV
THA
8-98145-567-0
01
1
1410-
78
BRACKET; PIPE,AIR GOV
(B) THA
8-97605-218-1
01
1
1410-
78
BRACKET; PIPE,AIR GOV
(A) THA
8-97613-275-1
01
1
1410-
79
BOLT; EYE,AIR PIPE TO CMPR
M10X25 THA
9-09906-173-1
01
1
1410-
80
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.6 THA
8-98231-393-0
01
1
1410-
92
NUT; UNION
M12 THA
9-09840-280-0
04
1
1410-
110
CLIP; AIR PIPE
(B) THA
1-09701-284-0
02
1
1410-
110
CLIP; AIR PIPE
(A) THA
8-98148-996-2
02
1
1410-
113
BOLT; CLIP,AIR PIPE
M8X40 FLANGE THA
0-28050-840-0
01
1
1410-
128
WASHER; LK,UNION
ID=12.2 THA
0-91510-512-0
04
1
1410-
174
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
04
1
1410-
202
UNION; AIR PIPE
M12 L=62.5 THA
0-92113-206-0
04
1
1410-
221
WASHER; PL,GEAR
THA
9-09164-624-0
01
1
1410-
289
BRACKET; CABLE
THA
8-98055-448-3
01
1
1410-
116
193
193
116
29
30
29
29
27
28
32
29
29
30
28
27
28
28
27
28
28
27
28
32
29
30
30
29
29
30
29
28
32
29
29
29
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; AIR CMPR,SUCTION
THA
8-97613-266-0
03
1
1410-1410
27
HOSE; AIR CMPR,SUCTION
THA
8-97613-266-0
02
1
1411-
28
CLIP; HOSE,AIR CMPR
ID=31.2 THA
8-97237-146-0
06
1
1410-1410
28
CLIP; HOSE,AIR CMPR
ID=31.2 THA
8-97237-146-0
04
1
1411-
29
CLIP; AIR PIPE
THA
8-97603-362-1
06
1
1410-
30
BOLT; PIPE CLIP
M8X50 FLANGE THA
0-28050-850-0
03
1
1410-
32
PIPE; AIR,AIR CMPR
(B) THA
8-97613-955-0
01
1
1409-1409
32
PIPE; AIR,AIR CMPR
(A) THA
8-97613-954-0
01
1
1410-1410
32
PIPE; AIR,AIR CMPR
(C) THA
8-98277-382-0
01
1
1411-
116
BRACKET; AIR PIPE
(A) THA
8-97603-755-2
01
1
1410-
116
BRACKET; AIR PIPE
(B) THA
8-97605-948-0
01
1
1410-
116
BRACKET; AIR PIPE
(D) THA
8-97605-950-0
01
1
1410-
116
BRACKET; AIR PIPE
(C) THA
8-98052-306-0
01
1
1410-
193
BOLT; BRKT
(A) M8X20 FLANGE THA
0-28050-820-0
02
1
1410-
193
BOLT; BRKT
(B) M10X35 FLANGE THA
0-28751-035-0
03
1
1410-
