Isuzu WW
▶
TRUCKS
▶
FYH
▶
11656 - FYH THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#150992) — 29 parça
◀

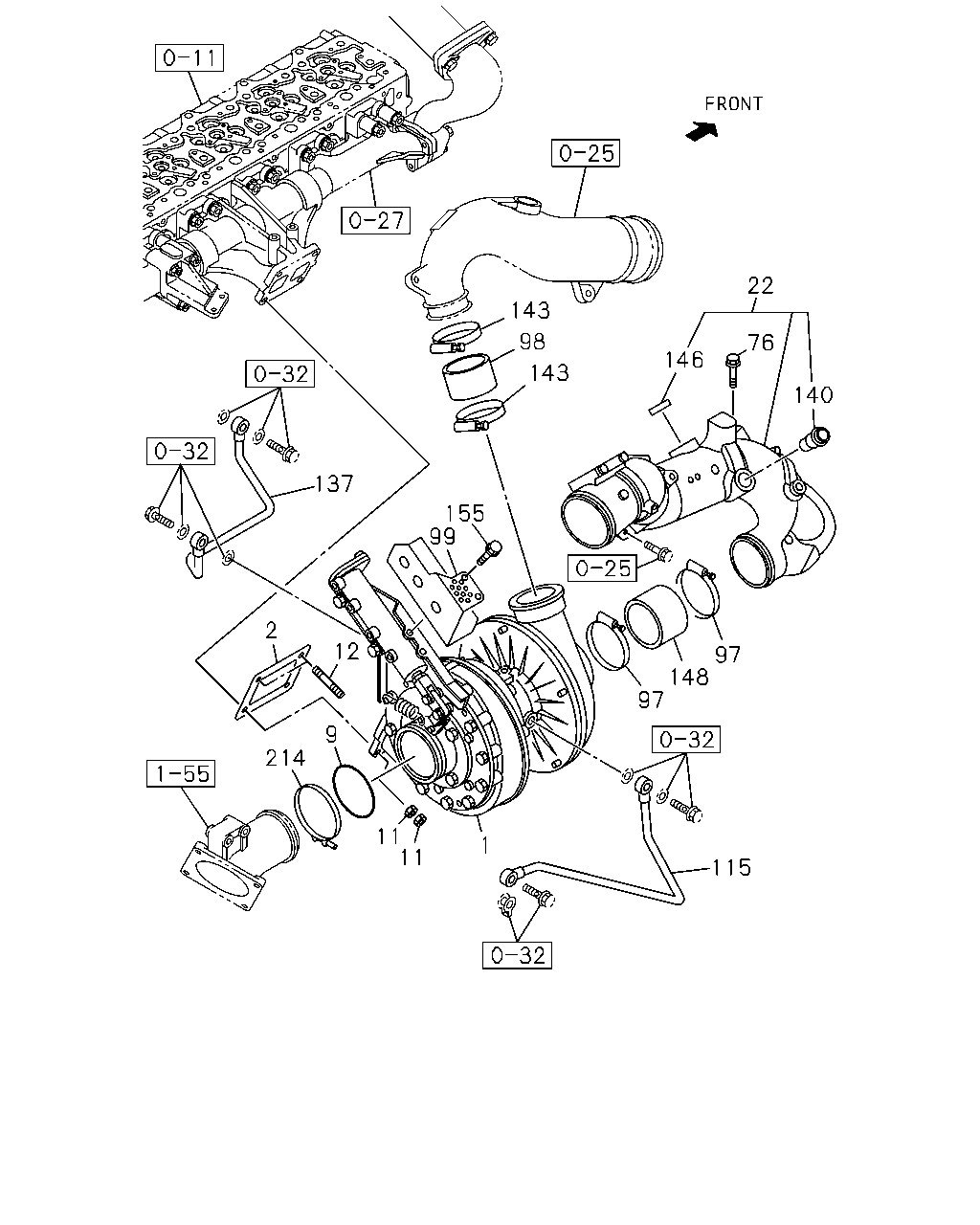

[036A] TURBOCHARGER FIXING (18 parça)
[036A] FLEX HOSE AND PIPE (11 parça)
▶
137
143
98
143
146
22
76
140
97
148
97
115
1
11
11
9
214
2
12
99
155
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
THA
1-14400-429-5
01
1
1410-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA
8-98162-161-0
01
1
1410-
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA
8-97618-761-1
01
1
1410-
11
NUT; TURBOCHARGER
M10 THA
1-09420-005-0
08
1
1410-
12
STUD; TURBOCHARGER
M10X25 L=47 THA
8-97378-071-0
02
1
1410-
22
DUCT; INL,ACL TO TURBOCHARGER
THA
8-97614-187-1
01
1
1410-
76
BOLT; AIR DUCT
M10X45 FLANGE THA
0-28151-045-0
03
1
1410-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116 THA
1-09707-138-0
02
1
1410-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
THA
8-98169-677-0
01
1
1410-
99
PROTECTOR; HEAT
THA
1-14181-350-0
01
1
1410-
115
PIPE; WATER,TURBOCHARGER OUT
THA
8-97605-217-0
01
1
1410-
137
PIPE; WATER,TURBOCHARGER IN
THA
8-97607-435-0
01
1
1410-
140
PIPE; AIR PIPE
THA
8-97603-427-1
01
1
1410-
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=68-85 THA
8-98096-592-0
02
1
1410-
146
PLUG; INL PIPE
OD=40 THA
8-94241-637-0
01
1
1410-
148
HOSE; TURBOCHARGER,INL
THA
1-09360-913-0
01
1
1410-
155
BOLT; HEAT PROTECTOR
M6X10 FLANGE THA
0-28050-610-0
04
1
1410-
214
BAND; "V",TURBOCHARGER TO EXH PIPE
THA
8-98006-007-1
01
1
1410-
523
523
276
523
276
479
217
515
272
268
268
272
272
479
479
514
268
514
392
514
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
217
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
02
1
1410-
268
NUT; FLEX TUBE
M12 THA
0-91110-512-0
03
1
1410-
272
WASHER; LK,FLEX HOSE
ID=12.2 THA
0-91510-512-0
03
1
1410-
276
CLIP; PIPE
ID=6.35 & 6.35 THA
1-09709-273-1
02
1
1410-
392
CLIP; FLEX HOSE
ID=10 & 10 THA
1-09709-277-1
01
1
1410-
479
UNION; FLEX TUBE
M12 2WAY THA
1-09654-059-2
03
1
1410-
514
HOSE; FLEX
L=240 THA
1-09363-671-0
03
1
1410-
515
BRACKET; UNION
THA
8-97608-912-1
01
1
1410-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=512 SERVICED BY L=550 THA
1-47428-808-0
01
1
1410-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(B) L=439 THA
8-97618-499-0
01
1
1410-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=379 THA
8-97618-500-0
01
1
1410-
