Isuzu WW
▶
TRUCKS
▶
GVR
▶
11654 - GVR THAILAND EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-75 - CONDENSER
▶

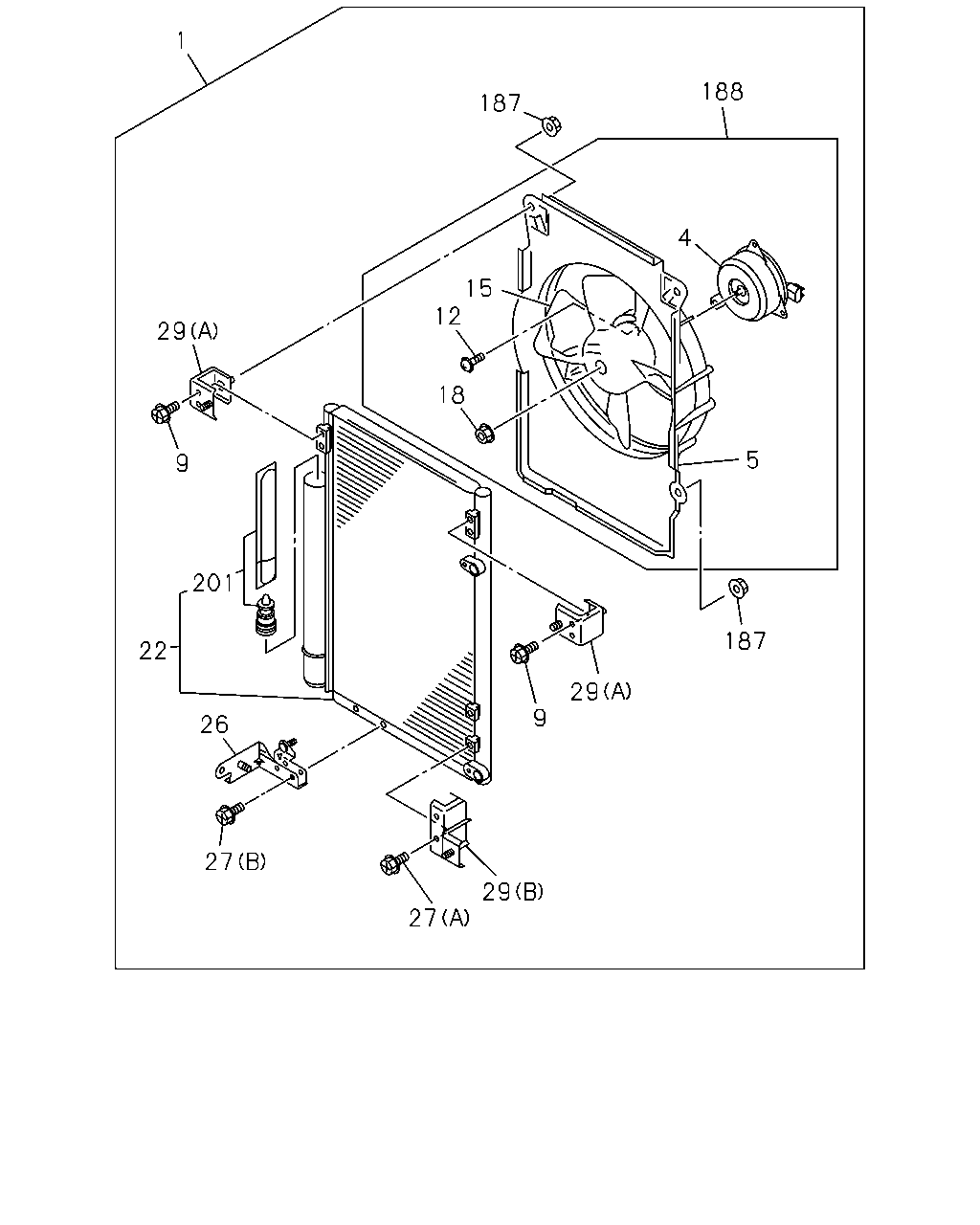

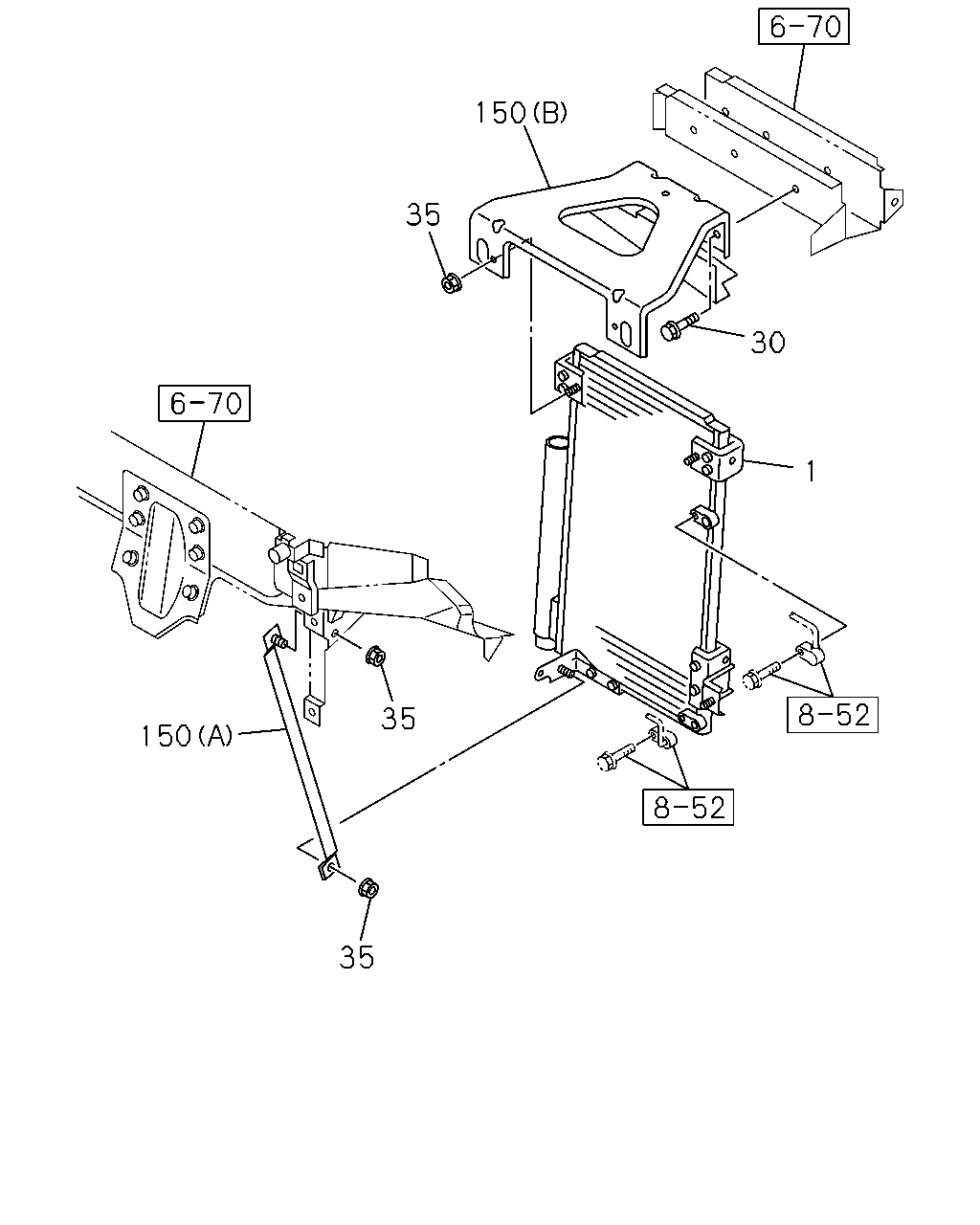

8-75 — CONDENSER
(#150970) — 21 parça
◀
[875A] FIXING (5 parça)
[875A] COMPONENT (16 parça)
▶
150
35
35
35
150
30
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CONDENSER; A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-687-1
01
1
1410-
30
BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X20 FLANGE THA
0-28650-820-0
02
1
1410-
35
NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8 FLANGE THA
0-91180-108-0
05
1
1410-
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA
8-98270-947-0
01
1
1410-
150
BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA
8-98242-412-0
01
1
1410-
29
187
188
15
12
18
4
5
187
29
9
29
27
27
26
22
201
9
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CONDENSER; A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97926-687-1
01
1
1410-
4
MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98076-091-0
01
1
1410-
5
SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98076-093-0
01
1
1410-
9
BOLT; BRKT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X14 THA
1-83539-382-0
04
1
1410-
12
BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-97180-269-0
03
1
1410-
15
FAN; MOTOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98152-860-0
01
1
1410-
18
NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M5 FLANGE THA
8-94157-075-0
01
1
1410-
22
CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
1-83534-261-0
01
1
1410-
26
BRACKET; LOW
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
1-83573-281-0
01
1
1410-
27
BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) M6X14 THA
1-83539-382-0
02
1
1410-
27
BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) M5X25 THA
8-97178-770-0
02
1
1410-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA
8-98065-914-0
02
1
1410-
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA
8-98065-915-0
01
1
1410-
187
NUT; SHROUD
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6 THA
1-83539-354-0
04
1
1410-
188
BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
8-98235-916-1
01
1
1410-
201
DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA
1-83535-097-0
01
1
1410-
