Sayfa 8-71 - Isuzu EPC

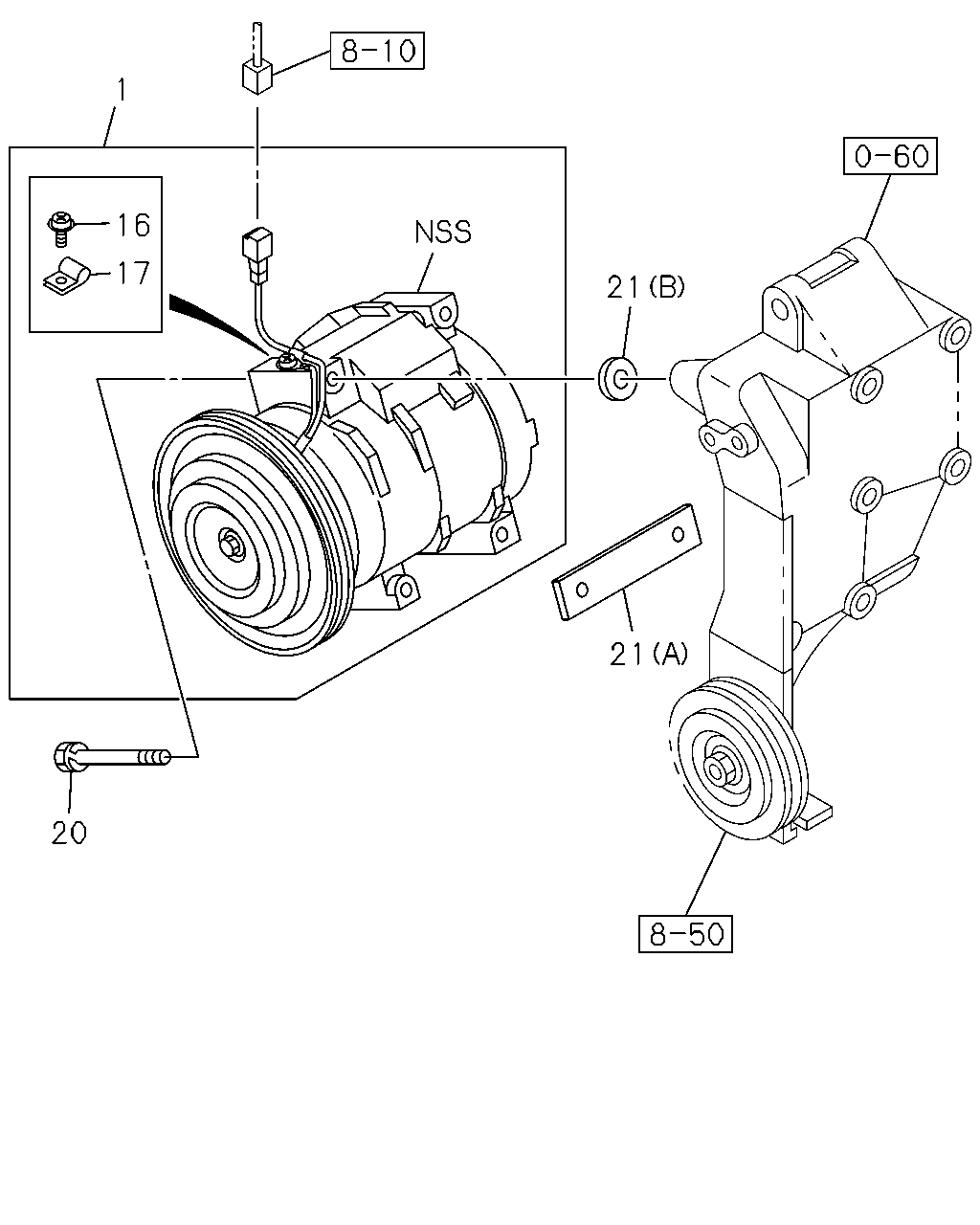

8-71 — COMPRESSOR; AIR CONDITIONING (#150968) — 6 parça

1 16 17 21 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	1-83532-328-0	01	1	1410-
16	CLIP; WIRE,MAGNET CLU AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	1-83579-893-0	01	1	1410-
17	SCREW; WIRE CLIP MAGNET CLU AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA	5-81129-130-0	01	1	1410-
20	BOLT; CMPR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X78 W/LK WASHER THA	5-09000-228-1	04	1	1410-
21	WASHER; COOLER CMPR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA	1-83573-271-0	01	1	1410-
21	WASHER; COOLER CMPR AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) ID=8.2 THA	8-98019-967-0	02	1	1410-
