8-28 — CHASSIS ELECTRICAL (#150962) — 18 parça
çizim 448690
531 615
BalonParca AdiParca NoAdetTipApplied Date
531 RELAY; MAIN
24V 30A MITSUBA THA 		8-98259-779-0 01 1 1410-
615 RELAY; TRAILER
24V 30A MITSUBA THA 		8-98259-779-0 01 1 1410-

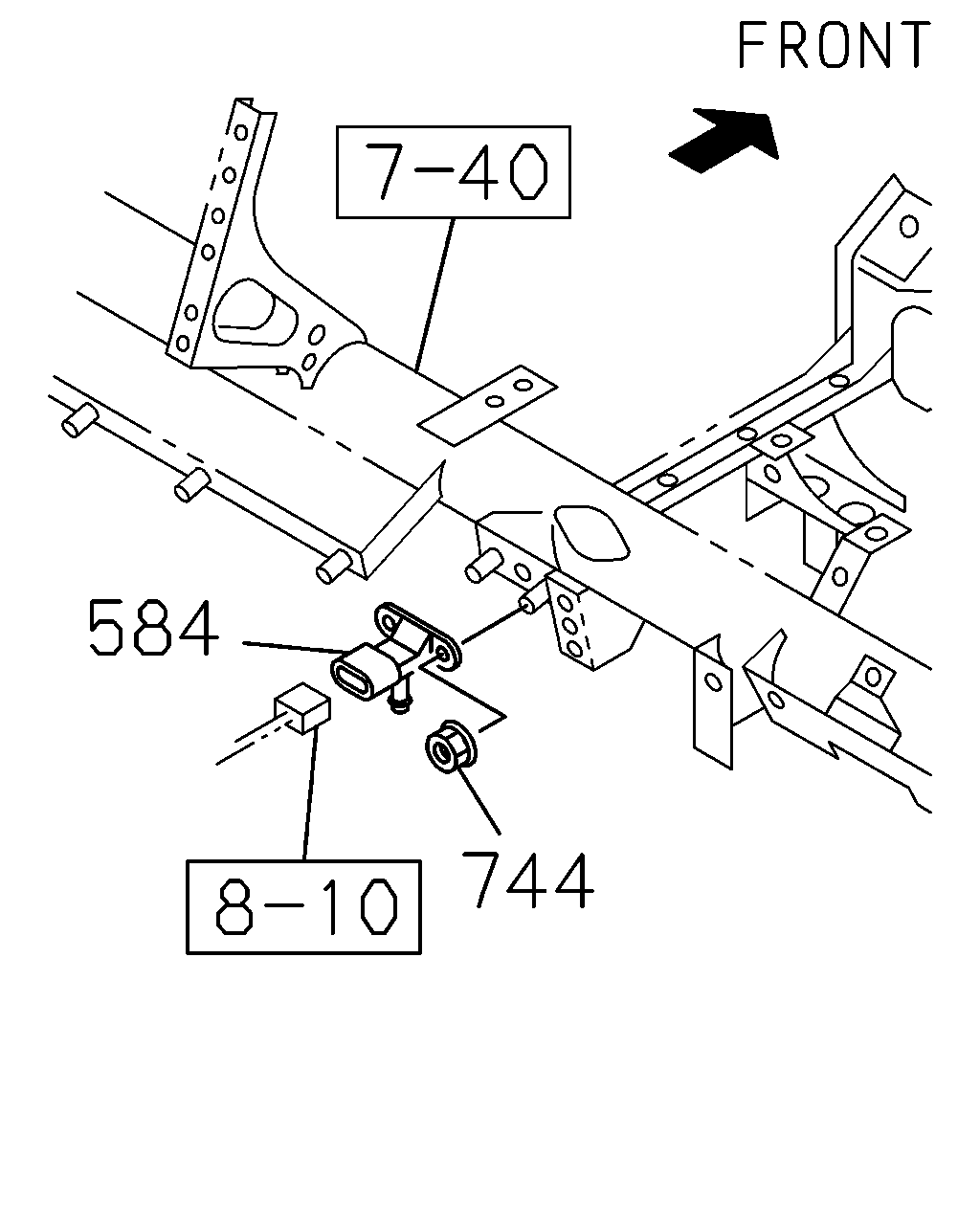

çizim 451420
584 744
BalonParca AdiParca NoAdetTipApplied Date
584 SENSOR; PRESSURE
THA 		8-98020-514-0 01 1 1410-
744 NUT; SENSOR
M6 FLANGE THA 		0-91180-106-0 02 1 1410-

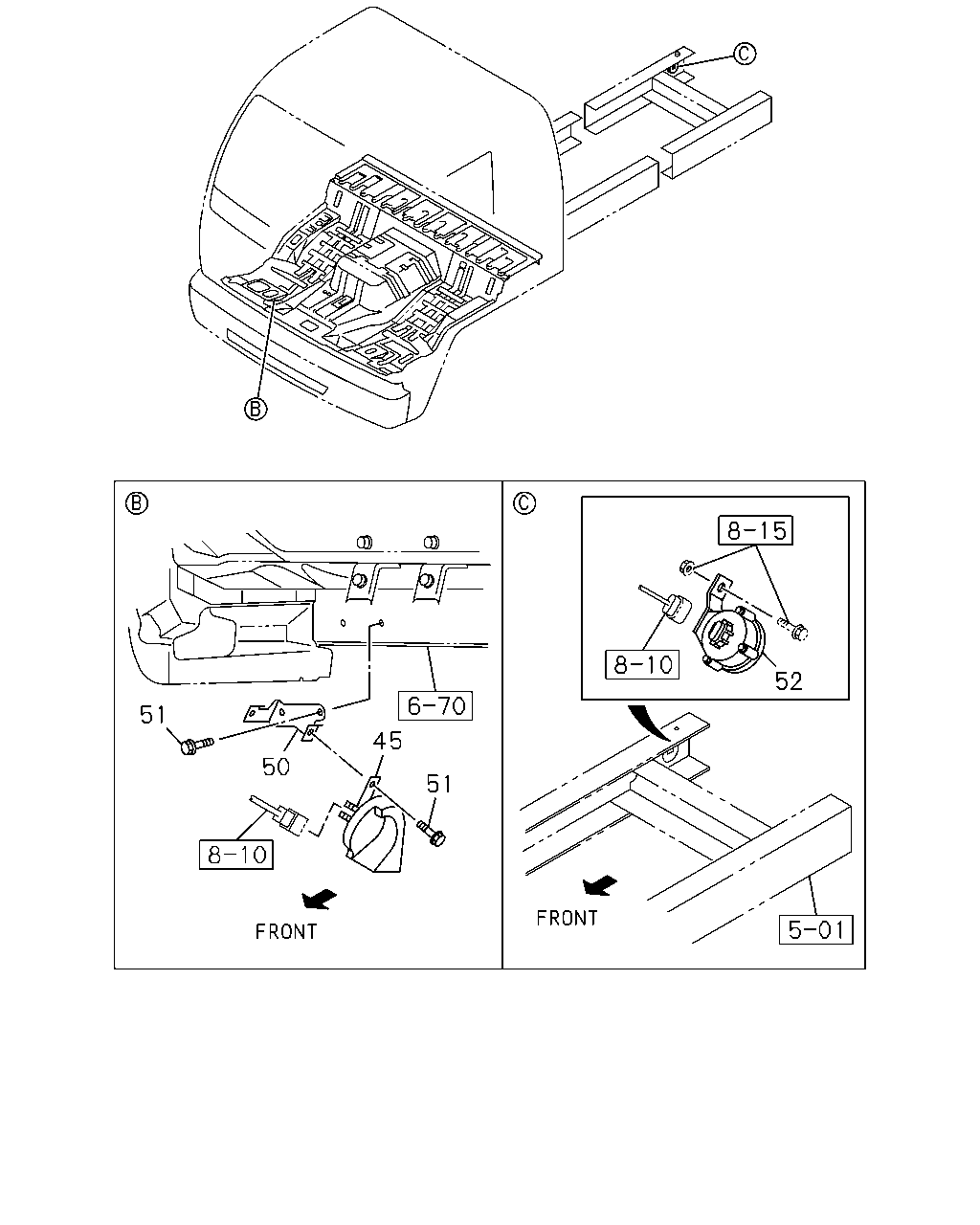

çizim 451505
51 50 45 51 52
BalonParca AdiParca NoAdetTipApplied Date
45 HORN; LOW NOTE
THA 		8-97925-172-0 01 1 1410-
50 BRACKET; HORN
THA 		8-97613-300-2 01 1 1410-
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER THA 		8-97086-825-0 03 1 1410-
52 BUZZER; BACK
THA 		8-97617-027-0 01 1 1410-

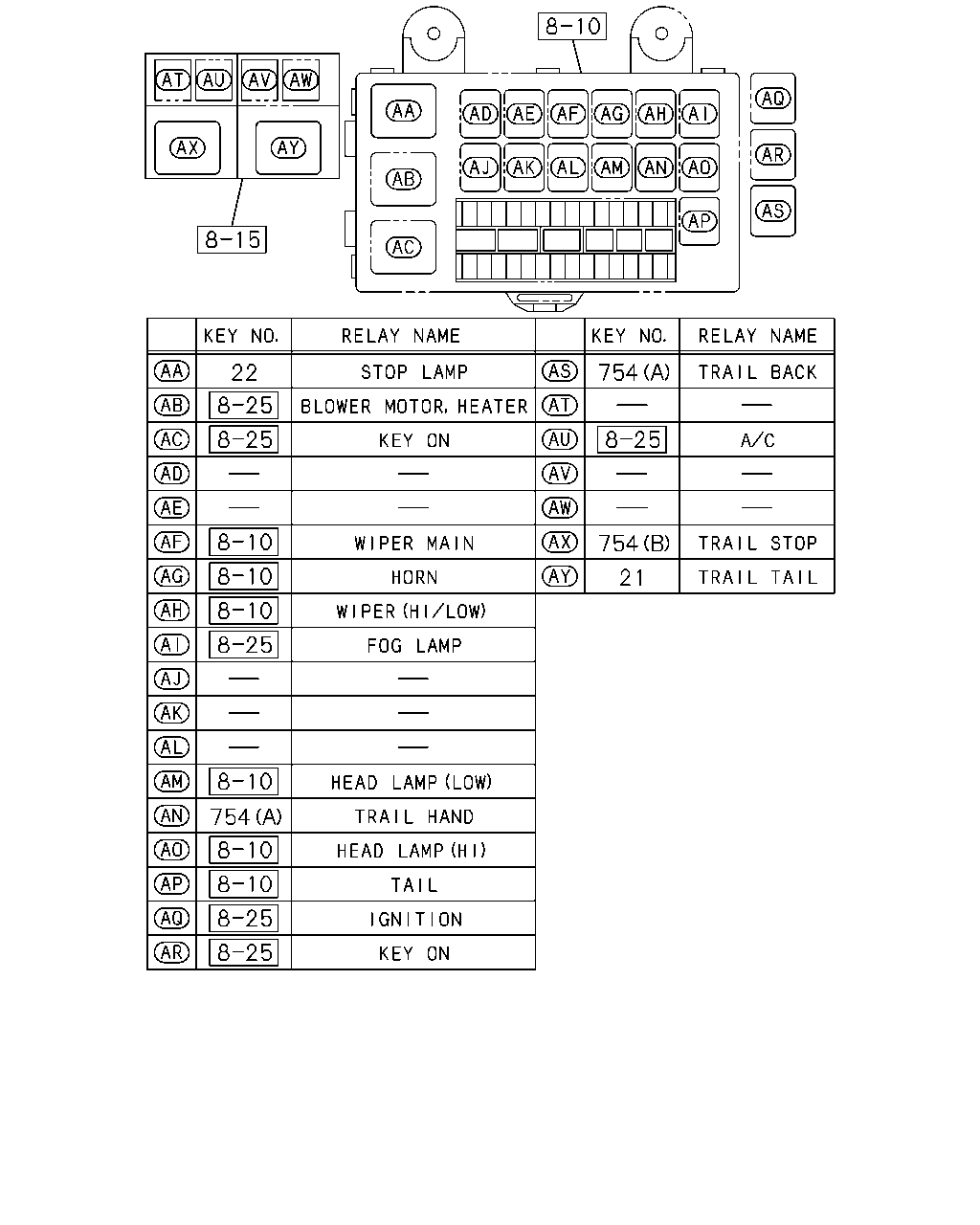

çizim 451548
22 754 754 754 21
BalonParca AdiParca NoAdetTipApplied Date
21 RELAY; TRAILER TAIL
24V 12.5A PANASONIC THA 		8-97262-933-0 01 1 1410-
22 RELAY; STOP LAMP
24V 12.5A PANASONIC THA 		8-97262-933-0 01 1 1410-
754 RELAY; TRAILER STOP
(B) 24V 12.5A PANASONIC THA 		8-97262-933-0 01 1 1410-
754 RELAY; TRAILER STOP
(A) 24V 10A PANASONIC THA 		8-97173-035-1 01 1 1410-
754 RELAY; TRAILER STOP
(A) 24V 10A PANASONIC THA 		8-97173-035-1 01 1 1410-

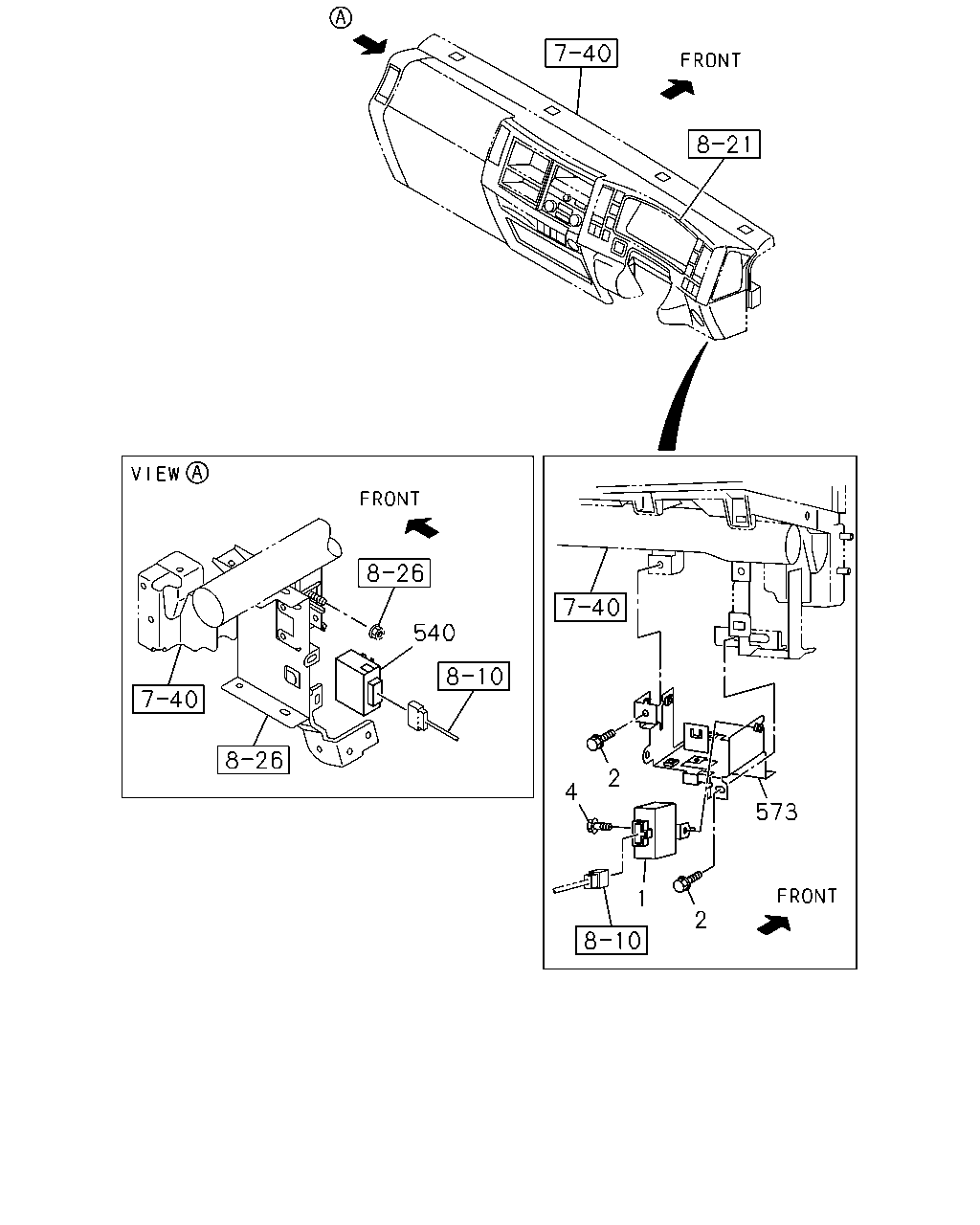

çizim 451888
540 573 2 4 2 1
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER
THA 		8-97613-970-1 01 1 1410-
2 BOLT; FLASHER UNIT
M6X16 FLANGE THA 		0-28650-616-0 02 1 1410-
4 SCREW; FLASHER UNIT
BOLT M6X16 FLANGE THA 		0-28650-616-0 01 1 1410-
540 RELAY; WIPER INTERVAL
THA 		8-98233-976-0 01 1 1410-
573 BRACKET; FLASHER UNIT
THA 		8-97609-984-5 01 1 1410-
