8-15 — FIXING PARTS; WIRING HARNESS (#150958) — 162 parça

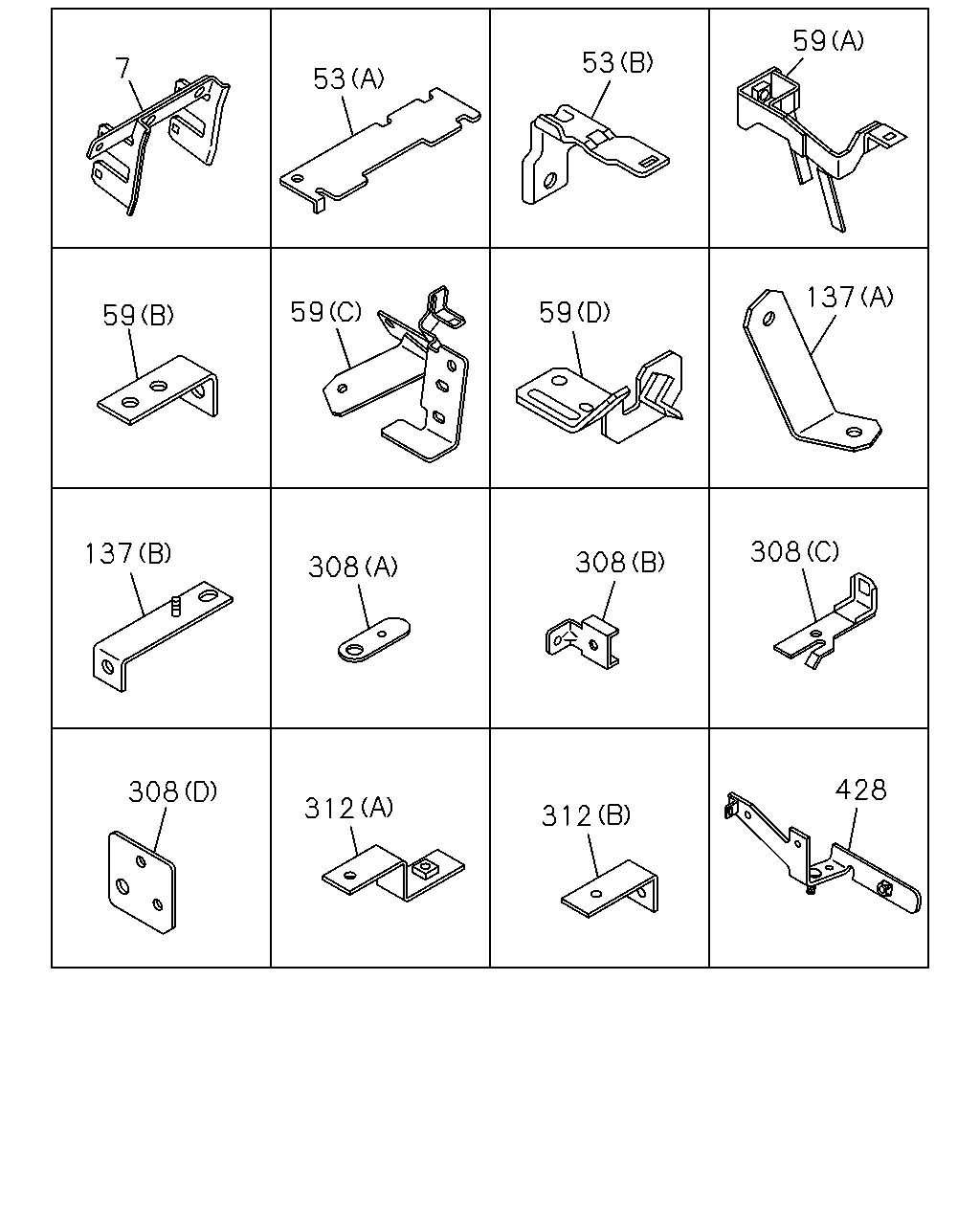

çizim 451410
7 53 53 59 59 59 59 137 137 308 308 308 308 312 312 428
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR
THA 		8-97925-591-0 01 1 1410-
53 BRACKET; HARNESS
(B) THA 		8-98052-458-0 01 1 1410-
53 BRACKET; HARNESS
(A) THA 		8-98127-093-0 01 1 1410-
59 BRACKET; FRAME HARNESS
(B) THA 		1-21464-170-2 01 1 1410-
59 BRACKET; FRAME HARNESS
(A) THA 		8-97609-264-2 01 1 1410-
59 BRACKET; FRAME HARNESS
(D) THA 		8-97616-305-0 01 1 1410-
59 BRACKET; FRAME HARNESS
(C) THA 		8-98107-611-0 01 1 1410-
137 BRACKET; HARNESS CLAMP
(A) THA 		8-97614-728-1 01 1 1410-
137 BRACKET; HARNESS CLAMP
(B) THA 		8-97624-013-0 01 1 1410-
308 BRACKET; CLIP,ENG HARNESS
(A) THA 		8-97601-310-0 03 1 1410-
308 BRACKET; CLIP,ENG HARNESS
(B) THA 		8-97614-078-0 01 1 1410-
308 BRACKET; CLIP,ENG HARNESS
(C) THA 		8-98021-291-2 01 1 1410-
308 BRACKET; CLIP,ENG HARNESS
(D) THA 		8-98021-692-1 01 1 1410-
312 BRACKET; CLIP HARNESS
(B) L=55 THA 		1-47475-304-0 01 1 1410-
312 BRACKET; CLIP HARNESS
(A) THA 		8-97609-110-1 01 1 1410-
428 BRACKET
THA 		8-98212-082-1 01 1 1410-
çizim 451581
16 16 16 305 48 48 48 306 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (J) ID=11 L=41 THA 		1-09700-403-0 01 1 1410-
16 CLIP; HARNESS
(K) ID=16 L=28 THA 		0-95235-556-0 02 1 1410-
16 CLIP; HARNESS
(E) ID=14 H=50 L=20 THA 		1-09700-843-0 02 1 1410-
16 CLIP; HARNESS
(G) L=350 THA 		1-09707-183-0 02 1 1410-
16 CLIP; HARNESS
(I) OD=9 H=6 THA 		1-09709-178-0 01 1 1410-
16 CLIP; HARNESS
(F) L=250 THA 		5-09707-030-1 03 1 1410-
16 CLIP; HARNESS
(A) ID=10 & 16 THA 		8-94413-325-0 01 1 1410-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 02 1 1410-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 02 1 1410-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1410-
16 CLIP; HARNESS
(D) L=40.6 THA 		8-97229-357-0 02 1 1410-
16 CLIP; HARNESS
(L) L=140 THA 		8-97920-656-0 01 1 1410-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1410-
48 CLIP; FRAME HARNESS
(E) ID=16X2 L=50 THA 		0-95325-586-0 01 1 1410-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 THA 		1-09700-485-0 04 1 1410-
48 CLIP; FRAME HARNESS
(B) ID=14.5 H=23 L=30 THA 		1-09700-859-0 01 1 1410-
48 CLIP; FRAME HARNESS
(H) ID=35 L=50 THA 		1-09701-214-0 01 1 1410-
48 CLIP; FRAME HARNESS
(C) L=350 THA 		1-09707-183-0 01 1 1410-
48 CLIP; FRAME HARNESS
(G) ID=13-18 L=14.5 THA 		1-09709-290-0 03 1 1410-
48 CLIP; FRAME HARNESS
(I) ID=13-18 L=22 THA 		1-09709-292-0 01 1 1410-
48 CLIP; FRAME HARNESS
(D) ID=13-18 L=26 THA 		1-09709-293-0 01 1 1410-
48 CLIP; FRAME HARNESS
(F) L=140 THA 		8-97920-656-0 02 1 1410-
305 CLIP; ENG HARNESS
(G) ID=16 L=28 THA 		0-95235-556-0 02 1 1410-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 THA 		0-95235-576-0 01 1 1410-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 THA 		1-09700-766-1 01 1 1410-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 THA 		1-09700-861-0 01 1 1410-
305 CLIP; ENG HARNESS
(F) ID=19 L=39 H=21 THA 		1-09700-972-1 01 1 1410-
305 CLIP; ENG HARNESS
(C) ID=26 L=27 THA 		1-09701-006-0 01 1 1410-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 THA 		1-09701-041-1 01 1 1410-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 THA 		1-09709-178-0 01 1 1410-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 THA 		8-97367-985-1 01 1 1410-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 THA 		1-09701-107-1 01 1 1410-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 THA 		1-09701-302-0 02 1 1410-

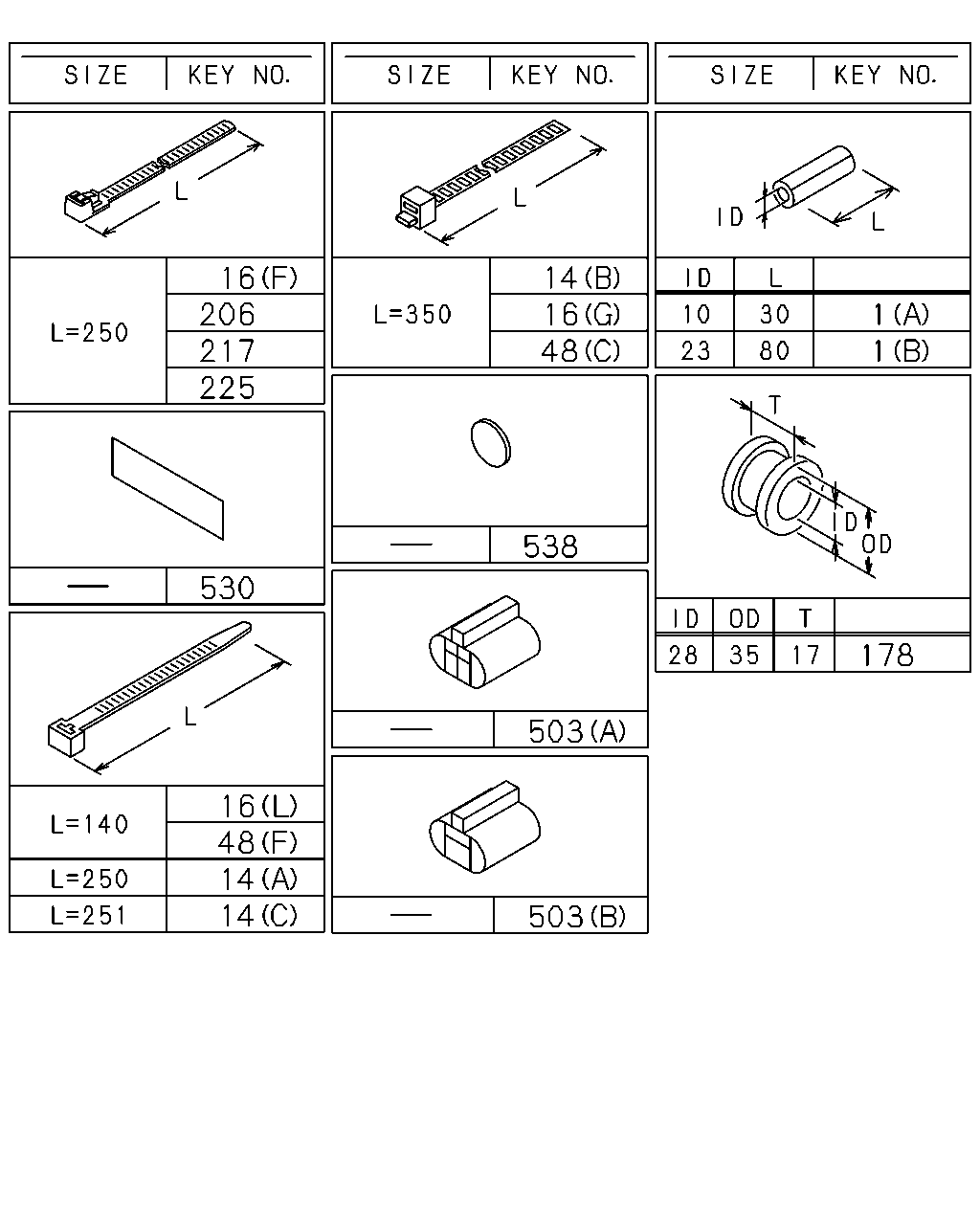

çizim 451782
16 206 217 225 530 16 48 14 14 14 16 48 538 503 503 1 1 178
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 THA 		8-97608-976-0 05 1 1410-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 THA 		9-09956-682-0 04 1 1410-
14 CLIP; BAND,HARNESS
(B) L=350 THA 		1-09707-183-0 01 1 1410-
14 CLIP; BAND,HARNESS
(C) L=251 THA 		8-97619-917-0 01 1 1410-
14 CLIP; BAND,HARNESS
(A) L=250 THA 		8-98216-430-0 14 1 1410-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (J) ID=11 L=41 THA 		1-09700-403-0 01 1 1410-
16 CLIP; HARNESS
(K) ID=16 L=28 THA 		0-95235-556-0 02 1 1410-
16 CLIP; HARNESS
(E) ID=14 H=50 L=20 THA 		1-09700-843-0 02 1 1410-
16 CLIP; HARNESS
(G) L=350 THA 		1-09707-183-0 02 1 1410-
16 CLIP; HARNESS
(I) OD=9 H=6 THA 		1-09709-178-0 01 1 1410-
16 CLIP; HARNESS
(F) L=250 THA 		5-09707-030-1 03 1 1410-
16 CLIP; HARNESS
(A) ID=10 & 16 THA 		8-94413-325-0 01 1 1410-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 02 1 1410-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 02 1 1410-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1410-
16 CLIP; HARNESS
(D) L=40.6 THA 		8-97229-357-0 02 1 1410-
16 CLIP; HARNESS
(L) L=140 THA 		8-97920-656-0 01 1 1410-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1410-
48 CLIP; FRAME HARNESS
(E) ID=16X2 L=50 THA 		0-95325-586-0 01 1 1410-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 THA 		1-09700-485-0 04 1 1410-
48 CLIP; FRAME HARNESS
(B) ID=14.5 H=23 L=30 THA 		1-09700-859-0 01 1 1410-
48 CLIP; FRAME HARNESS
(H) ID=35 L=50 THA 		1-09701-214-0 01 1 1410-
48 CLIP; FRAME HARNESS
(C) L=350 THA 		1-09707-183-0 01 1 1410-
48 CLIP; FRAME HARNESS
(G) ID=13-18 L=14.5 THA 		1-09709-290-0 03 1 1410-
48 CLIP; FRAME HARNESS
(I) ID=13-18 L=22 THA 		1-09709-292-0 01 1 1410-
48 CLIP; FRAME HARNESS
(D) ID=13-18 L=26 THA 		1-09709-293-0 01 1 1410-
48 CLIP; FRAME HARNESS
(F) L=140 THA 		8-97920-656-0 02 1 1410-
178 GROMMET; HARNESS
POOR QUALITY DIESEL FUEL<KF0> ID=28 OD=35 T=17 THA 		9-09956-256-2 01 1 1410-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 THA 		9-09956-256-2 01 1 1410-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 THA 		9-09956-256-2 01 1 1410-
178 GROMMET; HARNESS
ID=28 OD=35 T=17 THA 		9-09956-256-2 02 1 1410-
206 CLIP; FUEL TANK HARNESS
L=250 THA 		5-09707-030-1 02 1 1410-
217 CLIP; RR BODY HARNESS
L=250 THA 		5-09707-030-1 01 1 1410-
217 CLIP; RR BODY HARNESS
L=250 THA 		5-09707-030-1 02 1 1410-
225 CLIP; AIR TANK HARNESS
L=250 THA 		5-09707-030-1 08 1 1410-
503 CONNECTOR
(A) THA 		1-82690-666-0 01 1 1410-
503 CONNECTOR
(B) THA 		1-82690-668-0 01 1 1410-
530 SEAL; HARNESS
180X40 THA 		1-72498-019-1 06 1 1410-
538 SEAL; HOLE
OD=25 BLACK THA 		1-76798-019-0 01 1 1410-

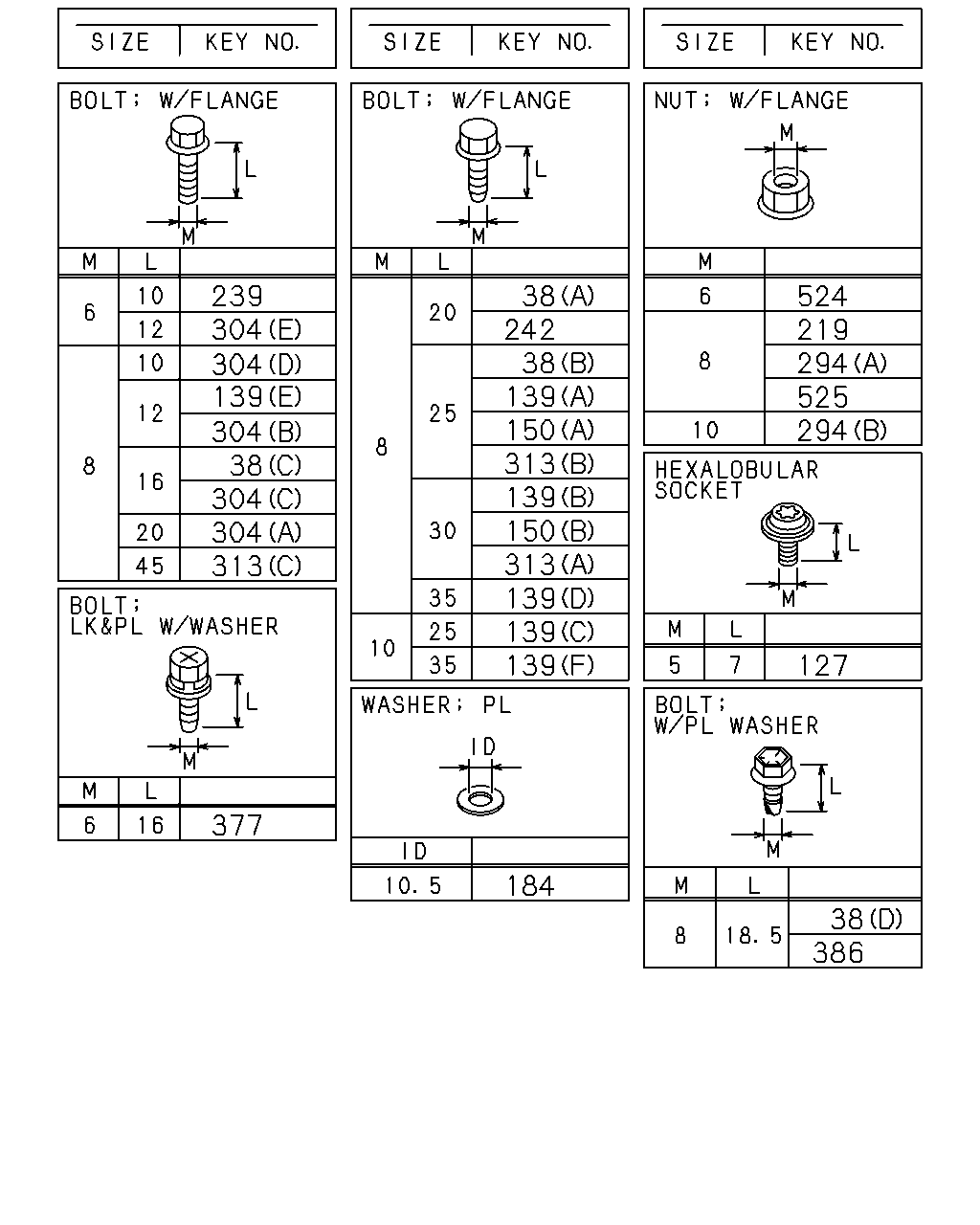

çizim 451818
386 127 38 294 525 294 219 524 184 139 139 139 313 150 139 313 150 139 38 242 38 377 313 304 304 38 304 139 304 304 239
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(D) M8X18.5 W/PL WASHER THA 		8-98141-255-0 03 1 1410-
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA 		0-28050-816-0 02 1 1410-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1410-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1410-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1410-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET THA 		8-98063-767-0 01 1 1410-
139 BOLT; BRKT
(E) M8X12 FLANGE THA 		0-28050-812-0 01 1 1410-
139 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28650-825-0 01 1 1410-
139 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1410-
139 BOLT; BRKT
(D) M8X35 FLANGE THA 		0-28650-835-0 01 1 1410-
139 BOLT; BRKT
(C) M10X25 FLANGE THA 		0-28651-025-0 02 1 1410-
139 BOLT; BRKT
(F) M10X35 FLANGE THA 		0-28651-035-0 01 1 1410-
150 BOLT; CLIP
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1410-
150 BOLT; CLIP
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1410-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 THA 		1-09503-265-0 01 1 1410-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 THA 		1-09503-265-0 01 1 1410-
219 NUT
M8 FLANGE THA 		0-91180-108-0 02 1 1410-
239 BOLT; GRAND
M6X10 FLANGE THA 		0-28050-610-0 01 1 1409-
242 BOLT; BRKT,HARNESS
M8X20 FLANGE THA 		0-28650-820-0 01 1 1410-
294 NUT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1410-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1410-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1410-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1410-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1410-
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE THA 		0-28050-612-0 01 1 1410-
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE THA 		0-28050-810-0 01 1 1410-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE THA 		0-28050-812-0 03 1 1410-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE THA 		0-28050-816-0 03 1 1410-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE THA 		0-28050-820-0 02 1 1410-
313 BOLT; BRKT
(C) M8X45 FLANGE THA 		0-28050-845-0 02 1 1410-
313 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1410-
313 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1410-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER THA 		8-97086-823-0 02 1 1410-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER THA 		8-98141-255-0 02 1 1410-
524 NUT; HARNESS
M6 FLANGE THA 		0-91180-106-0 04 1 1410-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1410-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1410-

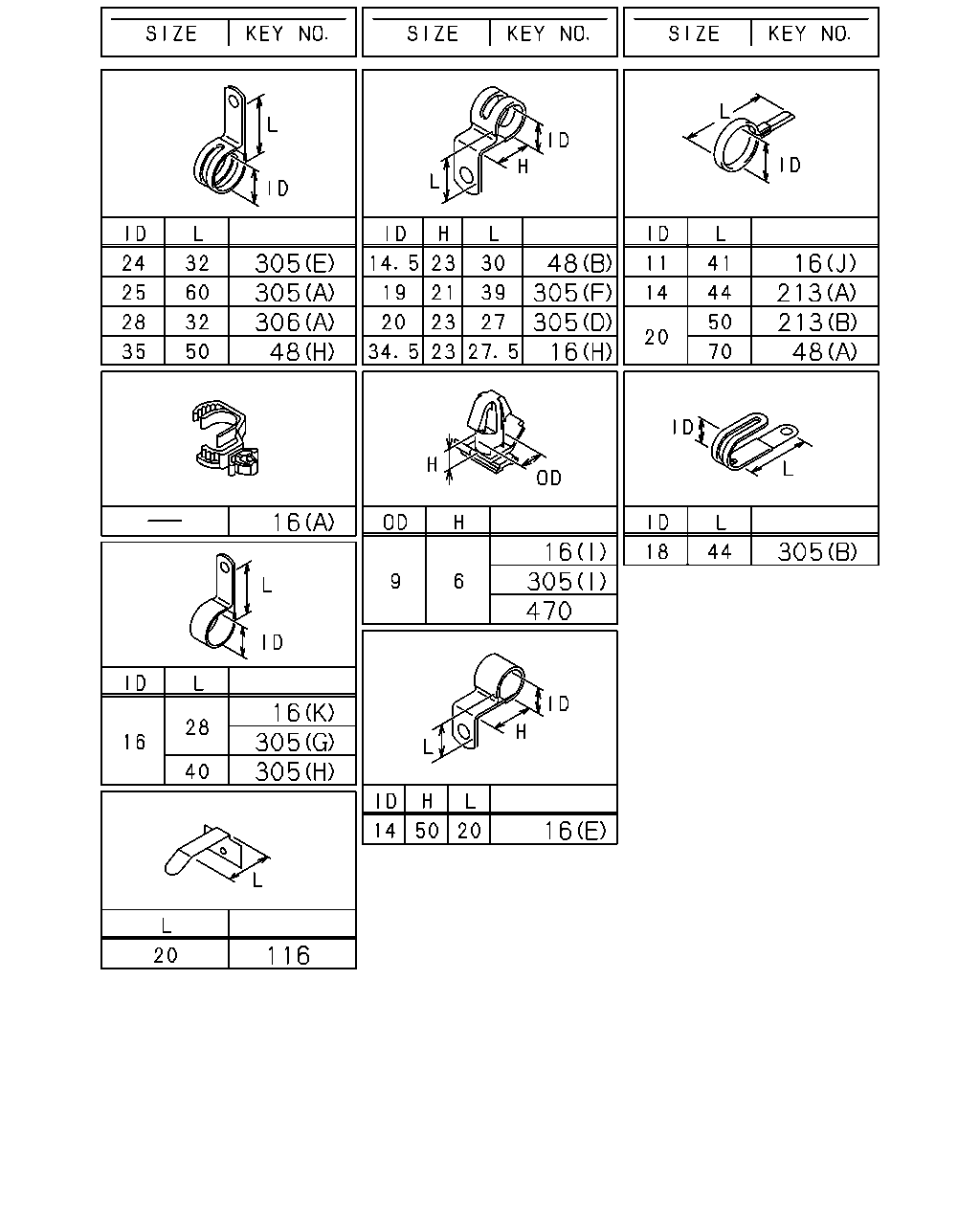

çizim 451954
305 305 306 48 16 16 305 305 116 48 305 305 16 16 305 470 16 16 213 213 305 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (J) ID=11 L=41 THA 		1-09700-403-0 01 1 1410-
16 CLIP; HARNESS
(K) ID=16 L=28 THA 		0-95235-556-0 02 1 1410-
16 CLIP; HARNESS
(E) ID=14 H=50 L=20 THA 		1-09700-843-0 02 1 1410-
16 CLIP; HARNESS
(G) L=350 THA 		1-09707-183-0 02 1 1410-
16 CLIP; HARNESS
(I) OD=9 H=6 THA 		1-09709-178-0 01 1 1410-
16 CLIP; HARNESS
(F) L=250 THA 		5-09707-030-1 03 1 1410-
16 CLIP; HARNESS
(A) ID=10 & 16 THA 		8-94413-325-0 01 1 1410-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 02 1 1410-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 02 1 1410-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1410-
16 CLIP; HARNESS
(D) L=40.6 THA 		8-97229-357-0 02 1 1410-
16 CLIP; HARNESS
(L) L=140 THA 		8-97920-656-0 01 1 1410-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1410-
48 CLIP; FRAME HARNESS
(E) ID=16X2 L=50 THA 		0-95325-586-0 01 1 1410-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 THA 		1-09700-485-0 04 1 1410-
48 CLIP; FRAME HARNESS
(B) ID=14.5 H=23 L=30 THA 		1-09700-859-0 01 1 1410-
48 CLIP; FRAME HARNESS
(H) ID=35 L=50 THA 		1-09701-214-0 01 1 1410-
48 CLIP; FRAME HARNESS
(C) L=350 THA 		1-09707-183-0 01 1 1410-
48 CLIP; FRAME HARNESS
(G) ID=13-18 L=14.5 THA 		1-09709-290-0 03 1 1410-
48 CLIP; FRAME HARNESS
(I) ID=13-18 L=22 THA 		1-09709-292-0 01 1 1410-
48 CLIP; FRAME HARNESS
(D) ID=13-18 L=26 THA 		1-09709-293-0 01 1 1410-
48 CLIP; FRAME HARNESS
(F) L=140 THA 		8-97920-656-0 02 1 1410-
116 CLIP; ROOF HARNESS
L=20 THA 		1-09987-246-2 03 1 1410-
213 CLIP; END CROSS HARNESS
(A) ID=14 L=44 THA 		9-09917-427-0 03 1 1410-
213 CLIP; END CROSS HARNESS
(B) ID=20 L=50 THA 		9-09917-430-0 01 1 1410-
305 CLIP; ENG HARNESS
(G) ID=16 L=28 THA 		0-95235-556-0 02 1 1410-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 THA 		0-95235-576-0 01 1 1410-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 THA 		1-09700-766-1 01 1 1410-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 THA 		1-09700-861-0 01 1 1410-
305 CLIP; ENG HARNESS
(F) ID=19 L=39 H=21 THA 		1-09700-972-1 01 1 1410-
305 CLIP; ENG HARNESS
(C) ID=26 L=27 THA 		1-09701-006-0 01 1 1410-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 THA 		1-09701-041-1 01 1 1410-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 THA 		1-09709-178-0 01 1 1410-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 THA 		8-97367-985-1 01 1 1410-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 THA 		1-09701-107-1 01 1 1410-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 THA 		1-09701-302-0 02 1 1410-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 THA 		1-09709-178-0 01 1 1410-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
