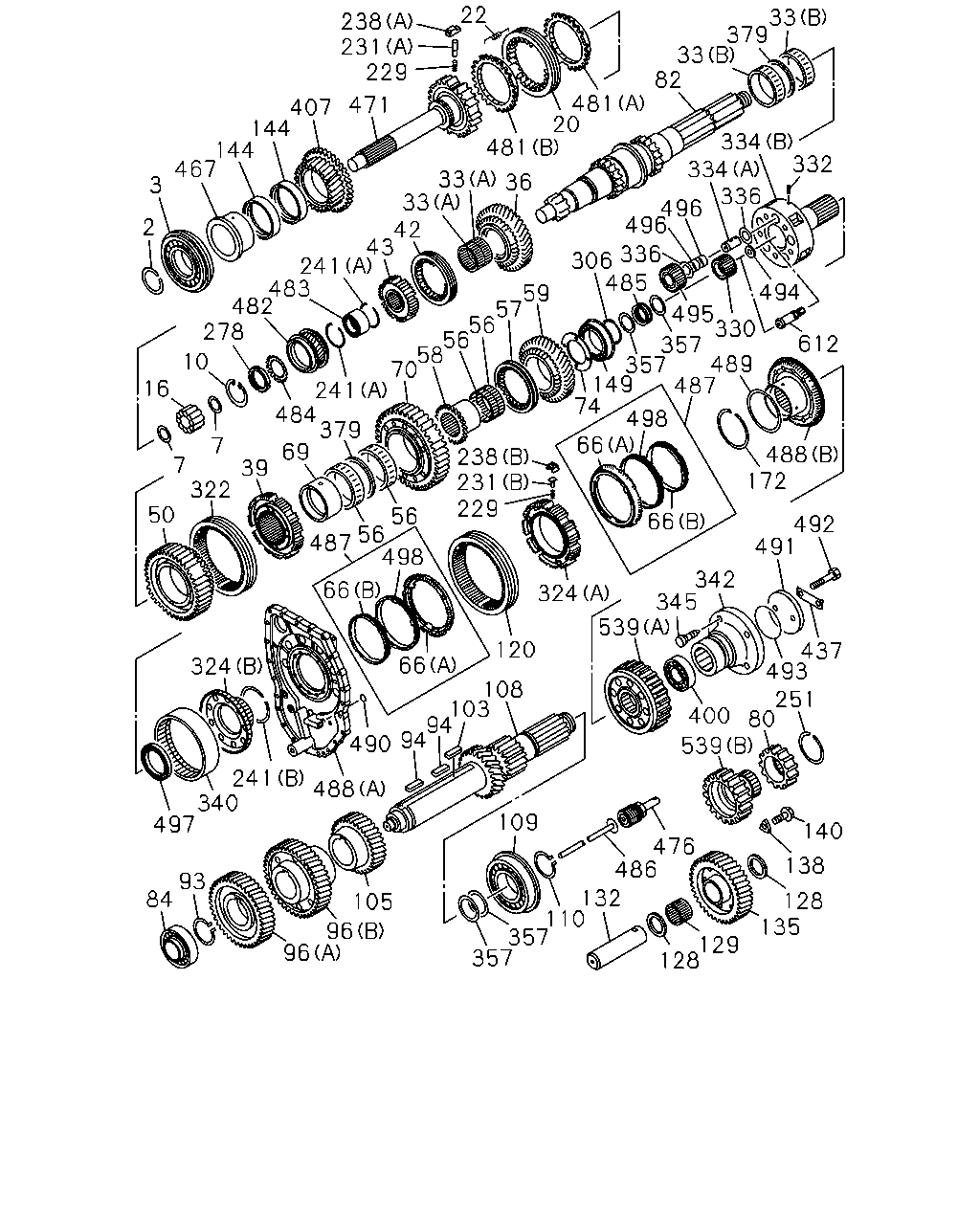

2 |
RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.53 WHITE
|
1-09588-181-0 |
AR |
1 |
0804- |
| |
2 |
RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.56 YELLOW
|
1-09588-182-0 |
AR |
1 |
0804- |
| |
2 |
RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.60 BLUE
|
1-09588-183-0 |
AR |
1 |
0804- |
| |
2 |
RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.64 GREEN
|
1-09588-184-0 |
AR |
1 |
0804- |
| |
3 |
BEARING; TOP GEAR SHAFT
NSK
|
1-09810-278-0 |
01 |
1 |
0804- |
| |
7 |
WASHER; THRUST,MAINSHAFT
|
1-33239-262-0 |
02 |
1 |
0804- |
| |
10 |
RING; SNAP,PILOT BRG
OD=72.5
|
9-09180-168-0 |
01 |
1 |
0804- |
| |
16 |
BEARING; PILOT,MAINSHAFT
NSK
|
1-09810-260-0 |
16 |
1 |
0804- |
| |
16 |
BEARING; PILOT,MAINSHAFT
NTN
|
1-09810-261-0 |
16 |
1 |
0804- |
| |
20 |
SLEEVE
|
1-33262-216-1 |
01 |
1 |
0804- |
| |
22 |
SPRING; BLOCK,INSERT
|
1-09583-363-0 |
03 |
1 |
0804- |
| |
33 |
BEARING; NEEDLE,3RD GEAR
(A)
NSK
|
1-09811-378-0 |
02 |
1 |
0804-1308 |
| |
33 |
BEARING; NEEDLE,3RD GEAR
(A)
NTN
|
1-09811-379-0 |
02 |
1 |
0804- |
| |
33 |
BEARING; NEEDLE,3RD GEAR
(B)
NSK
|
1-09811-422-0 |
02 |
1 |
0804-1311 |
| |
33 |
BEARING; NEEDLE,3RD GEAR
(B)
NTN
|
1-09811-423-0 |
02 |
1 |
0804- |
| |
36 |
GEAR; 3RD,MAINSHAFT
Z=41
|
1-33253-680-1 |
01 |
1 |
0804- |
| |
39 |
HUB; CLU,LOW & 2ND
|
1-33261-279-1 |
01 |
1 |
0804- |
| |
42 |
SLEEVE
|
1-33262-222-0 |
01 |
1 |
0804- |
| |
43 |
HUB; CLU,3RD & 4TH,MAIN
|
1-33261-278-1 |
01 |
1 |
0804- |
| |
50 |
GEAR; 2ND,MAINSHAFT
Z=43
|
1-33251-393-1 |
01 |
1 |
0804- |
| |
56 |
BEARING; NEEDLE,1ST,REV
NSK
|
1-09811-422-0 |
04 |
1 |
0804-1311 |
| |
56 |
BEARING; NEEDLE,1ST,REV
NTN
|
1-09811-423-0 |
04 |
1 |
0804- |
| |
57 |
SLEEVE; REV
|
1-33262-209-1 |
01 |
1 |
0804- |
| |
58 |
HUB; CLU,REV
|
1-33261-286-1 |
01 |
1 |
0804- |
| |
59 |
GEAR; REV MAINSHAFT
Z=44
|
1-33257-081-2 |
01 |
1 |
0804- |
| |
66 |
RING; BLOCK,SYN
(A)
|
1-33265-588-0 |
02 |
1 |
0804-1312 |
| |
66 |
RING; BLOCK,SYN
(A)
|
8-98239-909-1 |
02 |
1 |
1401- |
| |
66 |
RING; BLOCK,SYN
(B)
|
1-33265-590-0 |
02 |
1 |
0804-1307 |
| |
66 |
RING; BLOCK,SYN
(B)
|
8-98239-294-0 |
02 |
1 |
1308-1312 |
| |
66 |
RING; BLOCK,SYN
(B)
|
8-98239-911-1 |
02 |
1 |
1401- |
| |
69 |
COLLAR; 1ST GEAR MAIN
|
1-33234-099-0 |
01 |
1 |
0804- |
| |
70 |
GEAR; 1ST,MAINSHAFT
Z=49
|
1-33255-071-1 |
01 |
1 |
0804- |
| |
74 |
WASHER; THRUST,REV GEAR
|
1-33239-308-0 |
01 |
1 |
0804- |
| |
80 |
GEAR; SPD DRIVE
Z=11
|
1-33371-069-0 |
01 |
1 |
0804- |
| |
82 |
SHAFT; MAIN,TRANS
Z=37-40-28-19
|
1-33231-327-2 |
01 |
1 |
0804- |
| |
84 |
BEARING; COUNTER SHAFT,FRT
NSK
|
1-09810-221-0 |
01 |
1 |
0804- |
| |
84 |
BEARING; COUNTER SHAFT,FRT
NTN
|
1-09810-222-0 |
01 |
1 |
0804- |
| |
93 |
RING; SNAP,COUNTER FRT BRG
|
1-09588-149-0 |
01 |
1 |
0804- |
| |
94 |
KEY; FEATHER,COUNTER SHAFT
L=70
|
1-09735-046-0 |
02 |
1 |
0804- |
| |
96 |
GEAR; COUNTER DRIVE
(A)
Z=35
|
1-33331-258-2 |
01 |
1 |
0804- |
| |
96 |
GEAR; COUNTER DRIVE
(B)
Z=38
|
1-33338-374-3 |
01 |
1 |
0804- |
| |
103 |
KEY; COUNTER GEAR
L=75.3
|
1-09735-042-0 |
01 |
1 |
0804- |
| |
105 |
GEAR; 3RD,COUNTER
Z=36
|
1-33338-373-1 |
01 |
1 |
0804- |
| |
108 |
SHAFT; COUNTER
Z=26-21
|
1-33311-325-1 |
01 |
1 |
0804- |
| |
109 |
BEARING; COUNTER SHAFT,RR
NSK
|
1-09810-186-0 |
01 |
1 |
0804- |
| |
109 |
BEARING; COUNTER SHAFT,RR
NTN
|
1-09810-207-0 |
01 |
1 |
0804- |
| |
110 |
RING; SNAP,COUNTER BRG
|
1-09588-193-1 |
01 |
1 |
0804- |
| |
120 |
SLEEVE
|
1-33262-229-0 |
01 |
1 |
0804- |
| |
128 |
WASHER; THRUST,REV SHAFT
T=4.0
|
9-33363-015-0 |
02 |
1 |
0804- |
| |
129 |
BEARING; NEEDLE,IDLER
NSK
|
1-09811-384-0 |
01 |
1 |
0804- |
| |
129 |
BEARING; NEEDLE,IDLER
NTN
|
1-09811-385-0 |
01 |
1 |
0804- |
| |
132 |
SHAFT; REV
|
1-33351-035-1 |
01 |
1 |
0804- |
| |
135 |
GEAR; REV IDLER
Z=30
|
1-33361-081-1 |
01 |
1 |
0804- |
| |
138 |
PIECE; LK,REV SHAFT
|
9-33354-007-0 |
01 |
1 |
0804- |
| |
140 |
BOLT; LK PIECE
M10X25
|
1-09049-006-1 |
01 |
1 |
0804- |
| |
144 |
BEARING; NEEDLE,INPUT GEAR
NSK
|
1-09811-422-0 |
02 |
1 |
0804-1311 |
| |
144 |
BEARING; NEEDLE,INPUT GEAR
NTN
|
1-09811-423-0 |
02 |
1 |
0804- |
| |
149 |
BEARING; NEEDLE,MAINSHAFT,RR
NSK
|
1-09810-256-0 |
01 |
1 |
0804- |
| |
149 |
BEARING; NEEDLE,MAINSHAFT,RR
NTN
|
1-09810-257-0 |
01 |
1 |
0804- |
| |
172 |
RING; SNAP,CLU HUB
OD=121.2
|
1-09587-031-0 |
01 |
1 |
0804- |
| |
229 |
SPRING; PLUNGER
D=3.8
|
1-09580-395-0 |
06 |
1 |
1404- |
| |
229 |
SPRING; PLUNGER
D=6.2
|
1-09580-091-1 |
15 |
1 |
0804-1403 |
| |
229 |
SPRING; PLUNGER
D=6.2
|
1-09580-091-1 |
09 |
1 |
1404- |
| |
231 |
PLUNGER
(A)
|
1-33263-033-0 |
06 |
1 |
0804-1403 |
| |
231 |
PLUNGER
(A)
|
8-98273-831-0 |
06 |
1 |
1404- |
| |
231 |
PLUNGER
(B)
|
1-33263-038-1 |
09 |
1 |
0804- |
| |
238 |
INSERT
(A)
|
1-33263-036-0 |
06 |
1 |
0804- |
| |
238 |
INSERT
(B)
|
1-33263-039-0 |
09 |
1 |
0804- |
| |
241 |
RING; SNAP
(A)
|
1-09587-023-0 |
02 |
1 |
0804- |
| |
241 |
RING; SNAP
(B)
|
1-09587-104-0 |
01 |
1 |
0804- |
| |
251 |
RING; SNAP
|
8-98059-843-0 |
01 |
1 |
0804- |
| |
278 |
NUT; BRG
|
1-09449-080-0 |
01 |
1 |
0804- |
| |
306 |
RING; SNAP,MAINSHAFT
|
1-09588-149-0 |
01 |
1 |
0804- |
| |
322 |
SLEEVE; SYN,LOW & 2ND
|
1-33262-222-0 |
01 |
1 |
0804- |
| |
324 |
HUB; CLU
(A)
|
1-34231-015-0 |
01 |
1 |
0804- |
| |
324 |
HUB; CLU
(B)
|
1-34371-017-0 |
01 |
1 |
0804-1307 |
| |
324 |
HUB; CLU
(B)
|
8-98239-089-0 |
01 |
1 |
1308- |
| |
330 |
GEAR; SUN
Z=24
|
1-34311-010-0 |
01 |
1 |
0804- |
| |
332 |
PIN; LOCK,SHAFT
|
1-09748-025-0 |
05 |
1 |
0804- |
| |
334 |
SHAFT; PLANETARY GEAR
(B)
|
8-98060-769-0 |
01 |
1 |
0804-1307 |
| |
334 |
SHAFT; PLANETARY GEAR
(B)
|
8-98238-293-0 |
01 |
1 |
1308- |
| |
334 |
SHAFT; PLANETARY GEAR
(A)
|
1-34353-010-1 |
05 |
1 |
0804- |
| |
336 |
WASHER; THRUST,PLANETARY GEAR
|
1-09503-230-0 |
10 |
1 |
0804- |
| |
340 |
GEAR; RING
Z=86 OKUBO GEAR
|
1-34371-014-0 |
01 |
1 |
0804- |
| |
340 |
GEAR; RING
Z=86 NIPPON GEAR
|
1-34371-018-0 |
01 |
1 |
0804- |
| |
340 |
GEAR; RING
Z=86 ISUZU
|
1-34371-019-0 |
01 |
1 |
0804- |
| |
342 |
FLANGE; OUTPUT
|
1-37243-400-2 |
01 |
1 |
0804- |
| |
345 |
BOLT; FLANGE TO YOKE
M14X48.5
|
1-09046-013-0 |
04 |
1 |
0804- |
| |
357 |
RING
|
1-31349-044-0 |
04 |
1 |
0804- |
| |
379 |
PIECE; DIST,MAINSHAFT
|
1-33363-034-0 |
02 |
1 |
0804- |
| |
400 |
BEARING; OUTPUT SHAFT RR
NSK W/SNAP RING
|
1-09810-254-0 |
01 |
1 |
0804-0910 |
| |
400 |
BEARING; OUTPUT SHAFT RR
NSK W/SNAP RING
|
8-98153-252-0 |
01 |
1 |
0911- |
| |
400 |
BEARING; OUTPUT SHAFT RR
NTN W/SNAP RING
|
1-09810-255-0 |
01 |
1 |
0804-0910 |
| |
407 |
GEAR; PRIMARY MAIN
Z=33
|
1-33253-717-0 |
01 |
1 |
0804- |
| |
437 |
PLATE; LOCK
|
1-34252-032-0 |
01 |
1 |
0804- |
| |
467 |
COLLAR; SHAFT
|
1-33234-091-1 |
01 |
1 |
0804- |
| |
471 |
SHAFT; INPUT
|
1-33215-020-0 |
01 |
1 |
0804-1102 |
| |
471 |
SHAFT; INPUT
|
8-98174-781-0 |
01 |
1 |
1103- |
| |
476 |
ADAPTER; PUMP DRIVE
|
1-33339-091-1 |
01 |
1 |
0804- |
| |
481 |
RING; BLOCK
(A)
HIGH
|
1-33265-516-1 |
01 |
1 |
0804-1407 |
| |
481 |
RING; BLOCK
(A)
HIGH
|
8-98239-518-1 |
01 |
1 |
1408-1410 |
| |
481 |
RING; BLOCK
(A)
HIGH
|
1-33265-516-1 |
01 |
1 |
1411- |
| |
481 |
RING; BLOCK
(B)
LOW
|
1-33265-532-1 |
01 |
1 |
0804-1407 |
| |
481 |
RING; BLOCK
(B)
LOW
|
8-98239-519-1 |
01 |
1 |
1408-1410 |
| |
481 |
RING; BLOCK
(B)
LOW
|
1-33265-532-1 |
01 |
1 |
1411- |
| |
482 |
GEAR; PRIMARY
Z=29
|
1-33253-720-0 |
01 |
1 |
0804- |
| |
483 |
BEARING; TAPER
NTN
|
1-09810-281-0 |
01 |
1 |
0804-1007 |
| |
483 |
BEARING; TAPER
NTN
|
8-98174-410-0 |
01 |
1 |
1008-1504 |
| |
483 |
BEARING; TAPER
NTN
|
8-98316-126-0 |
01 |
1 |
1505- |
| |
484 |
PLATE; SETTING
|
1-33313-023-0 |
01 |
1 |
0804- |
| |
485 |
PIECE; GUIDE
|
1-33363-040-1 |
01 |
1 |
0804- |
| |
486 |
NOZZLE; CONT SHAFT
|
1-33219-254-1 |
01 |
1 |
0804- |
| |
487 |
SYNCHRONIZER; RANGE CHANGE
|
1-33265-616-0 |
02 |
1 |
0804-1307 |
| |
487 |
SYNCHRONIZER; RANGE CHANGE
|
8-98239-293-0 |
02 |
1 |
1308-1312 |
| |
487 |
SYNCHRONIZER; RANGE CHANGE
|
8-98239-908-1 |
02 |
1 |
1401- |
| |
488 |
CLUTCH; DOG,RANGE
(B)
|
1-34254-006-1 |
01 |
1 |
0804-1211 |
| |
488 |
CLUTCH; DOG,RANGE
(B)
|
8-98218-291-0 |
01 |
1 |
1212-1307 |
| |
488 |
CLUTCH; DOG,RANGE
(B)
|
8-98238-509-0 |
01 |
1 |
1308- |
| |
488 |
CLUTCH; DOG,RANGE
(A)
|
8-98060-771-1 |
01 |
1 |
0804-1307 |
| |
488 |
CLUTCH; DOG,RANGE
(A)
|
8-98239-163-0 |
01 |
1 |
1308- |
| |
489 |
WASHER; THRUST
|
1-09503-308-0 |
01 |
1 |
0804- |
| |
490 |
GASKET; SEAL,CASE
ID=10
|
1-09623-369-0 |
01 |
1 |
0804- |
| |
491 |
PLATE; OUTPUT SHAFT
|
1-34252-035-1 |
01 |
1 |
0804- |
| |
492 |
BOLT; PLATE
|
1-09000-750-0 |
02 |
1 |
0804- |
| |
493 |
GASKET; OUTPUT SHAFT
|
9-09561-385-0 |
01 |
1 |
0804- |
| |
494 |
PLATE; OUTPUT SHAFT
|
1-34379-020-0 |
01 |
1 |
0804-1307 |
| |
495 |
PINION; PLANETARY
Z=30
|
1-34361-023-0 |
05 |
1 |
0804- |
| |
496 |
BEARING; PLANETARY
NSK
|
1-09811-424-0 |
10 |
1 |
0804- |
| |
496 |
BEARING; PLANETARY
NTN
|
1-09811-425-0 |
10 |
1 |
0804- |
| |
497 |
BEARING; RING GEAR
NSK
|
1-09810-276-0 |
01 |
1 |
0804-1307 |
| |
497 |
BEARING; RING GEAR
NTN
|
1-09810-277-0 |
01 |
1 |
0804-1307 |
| |
497 |
BEARING; RING GEAR
NTN
|
8-98239-433-0 |
01 |
1 |
1308- |
| |
498 |
CONE; SYN
|
1-33265-617-0 |
02 |
1 |
0804-1312 |
| |
498 |
CONE; SYN
|
8-98239-910-0 |
02 |
1 |
1401- |
| |
539 |
GEAR; RETARDER
(A)
|
8-98059-654-0 |
01 |
1 |
0804- |
| |
539 |
GEAR; RETARDER
(B)
|
8-98059-660-0 |
01 |
1 |
0804- |
| |
612 |
GALLERY; OIL
|
8-98239-463-0 |
01 |
1 |
1308- |
