2-20 — MANUAL TRANSMISSION ASM AND CASE (#15092) — 154 parça

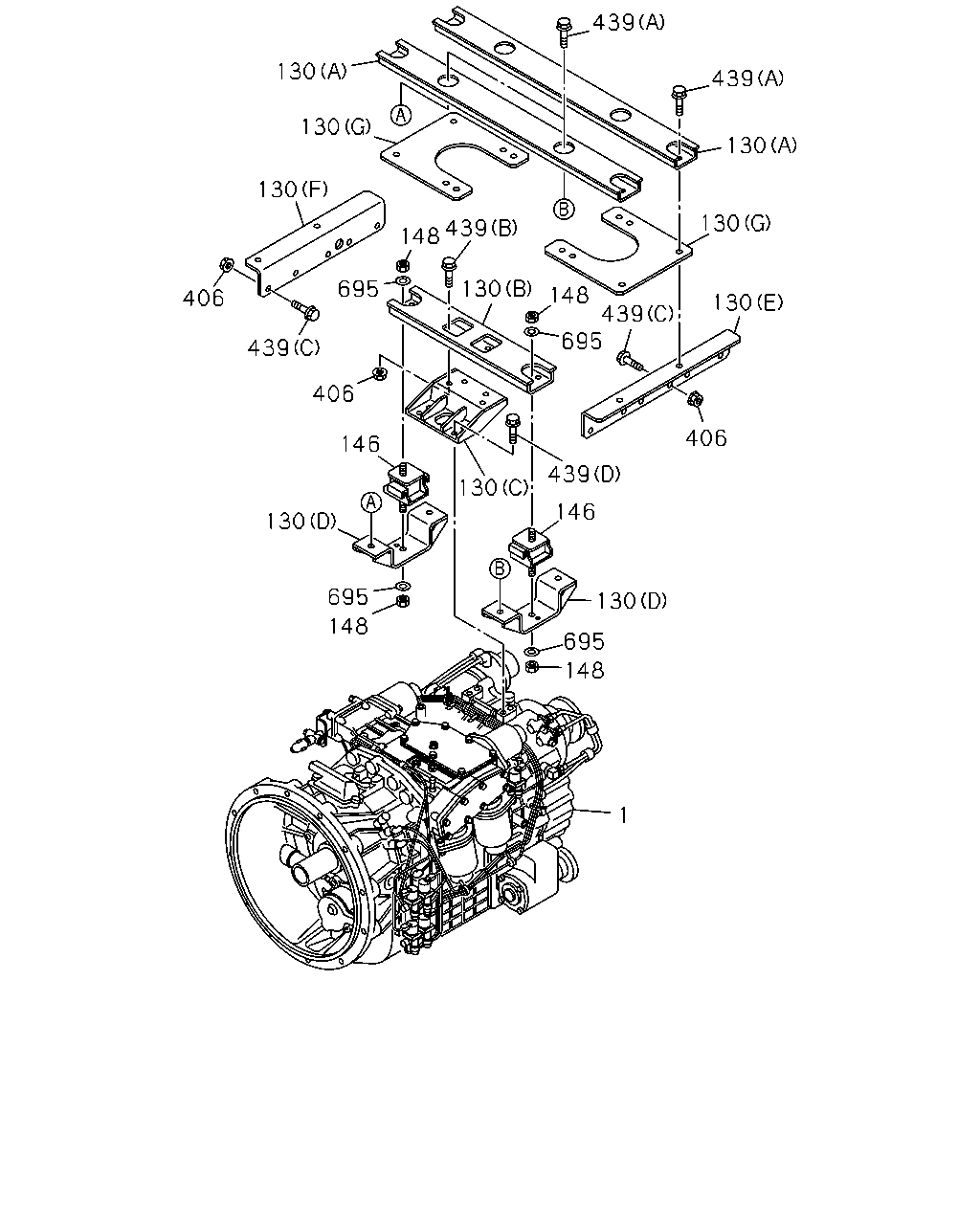

439 130 439 130 130 130 130 439 148 130 695 148 406 130 439 695 439 406 406 146 439 130 146 130 695 130 148 695 148 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL	1-33044-088-0	01	1	0804-
130	BRACKET; TRANS MTG (A)	8-98063-253-2	02	1	0804-
130	BRACKET; TRANS MTG (D)	8-98063-254-2	02	1	0804-
130	BRACKET; TRANS MTG (B)	8-98063-255-1	01	1	0804-
130	BRACKET; TRANS MTG (C)	8-98063-256-2	01	1	0804-
130	BRACKET; TRANS MTG (G)	8-98063-257-1	02	1	0804-
130	BRACKET; TRANS MTG (E)	8-98091-932-0	01	1	0804-
130	BRACKET; TRANS MTG (F)	8-98091-933-0	01	1	0804-
146	RUBBER; CUSHION TRANS MTG	8-97229-822-0	02	1	0804-
148	NUT M12	0-91110-512-0	04	1	0804-
406	NUT; BRKT M14 FLANGE	0-91180-214-0	04	1	0804-
406	NUT; BRKT M16 FLANGE	0-91180-216-0	05	1	0804-
406	NUT; BRKT M10 FLANGE	0-91180-110-0	03	1	0804-
439	BOLT; BRKT (D) M14X40 FLANGE	0-28761-440-0	04	1	0804-
439	BOLT; BRKT (B) M14X50 FLANGE	0-28861-450-0	04	1	0804-
439	BOLT; BRKT (A) M16X40 FLANGE	0-28861-640-0	08	1	0804-
439	BOLT; BRKT (C) M16X50 FLANGE	0-28861-650-0	05	1	0804-
695	WASHER ID=12.5 OD=32	0-91614-712-0	04	1	0804-

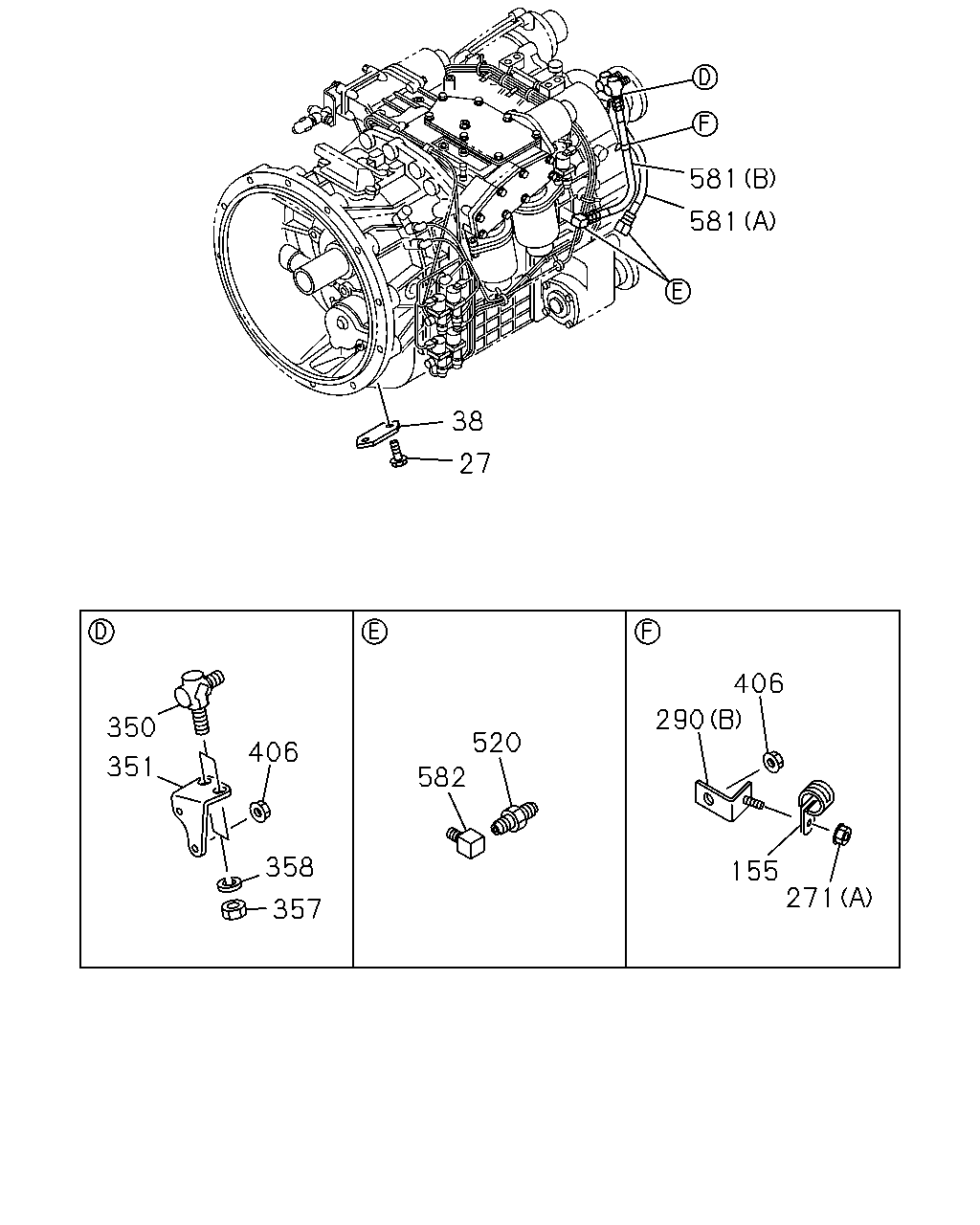

581 581 38 27 406 290 350 520 406 351 582 358 155 271 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0804-
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0804-
155	CLIP; HOSE ID=19 L=32	1-09701-235-0	01	1	0804-
271	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	01	1	0804-
271	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	03	1	0804-
290	BRACKET; CLIP (A)	1-47477-694-0	01	1	0804-
290	BRACKET; CLIP (B)	1-82698-586-0	01	1	0804-
350	UNION; FLEX HOSE,BRKT	1-09664-257-0	02	1	0804-
351	BRACKET; UNION,FLEX HOSE	8-98083-880-1	01	1	0804-
357	NUT; UNION,FLEX HOSE M22	0-91111-522-0	02	1	0804-
358	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	0804-
406	NUT; BRKT M14 FLANGE	0-91180-214-0	04	1	0804-
406	NUT; BRKT M16 FLANGE	0-91180-216-0	05	1	0804-
406	NUT; BRKT M10 FLANGE	0-91180-110-0	03	1	0804-
520	CONNECTOR R1/4 & M20	0-92306-010-0	02	1	0804-
581	HOSE; OIL COOLER (A)	8-98078-140-0	01	1	0804-
581	HOSE; OIL COOLER (B)	8-98078-141-0	01	1	0804-
582	NIPPLE; ELBOW R1/4 & RC1/4 ELBOW	1-09660-501-0	02	1	0804-

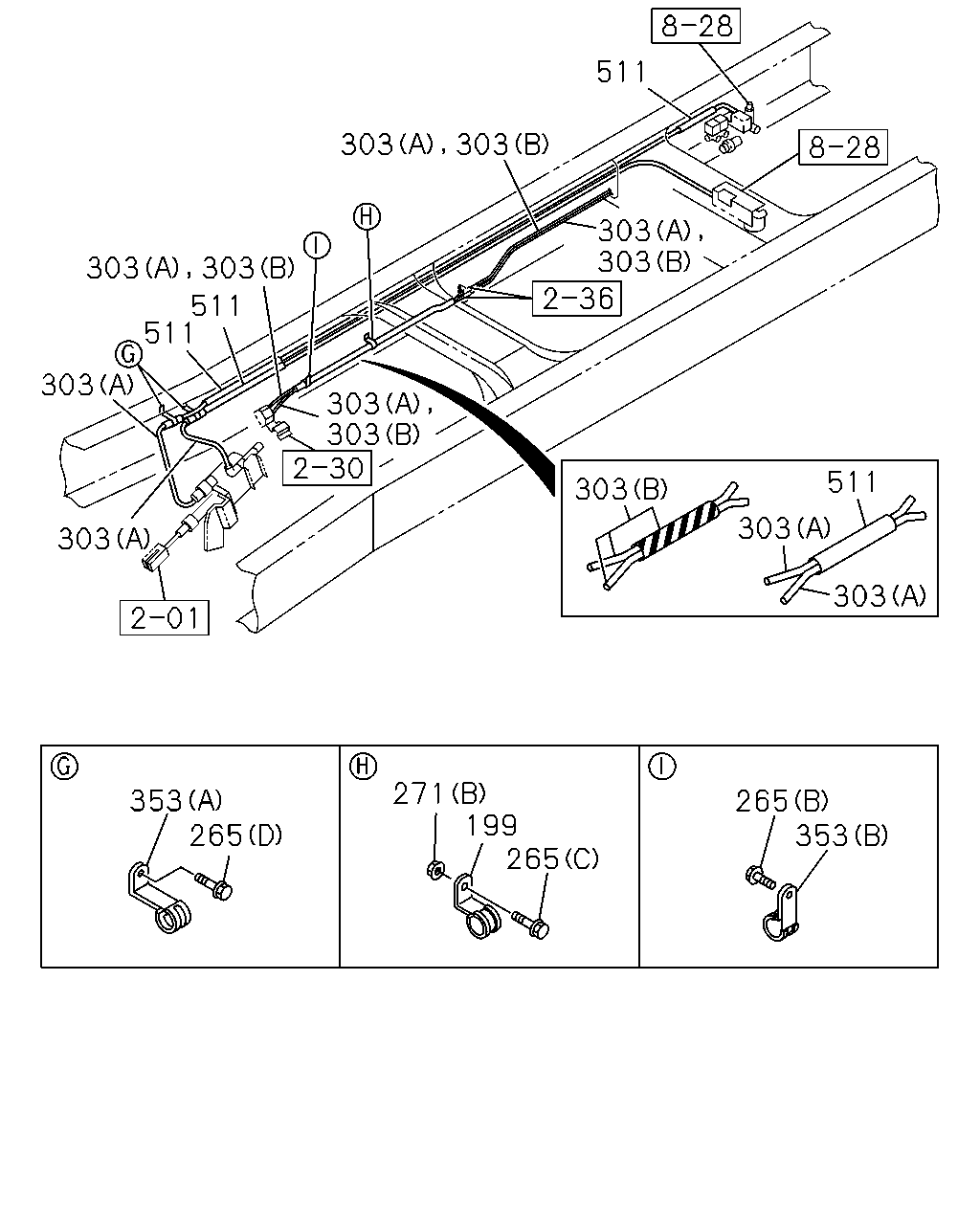

511 303 303 303 303 511 511 303 303 303 511 303 303 303 303 271 199 265 353 265 265 353 303 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
199	CLIP; NYLON TUBE ID=21 L=30 H=40	1-09700-991-1	01	1	0804-
265	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	0804-
265	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-
265	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	0804-
265	BOLT; CLIP (D) M8X30 FLANGE	0-28650-830-0	02	1	0804-
271	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	01	1	0804-
271	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	03	1	0804-
303	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0804-0908
303	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	0909-
303	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	0804-0908
303	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0909-
303	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0909-
303	TUBE; NYLON (A) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0804-
303	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	02	1	0804-0908
303	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0909-
303	TUBE; NYLON (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0909-
303	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	0804-
353	CLIP; NYLON TUBE (A) ID=16 L=50 H=25	1-09700-838-0	02	1	0804-
353	CLIP; NYLON TUBE (B) ID=21 L=24	8-98019-191-0	01	1	0804-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	04	1	0804-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	0804-

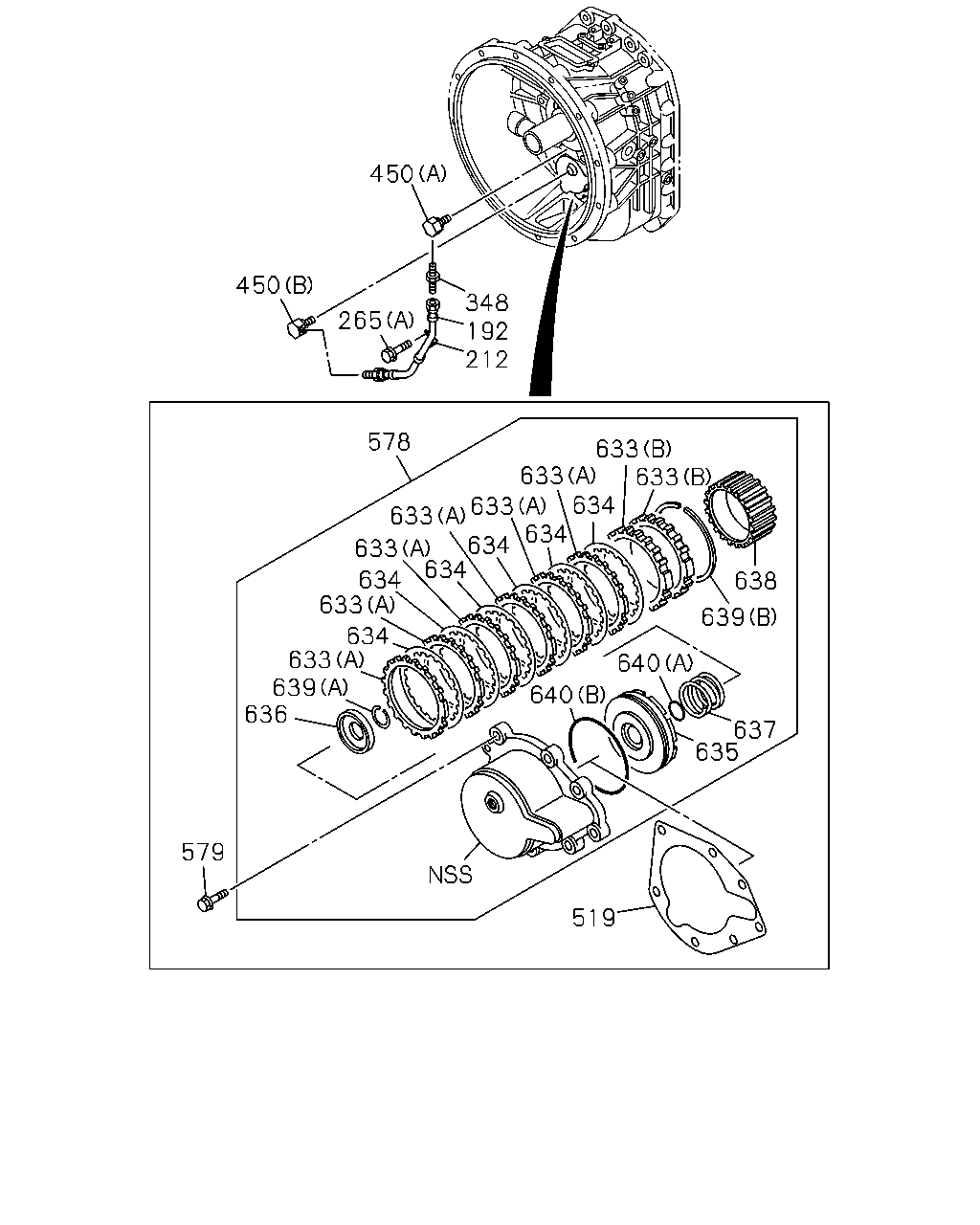

450 450 348 192 212 265 578 633 633 633 634 634 634 633 633 634 633 638 639 634 633 639 636 640 640 637 635 579 519 633 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
192	HOSE; FLEX,TRANS L=252	1-09365-062-0	01	1	0804-
212	CLIP; FLEX HOSE ID=9 H=20 L=25	1-09701-073-0	01	1	0804-
265	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	0804-
265	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-
265	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	0804-
265	BOLT; CLIP (D) M8X30 FLANGE	0-28650-830-0	02	1	0804-
348	NIPPLE; GREASE,SHAFT	9-09902-299-0	01	1	0804-
450	ADAPTER; OIL (A)	1-09660-012-0	01	1	0804-
450	ADAPTER; OIL (B) PT1/8 ELBOW	8-94338-418-1	01	1	0804-
519	GASKET; SHAFT	1-34142-034-0	01	1	0804-
578	BRAKE; COUNTER SHAFT	1-33316-005-1	01	1	0804-
579	BOLT; COUNTER SHAFT M10X30 FLANGE	0-28151-030-0	07	1	0804-
633	PLATE; SEPARATE,BRAKE (A)	1-33319-208-0	06	1	0804-
633	PLATE; SEPARATE,BRAKE (B) T=3.6	1-33319-209-0	02	1	0804-
633	PLATE; SEPARATE,BRAKE (B) T=3.8	1-33319-210-0	02	1	0804-
633	PLATE; SEPARATE,BRAKE (B) T=4.0	1-33319-211-0	02	1	0804-
633	PLATE; SEPARATE,BRAKE (B) T=4.2	1-33319-212-0	02	1	0804-
634	PLATE; FRICTION,BRAKE	1-33319-207-0	06	1	0804-
635	PISTON; BRAKE T=4.90	1-33319-230-0	01	1	0804-
636	PLATE; PRESSURE,BRAKE	1-33319-213-1	01	1	0804-
637	SPRING; BRAKE	1-33319-215-0	01	1	0804-
638	HUB; BRAKE	1-33319-220-0	01	1	0804-
639	RING; BRAKE (A)	1-33319-216-0	01	1	0804-
639	RING; BRAKE (B)	1-33319-217-0	01	1	0804-
640	GASKET; BRAKE (A)	1-33319-218-0	01	1	0804-
640	GASKET; BRAKE (B)	1-33319-219-0	01	1	0804-

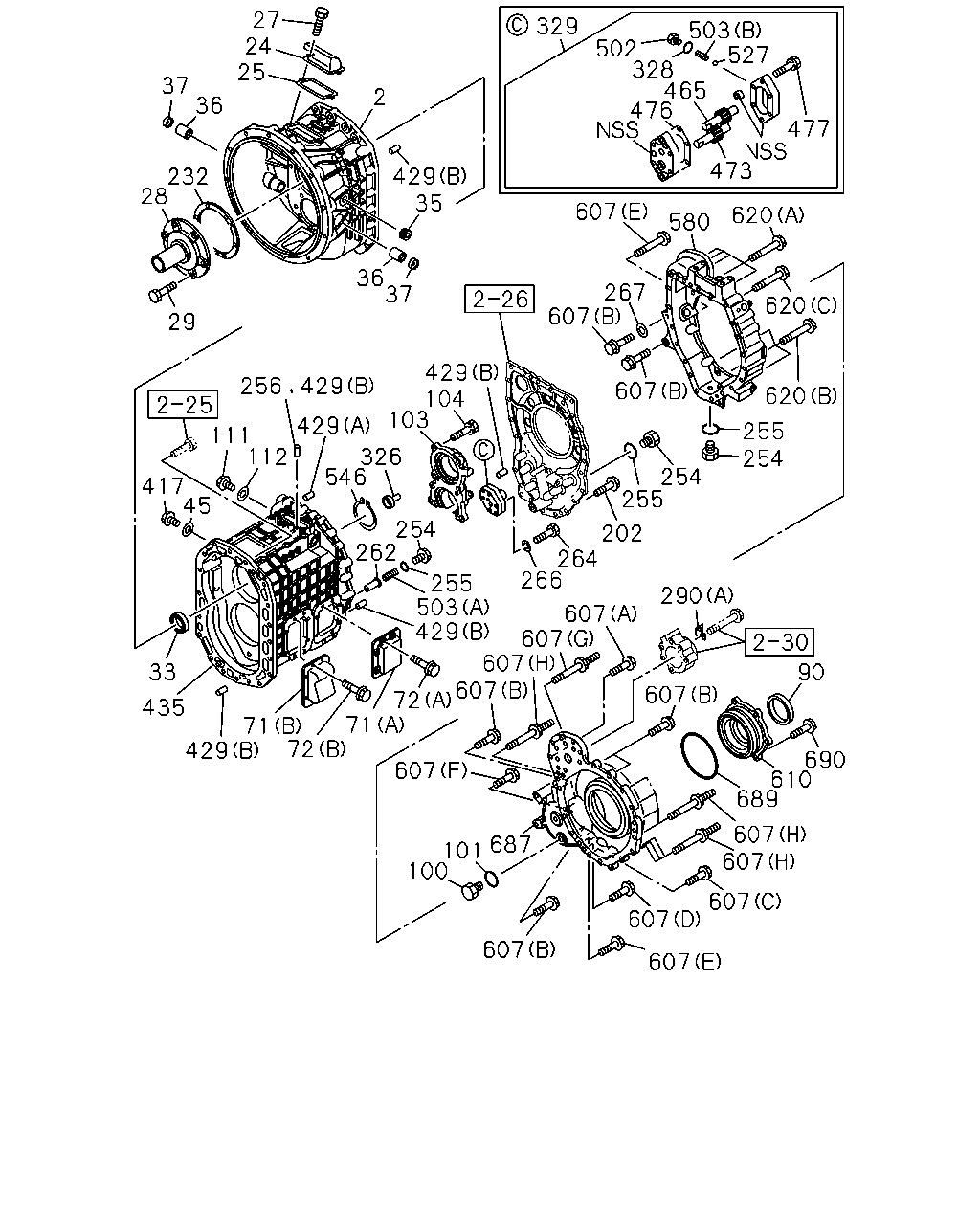

27 24 25 329 503 527 502 328 465 476 37 36 2 477 473 429 35 232 28 607 620 580 36 37 267 607 620 29 607 429 104 103 620 429 255 254 111 112 326 546 254 255 417 45 254 262 202 264 266 255 503 429 290 607 607 607 607 33 90 607 72 71 71 429 72 435 690 610 689 607 687 607 607 101 100 607 607 607 607 256 429

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	8-98052-280-0	01	1	0804-1003
2	HOUSING; CLU	8-98168-737-0	01	1	1004-
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0804-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0804-1406
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	04	1	0804-
28	COVER; FRT,TRANS CASE	1-33121-153-0	01	1	0804-
29	BOLT; FRT COVER M10X40 FLANGE	0-28161-040-0	06	1	0804-1211
29	BOLT; FRT COVER M10X40 FLANGE	8-98230-249-0	06	1	1212-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-624-0	01	1	0804-
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0804-
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0804-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0804-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0804-
71	COVER; SIDE,TRANS CASE (B)	1-33141-057-1	01	1	0804-
71	COVER; SIDE,TRANS CASE (A)	1-33141-066-0	01	1	0804-
72	BOLT; SIDE COVER (A) M10X35 FLANGE	0-28751-035-0	08	1	0804-
72	BOLT; SIDE COVER (B) M12X30 FLANGE	1-09044-086-0	08	1	0804-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-625-0	01	1	0804-
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	0804-
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0804-
103	RETAINER; BRG	1-33151-062-0	01	1	0804-0910
103	RETAINER; BRG	1-33151-060-1	01	1	0911-
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	0804-
111	PLUG; DRAIN FILLER M24X17 FLANGE	1-09604-022-0	02	1	0804-
112	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	0804-
202	BOLT; PLATE M12X35 FLANGE	0-28751-235-0	09	1	0804-
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	0804-
254	PLUG; DRAIN,OIL M24X17 FLANGE	1-09604-023-0	02	1	0804-
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	0804-
256	PIN; KNOCK OD=10 L=18	9-08151-018-0	02	1	0804-
262	STRAINER; OIL PUMP	1-41383-003-0	01	1	0804-
264	BOLT; OIL PUMP M8X65	0-10805-865-0	02	1	0804-
264	BOLT; OIL PUMP M8X50	0-10855-850-0	02	1	0804-
266	WASHER; LK ID=8.2	0-91510-508-0	04	1	0804-
267	WASHER; PL ID=12.5	1-09503-171-0	01	1	0804-
290	BRACKET; CLIP (A)	1-47477-694-0	01	1	0804-
290	BRACKET; CLIP (B)	1-82698-586-0	01	1	0804-
326	NOZZLE; OIL,OUTLET	1-33219-272-0	01	1	0804-
328	GASKET; PLUG	1-34159-100-0	01	1	0804-
329	PUMP ASM; OIL	1-34150-117-0	01	1	0804-1408
329	PUMP ASM; OIL	8-98283-996-0	01	1	1409-
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0804-
429	PIN; STRAIGHT (B) OD=10 L=18	9-08151-018-0	06	1	0804-
429	PIN; STRAIGHT (A) OD=12 L=32	9-08161-232-0	01	1	0804-
435	CASE; TRANS	8-98049-690-1	01	1	0804-
465	GEAR; IDLE,OIL PUMP	1-34151-013-0	01	1	0804-1408
473	GEAR; OUTPUT,OIL PUMP	1-34151-012-0	01	1	0804-1408
476	GASKET; COVER,OIL PUMP	1-34159-099-0	01	1	0804-
477	BOLT; OIL PUMP M8X32 W/LK WASHER	9-01900-832-0	02	1	0804-1408
502	PLUG; OIL PUMP	1-34159-101-0	01	1	0804-
503	SPRING; OIL PUMP (A)	1-09580-504-0	01	1	0804-
503	SPRING; OIL PUMP (B)	1-34159-102-0	01	1	0804-
527	BALL; OIL PUMP	9-00097-531-0	01	1	0804-
546	RING; SNAP,BRG T=2.00	1-09588-150-1	01	1	0804-
580	CASE; RANGE	8-98059-643-6	01	1	0804-
607	BOLT; COVER (A) M10X40 FLANGE	0-28151-040-0	04	1	0804-
607	BOLT; COVER (B) M12X45 FLANGE	0-28151-245-0	08	1	0804-
607	BOLT; COVER (C) M12X70 FLANGE	0-28151-270-0	02	1	0804-
607	BOLT; COVER (D) M10X130 FLANGE	0-28156-013-0	01	1	0804-
607	BOLT; COVER (E) M12X120 FLANGE	0-28156-212-0	02	1	0804-
607	BOLT; COVER (F) M12X140 FLANGE	0-28156-214-0	01	1	0804-
607	BOLT; COVER (G) M10X15,M10X40 L=65	8-97365-379-0	02	1	0804-
607	BOLT; COVER (H)	8-98084-156-0	08	1	0804-
610	RETAINER; BRG	8-98059-651-1	01	1	0804-
620	BOLT; CASE (A) M12X45 FLANGE	0-28151-245-0	05	1	0804-
620	BOLT; CASE (B) M12X90 FLANGE	0-28151-290-0	03	1	0804-
620	BOLT; CASE (C) M10X18,M12X110 L=139.5	1-09049-033-1	01	1	0804-
687	COVER; GEAR	8-98059-650-6	01	1	0804-
689	GASKET ALSO INCLUDED IN GASKET SET(M/T).	1-09623-003-0	01	1	0804-
690	BOLT; RETAINER M10X40 FLANGE	0-28151-040-0	06	1	0804-
