Isuzu WW
▶
TRUCKS
▶
GVR
▶
11654 - GVR THAILAND EURO3
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

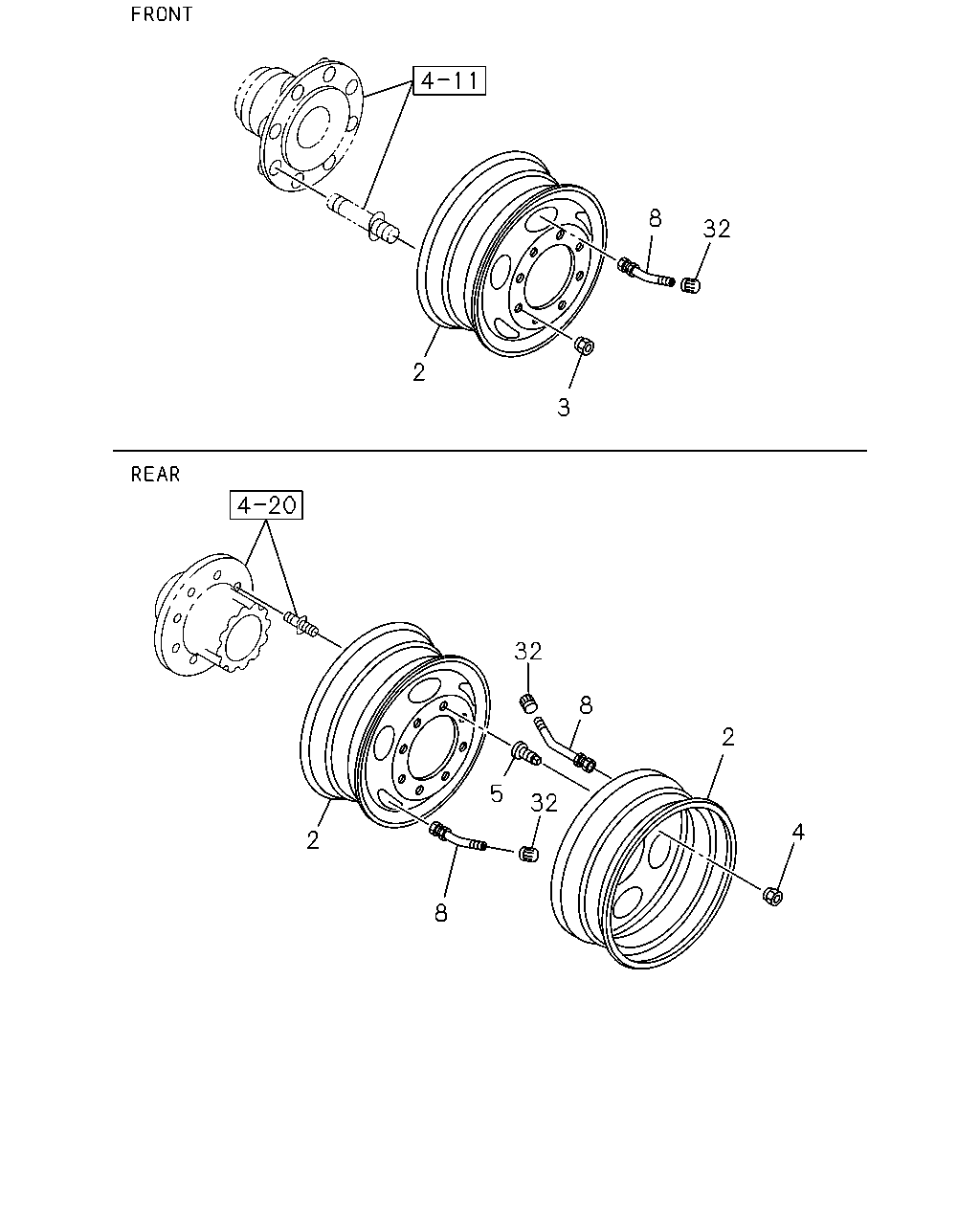

4-80 - ROAD WHEEL
▶
4-80 — ROAD WHEEL
(#150917) — 13 parça
8
32
3
2
32
8
2
4
32
5
8
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE THA
8-97520-623-0
01
1
1410-
2
WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> FRONT THA
8-97520-623-0
02
1
1410-
2
WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> REAR THA
8-97520-623-0
04
1
1410-
3
NUT; WHEEL,FRT AXLE
M24 THA
8-97916-063-0
08
1
1410-
3
NUT; WHEEL,FRT AXLE
M24 LH THREAD THA
8-97916-064-0
08
1
1410-
4
NUT; WHEEL,RR AXLE
M30 THA
8-97916-066-0
08
1
1410-
4
NUT; WHEEL,RR AXLE
M30 LH THREAD THA
8-97916-121-0
08
1
1410-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD THA
8-97916-065-0
08
1
1410-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD THA
8-97916-676-0
08
1
1410-
8
VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE THA
1-42370-020-3
01
1
1410-
8
VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> FRONT THA
1-42370-020-3
02
1
1410-
8
VALVE; TIRE
DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> REAR THA
1-42370-020-3
04
1
1410-
32
CAP; VALVE
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> THA
1-42374-001-0
07
1
1410-
