4-60 — REAR SUSPENSION
(#150914) — 29 parça
◀

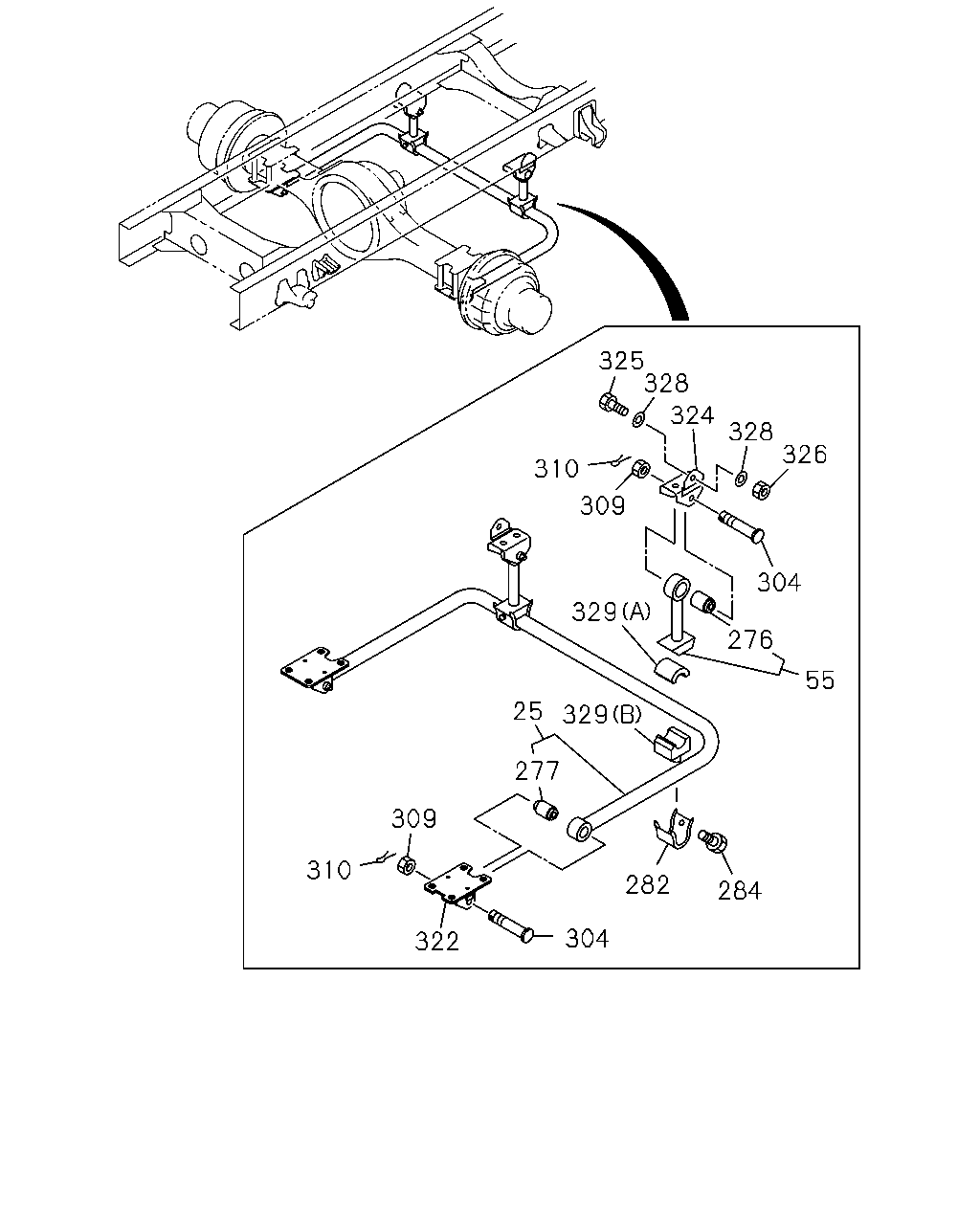

[460A] STABILIZER (17 parça)

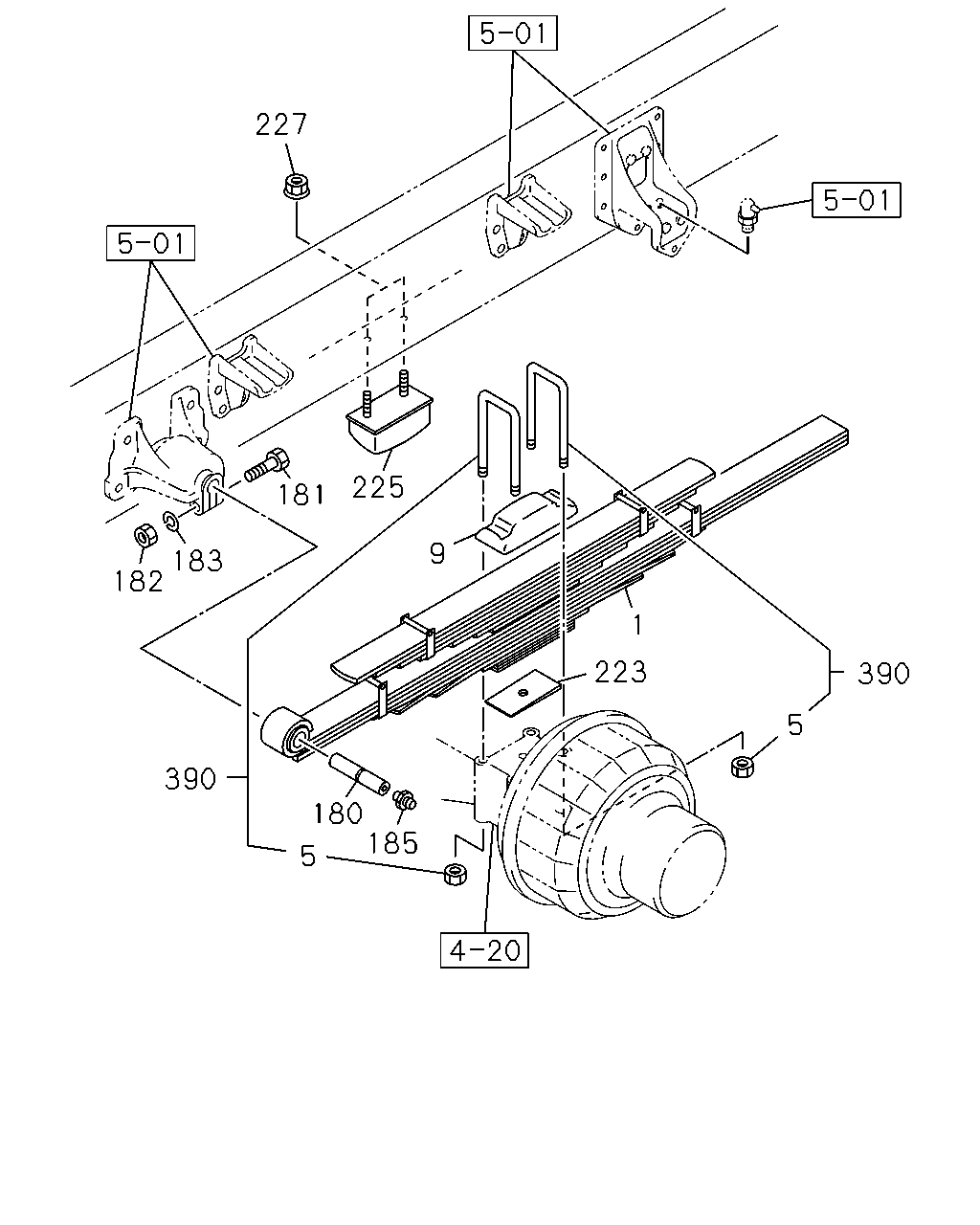

[460A] LEAF SPRING (12 parça)
▶
325
324
328
326
328
310
329
309
304
276
55
25
329
277
282
284
304
322
309
310
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
BAR ASM; STAB,RR SUSP
THA
1-51770-030-2
01
1
1410-
55
ROD; STAB
THA
1-51770-035-1
02
1
1410-
276
BUSHING; STAB ROD
THA
1-51779-019-0
02
1
1410-
277
BUSHING; STAB,RR UPR
THA
1-51779-067-0
02
1
1410-
282
RETAINER; STAB BAR
THA
1-51789-015-2
02
1
1410-
284
BOLT; RET TO RET
M10X25 THA
8-94463-351-0
08
1
1410-
304
PIN; STAB ROD
THA
1-51789-020-2
04
1
1410-
309
NUT; STAB ROD
M24 THA
9-99116-424-0
04
1
1410-
310
PIN; SPLIT,STAB ROD
OD=4.6 L=45 THA
0-81125-045-0
04
1
1410-
322
BRACKET; STAB BAR TO RR AXLE
THA
1-51781-048-4
01
1
1410-
322
BRACKET; STAB BAR TO RR AXLE
THA
1-51781-127-0
01
1
1410-
324
BRACKET; STAB BAR TO FRAME
THA
1-51781-059-0
02
1
1410-
325
BOLT; BRKT TO FRAME
M14X40 THA
0-20951-440-0
06
1
1410-
326
NUT; BRKT TO FRAME
M14 THA
0-91110-514-0
06
1
1410-
328
WASHER; PL,BRKT
ID=15 THA
8-98010-627-1
12
1
1410-
329
BUSHING; STAB ROD
(A) THA
1-51789-051-1
02
1
1410-
329
BUSHING; STAB ROD
(B) THA
1-51789-052-0
02
1
1410-
227
182
181
183
225
390
180
185
5
223
9
5
390
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 14-LEAF THA
1-51300-532-0
02
1
1410-
5
NUT; U-BOLT,RR SPR
M24 THA
0-91112-824-0
08
1
1410-
9
PAD; U BOLT,RR SPR
THA
1-51372-030-0
02
1
1410-
180
PIN; RR SPR
THA
1-51361-020-0
02
1
1410-
181
BOLT; SPR & SHACKLE
M14X80 THA
0-10856-480-0
02
1
1410-
182
NUT; PIN,RR SPR
M14 THA
0-91110-514-0
02
1
1410-
183
WASHER; LK,PIN,RR SPR
ID=14.2 THA
0-91510-514-0
02
1
1410-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT THA
0-90301-410-0
02
1
1410-
223
SPACER; U BOLT,RR SPR
THA
8-98091-873-0
02
1
1410-
225
RUBBER; CUSHION,RR SPR
THA
1-53366-081-1
02
1
1410-
227
NUT; CUSHION RUBBER
M12 FLANGE THA
0-91180-212-0
04
1
1410-
390
U-BOLT SET; RR SPRING
L=470 THA
1-87870-509-0
04
1
1410-
