◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GVR ▶ 11654 - GVR THAILAND EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#150901) — 79 parça

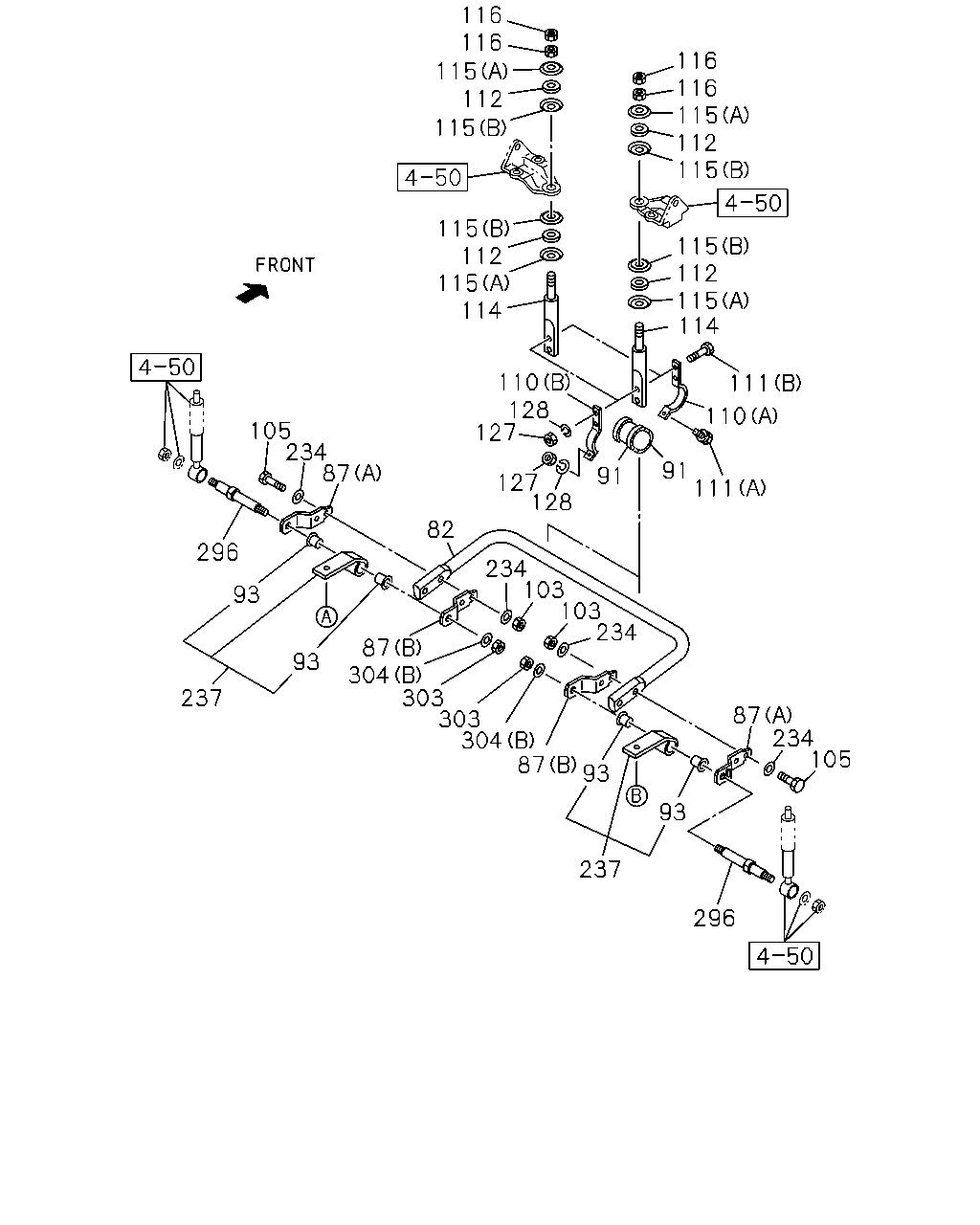

çizim 448972
116 115 116 116 112 116 112 115 115 115 115 115 112 112 115 105 234 127 110 114 115 111 110 114 91 91 128 127 111 128 82 87 296 93 93 237 87 304 303 303 304 87 234 103 103 234 87 234 105 93 237 93 296
BalonParca AdiParca NoAdetTipApplied Date
82 BAR; STAB,FRT SUSP
THA 		8-98012-961-1 01 1 1410-
87 BRACKET; STABILIZER
(A) THA 		8-98012-958-0 02 1 1410-
87 BRACKET; STABILIZER
(B) THA 		8-98012-959-0 02 1 1410-
91 BUSHING; RUBBER,STAB BAR
THA 		1-51779-079-1 04 1 1410-
93 BUSHING; STABILIZER
THA 		1-51689-015-3 04 1 1410-
103 NUT; BRKT FIX
M14 THA 		0-91110-514-0 04 1 1410-
105 BOLT; BRKT FIX
M14X70 THA 		0-10956-470-0 04 1 1410-
110 CLAMP; STAB TO ROD
(A) THA 		1-51789-027-2 02 1 1410-
110 CLAMP; STAB TO ROD
(B) THA 		1-51789-028-1 02 1 1410-
111 BOLT; CLAMP TO ROD
(A) M12X30 THA 		0-20851-230-0 02 1 1410-
111 BOLT; CLAMP TO ROD
(B) M12X50 THA 		0-20851-250-0 04 1 1410-
112 BUSHING; ROD
THA 		9-51631-050-0 04 1 1410-
114 ROD; STAB BAR
THA 		1-51773-065-0 02 1 1410-
115 WASHER; CENTER,STAB TO FRAME
(B) ID=16.8 THA 		1-51631-022-0 04 1 1410-
115 WASHER; CENTER,STAB TO FRAME
(A) ID=14.5 THA 		9-51631-051-0 04 1 1410-
116 NUT; LK,STAB TO FRAME
M14 THA 		0-91111-514-0 04 1 1410-
127 NUT; CLAMP
M12 THA 		0-91110-512-0 06 1 1410-
128 WASHER; LK,CLAMP
ID=12.2 THA 		0-91510-812-0 06 1 1410-
234 WASHER; STAB
ID=15 THA 		8-98010-627-1 08 1 1410-
237 SUPPORT; STAB BAR
THA 		1-51681-662-0 02 1 1410-
296 PIN; STAB
THA 		8-98022-874-1 02 1 1410-
303 NUT; PIN
M20 THA 		0-91110-520-0 02 1 1410-
304 WASHER; PL
(B) ID=21 THA 		9-09164-520-0 02 1 1410-
304 WASHER; PL
(A) ID=12.5 THA 		0-91614-512-0 04 1 1410-

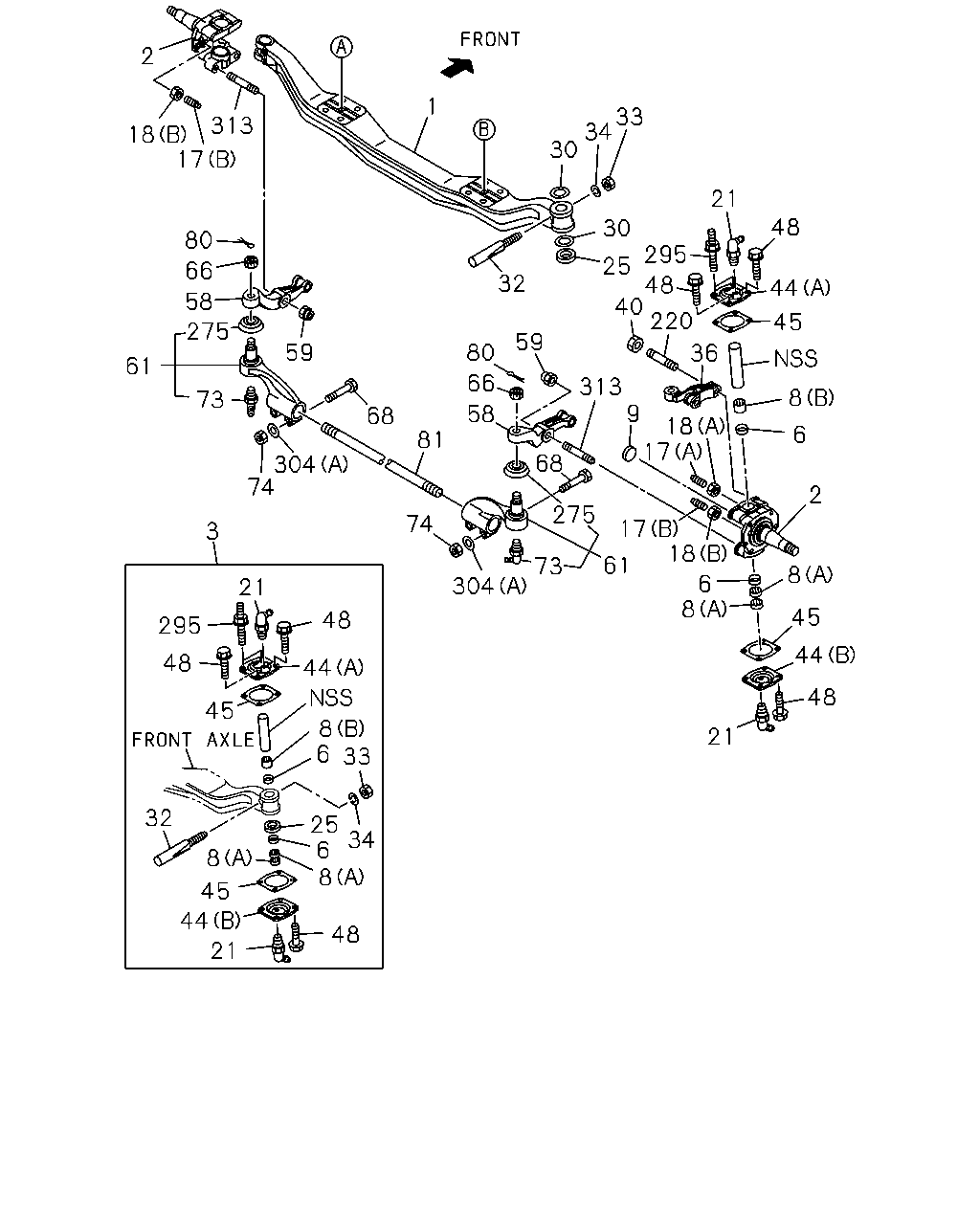

çizim 449559
2 18 313 17 1 30 34 33 80 66 58 275 61 59 73 304 74 3 68 81 74 304 73 32 80 66 58 59 68 275 61 17 313 9 17 18 8 21 6 30 25 40 295 48 220 36 21 48 44 45 8 6 2 8 45 44 48 21 295 48 48 44 45 8 6 33 32 25 34 6 8 48 8 45 44 21 18
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT
THA 		8-98170-180-2 01 1 1410-
2 KNUCKLE; FRT AXLE
THA 		1-43131-118-1 01 1 1410-
2 KNUCKLE; FRT AXLE
THA 		1-43132-101-1 01 1 1410-
3 KING PIN SET
THA 		1-87831-349-2 02 1 1410-
6 SEAL; KING PIN
THA 		9-09926-024-0 04 1 1410-
8 BEARING; NEEDLE,KING PIN
(A) NTN THA 		9-00096-242-0 04 1 1410-
8 BEARING; NEEDLE,KING PIN
(B) NTN THA 		9-00096-243-0 02 1 1410-
9 PLUG; KNUCKLE
OD=22 THA 		1-09600-011-2 02 1 1410-
17 BOLT; STOPPER KNUCKLE
(A) M18X53 THA 		1-09009-066-0 01 1 1410-
17 BOLT; STOPPER KNUCKLE
(B) M18X43 THA 		1-09009-190-0 02 1 1410-
18 NUT; STOPPER BOLT,KNUCKLE
(A) OCTAGON M18 THA 		1-09469-011-1 01 1 1410-
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 THA 		0-91110-518-0 02 1 1410-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES THA 		0-90301-510-0 04 1 1410-
25 BEARING; THRUST,KING PIN
NSK THA 		1-09829-043-2 02 1 1410-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 THA 		1-43171-189-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 THA 		1-43171-190-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 THA 		1-43171-191-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 THA 		1-43171-192-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 THA 		1-43171-185-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 THA 		1-43171-186-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 THA 		1-43171-187-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 THA 		1-43171-188-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 THA 		1-43171-193-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 THA 		1-43171-194-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 THA 		1-43171-195-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 THA 		1-43171-196-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 THA 		1-43171-197-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 THA 		1-43171-198-0 AR 1 1410-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 THA 		1-43171-199-0 AR 1 1410-
32 BOLT; KEY,KING PIN
THA 		1-43116-002-1 02 1 1410-
33 NUT; KEY BOLT
M10 THA 		0-91110-510-0 02 1 1410-
34 WASHER; LK,KEY BOLT
ID=10.2 THA 		0-91510-510-0 02 1 1410-
36 ARM; KNUCKLE
THA 		1-43133-073-3 01 1 1410-
40 NUT; KNUCKLE ARM
M22 THA 		1-09449-084-0 02 1 1410-
44 COVER; KING PIN
(A) THA 		8-98100-654-0 02 1 1410-
44 COVER; KING PIN
(B) THA 		8-98100-655-0 02 1 1410-
45 GASKET; KING PIN COVER
THA 		8-98100-656-1 04 1 1410-
48 BOLT; COVER
M10X25 FLANGE THA 		0-28751-025-0 12 1 1410-
58 ARM; TIE ROD
THA 		1-43134-049-4 01 1 1410-
58 ARM; TIE ROD
THA 		1-43135-049-4 01 1 1410-
59 NUT; TIE ROD ARM
M22 THA 		1-09449-084-0 04 1 1410-
61 ROD END; TIE ROD
THA 		8-98228-106-0 01 1 1410-
61 ROD END; TIE ROD
THA 		8-98228-107-0 01 1 1410-
66 NUT; TIE ROD END
M24 THA 		1-09442-032-0 02 1 1410-
68 BOLT; TIE ROD END
M12X65 THA 		8-98053-922-0 04 1 1410-
73 NIPPLE; GREASE,TIE ROD END
THA 		1-43159-133-0 02 1 1410-
74 NUT; TIE ROD END
M12 THA 		0-91110-512-0 04 1 1410-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 THA 		0-81125-035-0 02 1 1410-
81 ROD; TIE
THA 		8-98171-947-0 01 1 1410-
220 STUD; KNUCKLE ARM
THA 		1-09300-127-1 02 1 1410-
275 BOOT; ROD END,TIE
THA 		8-98229-116-0 02 1 1410-
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 THA 		8-98010-334-0 04 1 1410-
304 WASHER; PL
(B) ID=21 THA 		9-09164-520-0 02 1 1410-
304 WASHER; PL
(A) ID=12.5 THA 		0-91614-512-0 04 1 1410-
313 STUD; TIE ROD ARM
THA 		1-09300-127-1 04 1 1410-
