◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11149 - EXY SOUTH AFRICA ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#15088) — 78 parça
çizim 61255
24 153 167 56 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,CLU CONT
L=520 		8-98072-340-0 01 1 0804-
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 0804-
56 BRACKET; FLEX HOSE 1-47471-200-0 01 1 0804-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=537 		8-98085-164-0 01 1 0804-
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=1663 		8-98090-997-0 01 1 0804-1110
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=1663 SERVICED BY L=1700 		1-47428-767-0 01 1 1111-
167 BRACKET; UNION 1-71117-183-3 01 1 0804-
çizim 61256
27 30 29 106 28 26 25 28 29 115 116 117 4 34 33 35 44 36 37 42 43
BalonParca AdiParca NoAdetTipApplied Date
4 CLIP; FLEX HOSE,CLU CONT
ID=16 H=25 L=25 		1-09701-162-0 01 1 0804-
25 BRACKET; OIL PIPE 1-46147-101-0 01 1 0804-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 0804-
27 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0905-
27 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0804-
27 NUT; BRKT
M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 0804-
28 CLIP; OIL PIPE
(B) ID=9 L=20 		0-95234-835-0 01 1 0804-
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 0804-
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0804-
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 01 1 0804-
30 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0804-
33 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 03 1 0804-
34 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 0804-
35 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0804-
36 BRACKET; CLIP
(B) 		1-47475-689-0 01 1 0804-
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 0804-
37 BOLT; CLIP BRKT
M10X20 FLANGE 		0-28151-020-0 01 1 0804-
42 BRACKET; FLEX HOSE,CLU CONT 8-98073-995-0 01 1 0804-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 0804-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 0804-
106 UNION; OIL PIPE
M14 STRAIGHT 		0-92113-008-0 01 1 0804-
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 02 1 0804-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 02 1 0804-
117 BOLT; CLIP,FLEX HOSE
M8X16 FLANGE 		0-28050-816-0 01 1 0804-

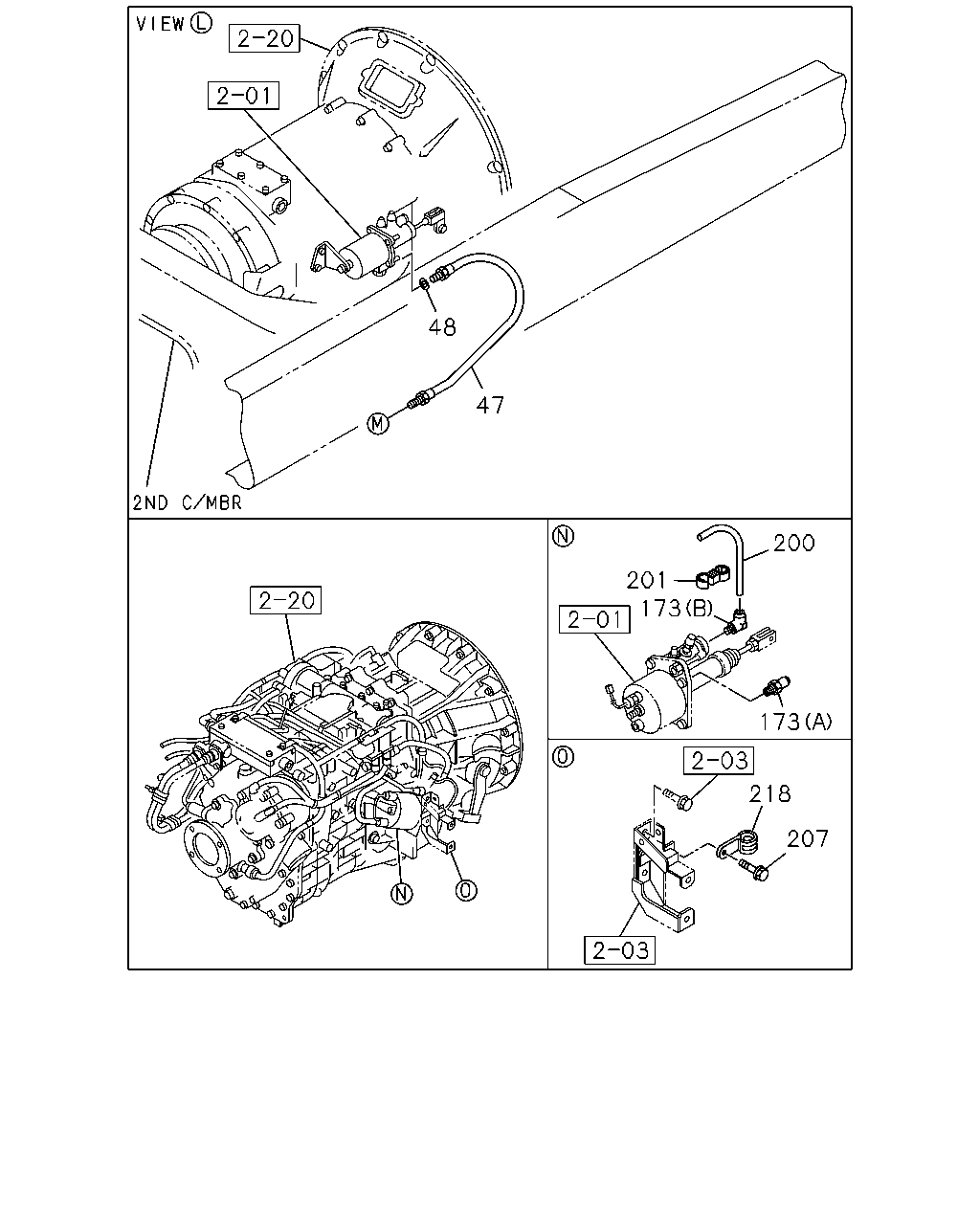

çizim 61260
48 47 200 201 173 173 218 207
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
L=670 		1-09365-179-0 01 1 0804-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 0804-
173 CONNECTOR
(A) DIN8 R1/4 STRAIGHT 		1-09660-647-1 01 1 0804-
173 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 0804-
200 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0804-
201 CLIP; NYLON TUBE
ID=6.35 & 12 		1-09709-275-1 01 1 0804-
207 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0804-
218 CLIP
ID=11 L=20 		0-95235-035-0 01 1 0804-

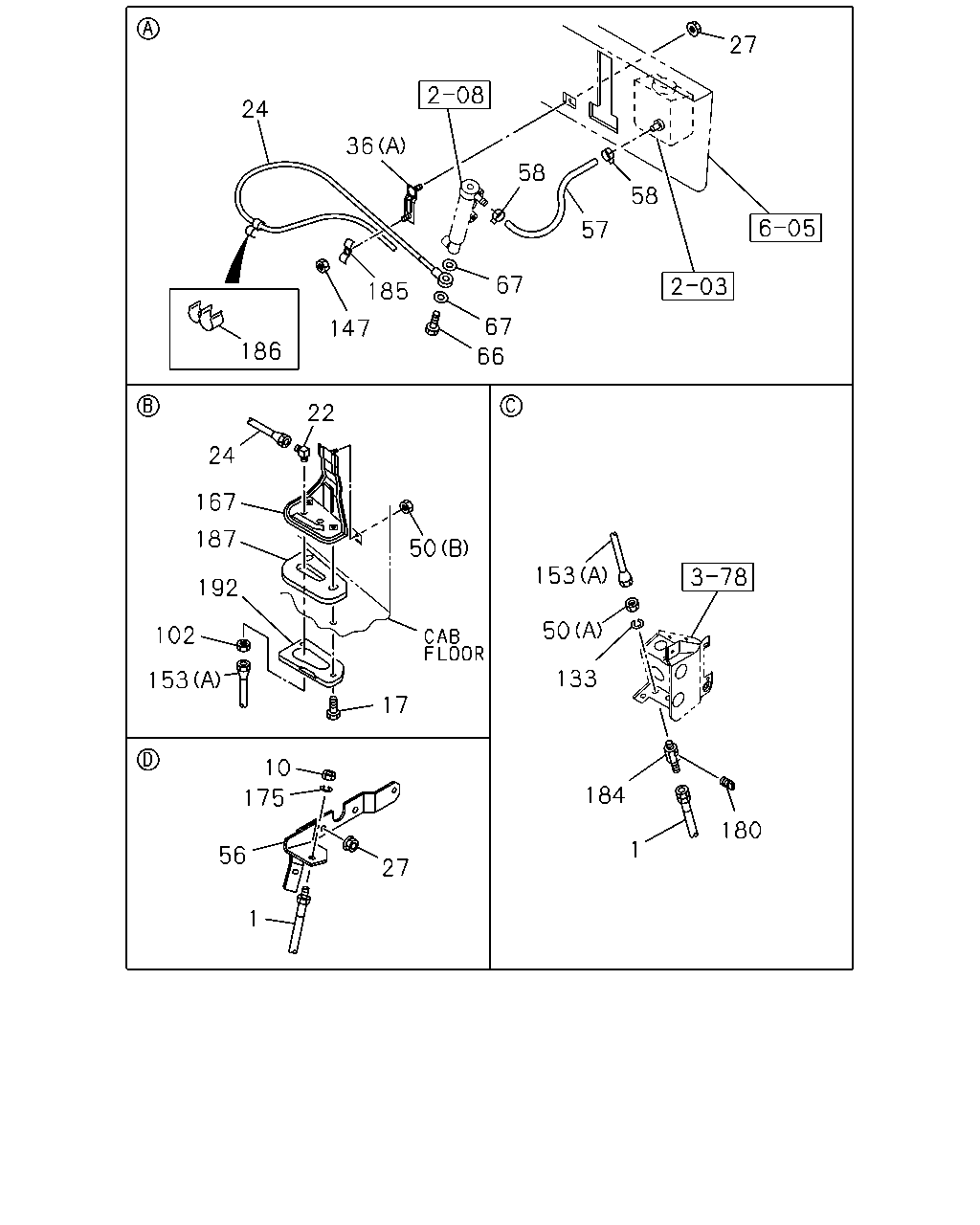

çizim 61449
24 36 58 27 58 57 67 185 147 67 66 186 22 24 167 187 192 102 153 50 17 10 175 56 1 27 153 50 133 184 1 180
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,CLU CONT
L=520 		8-98072-340-0 01 1 0804-
10 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0804-
17 BOLT; BRKT
M8X20 W/LK&PL WASHER 		8-94279-216-0 02 1 0804-
22 UNION; CLU PIPE
M14 ELBOW 		0-92125-208-0 01 1 0804-
24 PIPE ASM; CLU,M/CYL TO UNION
L=643 		1-47424-529-2 01 1 0804-
27 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0905-
27 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0804-
27 NUT; BRKT
M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 0804-
36 BRACKET; CLIP
(B) 		1-47475-689-0 01 1 0804-
36 BRACKET; CLIP
(A) 		1-71117-191-1 01 1 0804-
50 NUT; UNION
(A) M14 		0-91111-514-0 01 1 0804-
50 NUT; UNION
(B) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0804-
56 BRACKET; FLEX HOSE 1-47471-200-0 01 1 0804-
57 HOSE; CLU M/CYL TO OIL TANK 1-47424-533-0 01 1 0804-
58 CLIP; RUBBER HOSE TO M/CYL
ID=14 		8-94238-572-0 02 1 0804-
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 0804-0805
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		8-98037-827-0 01 1 0806-
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0804-1312
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
102 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 0804-
133 WASHER; LK,UNION
ID=14.2 		0-91510-514-0 01 1 0804-
147 NUT; CLIP FIX
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 0804-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=537 		8-98085-164-0 01 1 0804-
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=1663 		8-98090-997-0 01 1 0804-1110
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=1663 SERVICED BY L=1700 		1-47428-767-0 01 1 1111-
167 BRACKET; UNION 1-71117-183-3 01 1 0804-
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 0804-
180 PLUG; PIPE 9-09204-510-0 01 1 0804-0804
184 UNION; FLEX HOSE
STRAIGHT 		1-09656-679-0 01 1 0804-0804
184 UNION; FLEX HOSE
STRAIGHT 		1-09654-435-0 01 1 0805-
185 CLIP; BRKT
ID=9 L=20 		0-95405-308-0 01 1 0804-
186 HOLDER; CLIP 8-94107-710-0 02 1 0804-
187 SEAL; BRKT 1-71117-222-0 01 1 0804-
192 PLATE 1-71117-221-0 01 1 0804-

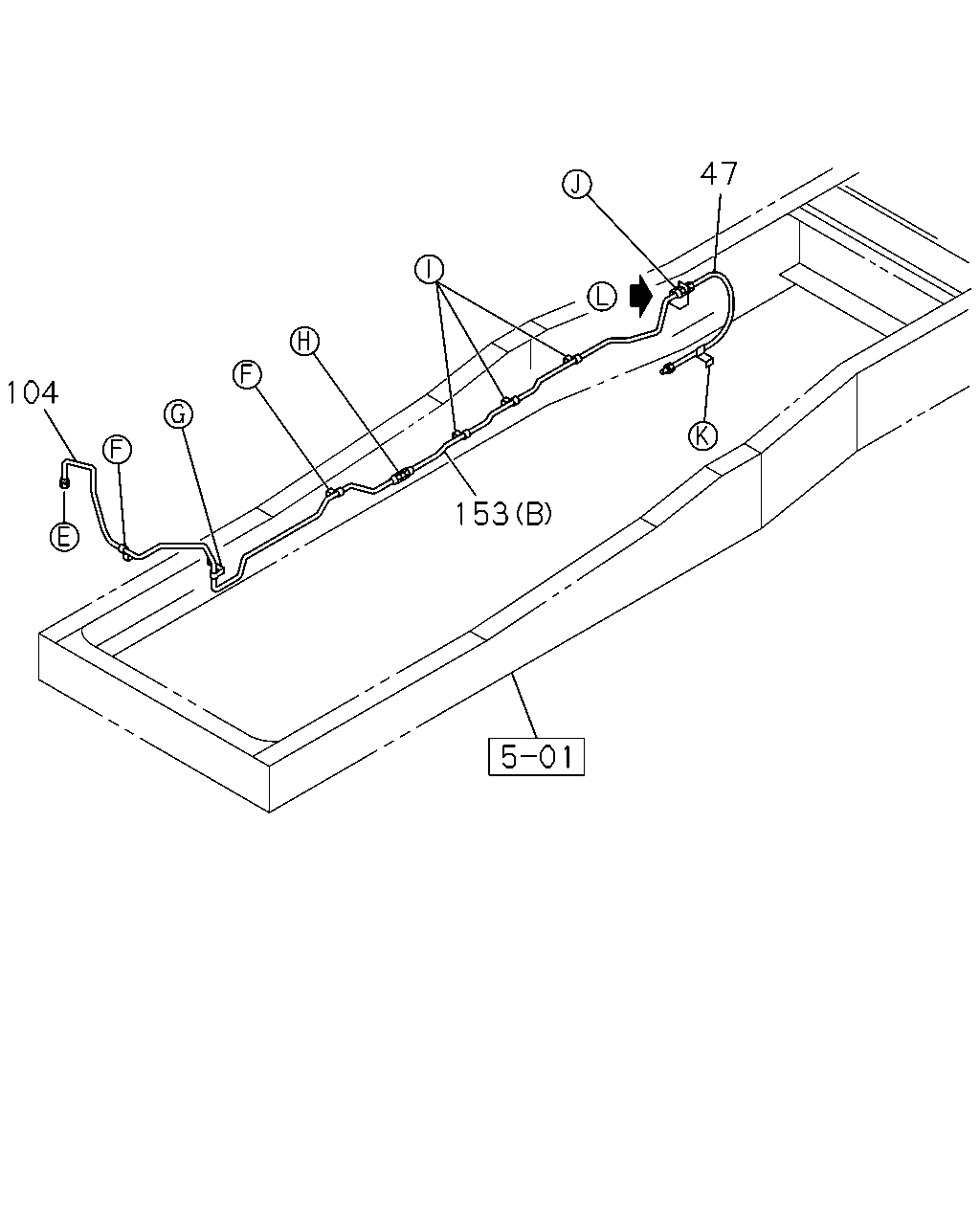

çizim 101824
47 104 153
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
L=670 		1-09365-179-0 01 1 0804-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1418 SERVICED BY L=1550 		1-47428-766-0 01 1 0804-
153 PIPE ASM; CLU,UNION TO FLEX
(A) L=537 		8-98085-164-0 01 1 0804-
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=1663 		8-98090-997-0 01 1 0804-1110
153 PIPE ASM; CLU,UNION TO FLEX
(B) L=1663 SERVICED BY L=1700 		1-47428-767-0 01 1 1111-
