Isuzu WW
▶
TRUCKS
▶
GVR
▶
11654 - GVR THAILAND EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#150877) — 27 parça
◀

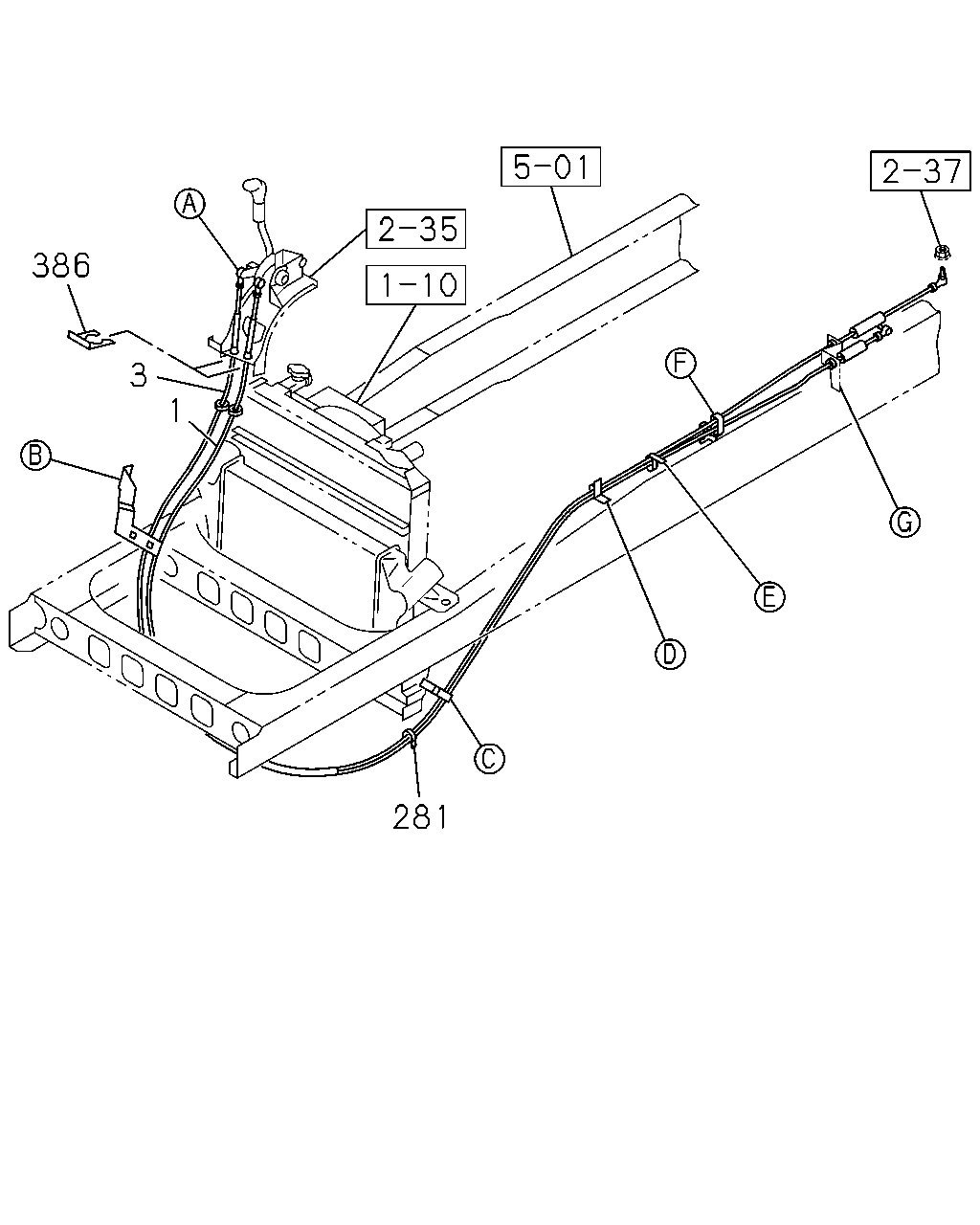

[236A] CABLE;TRANS CONT (4 parça)

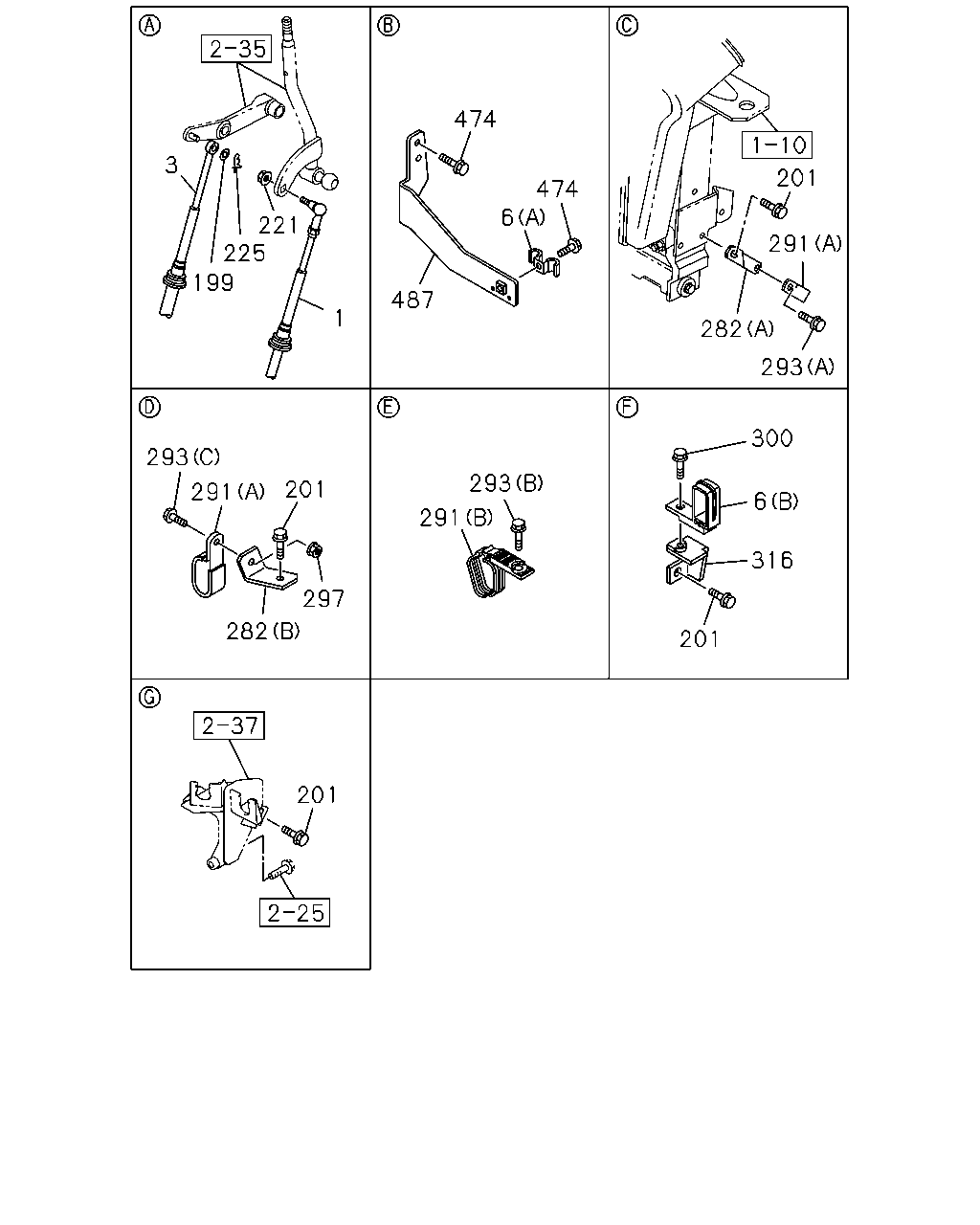

[236A] BRACKET AND CLIP (23 parça)
▶
386
3
1
281
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
L=3600 THA
8-98017-474-5
01
1
1410-
3
CABLE; SELECT,TRANS CONT
L=3560 THA
8-97948-244-0
01
1
1410-
281
CLIP; BAND
L=300 THA
1-09707-001-1
01
1
1410-
386
CLIP; CONT CABLE & TUBE
THA
1-09700-966-1
02
1
1410-
3
225
221
199
1
487
6
474
474
201
291
282
293
300
6
316
201
293
291
201
291
293
297
282
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
L=3600 THA
8-98017-474-5
01
1
1410-
3
CABLE; SELECT,TRANS CONT
L=3560 THA
8-97948-244-0
01
1
1410-
6
CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 THA
1-09700-739-0
01
1
1410-
6
CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 THA
8-98023-991-0
01
1
1410-
199
WASHER; PL,SELECT
ID=8.4 OD=16 THA
0-91614-508-0
01
1
1410-
201
BOLT; BRKT
M12X35 FLANGE THA
0-28151-235-0
01
1
1410-
201
BOLT; BRKT
M8X20 FLANGE THA
0-28050-820-0
01
1
1410-
201
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
01
1
1410-
201
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
01
1
1410-
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE THA
1-09440-062-1
01
1
1410-
225
PIN; SELECT CABLE
L=27.7 THA
8-94111-137-0
01
1
1410-
282
BRACKET; TRANS SIDE
(B) THA
1-82699-199-0
01
1
1410-
282
BRACKET; TRANS SIDE
(A) THA
8-98098-265-2
01
1
1410-
291
CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 THA
0-95325-026-0
02
1
1410-
291
CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 THA
8-98023-991-0
01
1
1410-
293
BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE THA
0-28050-816-0
01
1
1410-
293
BOLT; CLIP,SHIFT TO SELECT
(B) M8X25 FLANGE THA
0-28050-825-0
01
1
1410-
293
BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE THA
0-28650-820-0
01
1
1410-
297
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
01
1
1410-
300
BOLT; CLIP
M8X20 FLANGE THA
0-28650-820-0
01
1
1410-
316
BRACKET; CLIP
THA
8-98086-439-0
01
1
1410-
474
BOLT; BRKT
M8X25 W/WASHER THA
0-51640-825-0
03
1
1410-
487
BRACKET; CONT CABLE
THA
8-98100-413-0
01
1
1410-
