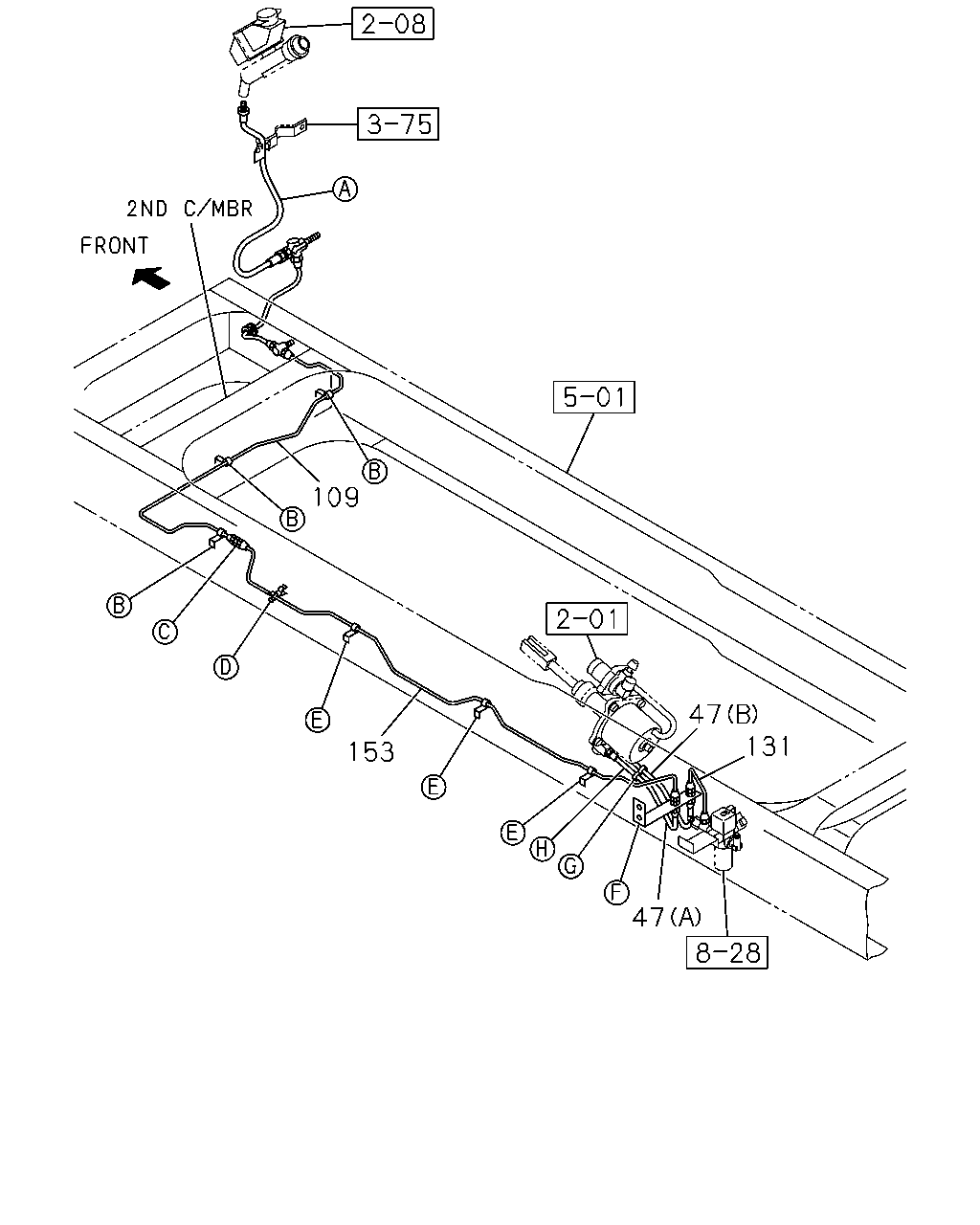

2-05 — CLUTCH PIPING (#150869) — 36 parça

109 47 131 47 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT (B) L=560 THA	1-09363-689-0	01	1	1410-
47	HOSE; FLEX,CLU CONT (A) L=520 THA	1-09364-583-0	01	1	1410-
109	PIPE; AIR,UNION TO UNION L=1407 SERVICED BY L=1550 THA	1-47428-766-0	01	1	1410-
131	PIPE; AIR,UNION TO FLEX HOSE L=275 THA	8-98140-710-0	01	1	1410-
153	PIPE ASM; CLU,UNION TO FLEX L=2227 THA	8-98130-573-0	01	1	1410-

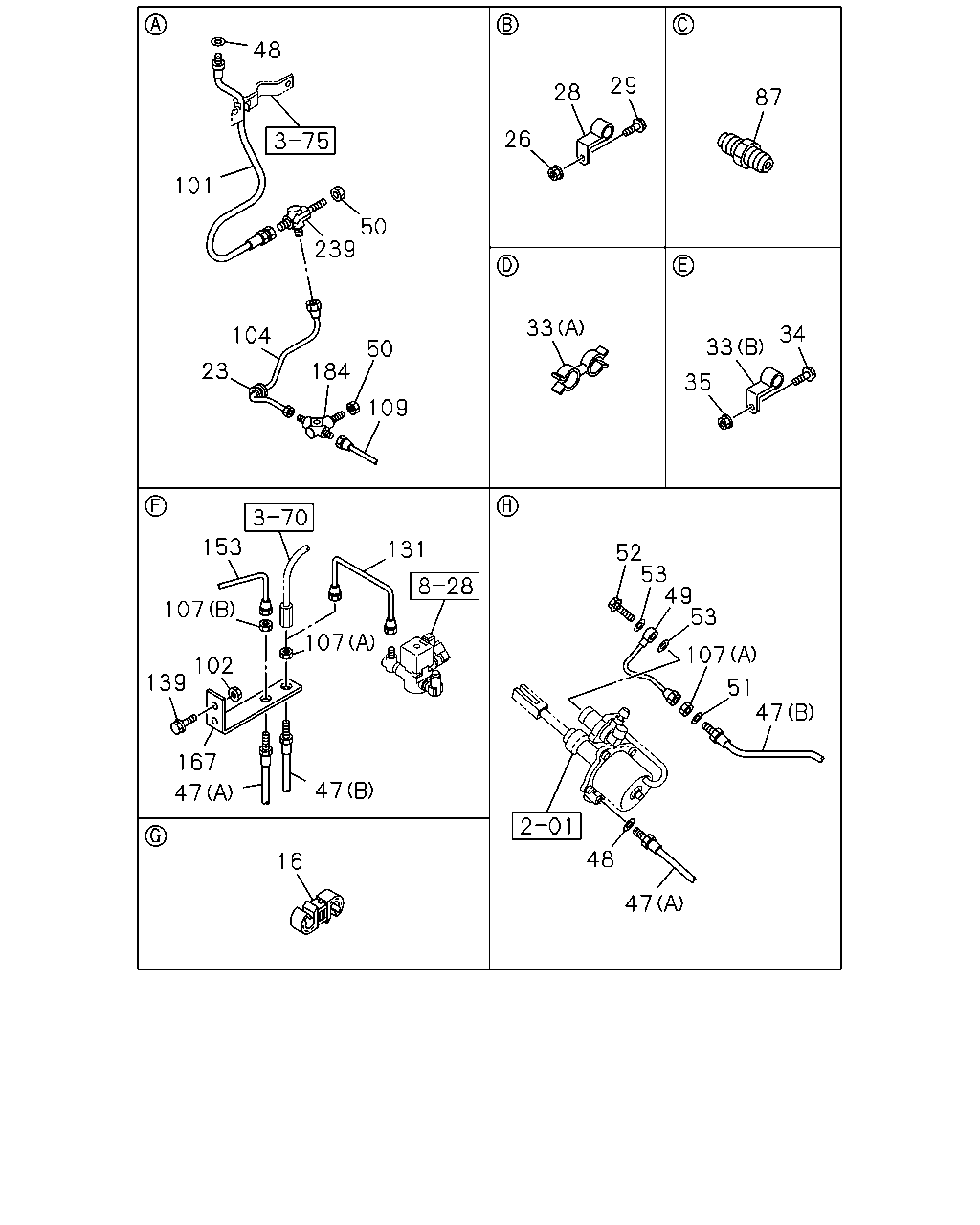

48 101 50 239 104 23 184 50 109 153 107 102 139 167 47 47 107 131 16 26 28 29 33 87 35 33 34 52 53 49 53 107 51 47 48 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE ID=10 & 12 THA	1-09709-278-1	01	1	1410-
23	GROMMET; CLU PIPE ID=28 OD=35 T=17 THA	9-09956-256-2	01	1	1410-
26	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	03	1	1410-
28	CLIP; OIL PIPE ID=8 H=20 L=20 THA	1-09700-604-0	03	1	1410-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE THA	0-28650-825-0	03	1	1410-
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20 THA	1-09700-604-0	04	1	1410-
33	CLIP; OIL PIPE (A) ID=8.3 & 10 THA	8-94176-792-0	01	1	1410-
34	BOLT; PIPE CLIP M8X30 FLANGE THA	0-28650-830-0	04	1	1410-
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	04	1	1410-
47	HOSE; FLEX,CLU CONT (B) L=560 THA	1-09363-689-0	01	1	1410-
47	HOSE; FLEX,CLU CONT (A) L=520 THA	1-09364-583-0	01	1	1410-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	1410-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=232 THA	8-97948-222-0	01	1	1410-
50	NUT; UNION M12 THA	0-91111-512-0	01	1	1410-
50	NUT; UNION M12 THA	0-91111-512-0	01	1	1410-
51	WASHER; LK ID=12.2 THA	0-91510-512-0	01	1	1410-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE THA	1-09675-086-0	01	1	1410-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2 THA	8-98251-345-0	02	1	1410-
87	UNION; OIL PIPE M14 STRAIGHT THA	0-92113-008-0	01	1	1410-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440 THA	8-98072-346-0	01	1	1410-
102	NUT; FLEX HOSE,CLU CONT M8 FLANGE THA	0-91180-108-0	02	1	1410-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=542 SERVICED BY L=550 THA	1-47428-753-0	01	1	1410-
107	NUT; UNION,OIL PIPE (B) M14 THA	0-91111-514-0	01	1	1410-
107	NUT; UNION,OIL PIPE (A) M12 THA	9-09840-280-0	02	1	1410-
109	PIPE; AIR,UNION TO UNION L=1407 SERVICED BY L=1550 THA	1-47428-766-0	01	1	1410-
131	PIPE; AIR,UNION TO FLEX HOSE L=275 THA	8-98140-710-0	01	1	1410-
139	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	1410-
153	PIPE ASM; CLU,UNION TO FLEX L=2227 THA	8-98130-573-0	01	1	1410-
167	BRACKET; UNION THA	8-98077-571-0	01	1	1410-
184	UNION; FLEX HOSE M14 2WAY THA	1-09654-176-2	01	1	1410-
239	UNION; CLU HOSE THA	8-98107-850-0	01	1	1410-
