Isuzu WW
▶
TRUCKS
▶
GVR
▶
11654 - GVR THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-66 - GENERATOR
▶

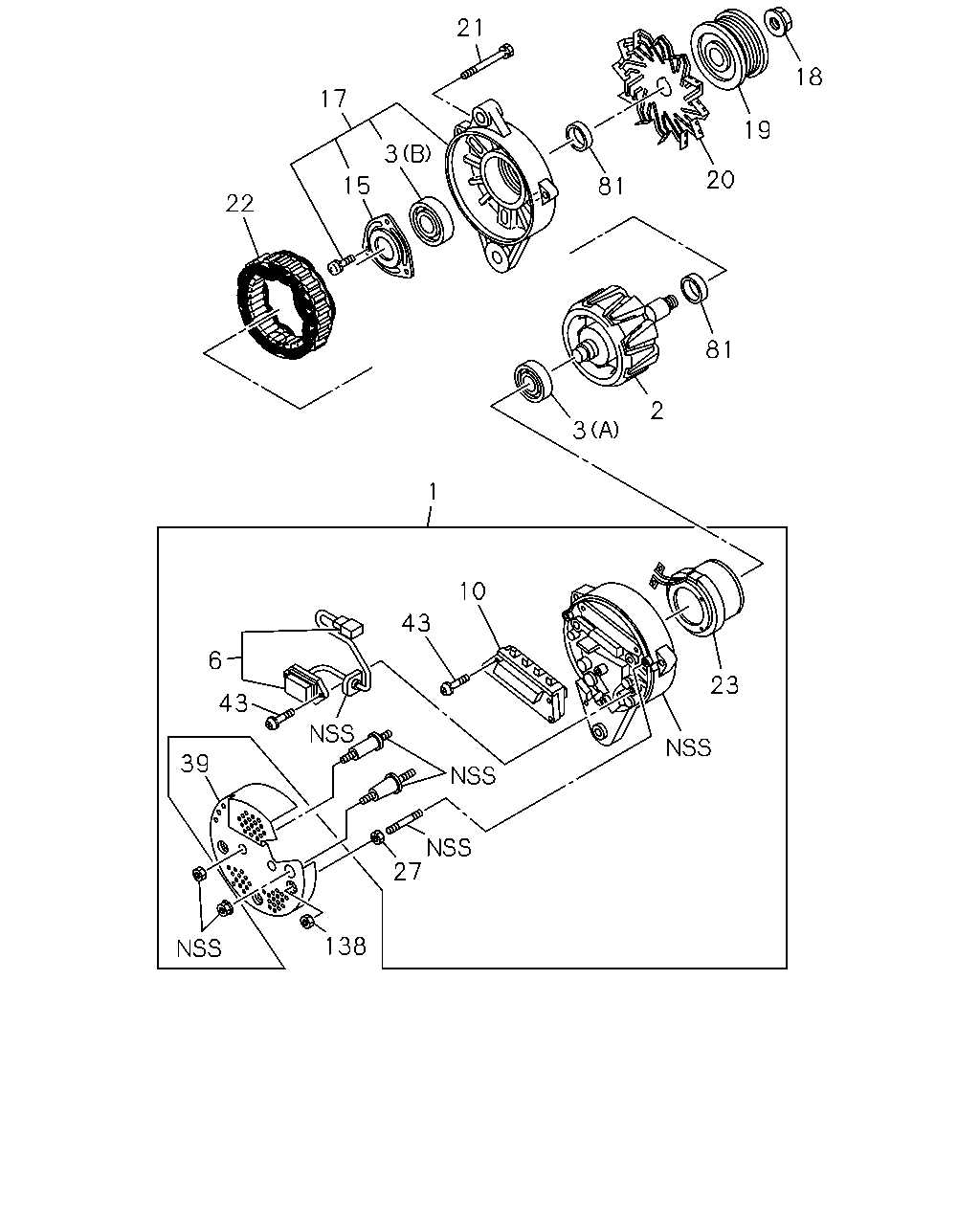

0-66 — GENERATOR
(#150855) — 19 parça
22
17
21
15
3
18
19
20
81
3
2
81
1
6
43
43
10
39
138
27
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COVER ASM; RR,GEN
THA ASM PART: A = 8-98013-462-4
8-98040-684-0
01
1
-
2
ROTOR; GEN
THA ASM PART: A = 8-98013-462-4
8-98040-638-0
01
1
-
3
BEARING; ROTOR,GEN
(A), THA ASM PART: A = 8-98013-462-4
1-81229-723-0
01
1
-
3
BEARING; ROTOR,GEN
(B), THA ASM PART: A = 8-98013-462-4
1-81229-758-0
01
1
-
6
REGULATOR ASM; VOLTAGE,GEN
THA ASM PART: A = 8-98013-462-4
8-98040-688-0
01
1
-
10
RECTIFIER; GEN
THA ASM PART: A = 8-98013-462-4
8-98040-686-0
01
1
-
15
RETAINER; ROTOR,GEN
THA ASM PART: A = 8-98013-462-4
1-81229-760-1
01
1
-
17
COVER ASM; FRT,GEN
THA ASM PART: A = 8-98013-462-4
8-97382-872-0
01
1
-
18
NUT; PULLEY,GEN
THA ASM PART: A = 8-98013-462-4
8-98040-643-0
01
1
-
19
PULLEY; GEN
THA ASM PART: A = 8-98013-462-4
8-98040-641-0
01
1
-
20
FAN; GEN
THA ASM PART: A = 8-98013-462-4
8-97382-874-0
01
1
-
21
BOLT; THROUGH,GEN
THA ASM PART: A = 8-98013-462-4
1-81229-382-0
03
1
-
22
STATOR; GEN
THA ASM PART: A = 8-98013-462-4
8-98040-640-0
01
1
-
23
COIL; ROTOR GEN
THA ASM PART: A = 8-98013-462-4
8-98040-645-0
01
1
-
27
NUT; RECTIFIER,GEN
THA ASM PART: A = 8-98013-462-4
8-98040-687-0
01
1
-
39
COVER; END,RR COVER,GEN
THA ASM PART: A = 8-98013-462-4
8-98181-103-0
01
1
-
43
SCREW; RR END COVER
THA ASM PART: A = 8-98013-462-4
1-81229-476-0
03
1
-
81
SPACER; ROTOR,GEN
THA ASM PART: A = 8-98013-462-4
8-97382-870-0
02
1
-
138
NUT; COVER,GENERATOR
THA ASM PART: A = 8-98013-462-4
8-98040-690-0
03
1
-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
