Isuzu WW
▶
TRUCKS
▶
GVR
▶
11654 - GVR THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

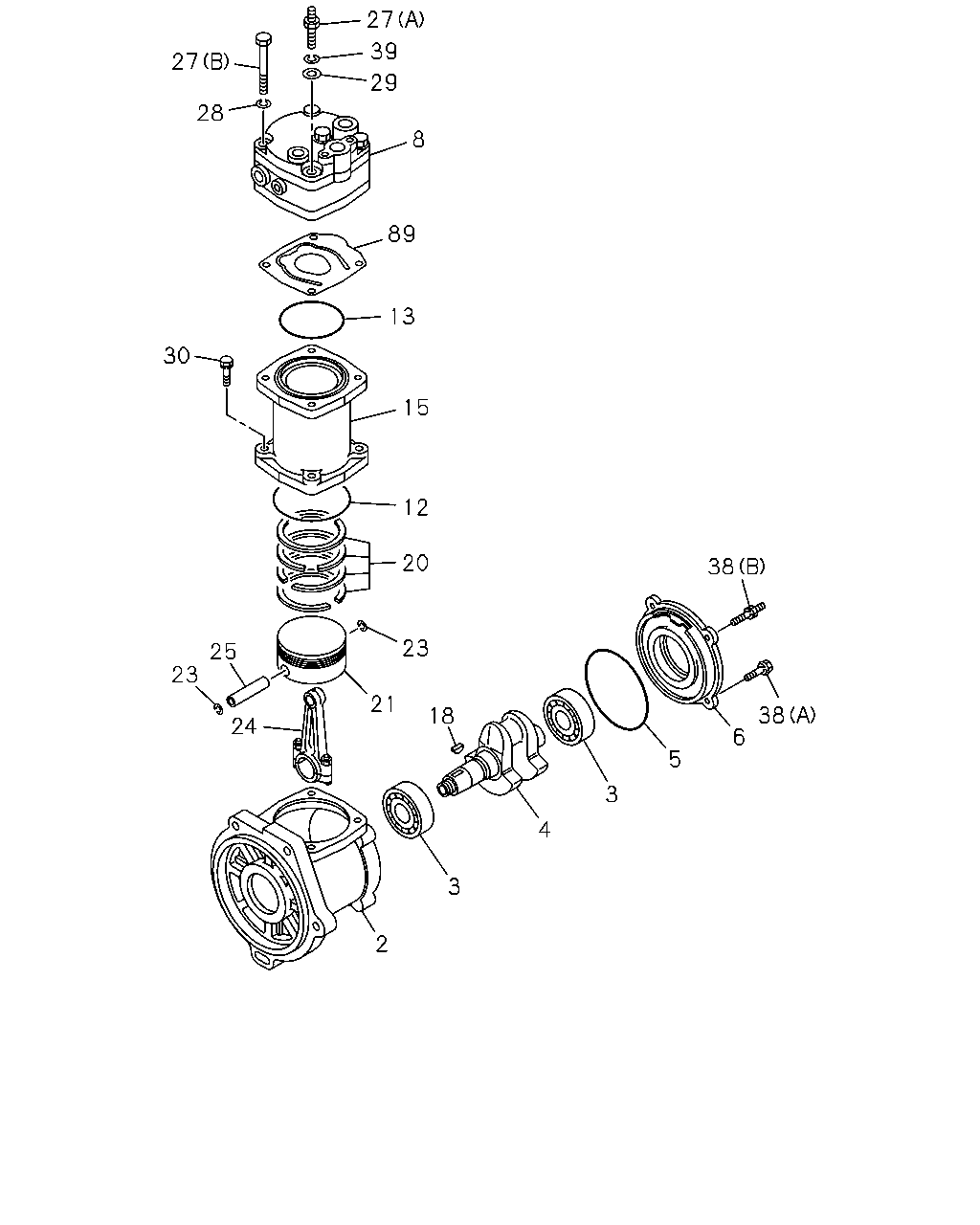

0-39 — AIR COMPRESSOR; BRAKE
(#150845) — 24 parça
27
39
29
27
28
8
89
13
30
15
12
20
25
23
24
21
23
18
2
3
4
3
5
6
38
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
CRANKCASE; AIR CMPR
THA
8-97614-060-0
01
1
1410-
3
BEARING; AIR CMPR
THA
1-09800-268-0
02
1
1410-
4
CRANKSHAFT; AIR CMPR
THA
8-97614-059-1
01
1
1410-
5
GASKET; AIR CMPR
THA
8-98192-463-0
01
1
1410-
6
COVER ASM; BRG,AIR CMPR
THA
8-97614-058-0
01
1
1410-
8
HEAD ASM; CYL,AIR CMPR
THA
8-98167-013-0
01
1
1410-
12
GASKET; AIR CMPR
THA
8-98048-641-0
01
1
1410-
13
GASKET; AIR CMPR
THA
8-98048-640-0
01
1
1410-
15
CYLINDER; AIR CMPR
THA
8-97614-056-0
01
1
1410-
18
KEY; AIR CMPR
THA
9-08055-516-0
01
1
1410-
20
RING KIT; PISTON,AIR CMPR
THA
1-19163-058-0
01
1
1410-
21
PISTON; AIR CMPR
THA
1-19161-027-0
01
1
1410-
23
RING; SNAP,PISTON,AIR CMPR
THA
1-19169-004-0
02
1
1410-
24
ROD ASM; CONN,AIR CMPR
THA
8-97614-057-0
01
1
1410-
25
PIN; PISTON,AIR CMPR
THA
1-19167-003-0
01
1
1410-
27
BOLT; HD
(A) THA
8-97614-054-0
01
1
1410-
27
BOLT; HD
(B) M10X75 THA
8-98167-018-0
03
1
1410-
28
WASHER; LK,HD BOLT
THA
8-97613-694-0
01
1
1410-
29
WASHER; PL,HD BOLT
THA
8-97613-686-0
01
1
1410-
30
BOLT; CYL TO CRANKCASE
THA
8-97613-704-0
04
1
1410-
38
BOLT; COVER FIX
(A) THA
8-97613-704-0
02
1
1410-
38
BOLT; COVER FIX
(B) THA
8-97617-310-0
02
1
1410-
39
WASHER; LK,COVER FIX
THA
8-97613-694-0
02
1
1410-
89
VALVE; SUCTION
THA
1-19119-045-0
01
1
1410-
