Isuzu WW
▶
TRUCKS
▶
GVR
▶
11654 - GVR THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-38 - AIR COMPRESSOR PIPING; ENGINE SIDE
▶

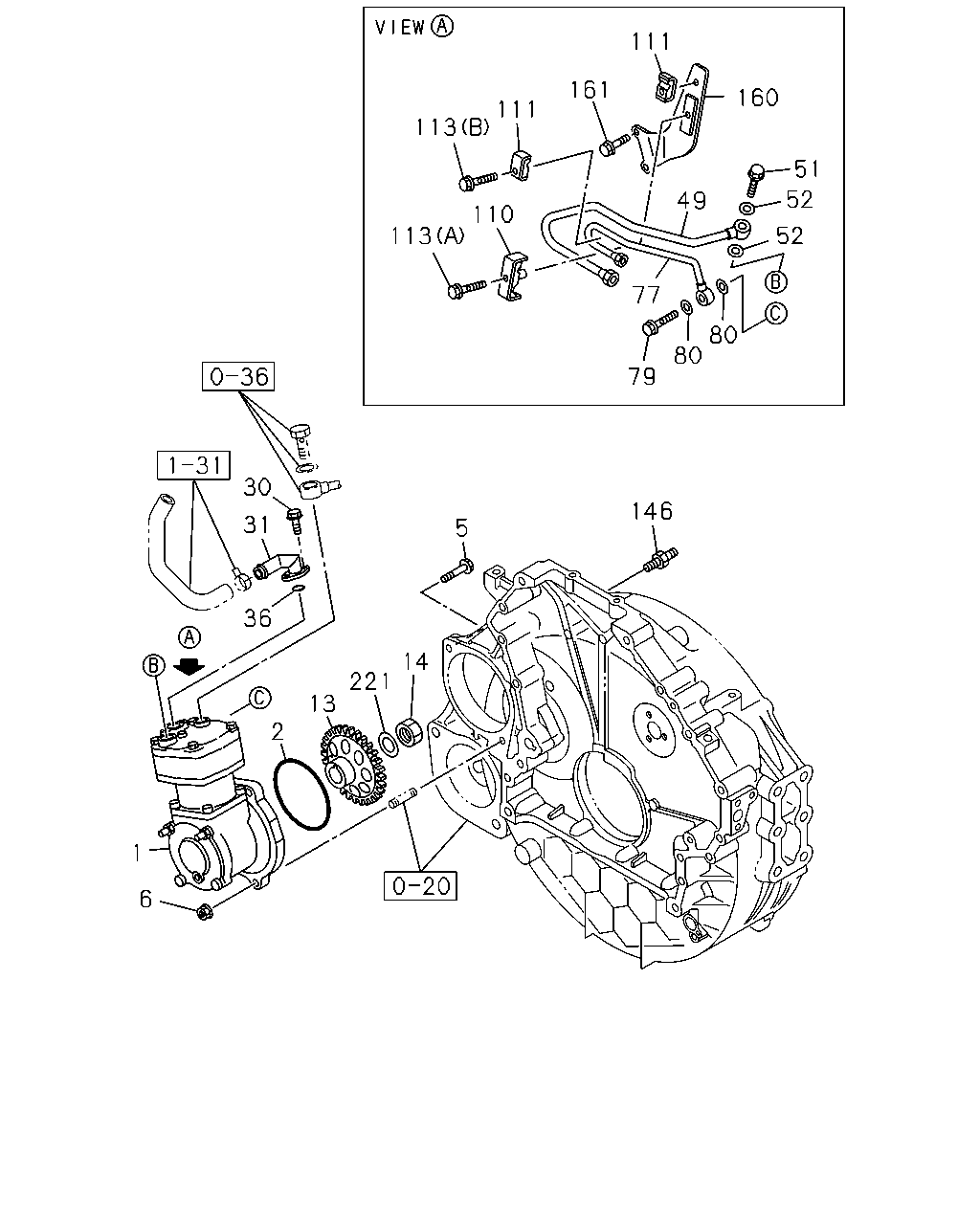

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE
(#150844) — 23 parça
30
31
36
1
6
2
13
221
14
5
146
113
113
111
110
161
111
160
49
77
79
80
80
51
52
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. THA
8-98187-301-0
01
1
1410-
2
GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6 THA
1-09623-570-0
01
1
1410-
5
BOLT; AIR CMPR FIX
M12X70 FLANGE THA
0-28151-270-0
02
1
1410-
6
NUT; AIR CMPR
M12 FLANGE THA
0-91180-212-0
01
1
1410-
13
GEAR; AIR CMPR DRIVE
Z=49 THA
8-94394-511-4
01
1
1410-
14
NUT; GEAR
M20 THA
0-91110-520-0
01
1
1410-
30
BOLT; PIPE CLIP
M8X20 FLANGE THA
0-28650-820-0
02
1
1410-
31
PIPE; AIR,AIR CMPR SUCTION
THA
8-97620-948-0
01
1
1410-
36
GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 THA
1-09623-057-0
01
1
1410-
49
PIPE; AIR,CHARGE
THA
8-97618-723-0
01
1
1410-
51
BOLT; EYE,AIR PIPE TO CMPR
M24X39 THA
1-09675-175-2
01
1
1410-
52
GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 THA
9-09571-424-0
02
1
1410-
77
PIPE; AIR,GOV
THA
8-97618-725-0
01
1
1410-
79
BOLT; EYE,AIR PIPE TO CMPR
M10X23 THA
8-98037-824-0
01
1
1410-
80
GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 THA
1-09630-083-0
02
1
1410-
110
CLIP; AIR PIPE
THA
8-94393-037-0
01
1
1410-
111
CLIP; AIR PIPE
THA
8-98029-953-1
02
1
1410-
113
BOLT; CLIP,AIR PIPE
(A) M6X40 FLANGE THA
0-28050-640-0
01
1
1410-
113
BOLT; CLIP,AIR PIPE
(B) M6X40 FLANGE THA
0-28650-640-0
01
1
1410-
146
STUD; AIR CMPR
M10X16,M12X70 L=97.7 THA
1-09049-038-1
01
1
1410-
160
BRACKET; AIR PIPE
THA
8-98074-255-0
01
1
1410-
161
BOLT; BRKT,AIR PIPE
M8X16 FLANGE THA
0-28050-816-0
02
1
1410-
221
WASHER; PL,GEAR
ID=21 THA
0-91610-520-0
01
1
1410-
