Isuzu WW
▶
TRUCKS
▶
GVR
▶
11654 - GVR THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

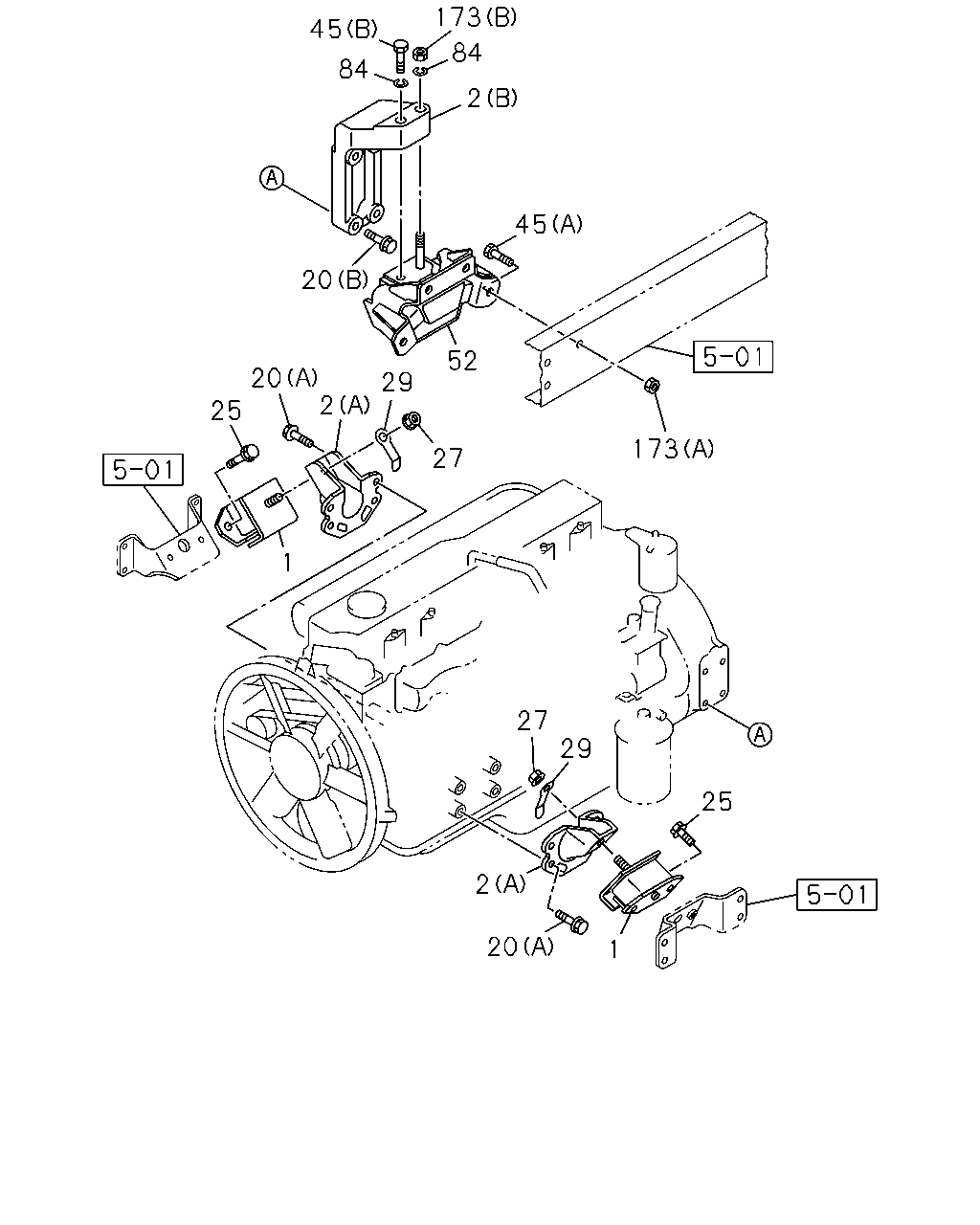

0-22 — ENGINE MOUNTING
(#150833) — 15 parça
45
84
173
84
2
45
20
52
20
29
2
27
25
173
25
29
27
2
20
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
THA
1-53215-172-0
02
1
1410-
2
FOOT; ENG
(A) THA
8-97602-589-1
02
1
1410-
2
FOOT; ENG
(B) THA
8-97611-990-0
01
1
1410-
2
FOOT; ENG
(B) THA
8-97611-991-0
01
1
1410-
20
BOLT; ENG FOOT
(A) M10X20 FLANGE THA
8-94395-721-0
08
1
1410-
20
BOLT; ENG FOOT
(B) M12X55 THA
8-94399-884-1
08
1
1410-
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE THA
0-28651-235-0
04
1
1410-
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE THA
0-91180-212-0
02
1
1410-
29
PLATE; LK,CUSHION RUBBER,FRT
THA
8-98010-312-0
02
1
1410-
45
BOLT; CUSHION RUBBER TO FRAME
(B) M16X60 THA
0-10956-660-0
02
1
1410-
45
BOLT; CUSHION RUBBER TO FRAME
(A) M14X50 THA
0-29261-450-0
08
1
1410-
52
RUBBER; CUSHION,ENG MTG,RR
THA
8-98013-022-1
02
1
1410-
84
WASHER; PL,ENG MTG RR TO FRAME
ID=17 THA
9-09164-516-0
04
1
1410-
173
NUT; ENG MTG RR TO FRAME
(A) M14 FLANGE THA
0-91180-214-0
08
1
1410-
173
NUT; ENG MTG RR TO FRAME
(B) M16 THA
0-91110-516-0
02
1
1410-
