Isuzu WW
▶
TRUCKS
▶
GVR
▶
11654 - GVR THAILAND EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶
0-13 — OIL PAN AND LEVEL GAUGE
(#150829) — 16 parça
◀

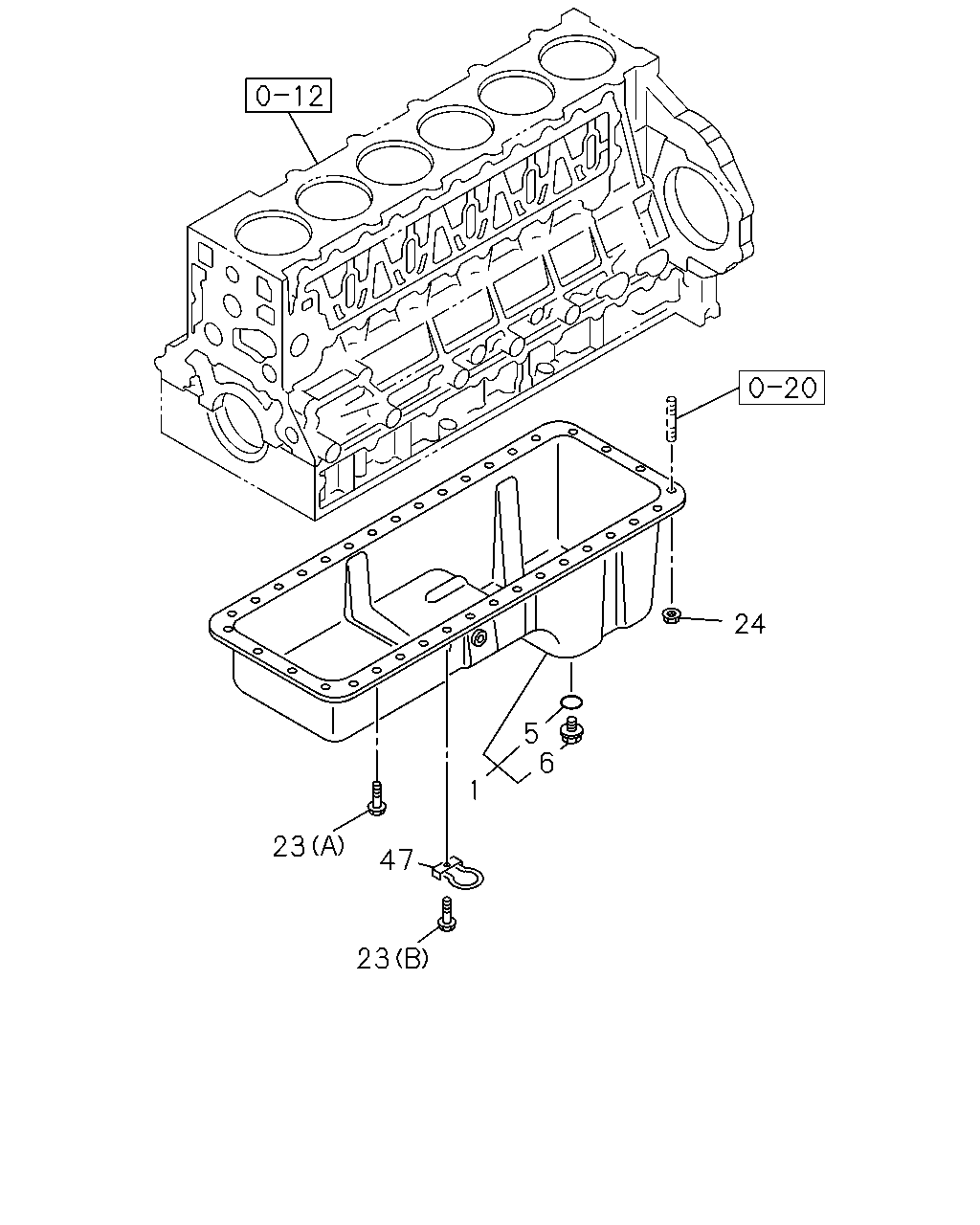

[013A] OIL PAN (7 parça)
[013A] OIL LEVEL GAUGE AND GUIDE TUBE (9 parça)
▶
24
6
5
1
47
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
THA
8-98179-005-0
01
1
1410-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 THA
1-09623-057-0
01
1
1410-
6
PLUG; OIL DRAIN
THA
9-09662-012-0
01
1
1410-
23
BOLT; OIL PAN
(A) M8X18 FLANGE THA
0-28080-818-0
28
1
1410-
23
BOLT; OIL PAN
(B) M8X28 FLANGE THA
8-97329-626-0
02
1
1410-
24
NUT; OIL PAN
M8 FLANGE THA
0-91180-108-0
04
1
1410-
47
CLIP; HOSE,AIR BREATHER
THA
1-11369-115-0
01
1
1410-
10
8
49
193
192
193
10
8
9
9
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GAUGE; OIL LEVEL
THA
8-98092-600-0
01
1
1410-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A) THA
8-98084-773-0
01
1
1410-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B) THA
8-98063-554-0
01
1
1410-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 THA
1-09623-469-0
02
1
1410-
10
BOLT; GUIDE TUBE
(B) M10X35 FLANGE THA
0-28151-035-0
01
1
1410-
10
BOLT; GUIDE TUBE
(A) M8X20 FLANGE THA
0-28650-820-0
01
1
1410-
49
NUT; GUIDE TUBE
M8 FLANGE THA
0-91180-108-0
01
1
1410-
192
HOSE; GUIDE TUBE
L=463 THA
8-98054-844-1
01
1
1410-
193
CLIP; HOSE,GUIDE TUBE
ID=17 THA
1-09707-158-0
02
1
1410-
