0-12 — CYLINDER BLOCK (#150828) — 44 parça

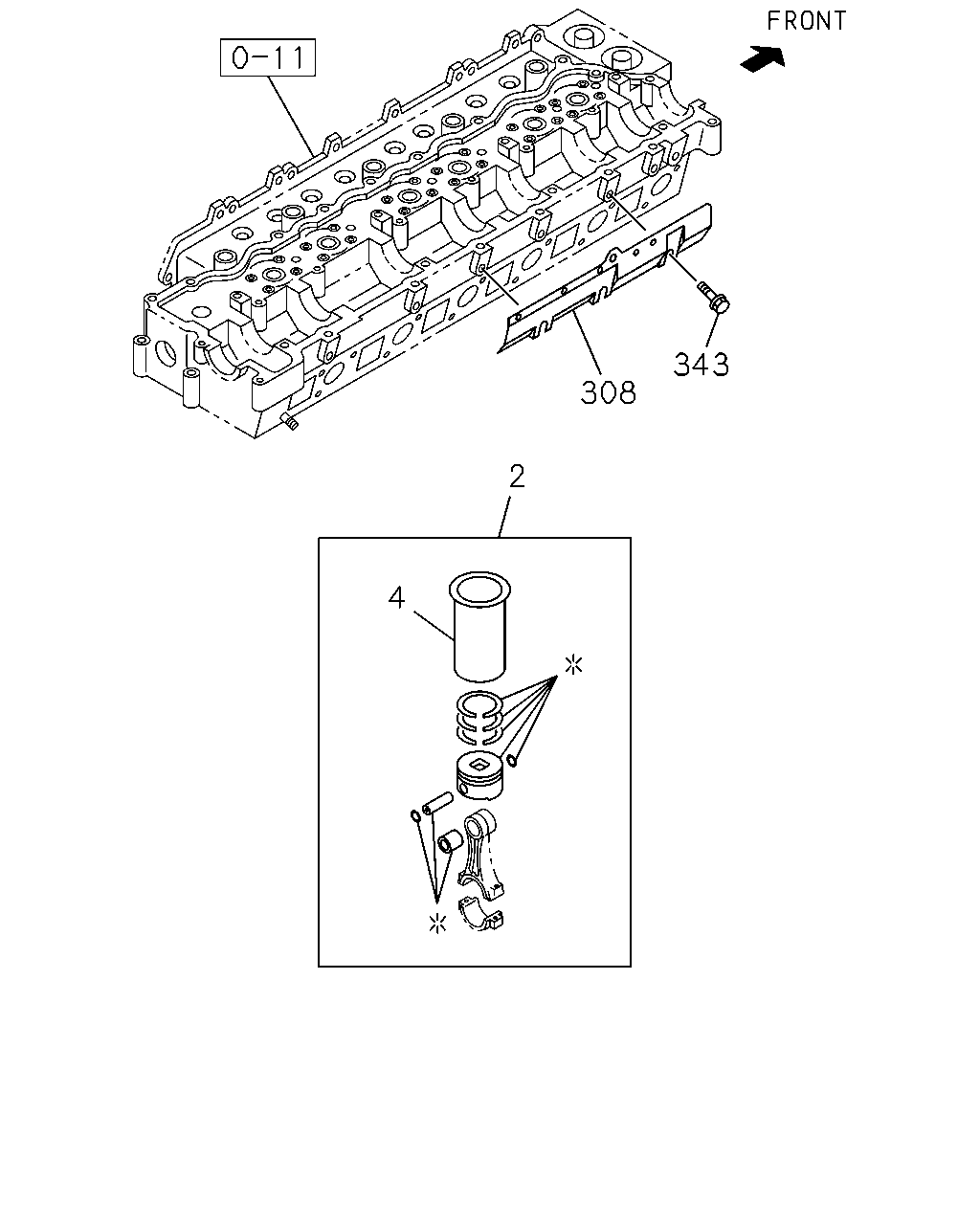

343 308 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINER SET; ENG CYL GRADE=1X THA	1-87813-119-6	06	1	1410-
2	LINER SET; ENG CYL GRADE=3X THA	1-87813-120-6	06	1	1410-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON THA	8-98014-046-1	06	1	1410-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON THA	8-98014-047-1	06	1	1410-
308	PROTECTOR; HEAT,HD COVER THA	8-94390-997-0	01	1	1410-
343	BOLT; HEAT PROTECTOR M8X12 FLANGE THA	0-28050-812-0	03	1	1410-

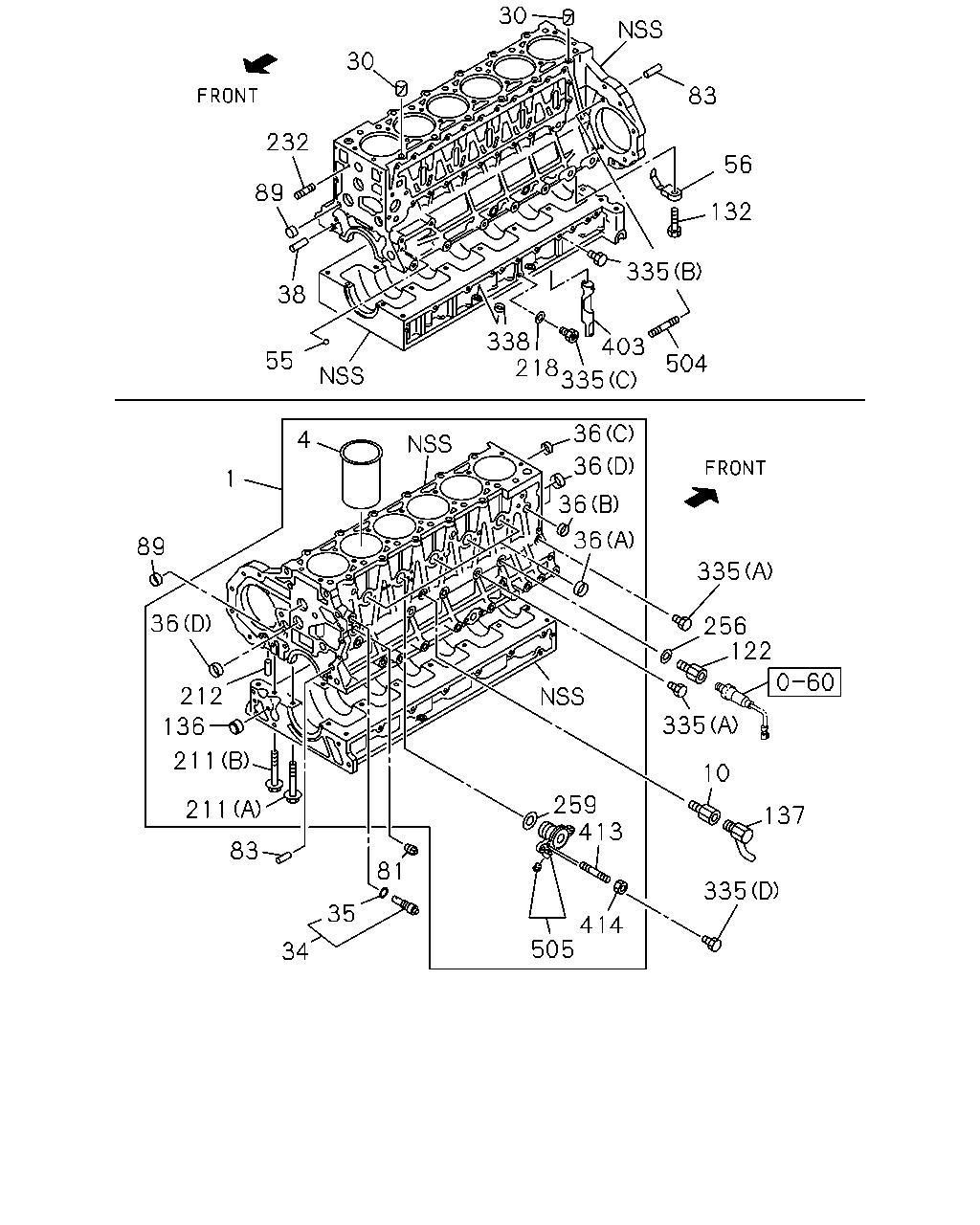

30 232 89 38 55 4 1 89 36 212 136 211 211 83 35 81 34 505 414 413 259 335 137 10 335 122 256 335 36 36 36 36 504 403 335 218 338 335 132 56 83 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL THA	8-98206-966-0	01	1	1410-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON THA	8-98014-046-1	06	1	1410-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON THA	8-98014-047-1	06	1	1410-
10	CONNECTOR; WATER DRAIN THA	8-94396-378-0	01	1	1410-
30	PIN; CYL HD GASKET SETTING OD=18.15 THA	8-94399-688-1	02	1	1410-
34	VALVE; OIL RELIEF THA	8-94393-077-1	01	1	1410-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 THA	5-09623-035-0	01	1	1410-
36	CUP; SEALING,WATER JACKET (A) OD=45 THA	1-09600-005-2	04	1	1410-
36	CUP; SEALING,WATER JACKET (B) OD=25 THA	1-09600-016-0	01	1	1410-
36	CUP; SEALING,WATER JACKET (C) OD=25 THA	8-94399-005-0	01	1	1410-
36	CUP; SEALING,WATER JACKET (D) OD=40 THA	8-97096-824-0	04	1	1410-
38	PIN; TIMING GEAR CASE L=22 THA	8-94483-674-0	02	1	1410-
55	PLUG; OIL GALLERY 3/8" BALL THA	9-00097-011-0	01	1	1410-
56	JET; OIL,PISTON COOLING THA	8-98173-342-0	06	1	1410-
81	PLUG; WATER JACKET PT3/8 THA	8-94397-338-0	01	1	1410-
83	PIN; FLYWHEEL HSG L=22 THA	8-94483-674-0	02	1	1410-
89	CUP; SEALING,OIL GALLERY OD=20 THA	9-11129-128-0	03	1	1410-
122	ADAPTER; OIL PRESSURE SWITCH THA	8-97603-667-0	01	1	1410-
132	VALVE; CHECK,OIL M12X18.5 THA	8-94394-419-1	06	1	1410-
136	BUSHING; DRIVE SHAFT,OIL PUMP THA	8-98091-566-0	02	1	1410-
137	COCK; DRAIN,WATER THA	8-94393-716-1	01	1	1410-
211	BOLT; CRANKCASE (B) M10X82 THA	8-94399-553-2	25	1	1410-
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE THA	8-97077-638-0	14	1	1410-
212	PIN; CRANKCASE OD=10 L=20 THA	8-97135-423-0	02	1	1410-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 THA	8-98251-344-0	01	1	1410-
232	STUD; WATER PUMP M8X55 L=67 THA	0-41010-855-0	03	1	1410-
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 THA	1-09630-141-0	01	1	1410-
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 THA	1-09623-184-0	02	1	1410-
335	PLUG; C/BL,SIDE (C) M12X10 THA	5-13265-001-0	01	1	1410-
335	PLUG; C/BL,SIDE (A) M14X16.5 THA	8-97329-617-0	02	1	1410-
335	PLUG; C/BL,SIDE (B) M8X10 THA	8-98003-416-0	01	1	1410-
335	PLUG; C/BL,SIDE (D) M14 THA	8-94399-225-0	01	1	1410-
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6 THA	5-11129-003-0	02	1	1410-
403	GUIDE; GALLERY THA	8-94395-351-1	01	1	1410-
413	STUD; ADAPTER M8X30 L=41 THA	0-41010-830-0	02	1	1410-
414	NUT; ADAPTER M8 FLANGE THA	0-91180-208-0	02	1	1410-
504	STUD; INJ PUMP M10X46.5 L=58.5 THA	8-97363-237-0	02	1	1410-
505	ADAPTER; WATER FEED THA	8-97611-854-0	01	1	1410-
