9-01 — TOOLS (#150823) — 88 parça

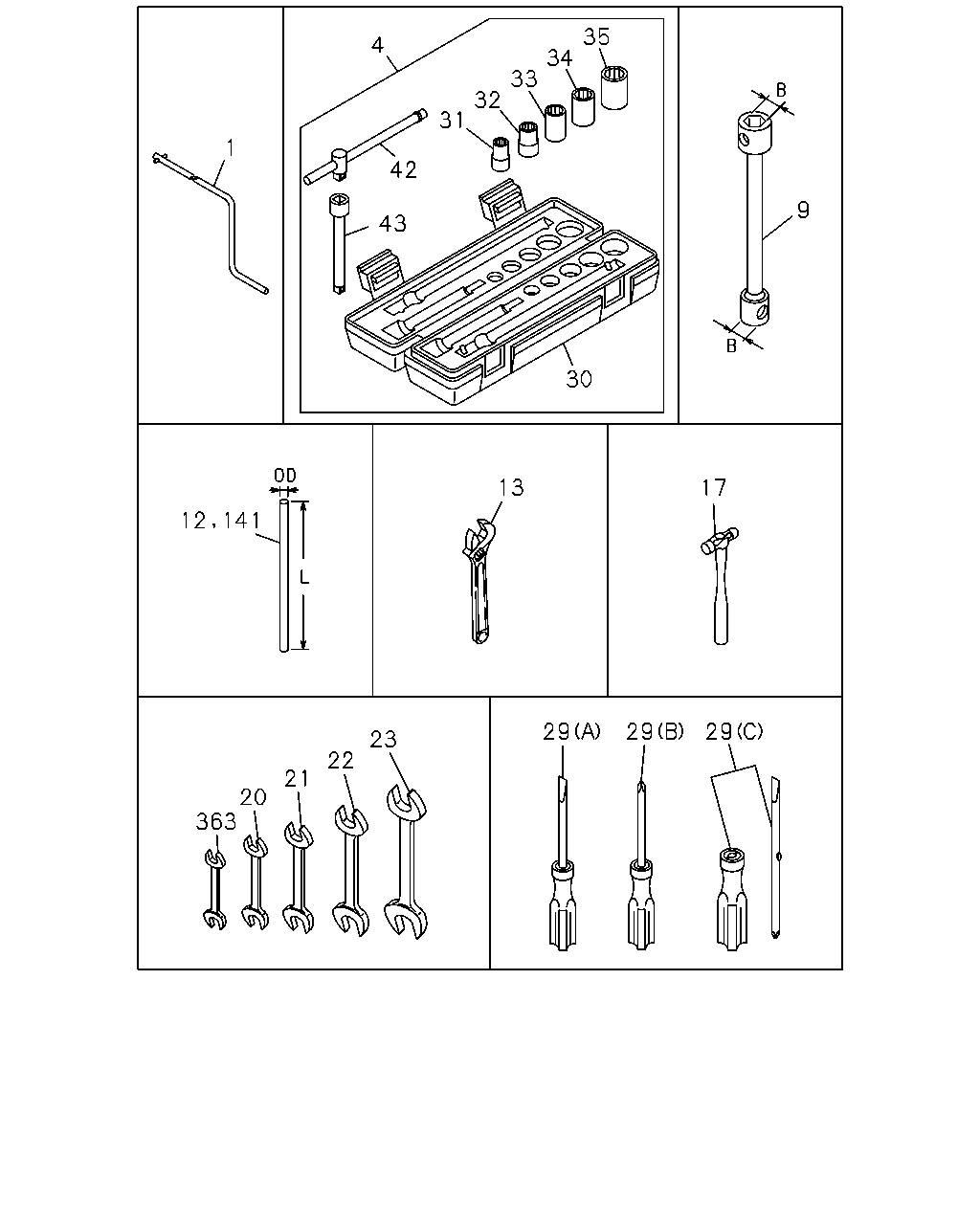

çizim 451676
1 4 42 43 31 32 33 34 35 9 30 12 141 13 17 363 20 21 22 23 29 29 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10> THA 		9-23110-019-0 01 1 1410- ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> THA 		9-23110-018-0 01 1 1410- ● ●
4 WRENCH KIT; SOCKET
THA 		8-97926-904-0 01 1 1410- ● ●
9 WRENCH; WHEEL PIN
B=41X21 L=440 THA 		1-85113-015-1 01 1 1410- ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 THA 		1-85116-011-0 01 1 1410- ● ●
13 WRENCH; MONKEY
L=255 THA 		8-98270-303-0 01 1 1410- ● ●
17 HAMMER
THA 		9-85121-406-0 01 1 1410- ● ●
20 WRENCH; 10X12
10X12 THA 		0-95902-510-0 01 1 1410- ● ●
21 WRENCH; 14X17
14X17 THA 		0-95902-514-0 01 1 1410- ● ●
22 WRENCH; 19X22
19X22 THA 		0-95902-519-0 01 1 1410- ● ●
23 WRENCH; 24X27
24X27 THA 		0-95902-524-0 01 1 1410- ● ●
29 DRIVER; SCREW
(A) <-> L=285 THA 		1-85151-004-0 01 1 1410- ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 THA 		8-94242-798-1 01 1 1410- ● ●
29 DRIVER; SCREW
(B) <+> L=275 THA 		9-09595-023-0 01 1 1410- ● ●
30 BOX; SOCKET WRENCH
THA 		8-97926-907-0 01 1 1410- ● ●
31 WRENCH; 12
THA 		8-97926-908-0 01 1 1410- ● ●
32 WRENCH; 14
THA 		8-97926-909-0 01 1 1410- ● ●
33 WRENCH; 17
THA 		8-97926-910-0 01 1 1410- ● ●
34 WRENCH; 19
THA 		8-97926-911-0 01 1 1410- ● ●
35 WRENCH; 22
THA 		8-97926-912-0 01 1 1410- ● ●
42 HANDLE; SLIDING
THA 		8-97926-913-0 01 1 1410- ● ●
43 BAR; EXTENSION,SOCKET WRENCH
THA 		8-97926-914-0 01 1 1410- ● ●
141 HANDLE; WRENCH
OD=16 L=200 THA 		9-85111-934-0 01 1 1410- ● ●
363 WRENCH; OPEN END 8X10
8X10 THA 		0-95902-508-0 01 1 1410- ● ●

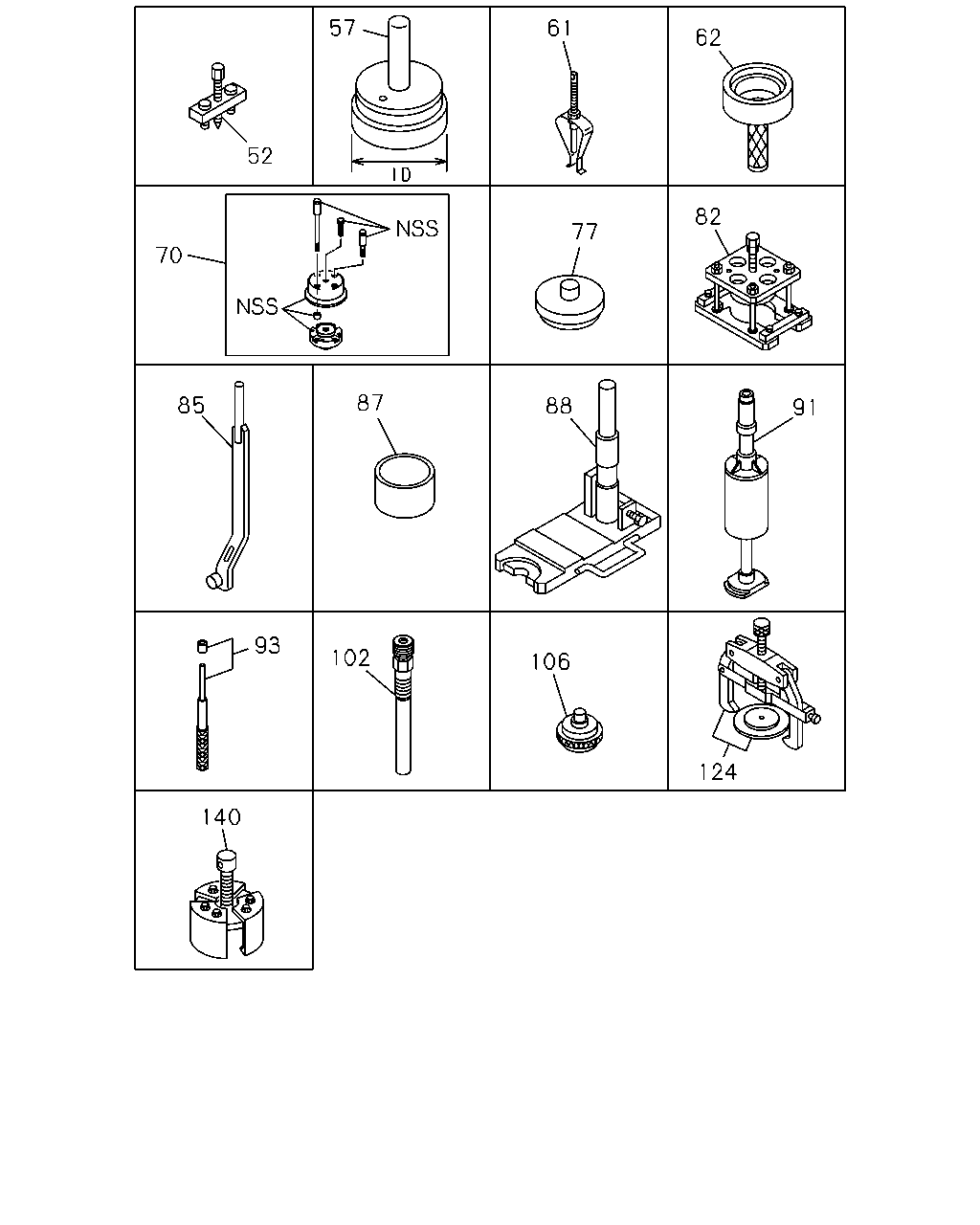

çizim 451803
52 57 61 62 82 77 70 85 87 88 91 124 106 102 93 140
BalonParca AdiParca NoAdetTipApplied Date A B
52 REMOVER; WATER PUMP
THA 		1-85210-047-0 01 1 1410- ● ●
57 TOOL; SETTING CRANK GEAR
ID=144.5 THA 		1-85221-072-0 01 1 1410- ● ●
57 TOOL; SETTING CRANK GEAR
ID=165.8 THA 		1-85221-075-0 01 1 1410- ● ●
61 PULLER ASM; PILOT BRG
THA 		1-85220-028-0 01 1 1410- ● ●
62 TOOL ASM; SETTING WEAR RING
THA 		1-85221-079-0 01 1 1410- ● ●
70 TOOL; SETTING,OIL SEAL
THA 		8-98194-607-0 AR 1 1410- ● ●
77 TOOL; SETTING,CYL LINER
THA 		1-85221-073-0 01 1 1410- ● ●
82 PULLER ASM; CR/SHF GEAR
THA 		1-85210-051-0 01 1 1410- ● ●
85 REPLACER ASM; VALVE SPR
THA 		1-85235-007-0 01 1 1410- ● ●
87 TOOL; PISTON
THA 		1-85221-082-0 01 1 1410- ● ●
88 TOOL; CONNROD BUSHING
THA 		1-85220-037-0 01 1 1410- ● ●
91 REPLACER ASM; CYL LINER
THA 		1-85231-021-0 01 1 1410- ● ●
93 SETTING KIT; VALVE GUIDE
L=260 THA 		9-85231-202-0 01 1 1410- ● ●
102 ADAPTER; COMP GAGE
THA 		5-85317-001-0 01 1 1410- ● ●
106 TOOL; SETTING PILOT BRG
THA 		1-85221-080-0 01 1 1410- ● ●
124 PULLER ASM; BRG DIFF
THA 		9-85210-131-0 01 1 1410- ● ●
140 REMOVER; WEAR RING
THA 		1-85210-053-0 01 1 1410- ● ●
çizim 451901
115 125 126 129 130 135 151 153 154 156 160 162 162 163 164
BalonParca AdiParca NoAdetTipApplied Date A B
115 PLIER
THA 		5-85171-002-0 01 1 1410- ● ●
125 PULLER ASM; KING PIN
L=450 THA 		1-85210-009-0 01 1 1410- ● ●
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 THA 		1-85110-002-1 01 1 1410- ● ●
129 PULLER ASM; PITMAN ARM
THA 		1-85210-011-0 01 1 1410- ● ●
130 WRENCH; BOX
B=63 THA 		9-85111-368-0 01 1 1410- ● ●
135 COVER; ENG MTG,FRT
THA 		9-85595-016-0 02 1 1410- ● ●
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 THA 		1-85237-002-0 01 1 1410- ● ●
153 DRIVER; WASHER,THRUST WASHER
THA 		1-85238-002-0 01 1 1410- ● ●
154 SLEEPER; KING PIN
THA 		1-85238-003-0 01 1 1410- ● ●
156 PULLER; ANCHOR PIN
THA 		1-85210-025-0 01 1 1410- ● ●
160 REMOVER; NEEDLE BRG
L=220 THA 		1-85238-001-0 01 1 1410- ● ●
162 SETTING TOOL; NEEDLE BRG
(A) L=181 THA 		1-85238-008-0 01 1 1410- ● ●
162 SETTING TOOL; NEEDLE BRG
(B) L=213 THA 		1-85238-009-0 01 1 1410- ● ●
163 TOOL; SETTING
MJT7U M/T<Y4X> (B) OD=150 THA 		1-85221-167-0 01 1 1410- ●
163 TOOL; SETTING
(A) THA 		9-85221-231-0 01 1 1410- ● ●
164 GUIDE; SNAP RING PILOT BRG
THA 		1-85176-001-0 01 1 1410- ● ●
çizim 451937
169 171 172 174 186 189 192 193 208 227 230 237 417 453
BalonParca AdiParca NoAdetTipApplied Date A B
169 BRACKET; SPLINE YOKE
THA 		1-85221-317-0 01 1 1410- ● ●
171 PULLER ASM; PINION BRG
THA 		9-85210-152-0 01 1 1410- ● ●
172 PULLER ASM; BRG DIFF PILOT
THA 		9-85210-182-0 01 1 1410- ● ●
174 PULLER ASM; MAIN CLU SHAFT
THA 		9-85210-148-0 01 1 1410- ● ●
186 ADJUSTER; BRAKE
THA 		1-85269-008-0 01 1 1410- ● ●
189 TUBE; AIR BREATHER
L=460 THA 		9-85291-414-0 01 1 1410- ● ●
192 GAUGE; TIRE PRESSURE
THA 		1-85315-002-0 01 1 1410- ● ●
193 JACK ASM
15TON THA 		1-85510-019-2 01 1 1410- ● ●
208 HANDLE; JACK
TOOL B KIT<SL1> L=600 THA 		8-98181-437-0 01 1 1410- ● ●
227 PUMP ASM; TIRE
THA 		9-85521-132-0 01 1 1410- ● ●
230 PUMP; GREASE
THA 		1-85556-007-5 01 1 1410- ● ●
237 BAG; TOOL
THA 		8-97917-409-1 01 1 1410- ● ●
417 BOLT; CHAMBER RELEASE
1/2-13 UNC L=124 4-SETS THA 		1-85576-331-1 01 1 1410- ● ●
453 TOOL; SETTING,COUPLING
THA 		8-97620-813-0 01 1 1410- ● ●

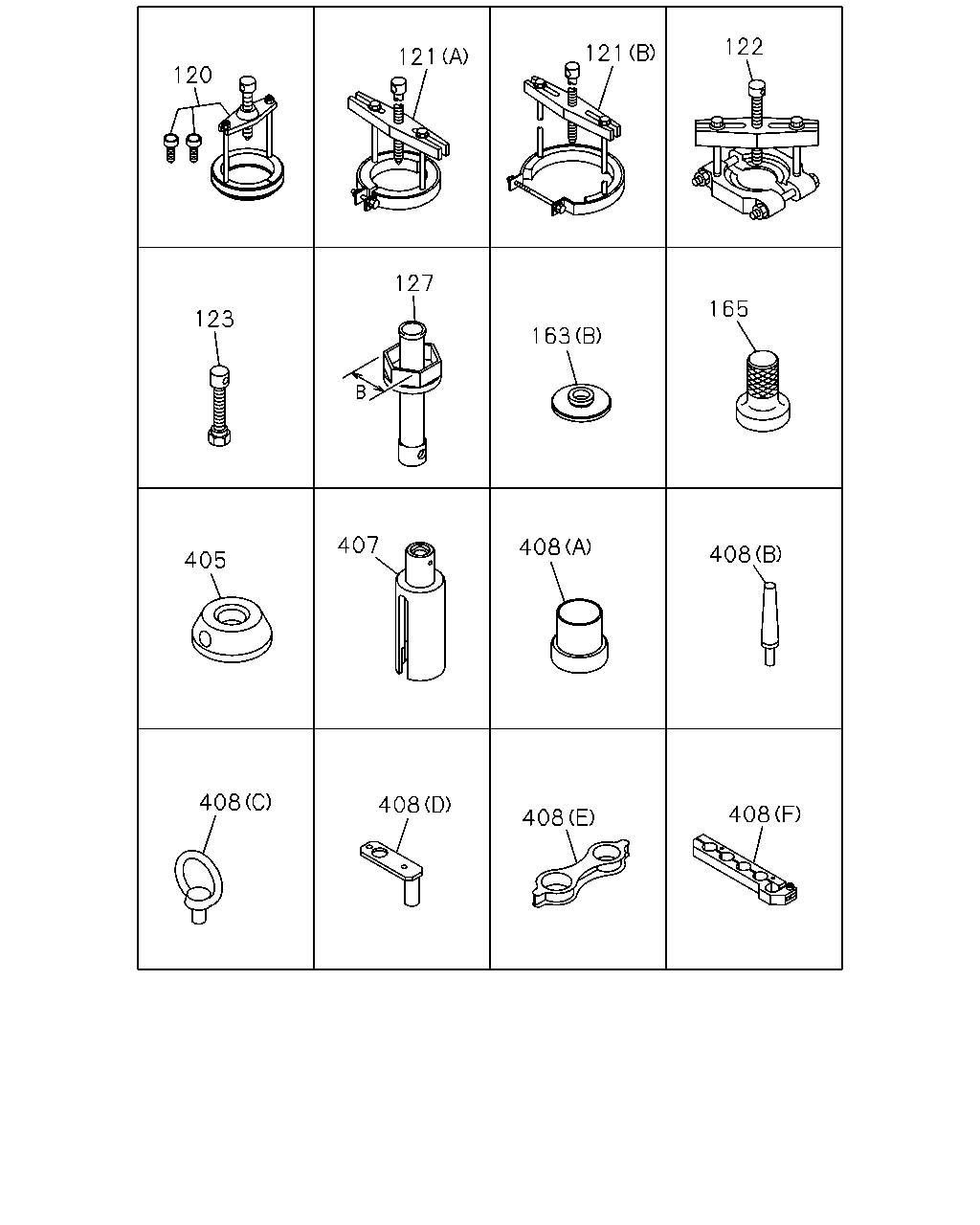

çizim 451979
120 121 121 122 123 127 163 165 405 407 408 408 408 408 408 408
BalonParca AdiParca NoAdetTipApplied Date A B
120 PULLER ASM; MAIN REAR BRG
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> L=285 THA 		9-85210-184-0 01 1 1410- ●
121 PULLER ASM; COUNTER REAR
MJT7U M/T<Y4X> (B) THA 		1-85210-069-0 01 1 1410- ●
121 PULLER ASM; COUNTER REAR
MJT7U M/T<Y4X> (A) OD=146 THA 		1-85210-074-0 01 1 1410- ●
122 PULLER ASM; COUNTER FRT
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> THA 		9-85210-195-0 01 1 1410- ●
123 PULLER; SPEEDOMETER BUSHING
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> THA 		9-85210-091-0 01 1 1410- ●
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 THA 		8-98119-000-1 01 1 1410- ● ●
163 TOOL; SETTING
MJT7U M/T<Y4X> (B) OD=150 THA 		1-85221-167-0 01 1 1410- ●
163 TOOL; SETTING
(A) THA 		9-85221-231-0 01 1 1410- ● ●
165 SETTING TOOL; PTO
MJT7U M/T<Y4X> THA 		1-85221-177-0 01 1 1410- ●
405 GUIDE; COUNTER
MJT7U M/T<Y4X> THA 		1-85221-264-0 01 1 1410- ●
407 SOCKET; SW
MJT7U M/T<Y4X> THA 		1-85221-267-1 01 1 1410- ●
408 TOOL; SETTING,SHIFT ASSISTER
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (A) THA 		1-85221-268-0 01 1 1410- ●
408 TOOL; SETTING,SHIFT ASSISTER
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) THA 		1-85221-269-0 01 1 1410- ●
408 TOOL; SETTING,SHIFT ASSISTER
MJT7U M/T<Y4X> (D) THA 		1-85221-257-0 01 1 1410- ●
408 TOOL; SETTING,SHIFT ASSISTER
MJT7U M/T<Y4X> (E) THA 		1-85221-259-0 01 1 1410- ●
408 TOOL; SETTING,SHIFT ASSISTER
MJT7U M/T<Y4X> (F) THA 		1-85221-260-0 01 1 1410- ●
408 TOOL; SETTING,SHIFT ASSISTER
MJT7U M/T<Y4X> (C) THA 		1-85221-262-0 02 1 1410- ●
