8-90 — RADIO AND TV (#150822) — 12 parça

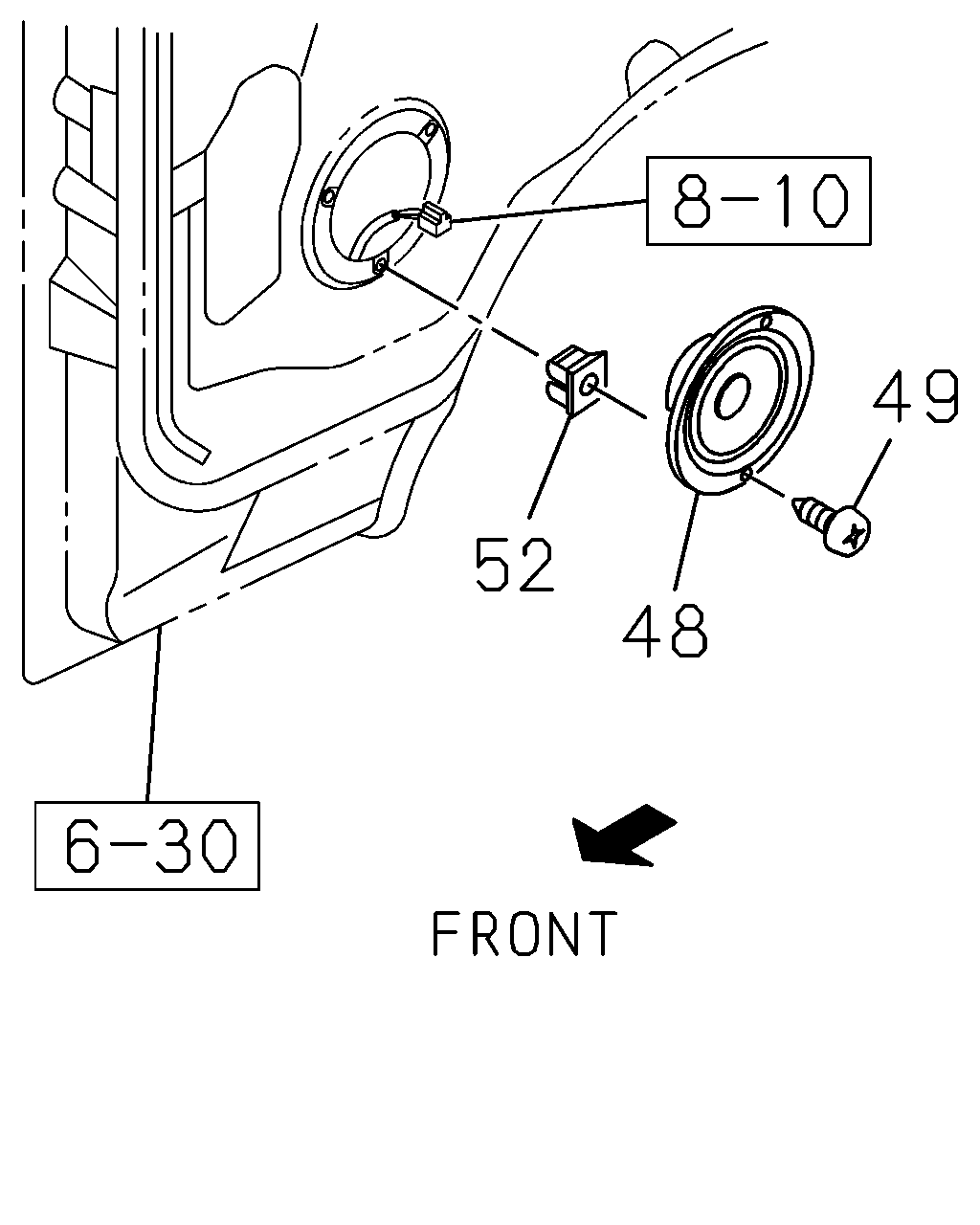

çizim 449417

52 48 49

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	48	SPEAKER; AUDIO SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> THA	8-97317-001-1	02	1	1410-	●	●
	49	SCREW; SPEAKER SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5X14 TAPPING W/TORQUES THA	8-98061-856-0	06	1	1410-	●	●
	52	GROMMET; SCREW,SPEAKER SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> D=8.6X7.7 L=7.5 THA	8-94279-078-0	06	1	1410-	●	●

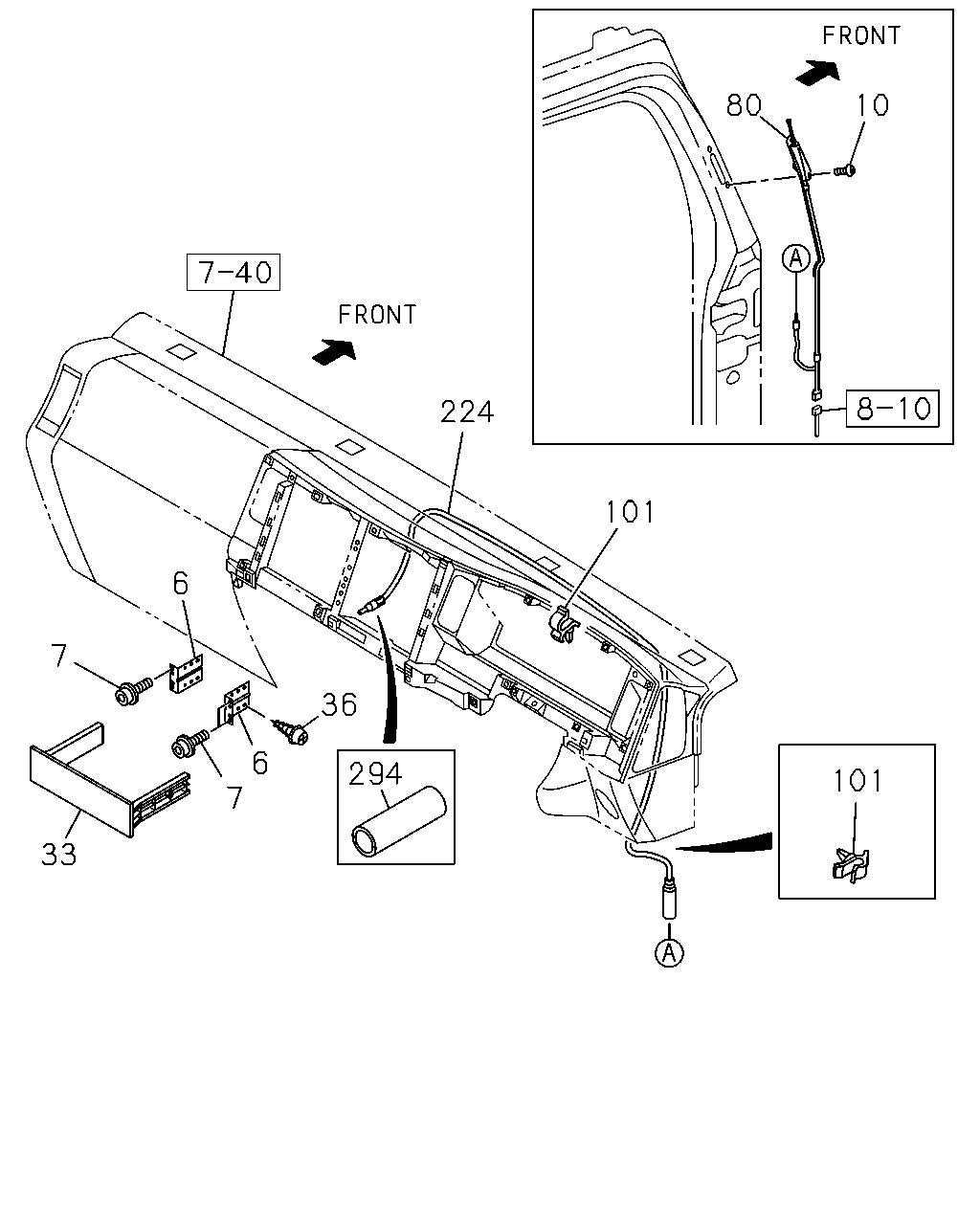

çizim 449641

224 101 101 10 80 294 36 6 7 33 7 6

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	6	BRACKET; RADIO TO PANEL THA	8-97585-617-0	02	1	1410-	●	●
	7	SCREW; RADIO T25 M5X20 TAPPING HEXALOBULAR THA	0-72180-520-0	02	1	1410-	●	●
	10	SCREW; ANTENNA CABLE M5X11 THA	1-09981-536-1	02	1	1410-	●	●
	33	COVER; RADIO THA	8-97926-926-0	01	1	1410-	●	●
	36	SCREW; COVER T25 L=10 HEXALOBULAR THA	8-98058-632-0	02	1	1410-	●	●
	80	ANTENNA THA	8-98139-014-0	01	1	1410-	●	●
	101	CLIP; FEEDER TO BRKT ID=4.8 THA	8-94128-483-0	03	1	1410-	●	●
	224	CABLE; EXT,FEEDER THA	8-98063-002-1	01	1	1410-	●	●
	294	CAP; ANTENNA CABLE THA	8-98095-617-1	01	1	1410-	●	●
