8-75 — CONDENSER (#150820) — 21 parça

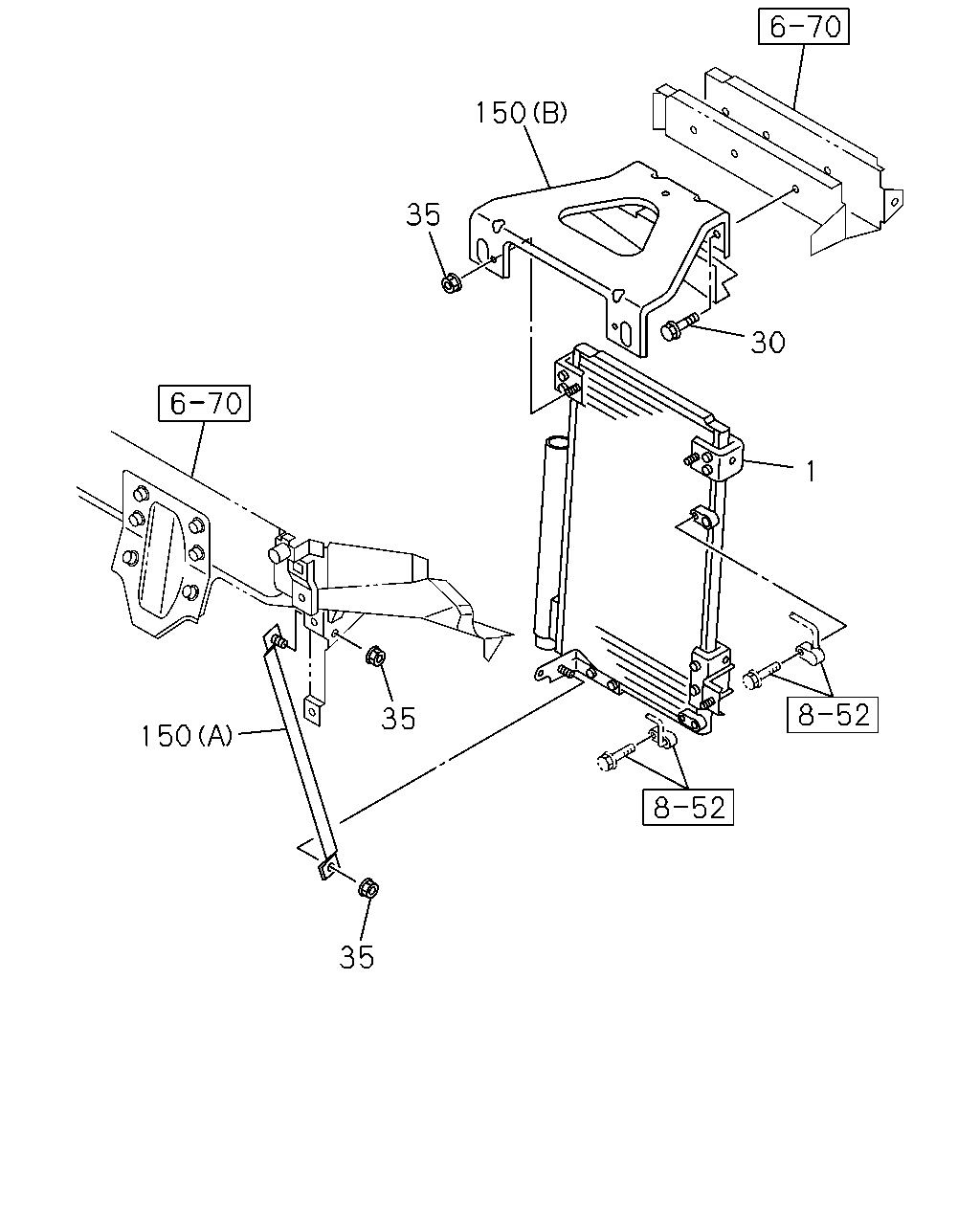

çizim 451476
150 35 35 1 30 150 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
THA 		8-97926-687-1 01 1 1410- ● ●
30 BOLT; CONDENSER,A/C
M8X20 FLANGE THA 		0-28650-820-0 02 1 1410- ● ●
35 NUT; CONDENSER,A/C
M8 FLANGE THA 		0-91180-108-0 05 1 1410- ● ●
150 BRACKET; CONDENSER,MTG
(A) THA 		8-98270-947-0 01 1 1410- ● ●
150 BRACKET; CONDENSER,MTG
(B) THA 		8-98242-412-0 01 1 1410- ● ●

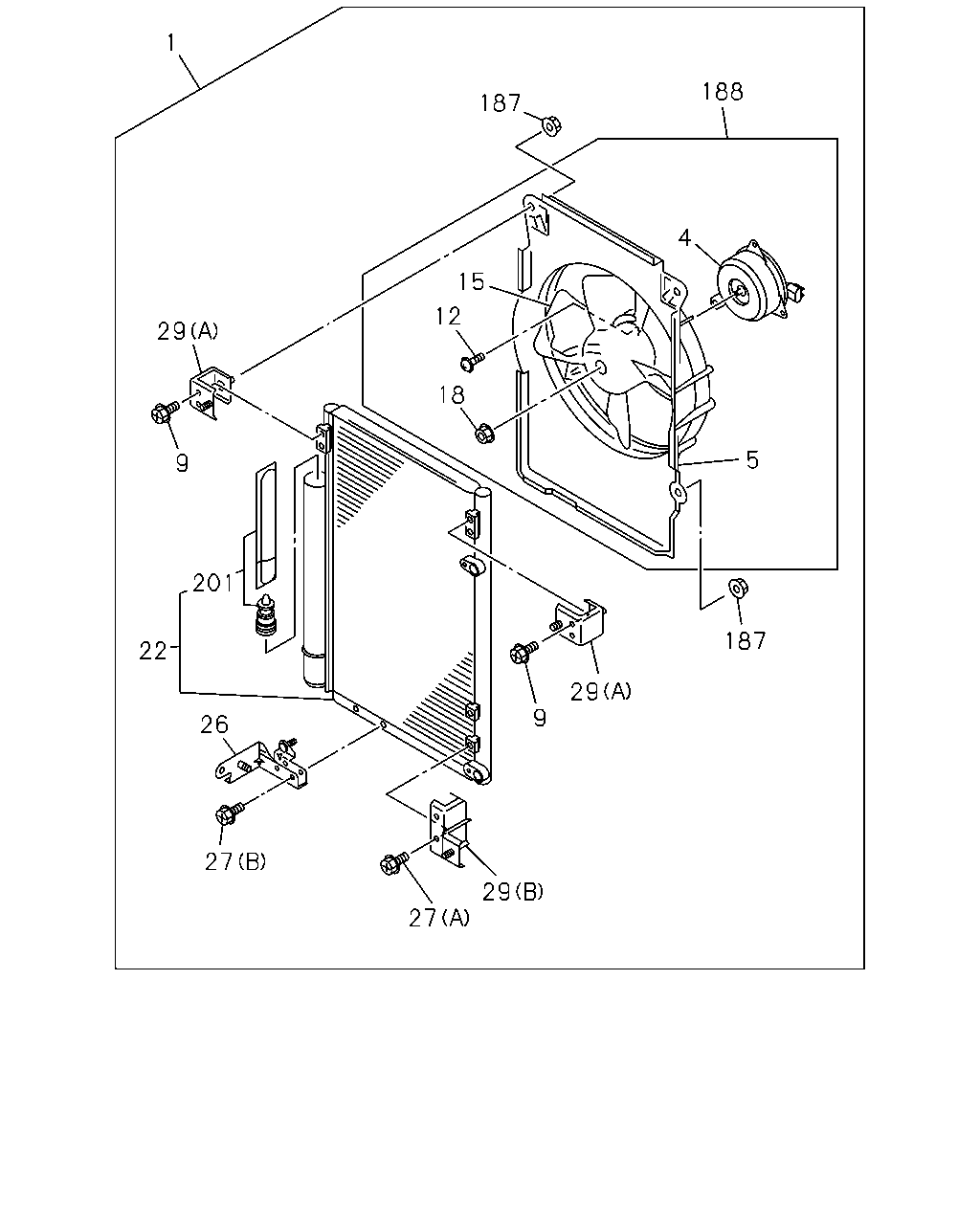

çizim 451675
1 187 188 15 4 5 187 29 18 12 9 29 27 27 26 22 201 9 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
THA 		8-97926-687-1 01 1 1410- ● ●
4 MOTOR ASM; FAN
THA 		8-98076-091-0 01 1 1410- ● ●
5 SHROUD; FAN MOTOR
THA 		8-98076-093-0 01 1 1410- ● ●
9 BOLT; BRKT
M6X14 THA 		1-83539-382-0 04 1 1410- ● ●
12 BOLT; FAN MOTOR
THA 		8-97180-269-0 03 1 1410- ● ●
15 FAN; MOTOR
THA 		8-98152-860-0 01 1 1410- ● ●
18 NUT; FAN,CENTER
M5 FLANGE THA 		8-94157-075-0 01 1 1410- ● ●
22 CONDENSER ASM; A/C
THA 		1-83534-261-0 01 1 1410- ● ●
26 BRACKET; LOW
THA 		1-83573-281-0 01 1 1410- ● ●
27 BOLT; BRKT,LOW SIDE
(A) M6X14 THA 		1-83539-382-0 02 1 1410- ● ●
27 BOLT; BRKT,LOW SIDE
(B) M5X25 THA 		8-97178-770-0 02 1 1410- ● ●
29 BRACKET; SIDE
(A) THA 		8-98065-914-0 02 1 1410- ● ●
29 BRACKET; SIDE
(B) THA 		8-98065-915-0 01 1 1410- ● ●
187 NUT; SHROUD
M6 THA 		1-83539-354-0 04 1 1410- ● ●
188 BLOWER ASM; SHROUD
THA 		8-98235-916-1 01 1 1410- ● ●
201 DRYER ASM; CONDENSER
THA 		1-83535-097-0 01 1 1410- ● ●
