◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11652 - FXZ/GXZ THAILAND EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶
8-65 — CONTROL LEVER; HEATER AND AIR CON (#150817) — 10 parça

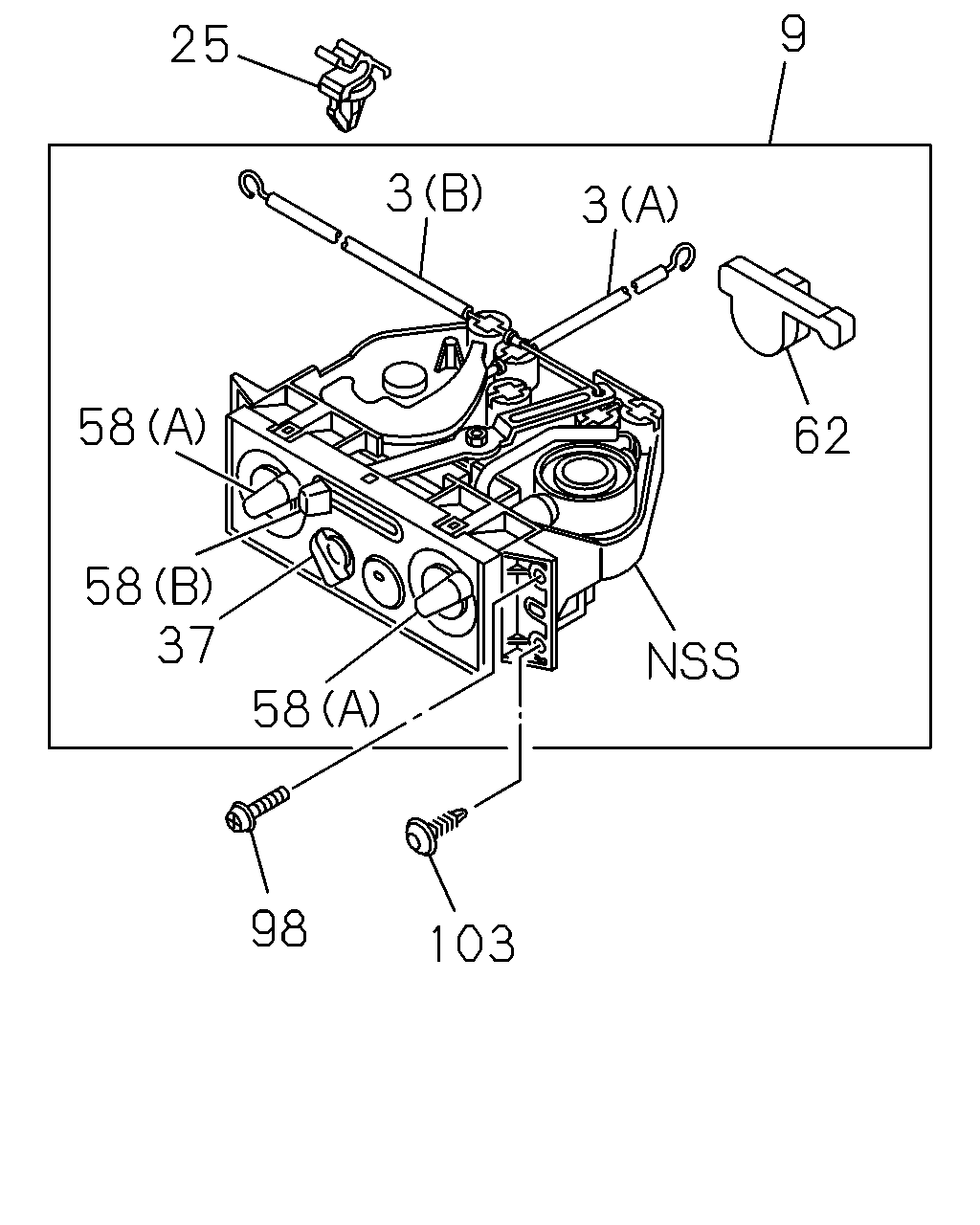

çizim 451474
25 3 3 9 62 58 58 37 58 98 103
BalonParca AdiParca NoAdetTipApplied Date A B
3 CABLE; HTR CONT LVR
(A) MODE THA 		8-97927-124-0 01 1 1410- ● ●
3 CABLE; HTR CONT LVR
(B) RECIRC/FRESH THA 		8-97927-125-0 01 1 1410- ● ●
9 LEVER ASM; HTR & A/C CONT
THA 		8-97926-518-0 01 1 1410- ● ●
25 CLIP; CABLE,CONT LEVER
ID=4.8 THA 		8-94128-483-0 03 1 1410- ● ●
37 KNOB; SW,HTR CONT LVR
THA 		8-97926-674-0 01 1 1410- ● ●
58 KNOB; LVR,HTR CONT LVR
(A) THA 		8-97926-673-0 02 1 1410- ● ●
58 KNOB; LVR,HTR CONT LVR
(B) THA 		8-97926-675-0 01 1 1410- ● ●
62 BULB; HTR CONT LVR
THA 		8-97926-676-0 01 1 1410- ● ●
98 SCREW; CONT PANEL
T25 M5X20 TAPPING HEXALOBULAR THA 		0-72180-520-0 01 1 1410- ● ●
103 CLIP
DARK GRAY THA 		8-97098-326-0 01 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
