8-50 — AIR CONDITIONING SYSTEM; FRONT (#150814) — 18 parça

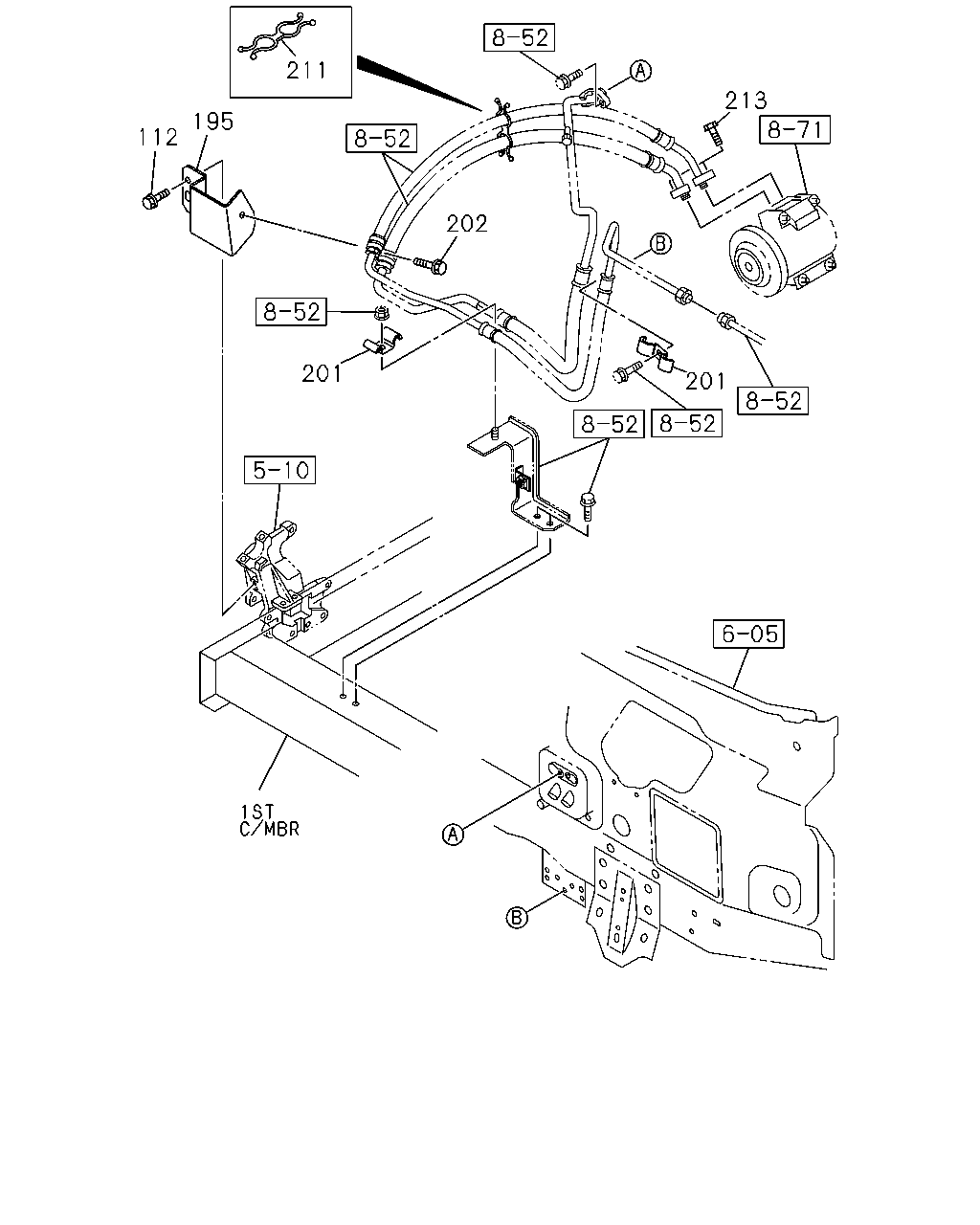

112 195 211 202 213 201 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
112	BOLT; STAY M8X20 FLANGE THA	0-28650-820-0	02	1	1410-	●	●
195	STAY; CLIP THA	8-98055-465-0	01	1	1410-	●	●
201	CLIP; HOSE,CMPR TO EVAP THA	8-98043-673-0	02	1	1410-	●	●
202	BOLT; CLIP,FLEX HOSE M8X20 FLANGE THA	0-28650-820-0	01	1	1410-	●	●
211	CLIP; HOSE THA	8-94423-042-0	02	1	1410-	●	●
213	BOLT; FLEX HOSE TO CMPR M6X25 FLANGE THA	0-28650-625-0	02	1	1410-	●	●

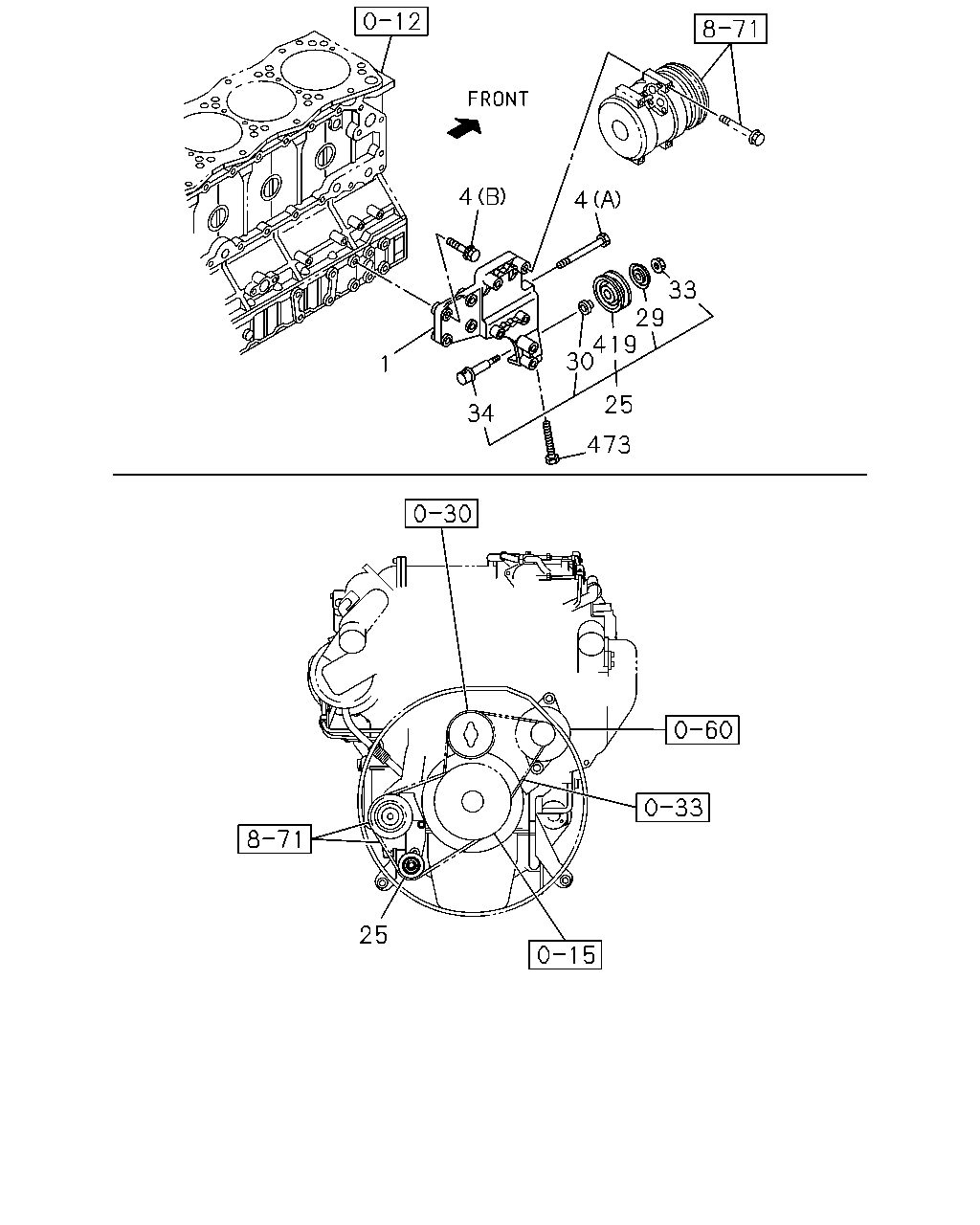

4 4 33 29 419 30 25 473 34 25 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; A/C THA	8-97606-311-1	01	1	1410-	●	●
4	BOLT; A/C CMPR BRKT (B) M10X45 FLANGE THA	0-28151-045-0	04	1	1410-	●	●
4	BOLT; A/C CMPR BRKT (A) M10X150 FLANGE THA	0-28156-015-0	01	1	1410-	●	●
25	PULLEY ASM; IDLER,CMPR THA	8-97603-949-0	01	1	1410-	●	●
29	COVER; DUST,IDLE PULLEY THA	1-83578-100-0	01	1	1410-	●	●
30	COLLAR; IDLE PULLEY THA	1-87540-319-0	01	1	1410-	●	●
33	NUT; IDLER PULLEY THA	1-83579-985-0	01	1	1410-	●	●
34	SHAFT; IDLE PULLEY THA	1-83579-982-0	01	1	1410-	●	●
419	PULLEY; IDLE THA	1-87540-322-0	01	1	1410-	●	●
473	BOLT; TENSIONER M8X80 FLANGE THA	1-09044-091-0	01	1	1410-	●	●

378 378

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	378	HOSE; DRAIN,EVAPORATOR (A) THA	8-98041-428-0	01	1	1410-	●	●
	378	HOSE; DRAIN,EVAPORATOR (B) THA	8-98204-844-0	01	1	1410-	●	●
