◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11652 - FXZ/GXZ THAILAND EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#150813) — 30 parça

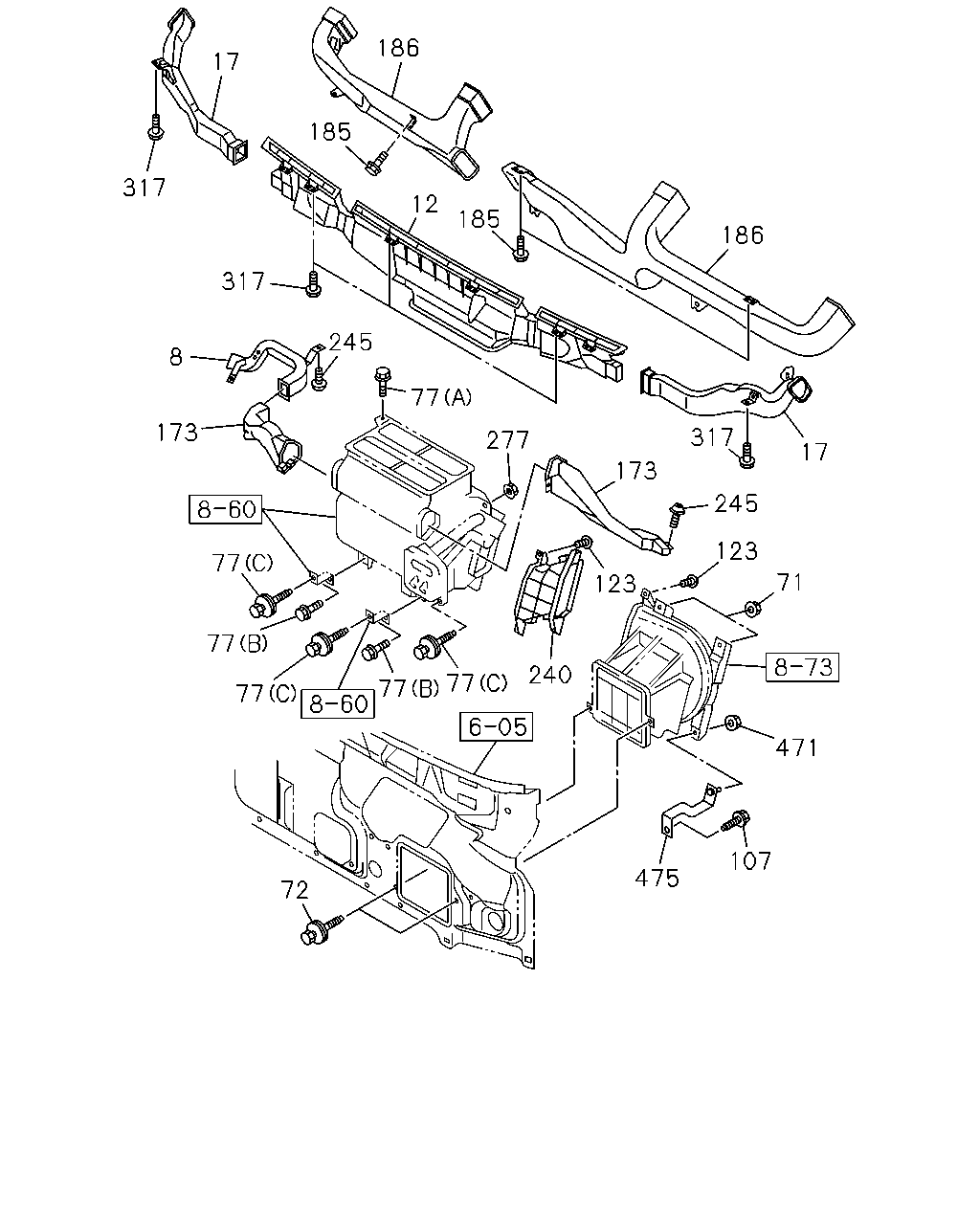

çizim 451795
17 317 186 185 317 12 8 245 173 185 186 77 277 77 77 77 77 77 240 123 173 317 17 245 123 71 471 107 475 72
BalonParca AdiParca NoAdetTipApplied Date A B
8 DUCT; HTR AIR,DRIVER FOOT
THA 		8-97585-499-1 01 1 1410-1410 ● ●
8 DUCT; HTR AIR,DRIVER FOOT
THA 		8-98290-098-0 01 1 1411- ● ●
12 NOZZLE; DEFROSTER
THA 		8-98040-009-3 01 1 1410- ● ●
17 NOZZLE; DEFROSTER,SIDE
THA 		8-98040-013-1 01 1 1410- ● ●
17 NOZZLE; DEFROSTER,SIDE
THA 		8-98040-018-1 01 1 1410- ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE THA 		0-91180-106-0 02 1 1410- ● ●
72 BOLT; BLOWER UNIT
M6X20 W/LK&PL WASHER THA 		8-98081-175-0 02 1 1410- ● ●
77 BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER THA 		8-98081-175-0 03 1 1410- ● ●
77 BOLT; HTR UNIT
(A) M6X16 FLANGE THA 		0-28650-616-0 01 1 1410- ● ●
77 BOLT; HTR UNIT
(B) M6X20 FLANGE THA 		0-28650-620-0 02 1 1410- ● ●
107 BOLT; STAY,HTR UNIT
M8X25 W/LK&PL WASHER THA 		8-98018-439-0 01 1 1410- ● ●
123 SCREW; DUCT
T25 M5X16 TAPPING HEXALOBULAR THA 		0-72180-516-0 04 1 1410- ● ●
173 DUCT; FOOT,HTR
THA 		8-97585-506-2 01 1 1410- ● ●
173 DUCT; FOOT,HTR
THA 		8-98036-922-2 01 1 1410-1410 ● ●
173 DUCT; FOOT,HTR
THA 		8-98290-097-0 01 1 1411- ● ●
185 SCREW; VENT DUCT
T25 M5X16 TAPPING HEXALOBULAR THA 		0-72180-516-0 04 1 1410- ● ●
186 DUCT; VENTILATOR
THA 		8-97585-489-4 01 1 1410- ● ●
186 DUCT; VENTILATOR
THA 		8-98174-737-0 01 1 1410- ● ●
240 DUCT; AIR,HTR
THA 		8-98041-402-1 01 1 1410- ● ●
245 CLIP; FOOT DUCT
THA 		8-98056-059-0 03 1 1410- ● ●
277 NUT; HTR
M6 FLANGE THA 		0-91180-106-0 01 1 1410- ● ●
317 SCREW; DEFROSTER NOZZLE
T25 M5X16 TAPPING HEXALOBULAR THA 		0-72180-516-0 02 1 1410- ● ●
317 SCREW; DEFROSTER NOZZLE
T25 M5X16 TAPPING HEXALOBULAR THA 		0-72180-516-0 06 1 1410- ● ●
471 NUT; BLOWER
M6 FLANGE THA 		0-91180-106-0 01 1 1410- ● ●
475 BRACKET; BLOWER
THA 		8-98043-500-1 01 1 1410- ● ●
çizim 451964
223 50 476 206 407
BalonParca AdiParca NoAdetTipApplied Date A B
50 VALVE ASM; HTR
THA 		8-97925-112-0 01 1 1410- ● ●
206 GROMMET; A/C PIPE TO BLOWER UNIT
THA 		8-98019-649-0 01 1 1410- ● ●
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 THA 		8-94441-539-0 01 1 1410- ● ●
407 JOINT; HOSE
THA 		8-98041-758-0 01 1 1410- ● ●
476 SCREW; VALVE
T25 M5X16 TAPPING HEXALOBULAR THA 		8-98062-675-0 01 1 1410- ● ●
