◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11652 - FXZ/GXZ THAILAND EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#150811) — 29 parça

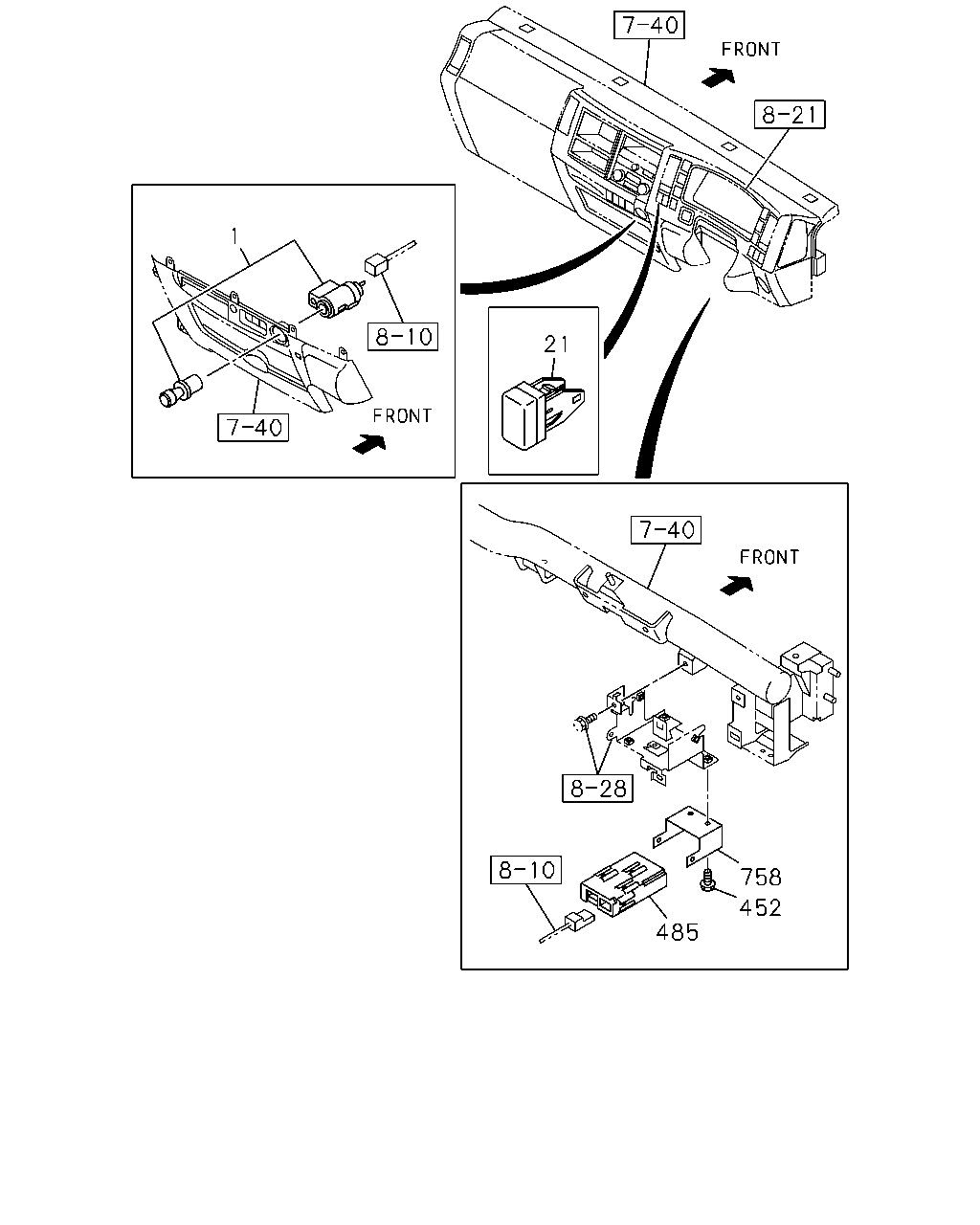

çizim 449634
1 21 485 758 452
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR
THA 		8-98142-962-0 01 1 1410- ● ●
21 COVER; HOLE
THA 		8-98025-954-1 01 1 1410- ● ●
452 BOLT; BRKT
ZF9S1310 M/T<Y5K> M6X16 FLANGE THA 		0-28650-616-0 02 1 1410- ● ●
485 CONTROL UNIT; SPEED SENSOR
ZF9S1310 M/T<Y5K> 		8-98232-695-0 01 1 1409- ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1310 M/T<Y5K> THA 		8-98048-743-1 01 1 1410- ● ●

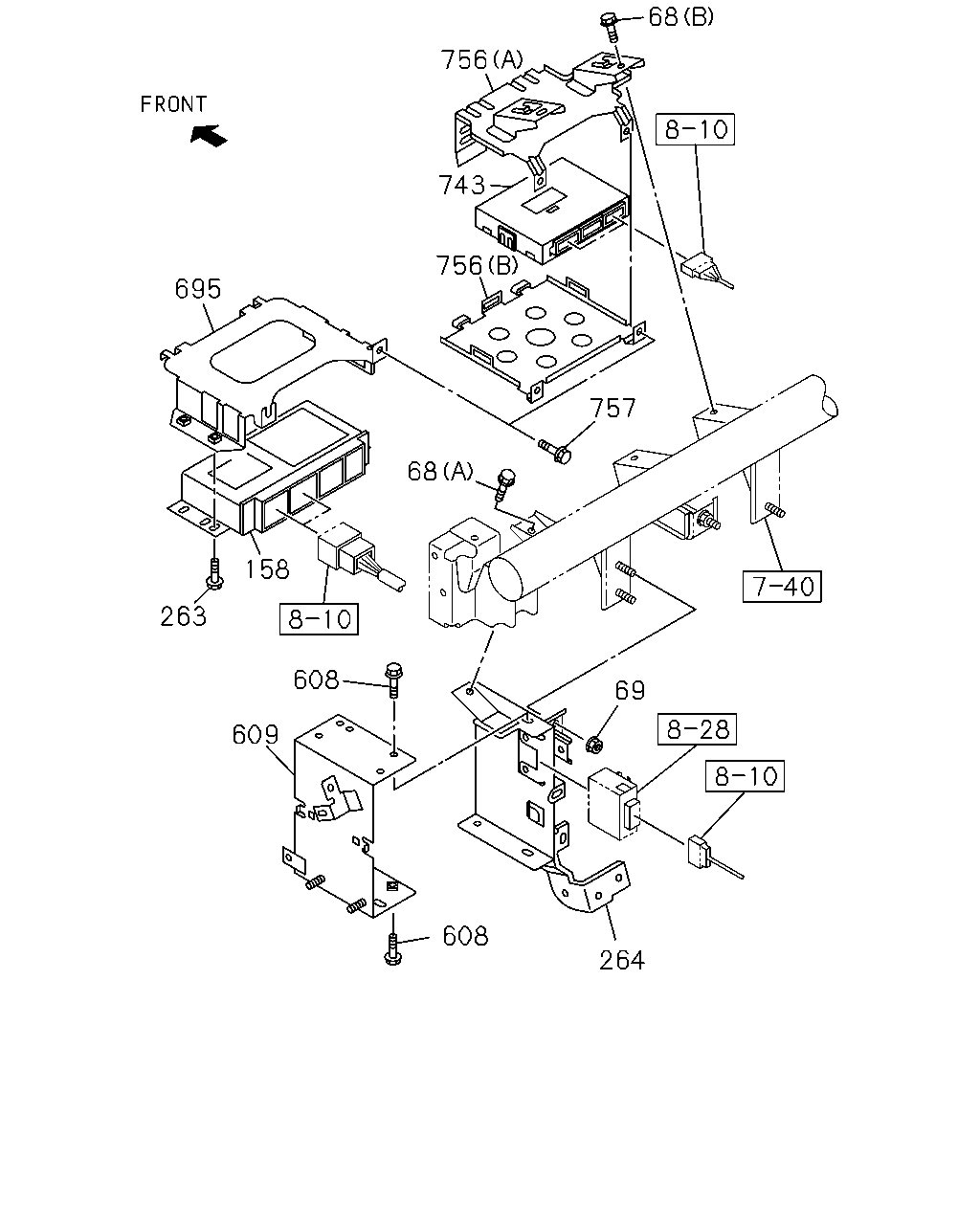

çizim 451691
695 158 263 608 609 608 264 68 757 756 743 756 68 69
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
MEMORY SYSTEM RUNNING CONDITION<NCR> (B) M6X16 W/LK&PL WASHER THA 		1-09980-492-0 02 1 1410- ● ●
68 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> (B) M6X16 W/LK&PL WASHER THA 		1-09980-492-0 02 1 1410- ●
68 BOLT; BRKT
(A) M6X16 FLANGE THA 		0-28650-616-0 01 1 1410- ● ●
69 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 01 1 1410- ● ●
158 CONTROLLER; ABS
ANTILOCK BRAKE SYSTEM<BFA> THA 		8-98170-648-0 01 1 1410- ●
263 BOLT; CONT UNIT
ANTILOCK BRAKE SYSTEM<BFA> M6X16 FLANGE THA 		0-28650-616-0 04 1 1410- ●
264 BRACKET; CONT UNIT
THA 		8-97609-985-9 01 1 1410- ● ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE THA 		0-28650-616-0 05 1 1410- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
THA 		8-98169-737-1 01 1 1410- ●
695 BRACKET; CONT UNIT,ABS
ANTILOCK BRAKE SYSTEM<BFA> THA 		8-98045-016-1 01 1 1410- ●
743 CONTROL UNIT; BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> THA 		8-98182-026-2 01 1 1410- ● ●
756 BRACKET; ECU,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> (A) THA 		8-98056-411-3 01 1 1410- ● ●
756 BRACKET; ECU,BCM
ANTILOCK BRAKE SYSTEM<BFA> EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> (A) THA 		8-98056-411-3 01 1 1410- ●
756 BRACKET; ECU,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> (B) THA 		8-98111-836-1 01 1 1410- ● ●
757 BOLT; BRKT,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> M6X16 FLANGE THA 		0-28650-616-0 02 1 1410- ● ●
757 BOLT; BRKT,BCM
ANTILOCK BRAKE SYSTEM<BFA> EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> M6X16 FLANGE THA 		0-28650-616-0 02 1 1410- ●

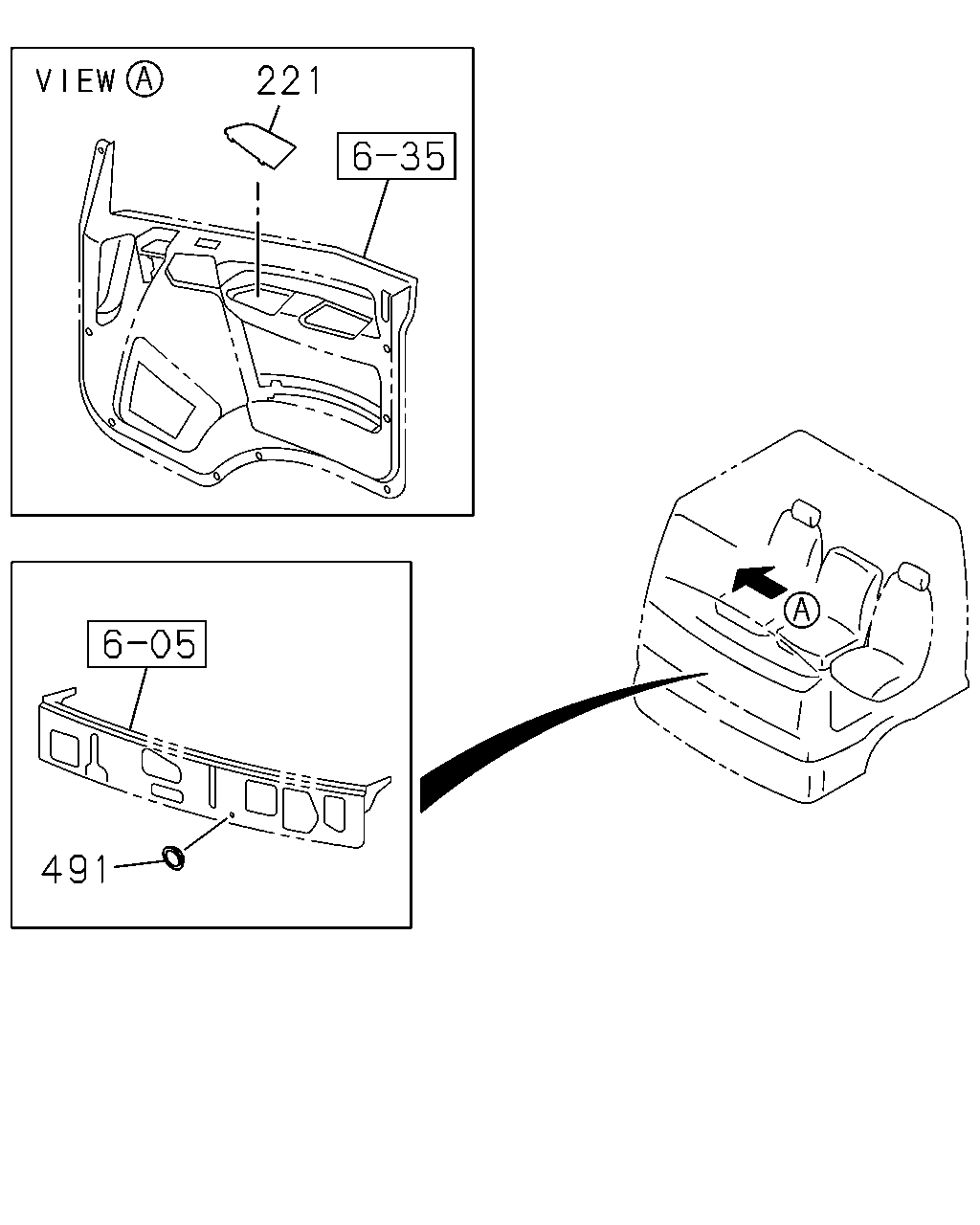

çizim 451757
221 491
BalonParca AdiParca NoAdetTipApplied Date A B
221 COVER; HOLE,DOOR LOCK SW
THA 		8-98029-915-2 01 1 1410- ●
221 COVER; HOLE,DOOR LOCK SW
THA 		8-98029-916-2 01 1 1410- ●
491 PLUG; HOLE,CONT UNIT
THA 		8-98054-651-0 01 1 1410- ● ●

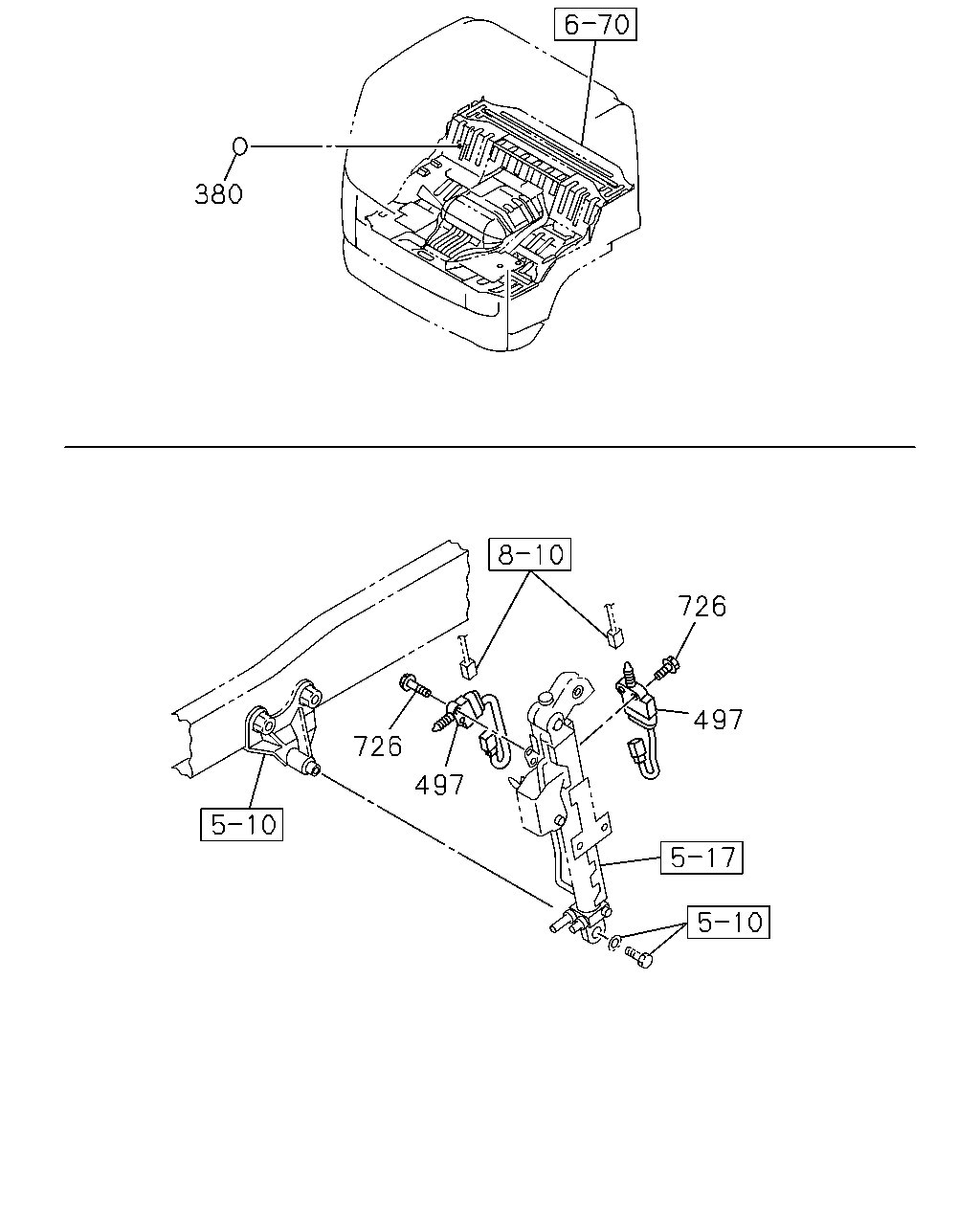

çizim 451791
380 726 497 726 497
BalonParca AdiParca NoAdetTipApplied Date A B
380 SEAL
OD=25 BLACK THA 		1-76798-019-0 01 1 1410- ● ●
497 SWITCH; CAB TILT
AUTO CAB TILT<WV2> STAMP NO THA 		1-82380-172-1 02 1 1410- ● ●
726 BOLT; SW,CAB TILT
AUTO CAB TILT<WV2> M6X25 FLANGE THA 		0-28050-625-0 04 1 1410- ● ●

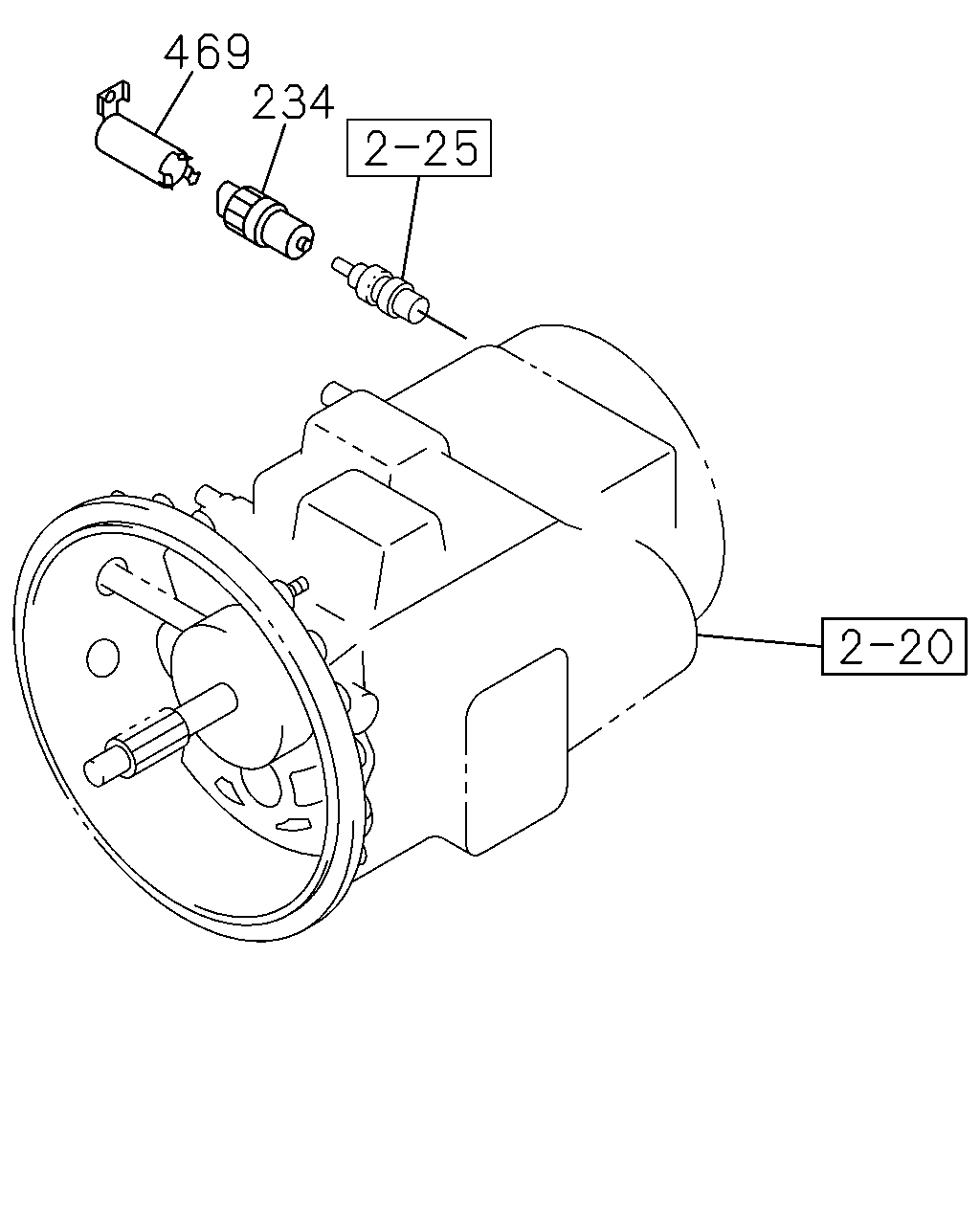

çizim 451794
469 234
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> 25 PULSE ALUMINUM THA 		8-97328-058-1 01 1 1410- ●
469 PROTECTOR; SPEED SENSOR
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> THA 		8-98119-901-0 01 1 1410- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
