Isuzu WW
▶
TRUCKS
▶
EXY
▶
11149 - EXY SOUTH AFRICA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#15081) — 37 parça
◀

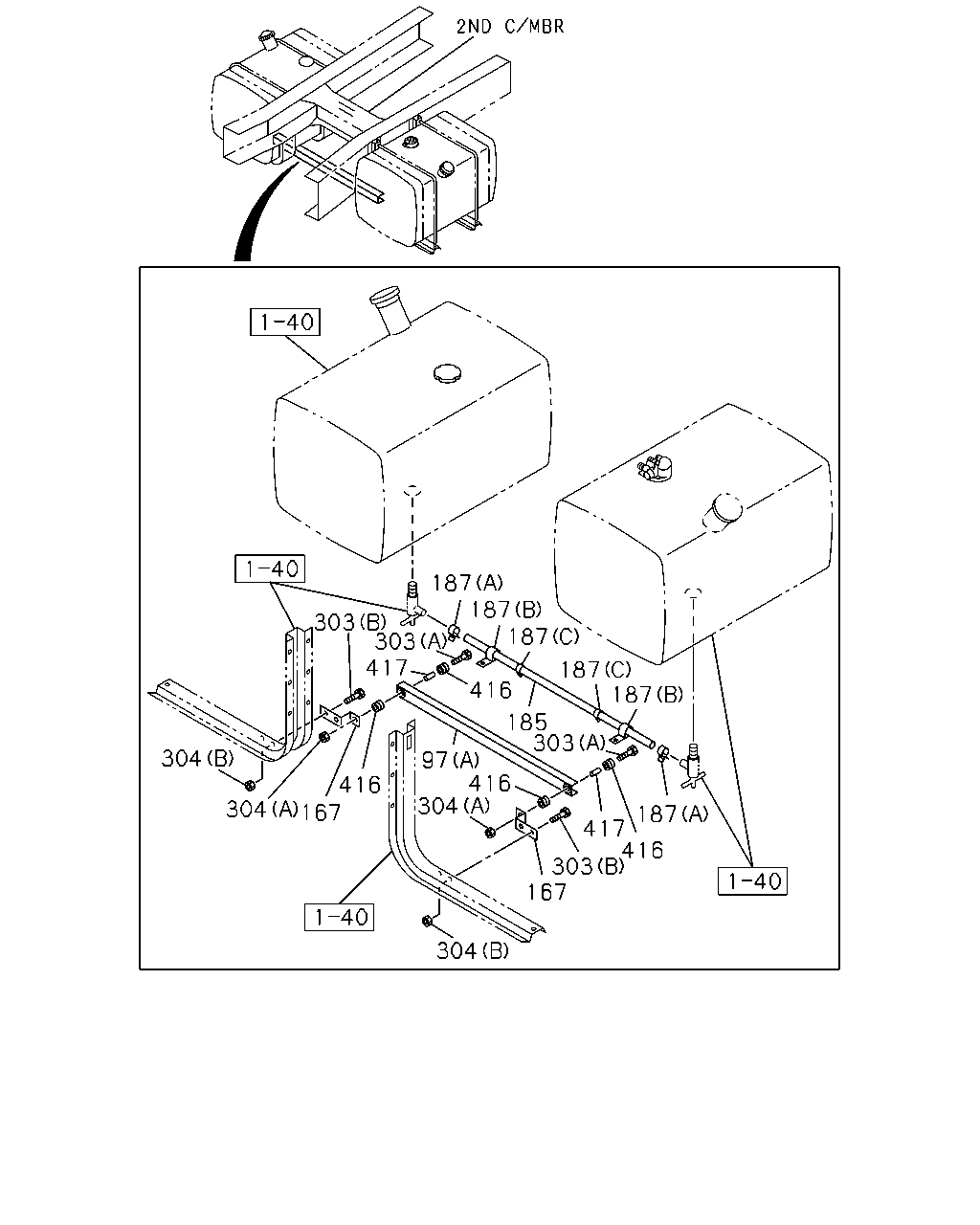

[141A] FUEL TANK 550L+450L (13 parça)
[141A] FIXING;FUEL PIPE NO.2 (11 parça)
[141A] FIXING;FUEL PIPE NO.1 (13 parça)
▶
187
187
187
303
303
417
187
187
416
185
303
304
97
416
304
416
167
304
187
417
416
303
167
304
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
97
BRACKET; CLIP
FUEL TANK 550L+450L<EDQ> (A)
8-98093-319-0
01
1
0804-
97
BRACKET; CLIP
(B)
8-98082-470-0
02
1
0804-
167
BRACKET
FUEL TANK 550L+450L<EDQ>
8-98101-840-0
02
1
0804-
185
PIPE; FUEL TANK TO TANK
FUEL TANK 550L+450L<EDQ> L=2150 SERVICED BY L=3000
0-01262-300-0
01
1
0804-
187
CLIP; FUEL PIPE TANK TO TANK
FUEL TANK 550L+450L<EDQ> (A) ID=19
8-94238-569-0
02
1
0804-
187
CLIP; FUEL PIPE TANK TO TANK
FUEL TANK 550L+450L<EDQ> (B) ID=19 H=25 L=25
9-09917-035-0
04
1
0804-
187
CLIP; FUEL PIPE TANK TO TANK
FUEL TANK 550L+450L<EDQ> (C) ID=22 L=52
9-09917-431-0
02
1
0804-
303
BOLT; BRKT
FUEL TANK 550L+450L<EDQ> (B) M8X40
0-20850-840-0
04
1
0804-
303
BOLT; BRKT
FUEL TANK 550L+450L<EDQ> (A) M10X50 FLANGE
0-28051-050-0
02
1
0804-
304
NUT; BRKT
FUEL TANK 550L+450L<EDQ> (B) M8 FLANGE
0-91180-108-0
04
1
0804-
304
NUT; BRKT
FUEL TANK 550L+450L<EDQ> (A) M10 FLANGE
0-91180-210-0
02
1
0804-
416
RUBBER; SUPPORT
FUEL TANK 550L+450L<EDQ> OD=40
1-22159-094-0
04
1
0804-
417
TUBE; DISTANCE,BRKT
FUEL TANK 550L+450L<EDQ> L=22
9-22159-024-0
02
1
0804-
228
227
228
291
220
290
220
290
41
41
32
634
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(A) L=700 SERVICED BY L=3000
0-01260-300-0
01
1
0804-
32
PIPE; DELIVERY,FUEL TANK
(B) L=1100 SERVICED BY L=3000
0-01262-300-0
01
1
0804-
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=14
1-09704-102-0
04
1
0804-
41
CLIP; FUEL PIPE,FUEL TANK
(B) ID=19
8-94238-569-0
02
1
0804-
220
WASHER; PL
FUEL TANK 550L+450L<EDQ> ID=8.4 OD=18
0-91610-608-0
04
1
0804-
220
WASHER; PL
ID=10.5 OD=26
0-91614-710-0
02
1
0804-
227
BRACKET; FUEL SEDIMENTER
8-98062-285-1
01
1
0804-
228
BOLT; BRKT,SEDIMENTER
M10X35 FLANGE
0-28051-035-0
02
1
0804-
290
NUT; FILTER TO BRKT
M10 FLANGE
0-91180-210-0
02
1
0804-
291
BOLT; FILER TO BRKT
M10X40 FLANGE
0-28051-040-0
02
1
0804-
634
HOSE; RUBBER RETURN
L=1900 SERVICED BY L=3000
0-01260-300-0
01
1
0804-
32
32
100
41
101
97
103
48
38
289
289
41
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(A) L=700 SERVICED BY L=3000
0-01260-300-0
01
1
0804-
32
PIPE; DELIVERY,FUEL TANK
(B) L=1100 SERVICED BY L=3000
0-01262-300-0
01
1
0804-
38
SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300
1-09360-677-1
02
1
0804-
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=14
1-09704-102-0
04
1
0804-
41
CLIP; FUEL PIPE,FUEL TANK
(B) ID=19
8-94238-569-0
02
1
0804-
48
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0804-
96
GROMMET; PIPE,FUEL TANK
ID=32 OD=40 T=18
1-09891-003-0
01
1
0804-
97
BRACKET; CLIP
FUEL TANK 550L+450L<EDQ> (A)
8-98093-319-0
01
1
0804-
97
BRACKET; CLIP
(B)
8-98082-470-0
02
1
0804-
100
CLIP; FUEL PIPE
ID=19X32 H=17.5 L=22.5
1-09701-315-0
02
1
0804-
101
BOLT; CLIP,FUEL PIPE
M8X20 FLANGE
0-28650-820-0
02
1
0804-
103
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0804-
289
CLIP; BAND,HOSE
L=250
5-09707-030-1
04
1
0804-
