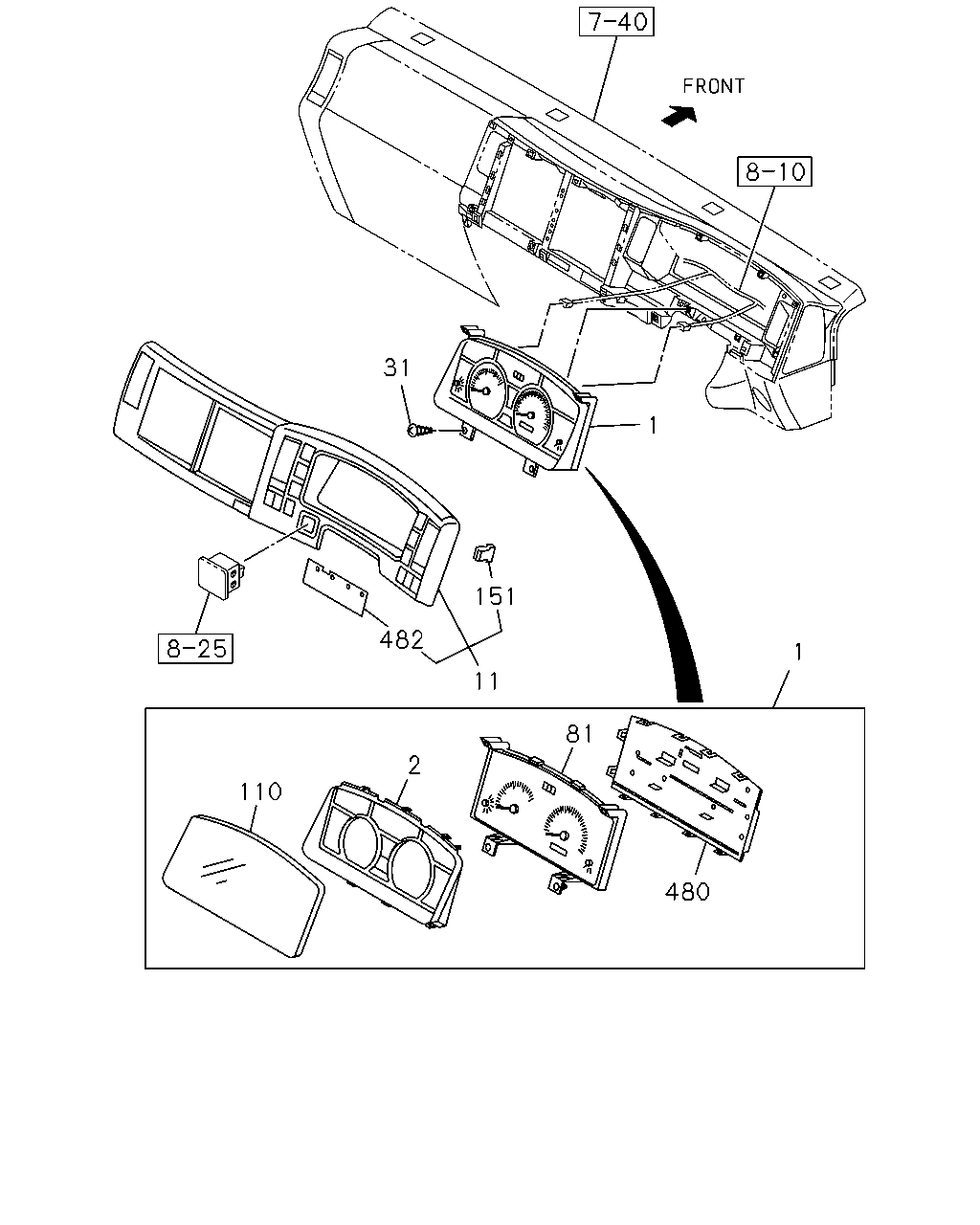

8-21 — METER ASM (#150809) — 9 parça

110 2 81 480 1 11 482 31 1 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	METER COMPL; CLUSTER EXC. MULTI INFORMATION DISPLAY<7NY> THA	8-98179-478-2	01	1	1410-	●	●
2	PANEL; CLUSTER THA	8-98054-432-0	01	1	1410-	●	●
11	CLUSTER ASM; METER THA	8-97926-378-2	01	1	1410-	●	●
31	SCREW; METER,INST PANEL T25 M5X16 TAPPING HEXALOBULAR THA	0-72180-516-0	04	1	1410-	●	●
81	METER SUB ASM EXC. MULTI INFORMATION DISPLAY<7NY> THA	8-98179-486-0	01	1	1410-	●	●
110	GLASS; CLUSTER METER EXC. MULTI INFORMATION DISPLAY<7NY> THA	8-98054-431-0	01	1	1410-	●	●
151	CLIP; METER CLUSTER THA	8-97926-387-0	13	1	1410-	●	●
480	COVER; METER BLACK THA	8-98054-433-0	01	1	1410-	●	●
482	SEAL; CLUSTER METER THA	8-97926-388-0	01	1	1410-	●	●
