◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11652 - FXZ/GXZ THAILAND EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#150807) — 419 parça

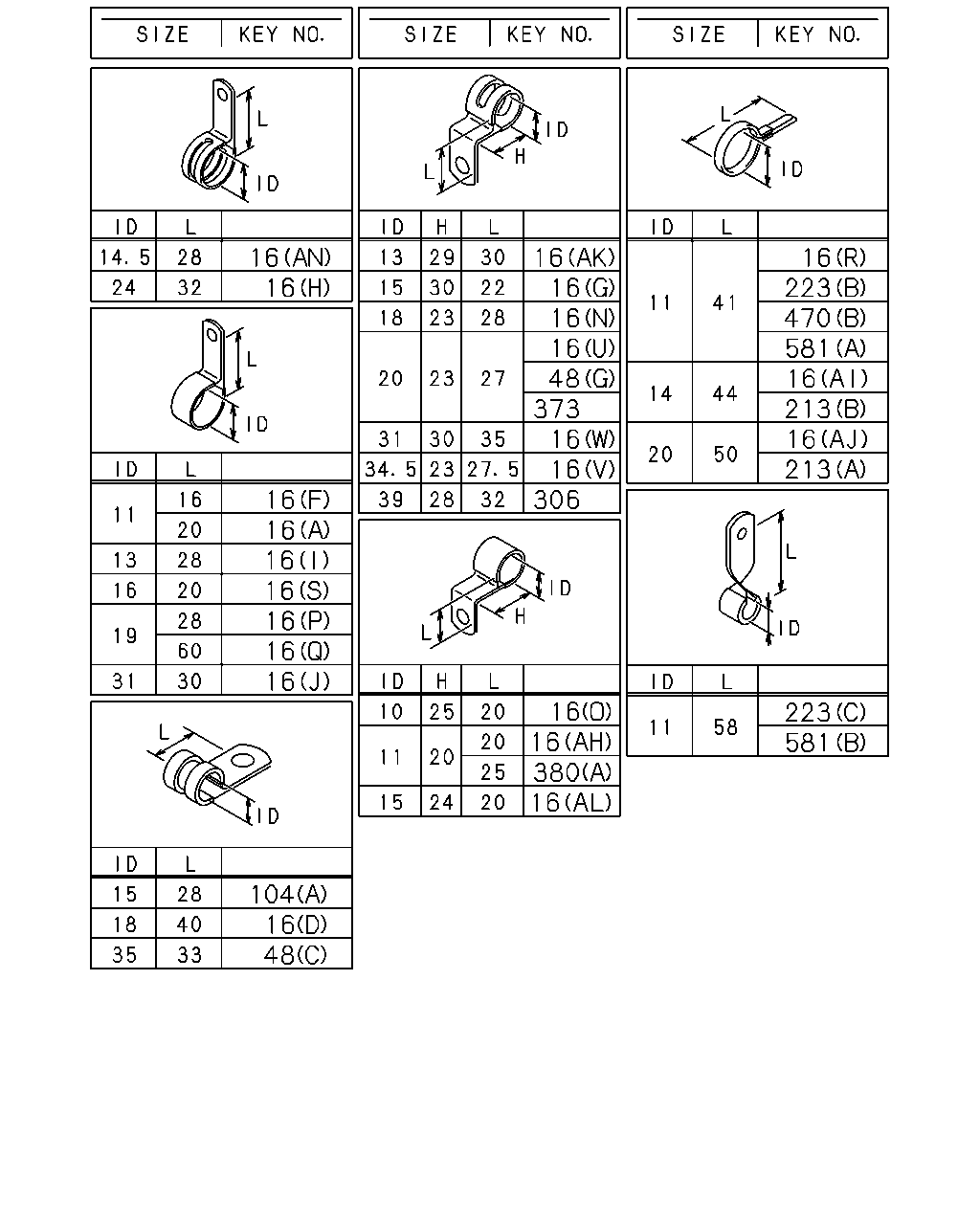

çizim 449150
16 16 16 16 16 16 16 16 16 104 16 48 16 16 16 16 48 373 16 16 306 16 16 380 16 16 223 470 581 16 213 16 213 223 581
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(M) L=36 THA 		8-94224-891-1 01 1 1410- ● ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (M) L=36 THA 		8-94224-891-1 01 1 1410- ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 THA 		1-09700-861-0 01 1 1410- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 THA 		1-09700-861-0 01 1 1410- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 THA 		1-09700-994-0 01 1 1410- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 THA 		1-09700-994-0 01 1 1410- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 THA 		0-95235-035-0 03 1 1410- ● ●
16 CLIP; HARNESS
(H) ID=24 L=32 THA 		1-09700-766-1 01 1 1410- ● ●
16 CLIP; HARNESS
(J) ID=31 L=30 THA 		1-09700-969-0 01 1 1410- ● ●
16 CLIP; HARNESS
(D) ID=18 L=40 THA 		1-09701-111-0 01 1 1410- ● ●
16 CLIP; HARNESS
(G) ID=15 L=22 H=30 THA 		1-09701-215-1 01 1 1410- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 THA 		1-09709-178-0 01 1 1410- ● ●
16 CLIP; HARNESS
(L) ID=21 L=47.5 THA 		8-94178-108-0 01 1 1410- ● ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (S) ID=16 L=20 THA 		0-95235-535-0 01 1 1410- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (AK) ID=13 H=29 L=30 THA 		1-09700-001-0 01 1 1410- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (N) ID=18 H=23 L=28 THA 		1-09701-070-0 02 1 1410- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (K) OD=9 H=6 THA 		1-09709-178-0 02 1 1410- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (I) ID=13 L=28 THA 		0-95235-255-0 01 1 1410- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (O) ID=10 H=25 L=20 THA 		1-09700-519-0 01 1 1410- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (AL) ID=15 H=24 L=20 THA 		1-09700-606-0 01 1 1410- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (AN) ID=14.5 L=28 THA 		1-09701-013-0 01 1 1410- ●
16 CLIP; HARNESS
ZF9S1310 M/T<Y5K> (P) ID=19 L=28 THA 		0-95235-856-0 01 1 1410- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T<Y5K> (Q) ID=19 L=60 THA 		0-95235-896-0 02 1 1410- ● ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (C) ID=13-18 L=18 THA 		1-09709-291-0 09 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (Z) ID=5-12 L=18 THA 		1-09709-287-0 04 1 1410- ● ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (B) ID=5-12 L=22 THA 		1-09709-288-0 02 1 1410- ● ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (AD) L=250 THA 		5-09707-030-1 02 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (AD) L=250 THA 		5-09707-030-1 02 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (X) L=350 THA 		1-09707-183-0 04 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (C) ID=13-18 L=18 THA 		1-09709-291-0 02 1 1410- ●
16 CLIP; HARNESS
(AI) ID=14 L=44 THA 		9-09917-427-0 03 1 1410- ● ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (AI) ID=14 L=44 THA 		9-09917-427-0 03 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (Z) ID=5-12 L=18 THA 		1-09709-287-0 06 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (C) ID=13-18 L=18 THA 		1-09709-291-0 12 1 1410- ●
16 CLIP; HARNESS
(F) ID=11 L=16 THA 		0-95235-025-0 01 1 1410- ● ●
16 CLIP; HARNESS
(R) ID=11 L=41 THA 		1-09700-403-0 01 1 1410- ● ●
16 CLIP; HARNESS
(N) ID=18 H=23 L=28 THA 		1-09700-860-0 01 1 1410- ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 03 1 1410- ● ●
16 CLIP; HARNESS
(X) L=350 THA 		1-09707-183-0 06 1 1410- ● ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 THA 		1-09709-290-0 01 1 1410- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 THA 		1-09987-221-0 01 1 1410- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 THA 		1-09987-221-0 05 1 1410- ● ●
16 CLIP; HARNESS
(AF) ID=10 & 16 THA 		8-94413-325-0 01 1 1410- ● ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 THA 		8-94486-835-0 01 1 1410- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 THA 		8-97368-793-0 02 1 1410- ● ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 THA 		8-98033-780-0 01 1 1410- ● ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 THA 		9-09917-430-0 02 1 1410- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (F) ID=11 L=16 THA 		0-95235-025-0 02 1 1410- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (T) ID=11X2 L=16 THA 		0-95325-025-0 01 1 1410- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (X) L=350 THA 		1-09707-183-0 01 1 1410- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 THA 		1-09709-291-0 03 1 1410- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (AM) ID=18-24 L=18 THA 		1-09709-294-0 06 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (AA) ID=13-18 L=14.5 THA 		1-09709-290-0 02 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 THA 		1-09709-291-0 07 1 1410- ●
16 CLIP; HARNESS
(Y) L=155 THA 		8-97173-307-0 18 1 1410- ● ●
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1410- ● ●
16 CLIP; HARNESS
(AE) L=140 THA 		8-97920-656-0 04 1 1410- ● ●
16 CLIP; HARNESS
(AG) THA 		8-98052-679-0 02 1 1410- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (AE) L=140 THA 		8-97920-656-0 01 1 1410- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM<47W> (B) ID=13-18 L=22 THA 		1-09709-292-0 02 1 1410- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) ID=13-18 L=22 THA 		1-09709-292-0 02 1 1410- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (D) ID=13-18 L=26 THA 		1-09709-293-0 02 1 1410- ●
48 CLIP; FRAME HARNESS
(G) ID=20 H=23 L=27 THA 		1-09700-861-0 01 1 1410- ● ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 THA 		1-09700-945-0 04 1 1410- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 THA 		1-09707-183-0 06 1 1410- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 THA 		1-09707-183-0 08 1 1410- ● ●
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=14.5 THA 		1-09987-221-0 01 1 1410- ● ●
48 CLIP; FRAME HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (F) ID=18-24 L=22 THA 		1-09709-295-0 02 1 1410- ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 THA 		1-09701-216-0 01 1 1410- ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 THA 		1-09707-183-0 02 1 1410- ● ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 THA 		1-09709-178-0 01 1 1410- ● ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 THA 		1-09709-179-0 01 1 1410- ● ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 THA 		1-09709-290-0 02 1 1410- ● ●
213 CLIP; END CROSS HARNESS
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (B) ID=14 L=44 THA 		9-09917-427-0 03 1 1410- ●
213 CLIP; END CROSS HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) ID=14 L=44 THA 		9-09917-427-0 03 1 1410- ●
213 CLIP; END CROSS HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (A) ID=20 L=50 THA 		9-09917-430-0 03 1 1410- ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4700MM<47W> (B) ID=11 L=41 THA 		1-09700-403-0 01 1 1410- ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) ID=5-12 L=18 THA 		1-09709-287-0 01 1 1410- ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=58 THA 		9-09917-135-2 01 1 1410- ●
306 CLIP; HARNESS,ELEC GOV
ID=39 H=28 L=32 THA 		1-09701-263-0 03 1 1410- ● ●
373 CLIP; BAND,GEN HARNESS
ID=20 H=23 L=27 THA 		1-09700-861-0 02 1 1410- ● ●
380 CLIP; EARTH HARNESS
(A) ID=11 H=20 L=25 THA 		1-09700-848-0 02 1 1410- ● ●
380 CLIP; EARTH HARNESS
(B) L=350 THA 		1-09707-183-0 03 1 1410- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 THA 		1-09709-178-0 01 1 1410- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 THA 		1-09700-403-0 01 1 1410- ●
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 THA 		1-09707-183-0 01 1 1410- ●
470 CLIP; HARNESS,LICENSE LAMP
(D) L=140 THA 		8-97920-656-0 02 1 1410- ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 4700MM<47W> (A) ID=11 L=41 THA 		1-09700-403-0 02 1 1410- ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 4700MM<47W> (B) ID=11 L=58 THA 		9-09917-135-2 01 1 1410- ●

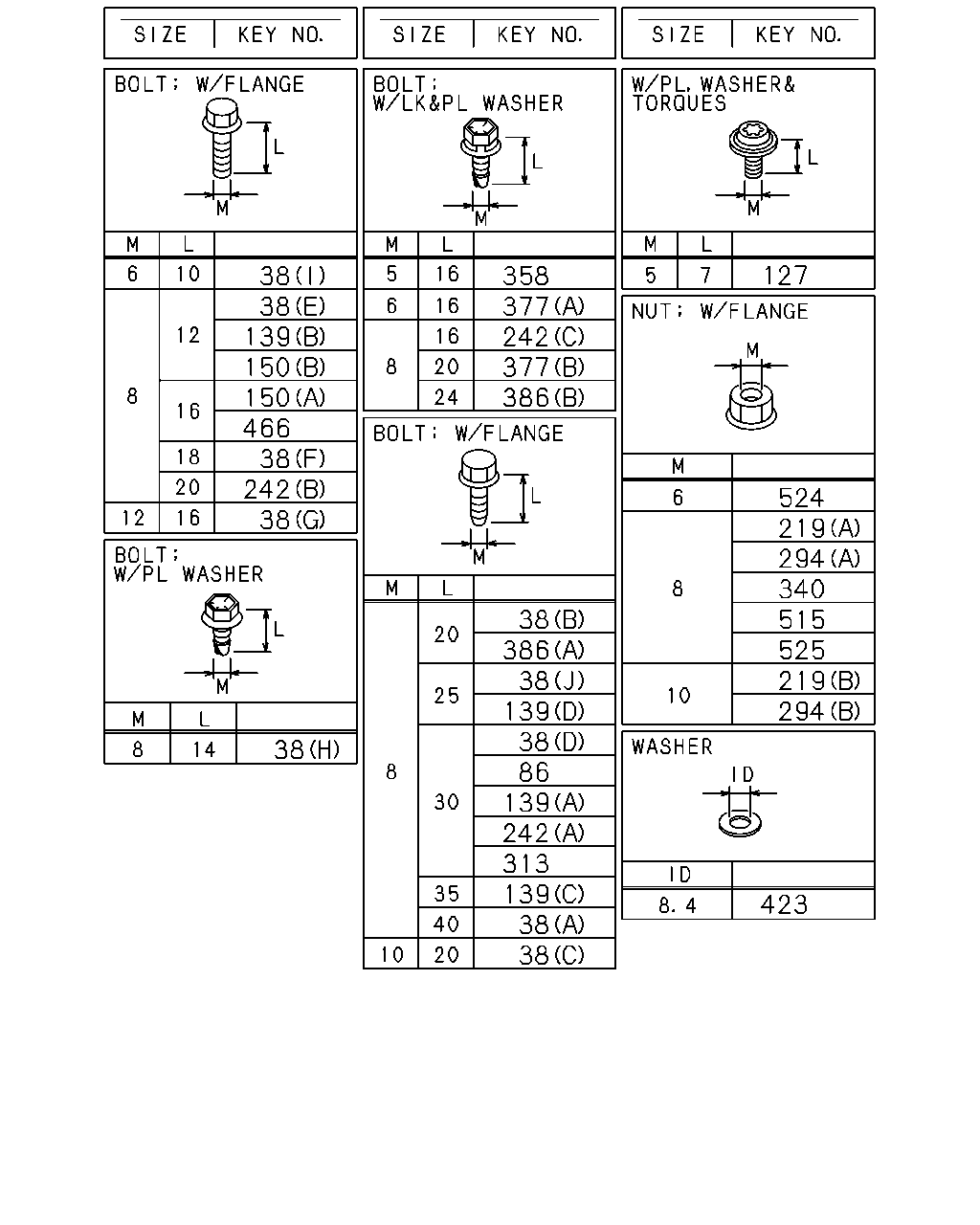

çizim 449198
38 38 139 150 150 466 38 242 38 38 358 377 242 377 386 127 38 386 38 139 38 86 139 242 313 139 38 38 524 219 294 340 515 525 219 294 423
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(G) M12X16 FLANGE THA 		0-28051-216-0 01 1 1410- ● ●
38 BOLT; CLIP,HARNESS
(F) M8X18 FLANGE THA 		0-28080-818-0 01 1 1410- ● ●
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER THA 		8-98164-837-0 03 1 1410- ● ●
38 BOLT; CLIP,HARNESS
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (C) M10X20 FLANGE THA 		0-28751-020-0 01 1 1410- ●
38 BOLT; CLIP,HARNESS
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) M8X20 FLANGE THA 		0-28650-820-0 03 1 1410- ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (B) M8X20 FLANGE THA 		0-28650-820-0 03 1 1410- ●
38 BOLT; CLIP,HARNESS
ZF9S1310 M/T<Y5K> (B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1410- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1410- ● ●
38 BOLT; CLIP,HARNESS
WHEEL BASE 4700MM<47W> (B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1410- ●
38 BOLT; CLIP,HARNESS
ZF9S1310 M/T<Y5K> (E) M8X12 FLANGE THA 		0-28050-812-0 02 1 1410- ● ●
38 BOLT; CLIP,HARNESS
(I) M6X10 FLANGE THA 		0-28050-610-0 01 1 1410- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE THA 		0-28650-820-0 04 1 1410- ● ●
38 BOLT; CLIP,HARNESS
(J) M8X25 FLANGE THA 		0-28650-825-0 06 1 1410- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE THA 		0-28650-830-0 02 1 1410- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE THA 		0-28650-830-0 09 1 1410- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X40 FLANGE THA 		0-28650-840-0 01 1 1410- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE THA 		0-28650-830-0 01 1 1410- ●
86 BOLT; CLIP BRKT
M8X30 FLANGE THA 		0-28650-830-0 01 1 1410- ● ●
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET THA 		8-98063-767-0 01 1 1410- ● ●
139 BOLT; BRKT
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1410- ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1410- ●
139 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1410- ● ●
139 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 06 1 1410- ● ●
139 BOLT; BRKT
(C) M8X35 FLANGE THA 		0-28650-835-0 02 1 1410- ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> (A) M8X30 FLANGE THA 		0-28650-830-0 03 1 1410- ●
139 BOLT; BRKT
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (D) M8X25 FLANGE THA 		0-28650-825-0 02 1 1410- ●
150 BOLT; CLIP
(B) M8X12 FLANGE THA 		0-28050-812-0 02 1 1410- ● ●
150 BOLT; CLIP
(A) M8X16 FLANGE THA 		0-28050-816-0 08 1 1410- ● ●
219 NUT
MAL6R M/T<Y2J> (B) M10 FLANGE THA 		0-91180-210-0 01 1 1410- ●
219 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1410- ● ●
219 NUT
WHEEL BASE 4700MM<47W> (A) M8 FLANGE THA 		0-91180-108-0 01 1 1410- ●
219 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1410- ●
219 NUT
(A) M8 FLANGE THA 		0-91180-108-0 08 1 1410- ● ●
219 NUT
ANTILOCK BRAKE SYSTEM<BFA> (A) M8 FLANGE THA 		0-91180-108-0 03 1 1410- ●
242 BOLT; BRKT,HARNESS
(C) M8X16 W/LK&PL WASHER THA 		1-09980-498-0 02 1 1410- ● ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE THA 		0-28050-820-0 01 1 1410- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1410- ● ●
294 NUT
MAL6R M/T<Y2J> (B) M10 FLANGE THA 		0-91180-210-0 02 1 1410- ●
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1410- ● ●
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1410- ● ●
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 07 1 1410- ● ●
294 NUT
ANTILOCK BRAKE SYSTEM<BFA> (A) M8 FLANGE THA 		0-91180-108-0 03 1 1410- ●
313 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 08 1 1410- ● ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE THA 		0-91180-108-0 03 1 1410- ● ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER THA 		8-94198-538-0 01 1 1410- ● ●
377 BOLT; CAB EARTH
(A) M6X16 W/LK&PL WASHER THA 		8-97086-823-0 02 1 1410- ● ●
377 BOLT; CAB EARTH
(B) M8X20 W/LK&PL WASHER THA 		8-97086-825-0 01 1 1410- ● ●
386 BOLT; GRAND HARNESS
(B) M8X24 W/PL WASHER THA 		8-98141-256-1 02 1 1410- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 FLANGE THA 		0-28650-820-0 02 1 1410- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 THA 		1-09503-264-0 03 1 1410- ● ●
466 BOLT; HEAT PROTECTOR
M8X16 FLANGE THA 		0-28050-816-0 02 1 1410- ● ●
515 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1410- ● ●
515 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 08 1 1410- ● ●
515 NUT; BRKT
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA 		0-91180-108-0 02 1 1410- ●
524 NUT; HARNESS
M6 FLANGE THA 		0-91180-106-0 04 1 1410- ● ●
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 02 1 1410- ● ●

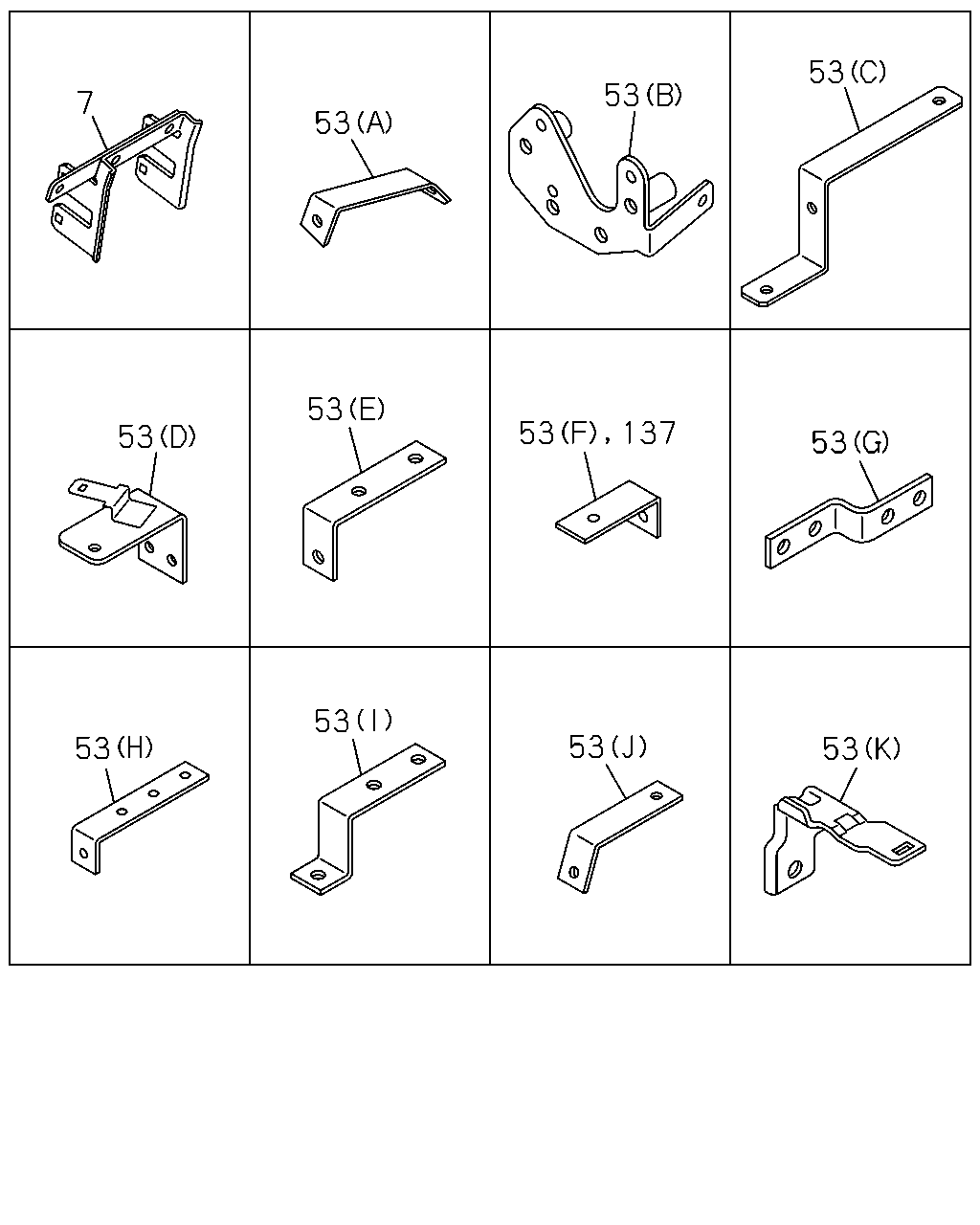

çizim 451540
7 53 53 53 53 53 53 53 53 53 53 53 137
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR
THA 		8-97925-591-0 01 1 1410- ● ●
53 BRACKET; HARNESS
(B) THA 		8-97611-413-0 01 1 1410- ● ●
53 BRACKET; HARNESS
(F) L=65 THA 		1-47479-064-1 01 1 1410- ● ●
53 BRACKET; HARNESS
(A) THA 		1-47479-537-0 06 1 1410- ● ●
53 BRACKET; HARNESS
(A) THA 		1-47479-537-0 08 1 1410- ● ●
53 BRACKET; HARNESS
(G) THA 		1-82569-278-0 01 1 1410- ● ●
53 BRACKET; HARNESS
(H) L=120 H=35 THA 		1-82698-088-0 01 1 1410- ● ●
53 BRACKET; HARNESS
(I) THA 		1-82698-382-0 01 1 1410- ● ●
53 BRACKET; HARNESS
(J) THA 		1-82698-514-0 01 1 1410- ● ●
53 BRACKET; HARNESS
(K) THA 		8-98052-458-0 01 1 1410- ● ●
53 BRACKET; HARNESS
(C) THA 		8-98078-801-0 01 1 1410- ● ●
53 BRACKET; HARNESS
(D) THA 		8-98102-490-0 01 1 1410- ● ●
53 BRACKET; HARNESS
(E) L=82 B=20 THA 		8-98259-390-0 01 1 1410- ● ●
53 BRACKET; HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (F) L=65 THA 		1-47479-064-1 02 1 1410- ●
137 BRACKET; HARNESS CLAMP
ANTILOCK BRAKE SYSTEM<BFA> 25X37 THA 		1-34656-004-0 01 1 1410- ●

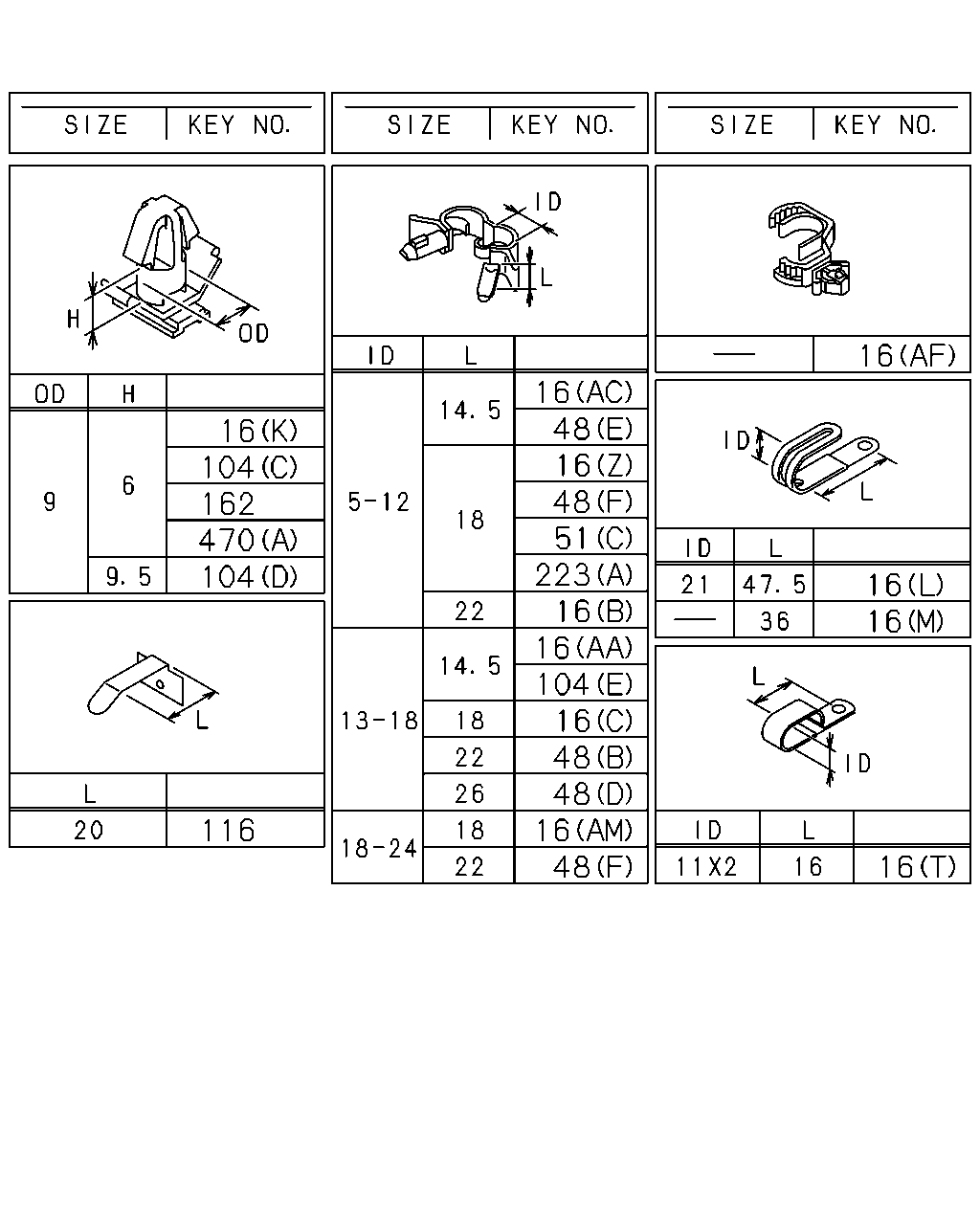

çizim 451580
16 104 162 470 104 116 16 48 16 48 51 223 16 16 104 16 48 48 16 48 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(M) L=36 THA 		8-94224-891-1 01 1 1410- ● ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (M) L=36 THA 		8-94224-891-1 01 1 1410- ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 THA 		1-09700-861-0 01 1 1410- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 THA 		1-09700-861-0 01 1 1410- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 THA 		1-09700-994-0 01 1 1410- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 THA 		1-09700-994-0 01 1 1410- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 THA 		0-95235-035-0 03 1 1410- ● ●
16 CLIP; HARNESS
(H) ID=24 L=32 THA 		1-09700-766-1 01 1 1410- ● ●
16 CLIP; HARNESS
(J) ID=31 L=30 THA 		1-09700-969-0 01 1 1410- ● ●
16 CLIP; HARNESS
(D) ID=18 L=40 THA 		1-09701-111-0 01 1 1410- ● ●
16 CLIP; HARNESS
(G) ID=15 L=22 H=30 THA 		1-09701-215-1 01 1 1410- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 THA 		1-09709-178-0 01 1 1410- ● ●
16 CLIP; HARNESS
(L) ID=21 L=47.5 THA 		8-94178-108-0 01 1 1410- ● ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (S) ID=16 L=20 THA 		0-95235-535-0 01 1 1410- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (AK) ID=13 H=29 L=30 THA 		1-09700-001-0 01 1 1410- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (N) ID=18 H=23 L=28 THA 		1-09701-070-0 02 1 1410- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (K) OD=9 H=6 THA 		1-09709-178-0 02 1 1410- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (I) ID=13 L=28 THA 		0-95235-255-0 01 1 1410- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (O) ID=10 H=25 L=20 THA 		1-09700-519-0 01 1 1410- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (AL) ID=15 H=24 L=20 THA 		1-09700-606-0 01 1 1410- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (AN) ID=14.5 L=28 THA 		1-09701-013-0 01 1 1410- ●
16 CLIP; HARNESS
ZF9S1310 M/T<Y5K> (P) ID=19 L=28 THA 		0-95235-856-0 01 1 1410- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T<Y5K> (Q) ID=19 L=60 THA 		0-95235-896-0 02 1 1410- ● ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (C) ID=13-18 L=18 THA 		1-09709-291-0 09 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (Z) ID=5-12 L=18 THA 		1-09709-287-0 04 1 1410- ● ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (B) ID=5-12 L=22 THA 		1-09709-288-0 02 1 1410- ● ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (AD) L=250 THA 		5-09707-030-1 02 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (AD) L=250 THA 		5-09707-030-1 02 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (X) L=350 THA 		1-09707-183-0 04 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (C) ID=13-18 L=18 THA 		1-09709-291-0 02 1 1410- ●
16 CLIP; HARNESS
(AI) ID=14 L=44 THA 		9-09917-427-0 03 1 1410- ● ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (AI) ID=14 L=44 THA 		9-09917-427-0 03 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (Z) ID=5-12 L=18 THA 		1-09709-287-0 06 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (C) ID=13-18 L=18 THA 		1-09709-291-0 12 1 1410- ●
16 CLIP; HARNESS
(F) ID=11 L=16 THA 		0-95235-025-0 01 1 1410- ● ●
16 CLIP; HARNESS
(R) ID=11 L=41 THA 		1-09700-403-0 01 1 1410- ● ●
16 CLIP; HARNESS
(N) ID=18 H=23 L=28 THA 		1-09700-860-0 01 1 1410- ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 03 1 1410- ● ●
16 CLIP; HARNESS
(X) L=350 THA 		1-09707-183-0 06 1 1410- ● ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 THA 		1-09709-290-0 01 1 1410- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 THA 		1-09987-221-0 01 1 1410- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 THA 		1-09987-221-0 05 1 1410- ● ●
16 CLIP; HARNESS
(AF) ID=10 & 16 THA 		8-94413-325-0 01 1 1410- ● ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 THA 		8-94486-835-0 01 1 1410- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 THA 		8-97368-793-0 02 1 1410- ● ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 THA 		8-98033-780-0 01 1 1410- ● ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 THA 		9-09917-430-0 02 1 1410- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (F) ID=11 L=16 THA 		0-95235-025-0 02 1 1410- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (T) ID=11X2 L=16 THA 		0-95325-025-0 01 1 1410- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (X) L=350 THA 		1-09707-183-0 01 1 1410- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 THA 		1-09709-291-0 03 1 1410- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (AM) ID=18-24 L=18 THA 		1-09709-294-0 06 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (AA) ID=13-18 L=14.5 THA 		1-09709-290-0 02 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 THA 		1-09709-291-0 07 1 1410- ●
16 CLIP; HARNESS
(Y) L=155 THA 		8-97173-307-0 18 1 1410- ● ●
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1410- ● ●
16 CLIP; HARNESS
(AE) L=140 THA 		8-97920-656-0 04 1 1410- ● ●
16 CLIP; HARNESS
(AG) THA 		8-98052-679-0 02 1 1410- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (AE) L=140 THA 		8-97920-656-0 01 1 1410- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM<47W> (B) ID=13-18 L=22 THA 		1-09709-292-0 02 1 1410- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) ID=13-18 L=22 THA 		1-09709-292-0 02 1 1410- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (D) ID=13-18 L=26 THA 		1-09709-293-0 02 1 1410- ●
48 CLIP; FRAME HARNESS
(G) ID=20 H=23 L=27 THA 		1-09700-861-0 01 1 1410- ● ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 THA 		1-09700-945-0 04 1 1410- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 THA 		1-09707-183-0 06 1 1410- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 THA 		1-09707-183-0 08 1 1410- ● ●
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=14.5 THA 		1-09987-221-0 01 1 1410- ● ●
48 CLIP; FRAME HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (F) ID=18-24 L=22 THA 		1-09709-295-0 02 1 1410- ●
51 CLIP; COOLER CMPR
(A) L=180 THA 		1-09707-162-1 01 1 1410- ● ●
51 CLIP; COOLER CMPR
(B) L=350 THA 		1-09707-183-0 01 1 1410- ● ●
51 CLIP; COOLER CMPR
(C) ID=5-12 L=18 THA 		1-09709-287-0 01 1 1410- ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 THA 		1-09701-216-0 01 1 1410- ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 THA 		1-09707-183-0 02 1 1410- ● ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 THA 		1-09709-178-0 01 1 1410- ● ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 THA 		1-09709-179-0 01 1 1410- ● ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 THA 		1-09709-290-0 02 1 1410- ● ●
116 CLIP; ROOF HARNESS
L=20 THA 		1-09987-246-2 03 1 1410- ● ●
162 CLIP; SW HARNESS
OD=9 H=6 THA 		1-09709-178-0 01 1 1410- ● ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4700MM<47W> (B) ID=11 L=41 THA 		1-09700-403-0 01 1 1410- ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) ID=5-12 L=18 THA 		1-09709-287-0 01 1 1410- ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=58 THA 		9-09917-135-2 01 1 1410- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 THA 		1-09709-178-0 01 1 1410- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 THA 		1-09700-403-0 01 1 1410- ●
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 THA 		1-09707-183-0 01 1 1410- ●
470 CLIP; HARNESS,LICENSE LAMP
(D) L=140 THA 		8-97920-656-0 02 1 1410- ●
çizim 451583
211 312 375 312 335 335 335 375 375 600
BalonParca AdiParca NoAdetTipApplied Date A B
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM<BFA> THA 		8-97621-352-1 01 1 1410- ●
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM<BFA> THA 		8-97621-353-1 01 1 1410- ●
312 BRACKET; CLIP HARNESS
MAL6R M/T<Y2J> (B) THA 		1-47476-932-0 01 1 1410- ●
312 BRACKET; CLIP HARNESS
(A) THA 		8-97619-440-0 01 1 1410- ● ●
335 BRACKET; CONNECTOR
MAL6R M/T<Y2J> (A) THA 		1-82699-425-0 01 1 1410- ●
335 BRACKET; CONNECTOR
(B) THA 		1-82698-358-0 01 1 1410- ● ●
335 BRACKET; CONNECTOR
ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		1-82698-167-0 01 1 1410- ●
375 BRACKET; AC GEN HARNESS CLIP
(A) L=120 H=35 THA 		1-82698-088-0 01 1 1410- ● ●
375 BRACKET; AC GEN HARNESS CLIP
(B) THA 		1-82698-569-0 01 1 1410- ● ●
375 BRACKET; AC GEN HARNESS CLIP
(C) THA 		1-82698-583-1 01 1 1410- ● ●
600 PROTECTOR; HEAT
THA 		8-97608-456-0 01 1 1410- ● ●
çizim 451781
1 178 178 178 178 530 16 194 206 470 16 14 194 14 16 48 51 104 171 194 380 425 470 369 51 538
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
ID=38.1 L=50 THA 		5-09360-835-0 01 1 1410- ● ●
14 CLIP; BAND,HARNESS
ZF9S1310 M/T<Y5K> (A) L=350 THA 		1-09707-183-0 01 1 1410- ● ●
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (A) L=350 THA 		1-09707-183-0 02 1 1410- ●
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (B) L=250 THA 		1-09707-126-0 02 1 1410- ●
16 CLIP; HARNESS
(M) L=36 THA 		8-94224-891-1 01 1 1410- ● ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (M) L=36 THA 		8-94224-891-1 01 1 1410- ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 THA 		1-09700-861-0 01 1 1410- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 THA 		1-09700-861-0 01 1 1410- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 THA 		1-09700-994-0 01 1 1410- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 THA 		1-09700-994-0 01 1 1410- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 THA 		0-95235-035-0 03 1 1410- ● ●
16 CLIP; HARNESS
(H) ID=24 L=32 THA 		1-09700-766-1 01 1 1410- ● ●
16 CLIP; HARNESS
(J) ID=31 L=30 THA 		1-09700-969-0 01 1 1410- ● ●
16 CLIP; HARNESS
(D) ID=18 L=40 THA 		1-09701-111-0 01 1 1410- ● ●
16 CLIP; HARNESS
(G) ID=15 L=22 H=30 THA 		1-09701-215-1 01 1 1410- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 THA 		1-09709-178-0 01 1 1410- ● ●
16 CLIP; HARNESS
(L) ID=21 L=47.5 THA 		8-94178-108-0 01 1 1410- ● ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (S) ID=16 L=20 THA 		0-95235-535-0 01 1 1410- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (AK) ID=13 H=29 L=30 THA 		1-09700-001-0 01 1 1410- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (N) ID=18 H=23 L=28 THA 		1-09701-070-0 02 1 1410- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (K) OD=9 H=6 THA 		1-09709-178-0 02 1 1410- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (I) ID=13 L=28 THA 		0-95235-255-0 01 1 1410- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (O) ID=10 H=25 L=20 THA 		1-09700-519-0 01 1 1410- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (AL) ID=15 H=24 L=20 THA 		1-09700-606-0 01 1 1410- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (AN) ID=14.5 L=28 THA 		1-09701-013-0 01 1 1410- ●
16 CLIP; HARNESS
ZF9S1310 M/T<Y5K> (P) ID=19 L=28 THA 		0-95235-856-0 01 1 1410- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T<Y5K> (Q) ID=19 L=60 THA 		0-95235-896-0 02 1 1410- ● ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (C) ID=13-18 L=18 THA 		1-09709-291-0 09 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (Z) ID=5-12 L=18 THA 		1-09709-287-0 04 1 1410- ● ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (B) ID=5-12 L=22 THA 		1-09709-288-0 02 1 1410- ● ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (AD) L=250 THA 		5-09707-030-1 02 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (AD) L=250 THA 		5-09707-030-1 02 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (X) L=350 THA 		1-09707-183-0 04 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (C) ID=13-18 L=18 THA 		1-09709-291-0 02 1 1410- ●
16 CLIP; HARNESS
(AI) ID=14 L=44 THA 		9-09917-427-0 03 1 1410- ● ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (AI) ID=14 L=44 THA 		9-09917-427-0 03 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (Z) ID=5-12 L=18 THA 		1-09709-287-0 06 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (C) ID=13-18 L=18 THA 		1-09709-291-0 12 1 1410- ●
16 CLIP; HARNESS
(F) ID=11 L=16 THA 		0-95235-025-0 01 1 1410- ● ●
16 CLIP; HARNESS
(R) ID=11 L=41 THA 		1-09700-403-0 01 1 1410- ● ●
16 CLIP; HARNESS
(N) ID=18 H=23 L=28 THA 		1-09700-860-0 01 1 1410- ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 03 1 1410- ● ●
16 CLIP; HARNESS
(X) L=350 THA 		1-09707-183-0 06 1 1410- ● ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 THA 		1-09709-290-0 01 1 1410- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 THA 		1-09987-221-0 01 1 1410- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 THA 		1-09987-221-0 05 1 1410- ● ●
16 CLIP; HARNESS
(AF) ID=10 & 16 THA 		8-94413-325-0 01 1 1410- ● ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 THA 		8-94486-835-0 01 1 1410- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 THA 		8-97368-793-0 02 1 1410- ● ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 THA 		8-98033-780-0 01 1 1410- ● ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 THA 		9-09917-430-0 02 1 1410- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (F) ID=11 L=16 THA 		0-95235-025-0 02 1 1410- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (T) ID=11X2 L=16 THA 		0-95325-025-0 01 1 1410- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (X) L=350 THA 		1-09707-183-0 01 1 1410- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 THA 		1-09709-291-0 03 1 1410- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (AM) ID=18-24 L=18 THA 		1-09709-294-0 06 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (AA) ID=13-18 L=14.5 THA 		1-09709-290-0 02 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 THA 		1-09709-291-0 07 1 1410- ●
16 CLIP; HARNESS
(Y) L=155 THA 		8-97173-307-0 18 1 1410- ● ●
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1410- ● ●
16 CLIP; HARNESS
(AE) L=140 THA 		8-97920-656-0 04 1 1410- ● ●
16 CLIP; HARNESS
(AG) THA 		8-98052-679-0 02 1 1410- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (AE) L=140 THA 		8-97920-656-0 01 1 1410- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM<47W> (B) ID=13-18 L=22 THA 		1-09709-292-0 02 1 1410- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) ID=13-18 L=22 THA 		1-09709-292-0 02 1 1410- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (D) ID=13-18 L=26 THA 		1-09709-293-0 02 1 1410- ●
48 CLIP; FRAME HARNESS
(G) ID=20 H=23 L=27 THA 		1-09700-861-0 01 1 1410- ● ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 THA 		1-09700-945-0 04 1 1410- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 THA 		1-09707-183-0 06 1 1410- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 THA 		1-09707-183-0 08 1 1410- ● ●
48 CLIP; FRAME HARNESS
(E) ID=5-12 L=14.5 THA 		1-09987-221-0 01 1 1410- ● ●
48 CLIP; FRAME HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (F) ID=18-24 L=22 THA 		1-09709-295-0 02 1 1410- ●
51 CLIP; COOLER CMPR
(A) L=180 THA 		1-09707-162-1 01 1 1410- ● ●
51 CLIP; COOLER CMPR
(B) L=350 THA 		1-09707-183-0 01 1 1410- ● ●
51 CLIP; COOLER CMPR
(C) ID=5-12 L=18 THA 		1-09709-287-0 01 1 1410- ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 THA 		1-09701-216-0 01 1 1410- ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 THA 		1-09707-183-0 02 1 1410- ● ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 THA 		1-09709-178-0 01 1 1410- ● ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 THA 		1-09709-179-0 01 1 1410- ● ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 THA 		1-09709-290-0 02 1 1410- ● ●
171 CLIP; STARTER HARNESS
L=350 THA 		1-09707-183-0 03 1 1410- ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 THA 		9-09956-256-2 01 1 1410- ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 THA 		9-09956-256-2 01 1 1410- ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 THA 		1-09332-126-0 01 1 1410- ● ●
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 THA 		1-09332-130-0 01 1 1410- ● ●
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (D) ID=28 OD=35 T=25 THA 		1-09332-011-1 03 1 1410- ●
194 CLIP; BAND
(A) L=300 THA 		1-09707-001-1 02 1 1410- ● ●
194 CLIP; BAND
(B) L=350 THA 		1-09707-183-0 06 1 1410- ● ●
194 CLIP; BAND
(C) L=140 THA 		8-97920-656-0 02 1 1410- ● ●
206 CLIP; FUEL TANK HARNESS
(B) ID=8.3 & 10 THA 		8-94176-792-0 01 1 1410- ● ●
206 CLIP; FUEL TANK HARNESS
(A) L=140 THA 		8-97920-656-0 02 1 1410- ● ●
369 CLIP; BAND EDS HARNESS
L=500 THA 		1-09707-082-1 01 1 1410- ● ●
380 CLIP; EARTH HARNESS
(A) ID=11 H=20 L=25 THA 		1-09700-848-0 02 1 1410- ● ●
380 CLIP; EARTH HARNESS
(B) L=350 THA 		1-09707-183-0 03 1 1410- ● ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> L=350 THA 		1-09707-183-0 03 1 1410- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 THA 		1-09709-178-0 01 1 1410- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 THA 		1-09700-403-0 01 1 1410- ●
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 THA 		1-09707-183-0 01 1 1410- ●
470 CLIP; HARNESS,LICENSE LAMP
(D) L=140 THA 		8-97920-656-0 02 1 1410- ●
530 SEAL; HARNESS
180X40 THA 		1-72498-019-1 23 1 1410- ● ●
538 SEAL; HOLE
OD=25 BLACK THA 		1-76798-019-0 01 1 1410- ● ●
çizim 451785
142 16 16 206 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(M) L=36 THA 		8-94224-891-1 01 1 1410- ● ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (M) L=36 THA 		8-94224-891-1 01 1 1410- ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 THA 		1-09700-861-0 01 1 1410- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 THA 		1-09700-861-0 01 1 1410- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 THA 		1-09700-994-0 01 1 1410- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 THA 		1-09700-994-0 01 1 1410- ● ●
16 CLIP; HARNESS
(A) ID=11 L=20 THA 		0-95235-035-0 03 1 1410- ● ●
16 CLIP; HARNESS
(H) ID=24 L=32 THA 		1-09700-766-1 01 1 1410- ● ●
16 CLIP; HARNESS
(J) ID=31 L=30 THA 		1-09700-969-0 01 1 1410- ● ●
16 CLIP; HARNESS
(D) ID=18 L=40 THA 		1-09701-111-0 01 1 1410- ● ●
16 CLIP; HARNESS
(G) ID=15 L=22 H=30 THA 		1-09701-215-1 01 1 1410- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 THA 		1-09709-178-0 01 1 1410- ● ●
16 CLIP; HARNESS
(L) ID=21 L=47.5 THA 		8-94178-108-0 01 1 1410- ● ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (S) ID=16 L=20 THA 		0-95235-535-0 01 1 1410- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (AK) ID=13 H=29 L=30 THA 		1-09700-001-0 01 1 1410- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J> (N) ID=18 H=23 L=28 THA 		1-09701-070-0 02 1 1410- ●
16 CLIP; HARNESS
MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (K) OD=9 H=6 THA 		1-09709-178-0 02 1 1410- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (I) ID=13 L=28 THA 		0-95235-255-0 01 1 1410- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (O) ID=10 H=25 L=20 THA 		1-09700-519-0 01 1 1410- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (AL) ID=15 H=24 L=20 THA 		1-09700-606-0 01 1 1410- ●
16 CLIP; HARNESS
MJT7U M/T<Y4X> (AN) ID=14.5 L=28 THA 		1-09701-013-0 01 1 1410- ●
16 CLIP; HARNESS
ZF9S1310 M/T<Y5K> (P) ID=19 L=28 THA 		0-95235-856-0 01 1 1410- ● ●
16 CLIP; HARNESS
ZF9S1310 M/T<Y5K> (Q) ID=19 L=60 THA 		0-95235-896-0 02 1 1410- ● ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (C) ID=13-18 L=18 THA 		1-09709-291-0 09 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (Z) ID=5-12 L=18 THA 		1-09709-287-0 04 1 1410- ● ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (B) ID=5-12 L=22 THA 		1-09709-288-0 02 1 1410- ● ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> (AD) L=250 THA 		5-09707-030-1 02 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> (AD) L=250 THA 		5-09707-030-1 02 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (X) L=350 THA 		1-09707-183-0 04 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (C) ID=13-18 L=18 THA 		1-09709-291-0 02 1 1410- ●
16 CLIP; HARNESS
(AI) ID=14 L=44 THA 		9-09917-427-0 03 1 1410- ● ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W> (AI) ID=14 L=44 THA 		9-09917-427-0 03 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (Z) ID=5-12 L=18 THA 		1-09709-287-0 06 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (C) ID=13-18 L=18 THA 		1-09709-291-0 12 1 1410- ●
16 CLIP; HARNESS
(F) ID=11 L=16 THA 		0-95235-025-0 01 1 1410- ● ●
16 CLIP; HARNESS
(R) ID=11 L=41 THA 		1-09700-403-0 01 1 1410- ● ●
16 CLIP; HARNESS
(N) ID=18 H=23 L=28 THA 		1-09700-860-0 01 1 1410- ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 03 1 1410- ● ●
16 CLIP; HARNESS
(X) L=350 THA 		1-09707-183-0 06 1 1410- ● ●
16 CLIP; HARNESS
(AA) ID=13-18 L=14.5 THA 		1-09709-290-0 01 1 1410- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 THA 		1-09987-221-0 01 1 1410- ● ●
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 THA 		1-09987-221-0 05 1 1410- ● ●
16 CLIP; HARNESS
(AF) ID=10 & 16 THA 		8-94413-325-0 01 1 1410- ● ●
16 CLIP; HARNESS
(AB) ID=20 & 16.5 THA 		8-94486-835-0 01 1 1410- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 THA 		8-97368-793-0 02 1 1410- ● ●
16 CLIP; HARNESS
(AH) ID=11 H=20 L=20 THA 		8-98033-780-0 01 1 1410- ● ●
16 CLIP; HARNESS
(AJ) ID=20 L=50 THA 		9-09917-430-0 02 1 1410- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (F) ID=11 L=16 THA 		0-95235-025-0 02 1 1410- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (T) ID=11X2 L=16 THA 		0-95325-025-0 01 1 1410- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (X) L=350 THA 		1-09707-183-0 01 1 1410- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 THA 		1-09709-291-0 03 1 1410- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (AM) ID=18-24 L=18 THA 		1-09709-294-0 06 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (AA) ID=13-18 L=14.5 THA 		1-09709-290-0 02 1 1410- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 THA 		1-09709-291-0 07 1 1410- ●
16 CLIP; HARNESS
(Y) L=155 THA 		8-97173-307-0 18 1 1410- ● ●
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1410- ● ●
16 CLIP; HARNESS
(AE) L=140 THA 		8-97920-656-0 04 1 1410- ● ●
16 CLIP; HARNESS
(AG) THA 		8-98052-679-0 02 1 1410- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (AE) L=140 THA 		8-97920-656-0 01 1 1410- ●
142 CLIP; HARNESS,ENG
L=170.3 THA 		8-97209-720-0 01 1 1410- ● ●
206 CLIP; FUEL TANK HARNESS
(B) ID=8.3 & 10 THA 		8-94176-792-0 01 1 1410- ● ●
206 CLIP; FUEL TANK HARNESS
(A) L=140 THA 		8-97920-656-0 02 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
