7-60 — SEAT BELT (#150801) — 14 parça

çizim 451445

163 2 160 170 169 3 4

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	2	BELT; SEAT,TONGUE SIDE GRAY THA	8-97423-511-0	01	1	1410-	●	●
	3	BELT; SEAT,BUCKLE SIDE GRAY THA	8-97417-600-0	01	1	1410-	●	●
	4	BELT; PASSENGER SEAT,BUCKLE SIDE CENTER SEAT DELETE<SP9> GRAY THA	8-97417-603-0	01	1	1410-	●	●
	160	COVER; THROUGH ANCHOR GRAY THA	8-97405-991-0	01	1	1410-	●	●
	163	COVER; ADJUSTER GRAY THA	8-97405-991-0	01	1	1410-	●	●
	169	SEAL CENTER SEAT DELETE<SP9> OD=25 BLACK THA	1-76798-019-0	01	1	1410-	●	●
	170	BELT; PASSENGER SEAT,TONGUE SIDE GRAY THA	8-97423-511-0	01	1	1410-	●	●

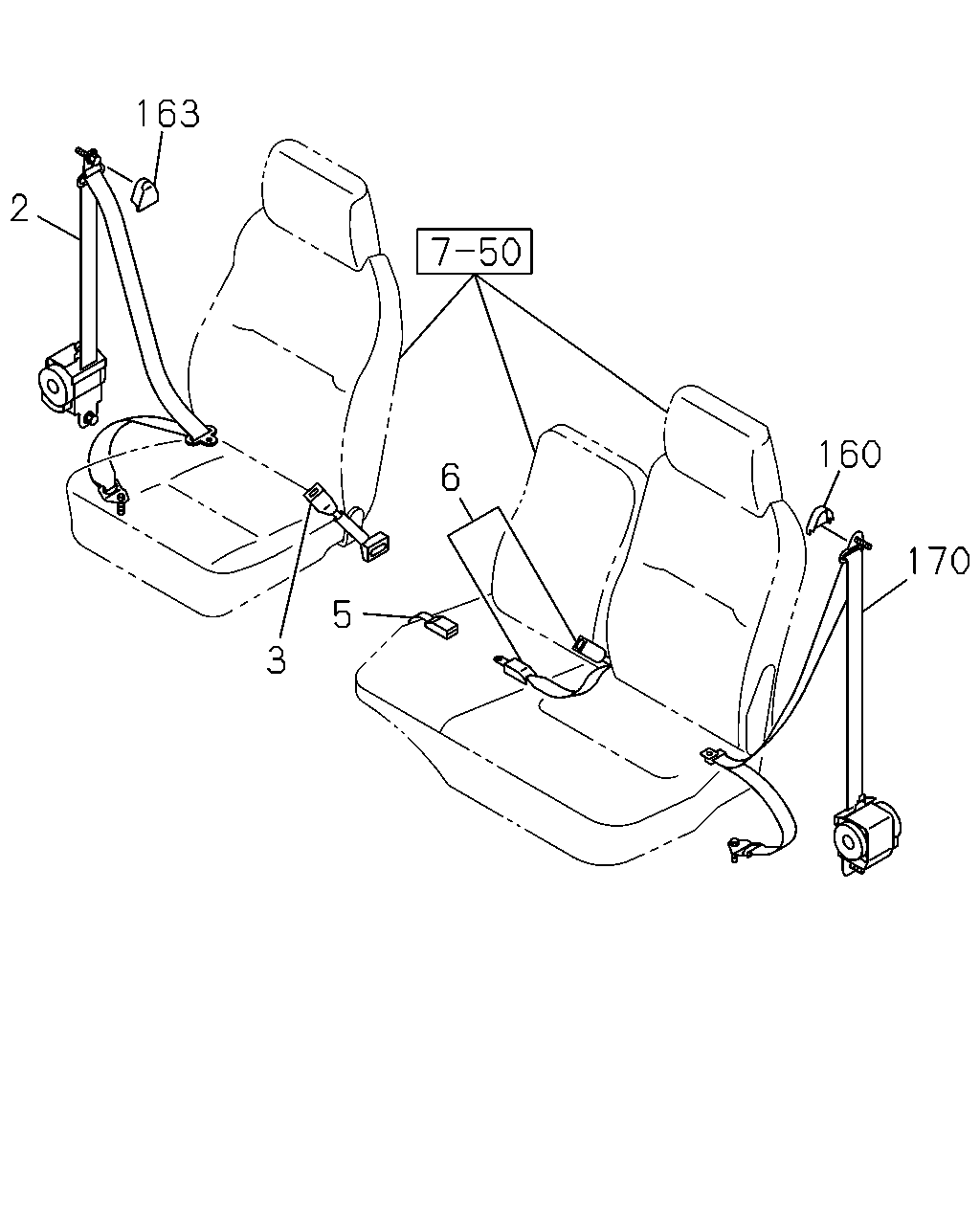

çizim 451943

163 2 3 6 5 160 170

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	2	BELT; SEAT,TONGUE SIDE GRAY THA	8-97423-511-0	01	1	1410-	●	●
	3	BELT; SEAT,BUCKLE SIDE GRAY THA	8-97417-600-0	01	1	1410-	●	●
	5	BELT; CENTER SEAT,BUCKLE SIDE EXC. CENTER SEAT DELETE<SP9> GRAY THA	8-97417-604-0	01	1	1410-	●	●
	6	BELT; CENTER SEAT,TONGUE SIDE EXC. CENTER SEAT DELETE<SP9> GRAY THA	8-97423-512-0	01	1	1410-	●	●
	160	COVER; THROUGH ANCHOR GRAY THA	8-97405-991-0	01	1	1410-	●	●
	163	COVER; ADJUSTER GRAY THA	8-97405-991-0	01	1	1410-	●	●
	170	BELT; PASSENGER SEAT,TONGUE SIDE GRAY THA	8-97423-511-0	01	1	1410-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
